Page 3049 of 3066
FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation for Washer NozzleEKS0032U
REMOVAL
1. Push washer nozzle pawl toward engine hood to pull out.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Washer NozzleEKS0032V
CHECK VALVE
lBlow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction (inhale) is not
possible.
Removal and Installation for Wiper and Washer SwitchEKS0032W
REMOVAL
1. Remove steering column cover.
2. Remove wiper washer switch connector.
3. Remove two screws then remove wiper washer switch from the
base.
INSTALLATION
Installation is in the reverse order of removal.
PKIA0481E
PKIA0482E
SKIA0018E
Page 3050 of 3066
WW-12
FRONT WIPER AND WASHER SYSTEM
Removal and Installation for Washer Tank
EKS0032X

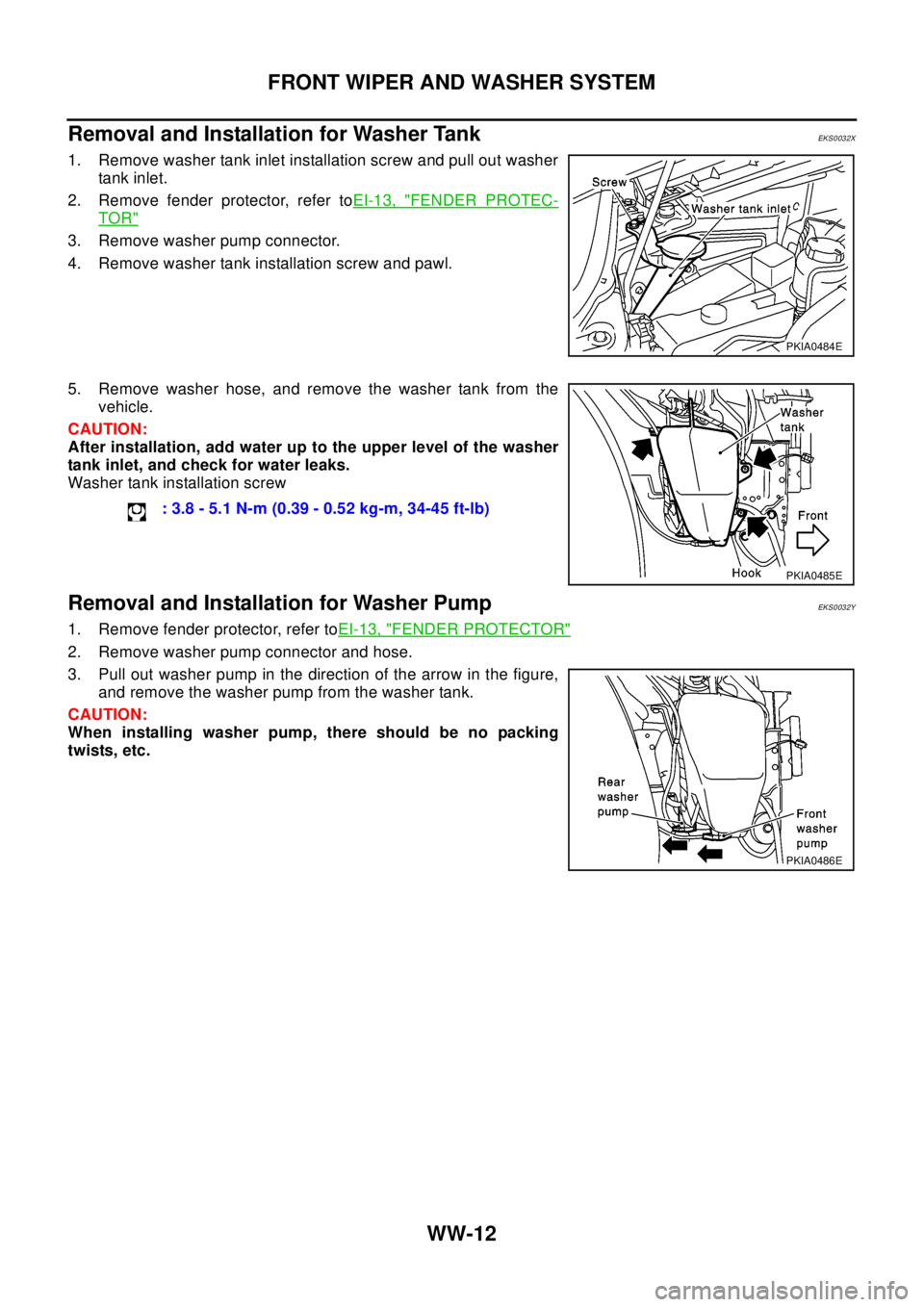

1. Remove washer tank inlet installation screw and pull out washer
tank inlet.
2. Remove fender protector, refer toEI-13, "
FENDER PROTEC-
TOR"
3. Remove washer pump connector.
4. Remove washer tank installation screw and pawl.
5. Remove washer hose, and remove the washer tank from the
vehicle.
CAUTION:
After installation, add water up to the upper level of the washer
tank inlet, and check for water leaks.
Washer tank installation screw
Removal and Installation for Washer PumpEKS0032Y
1. Remove fender protector, refer toEI-13, "FENDER PROTECTOR"
2. Remove washer pump connector and hose.
3. Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.
CAUTION:
When installing washer pump, there should be no packing
twists, etc.
PKIA0484E
: 3.8 - 5.1 N-m (0.39 - 0.52 kg-m, 34-45 ft-lb)
PKIA0485E
PKIA0486E
Page 3051 of 3066
REAR WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW
REAR WIPER AND WASHER SYSTEMPFP:28710

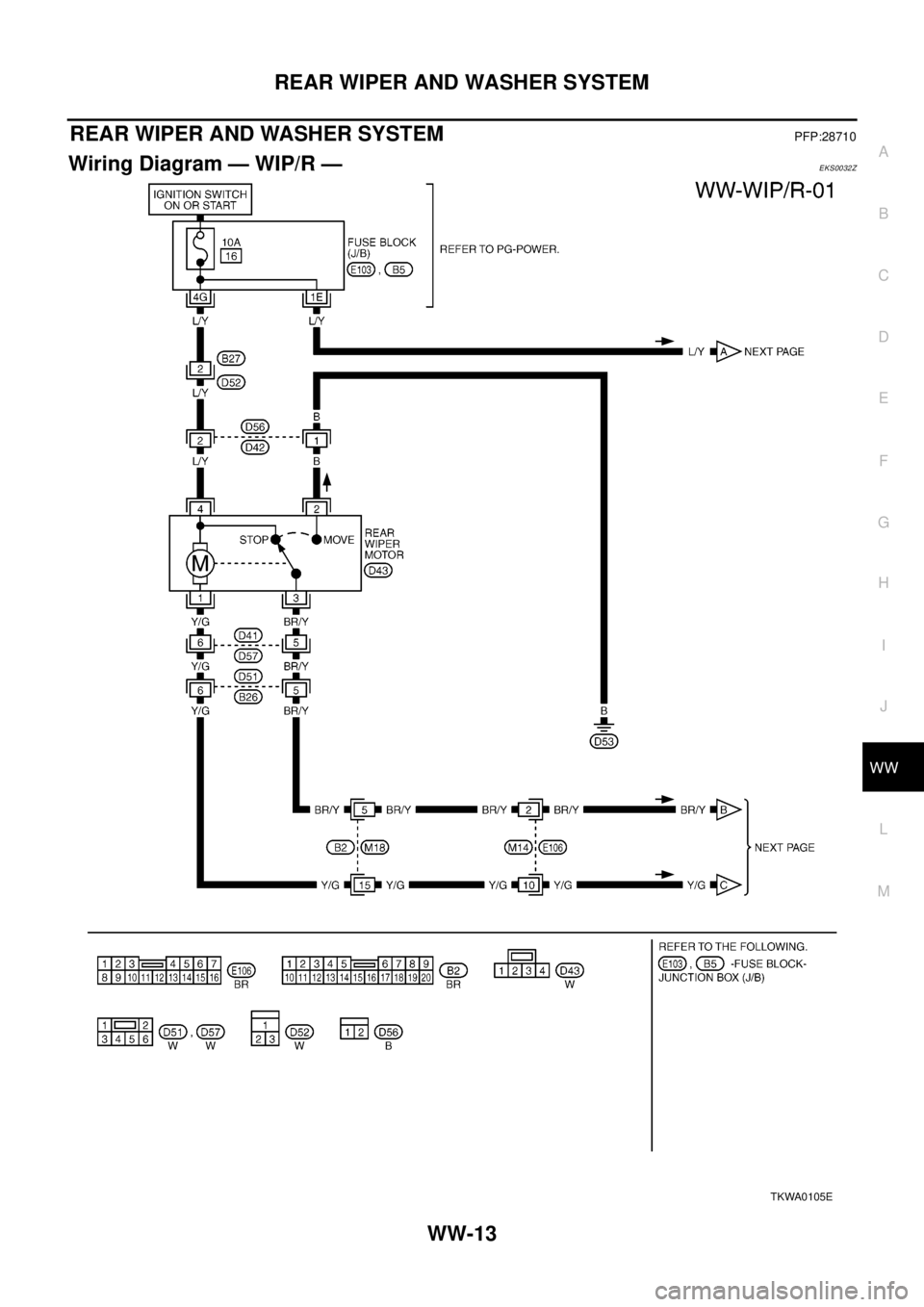

Wiring Diagram — WIP/R —EKS0032Z
TKWA0105E
Page 3052 of 3066
WW-14
REAR WIPER AND WASHER SYSTEM

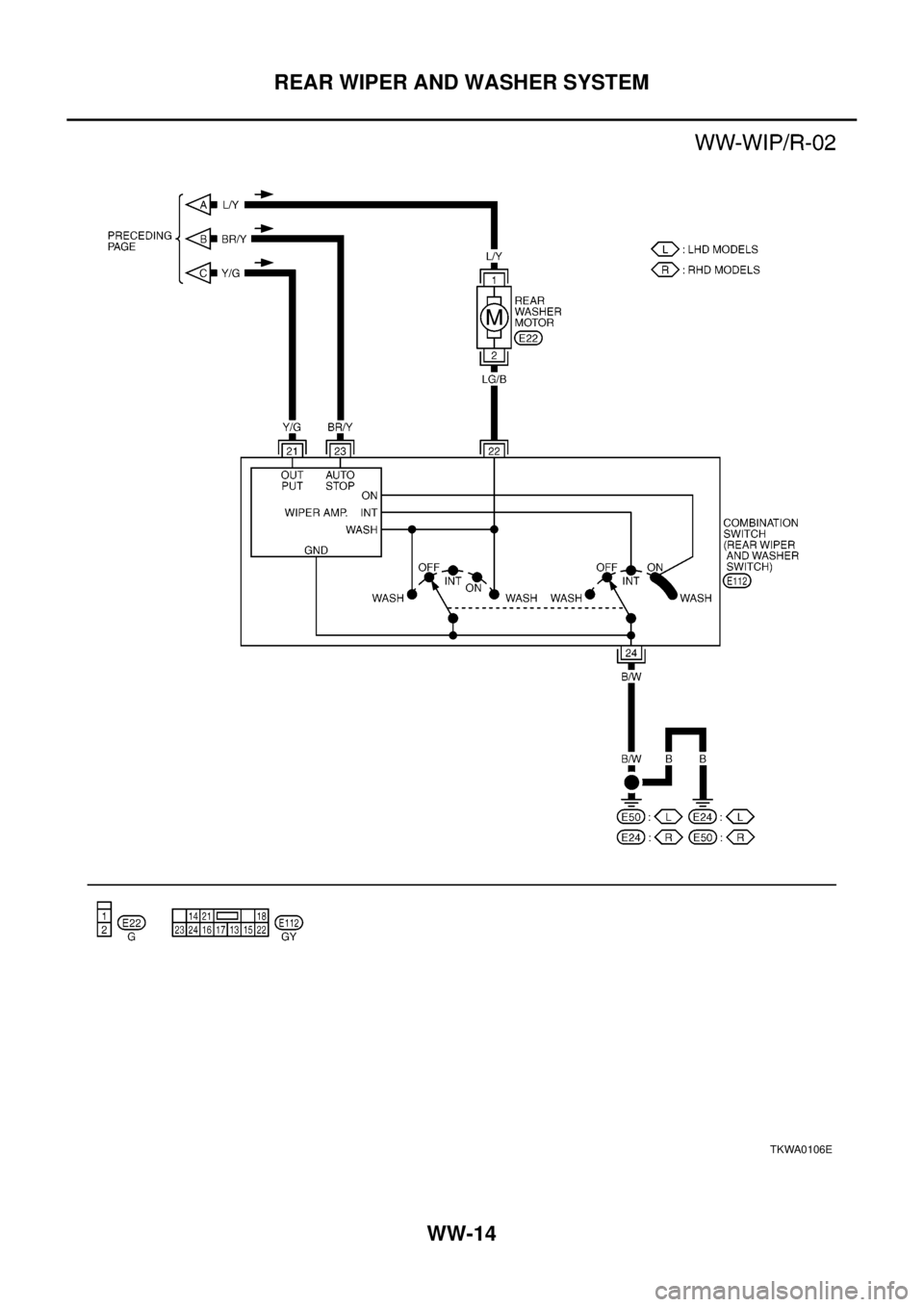

TKWA0106E
Page 3053 of 3066

REAR WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
Terminal and Reference Values for Combination SwitchEKS00330
Removal and Installation for Rear Wiper ArmsEKS00331
WIPER ARMS
1. Turn on wiper switch to operate wiper motor and then turn it
“OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set the
black center to clearance “L” immediately before tightening the
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.
lCenter to clearance "L".
lTighten windshield wiper arm nuts to specified torque.
lBefore reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm
looseness.
TER-
MINAL
NO.WIRE
COLOR ITEMCONDITION
DATA(DC Voltage) IGNI-
TION
SWITCHCONDITION OR OPERATION
21 Y/GWiper motor
Operation signal
(ON)ON Wiper switchOFF Approx. 12
ON Approx. 0
22 LG/BWasher switch sig-
nalON Wiper switchWASH Approx. 0
OFF Approx. 12
23 BR/YWiper motor
Operation signalON Wiper switch: INT
24 B Ground OFF — —
SKIA0083J
"L" : 63.1±7.5 mm (2.484±0.295 in)
: 12.7 - 17.6 N-m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)SKIA0077E
SEL024J
Page 3054 of 3066

WW-16
REAR WIPER AND WASHER SYSTEM
Removal and Installation for Wiper Motor and Linkage
EKS00332
REMOVAL
1. Remove the back door finisher. Refer toEI-25, "BACK DOOR TRIM".
2. Operate the wiper motor, and stop it at the auto stop position.
3. Disconnect wiper motor connector.
4. Remove wiper arm from the vehicle.
5. Remove wiper motor form the vehicle.
6. Remove rubber from the vehicle.
INSTALLATION
1. Install rubber to the vehicle.
2. Install wiper motor to the vehicle.
3. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).
4. Install wiper arm to the vehicle.
5. Install back door finishier. Refer toEI-25, "
BACK DOOR TRIM".
lTighten windshield wiper arm nuts to specified torque.
lTighten windshield wiper motor nuts to specified torque.
CAUTION:
lDo not drop the wiper motor or cause it to contact other parts.
lCheck the grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if
necessary.
SKIA0039E
1. Wiper motor 2. Rubber 3. Nut cover
4. Wiper arm 5. Wiper blade
SKIA0040E
: 12.7 - 17.6 N-m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)
: 3.8 - 5.1 N-m (0.39 -0.52 kg-m, 3 -4 ft-lb)
Page 3055 of 3066
REAR WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW

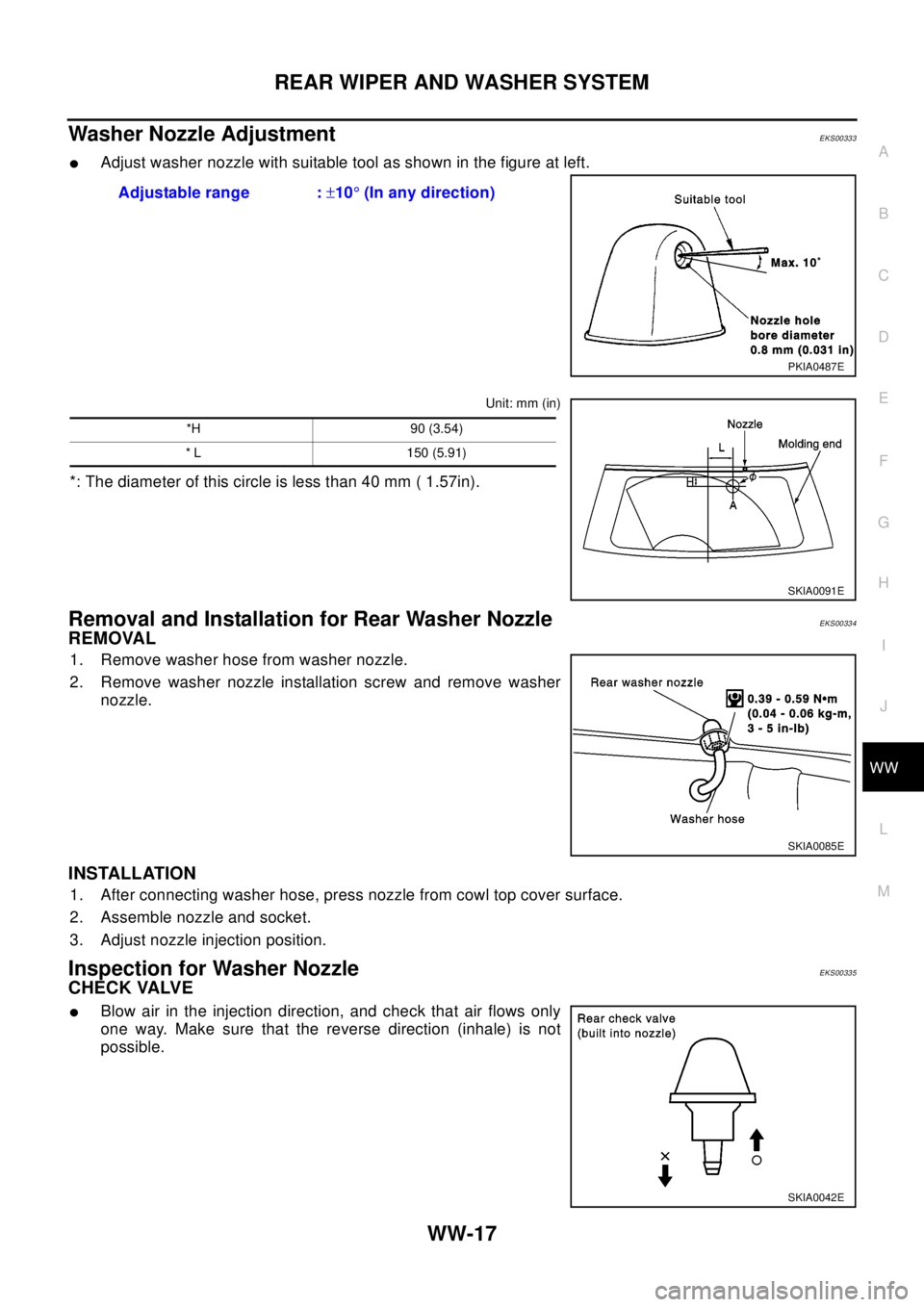

Washer Nozzle AdjustmentEKS00333
lAdjust washer nozzle with suitable tool as shown in the figure at left.
Unit: mm (in)
*: The diameter of this circle is less than 40 mm ( 1.57in).
Removal and Installation for Rear Washer NozzleEKS00334
REMOVAL
1. Remove washer hose from washer nozzle.
2. Remove washer nozzle installation screw and remove washer
nozzle.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Washer NozzleEKS00335
CHECK VALVE
lBlow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction (inhale) is not
possible.Adjustable range :±10°(In any direction)
PKIA0487E
*H 90 (3.54)
* L 150 (5.91)
SKIA0091E
SKIA0085E
SKIA0042E
Page 3056 of 3066
WW-18
REAR WIPER AND WASHER SYSTEM
Removal and Installation for Wiper and Washer Switch
EKS00336
Refer toWW-11, "Removal and Installation for Wiper and Washer Switch".
Removal and Installation for Washer TankEKS00337
Refer toWW-12, "Removal and Installation for Washer Tank".
Removal and Installation for Washer PumpEKS00338
Refer toWW-12, "Removal and Installation for Washer Pump".
Washer Tube LayoutEKS00339
PKIA0540E
