Page 2337 of 3066
GW-34
POWER WINDOW SYSTEM

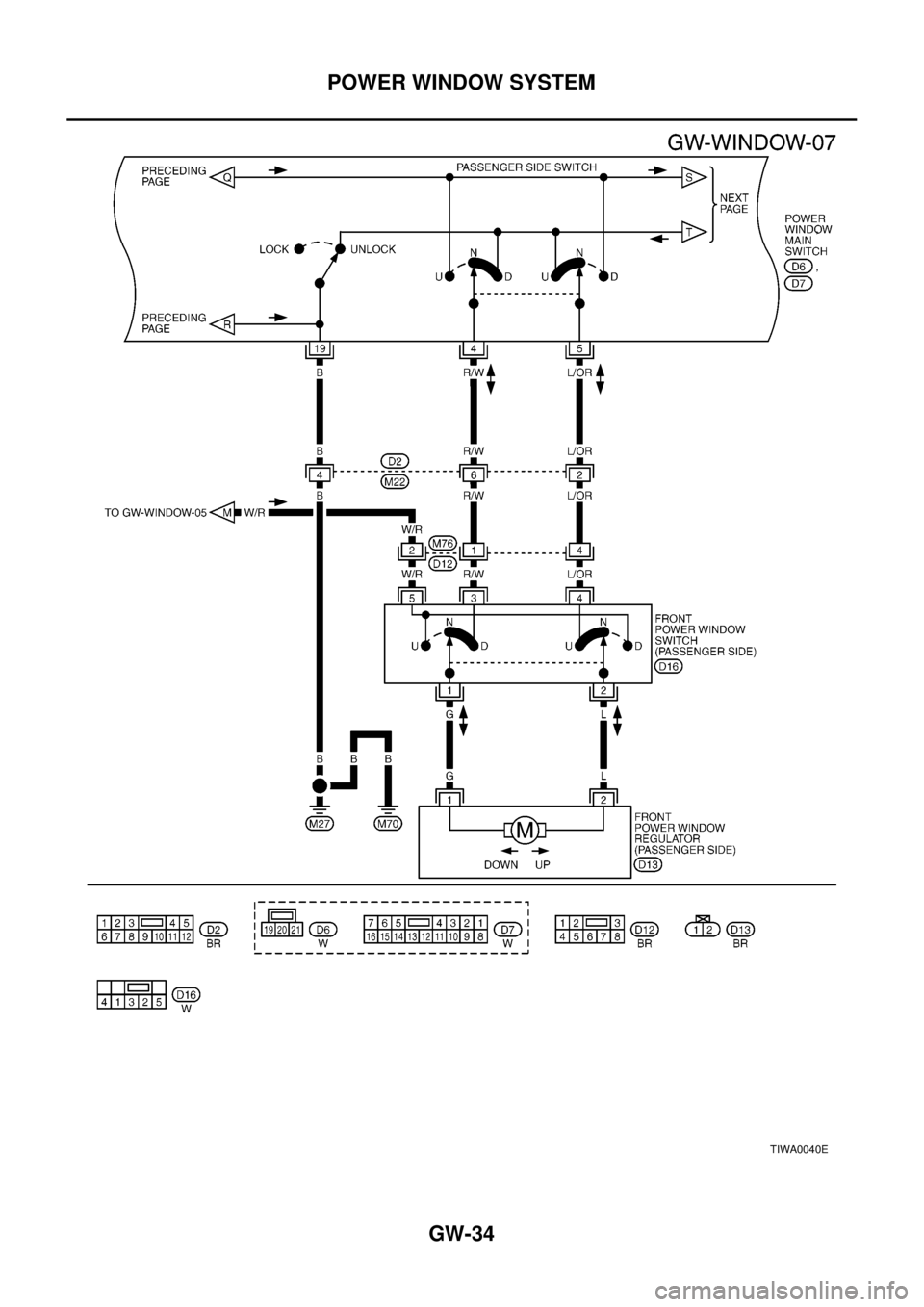

TIWA0040E
Page 2338 of 3066
POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW

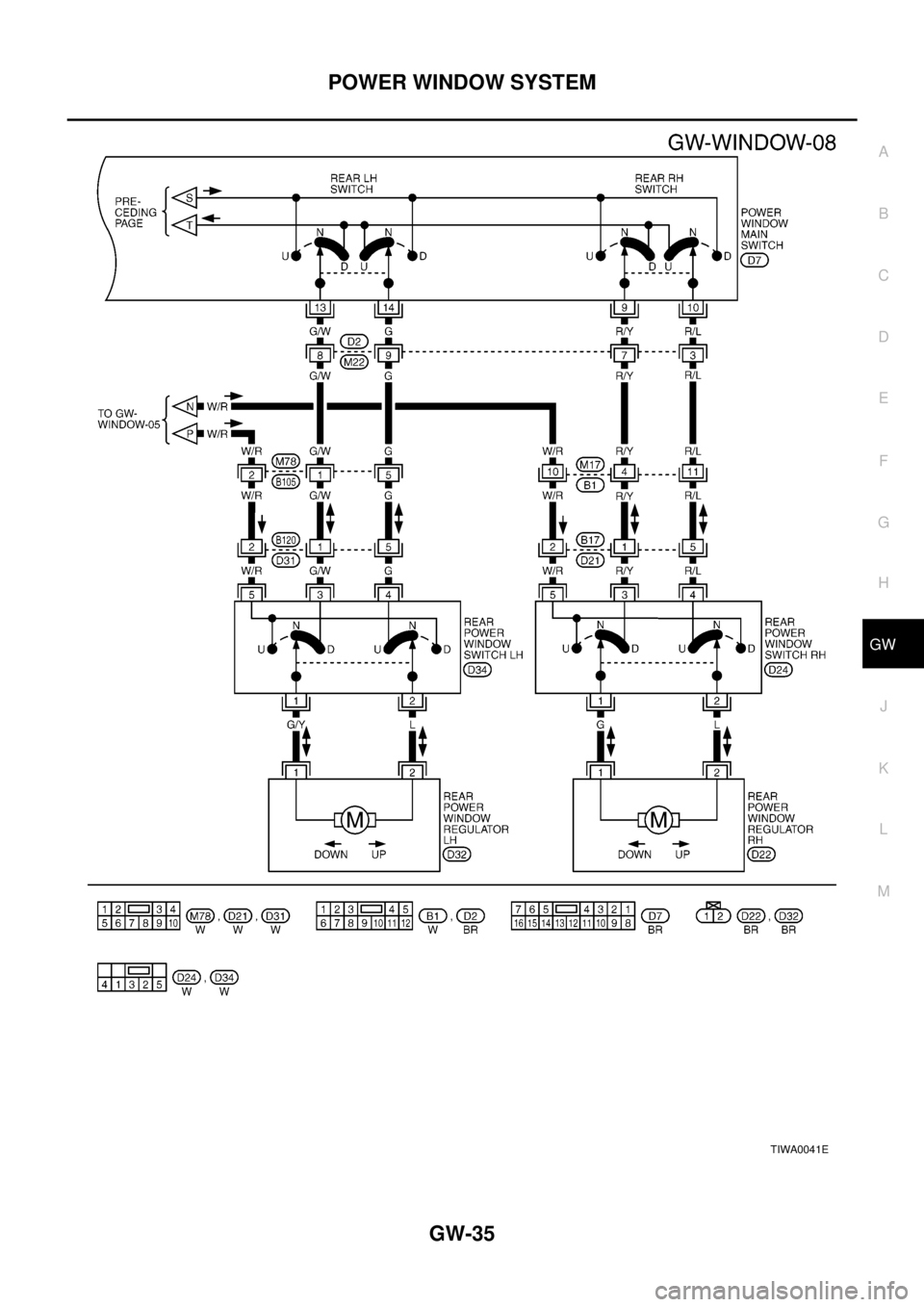

TIWA0041E
Page 2339 of 3066

GW-36
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (RHD models)
EIS001S5
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G/R Encoder power supply — Approx. 10
2 R Driver door switch signalDriver door open (ON). Approx. 0
Driver door close (OFF). Battery voltage
3 W BAT power supply — Battery voltage
4R/WPassenger power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Approx. 0
Main switch passenger switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Battery voltage
Other than above. Approx. 0
5L/ORPassenger power window
UP signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
DOWN operation.Approx. 0
Main switch passenger switch
UP operation.Battery voltage
Main switch passenger switch
DOWN operation.Battery voltage
Other than above. Approx. 0
6G/BDriver power window motor
UP signallWhen UP operation. Battery voltage
Other than above. Approx. 0
7LDriver power window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. Approx.0
8 G/Y Encoder pulse signalWhen power window motor
operates.Approx. 2.5
9R/YRear RH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Approx. 0
Main switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Battery voltage
Other than above. Approx. 0
OCC3383D
Page 2340 of 3066

POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Door's Power Window Switch (RHD
models)
EIS001S6
10 R/LRear RH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch
DOWN operation.Approx. 0
Main switch rear RH switch UP
operation.Battery voltage
Main switch rear RH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
12 W/RPassenger and rear RH/LH
power window switch power
supply— Battery voltage
13 G/WRear LH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Approx. 0
Main switch rear LH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Battery voltage
Other than above. Approx. 0
14 GRear LH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch
DOWN operation.Approx. 0
Main switch rear LH switch UP
operation.Battery voltage
Main switch rear LH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
15 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON).Approx. 0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF).Approx. 5
16 W/B Limit switch encoder ground — Approx. 0
19 B Ground — Approx. 0 TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G Powerwindow motorUPsignalWhen UP operation. Battery voltage
Other than above. Approx. 0
2LPowerwindow motorDOWN
signalWhen DOWN operation. Battery voltage
Other than above. Approx. 0
Page 2341 of 3066

GW-38
POWER WINDOW SYSTEM
Trouble Diagnoses
EIS001SF
3 R/W Power window DOWN signalPower window switch DOWN
operation.Approx. 0
Power window switch
UP operation.Approx. 0
Power window switch DOWN
operation.Battery voltage
Power window switch
UP operation.Battery voltage
Other than above. Approx. 0
4 L/OR Power window UP signalPower window switch
UP operation.Approx. 0
Power window switch DOWN
operation.Approx. 0
Power window switch
UP operation.Battery voltage
Power window switch DOWN
operation.Battery voltage
Other than above. Approx. 0
5W/RPower window switch power
supply— Battery voltage TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse, 40A fusible link
2. M4 circuit breaker
3. Power window relay
4. M4 circuit breaker
5. Ground circuit
6. Power window main switch1. Check 10A fuse [No. 5, located in fuse block (J/B)]
Turn ignition switch “ON” and verify positive battery
voltage is present at terminal 1 (G) of power window
relay.
2. Check 40A fusible link (letterB, located in fuse and
fusible link box) and M4 circuit breaker. Verify positive
battery voltage is present at terminal 3 (W) of power
window relay.
3. Check M4 circuit breaker.
4. Check power window relay.
5. Check the following:
–Check harness between M4 circuit breaker and 40A
fusible link (letterB,located in fuse and fusible link
box).
–Check harness between M4 circuibt breaker and
power window main switch terminal 5 (LHD models)
or 3 (RHD models)
6. Check the following
–Check ground circuit of power window main switch.
–Check power window relay ground circuit.
–Check power window main switch.
Driver side power window cannot be
operated but other windows can be
operated.1. Driver side power window regula-
tor circuit
2. Driver side power window regula-
tor
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
Page 2342 of 3066

POWER WINDOW SYSTEM
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
Encoder and Limit Switch CheckEIS000M4
1.CHECK DOOR WINDOW SLIDE MECHANISM
Check the following.
lObstacles in window, glass molding, etc.
lWorn or deformed glass molding.
lDoor sash tilted too far inward or outward.
lDoor window regulator.
OK or NG?
OK >> GO TO 2.
Not OK >> Remove obstacles or repair door window slide mechanism.
One or more power windows except
driver's side window cannot be
operated.1. Power window sub-switches
2. Power window regulators
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator.
3. Check power window main switch.
4. Check the following.
–Check harness between the power window relay ter-
minal 12 (W/R) and power window relay.
–Check harnesses between power window main switch
and power window sub-switch for open/short circuit.
–Check harnesses between power window sub-switch
and power window regulator for open/short circuit.
Power windows except driver's side
window cannot be operated using
power window main switch but can
be operated by power window sub-
switch.1. Power window main switch 1. Check power window main switch.
Driver side power window automatic
operation does not function prop-
erly.1. Power window main switch
2. Encoder and limit switch1. Check power window main switch.
2. Check encoder and limit switch.Refer toGW-39,
"Encoder and Limit Switch Check". Symptom Possible cause Repair order
Page 2343 of 3066

GW-40
POWER WINDOW SYSTEM
2.CHECK LIMIT SWITCH OPERATION
lReset limit switch.Refer toGW-42, "Setting of limit switch (driver)".
lCheck voltage between power window main switch connector D7 terminal 9 (G/OR) (LHD models) or 15
(G/OR) (RHD models) and ground.
OK or NG?
OK >> GO TO 3.
NG >> Check harness between power window main switch and
power window regulator motor (front driver side).
lOK:Replace power window regulator motor (front
driver side).
lNG:Replace or repair harness between power win-
dow main switch and window regulator motor (front
driver side).
3.CHECK ENCODER
Measure voltage between power window main switch connector D7 terminal 16 (G/Y) (LHD models) or 8 (G/Y)
(RHD models) and ground with oscilloscope when power window is in automatic closing operation.
OK or NG?
OK >> Replace power window main switch.
Not OK >> Replace power window regulator motor (front driver
side).
Te r m i n a l s
Condition Voltage (+)
(–)
Connector Terminal
D79 (G/OR),
15 (G/OR)GroundDriver door window is
between fully-open and
just before fully-closed
position (ON)Approx.0V
Driver door window is
between just before fully-
closed position and fully-
closed position (OFF)Approx.5V
SIIA1220E
Te r m i n a l s
Condition Voltage (+)
(–)
Connector Terminal
D716 (G/Y),
8(G/Y)GroundWhen power window
motor(frontdriverside)
operates.Refer toGW-28
(LHDmodels) or
GW-36
(RHD models)
SIIA1221E
Page 2344 of 3066
FRONT DOOR GLASS AND REGULATOR
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW

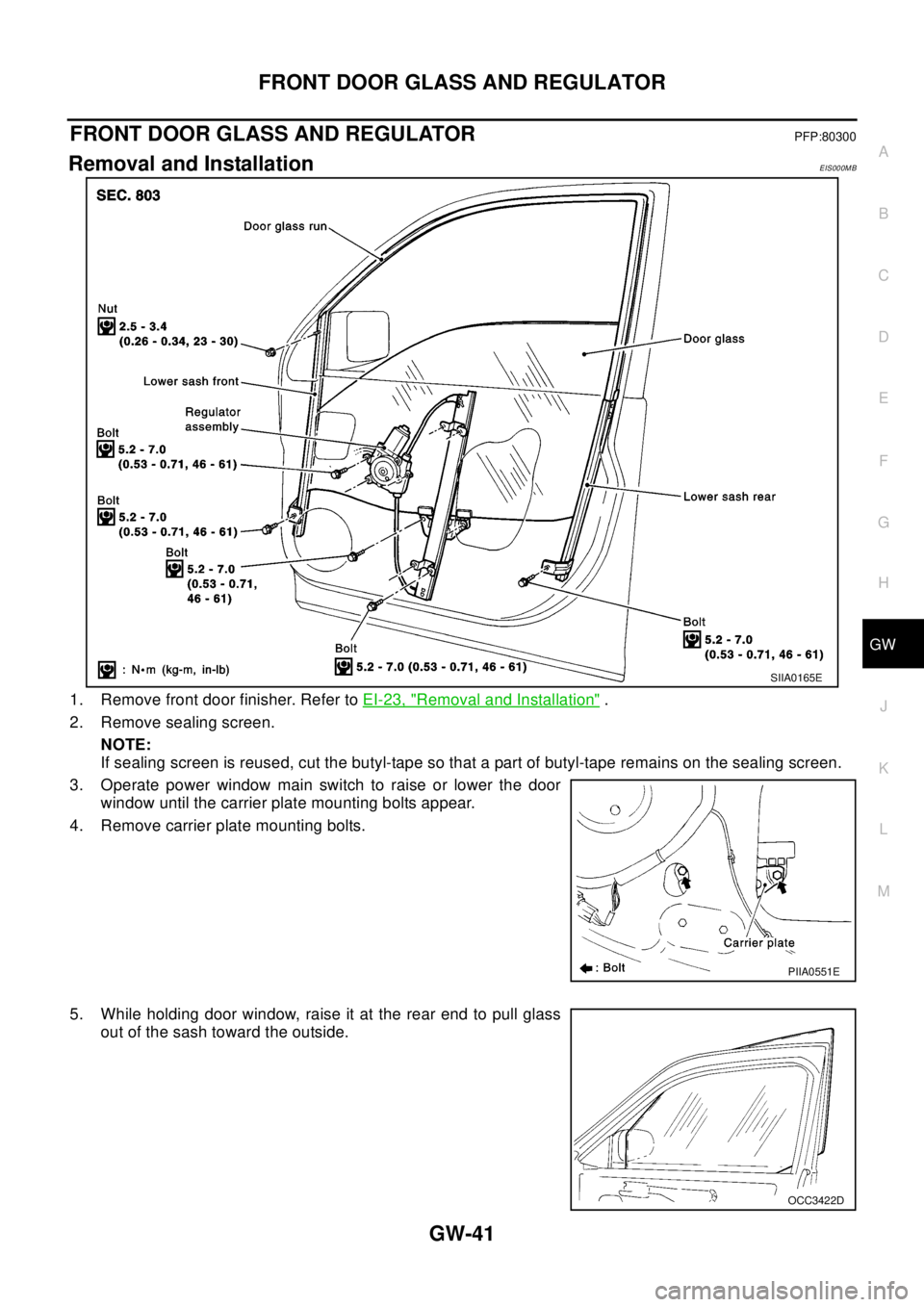

FRONTDOORGLASSANDREGULATORPFP:80300
Removal and InstallationEIS000MB
1. Remove front door finisher. Refer toEI-23, "Removal and Installation".
2. Remove sealing screen.
NOTE:
If sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
3. Operate power window main switch to raise or lower the door
window until the carrier plate mounting bolts appear.
4. Remove carrier plate mounting bolts.
5. While holding door window, raise it at the rear end to pull glass
out of the sash toward the outside.
SIIA0165E
PIIA0551E
