Page 2409 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-11
C
D
E
F
G
H
I
J
L
MA
B
LT

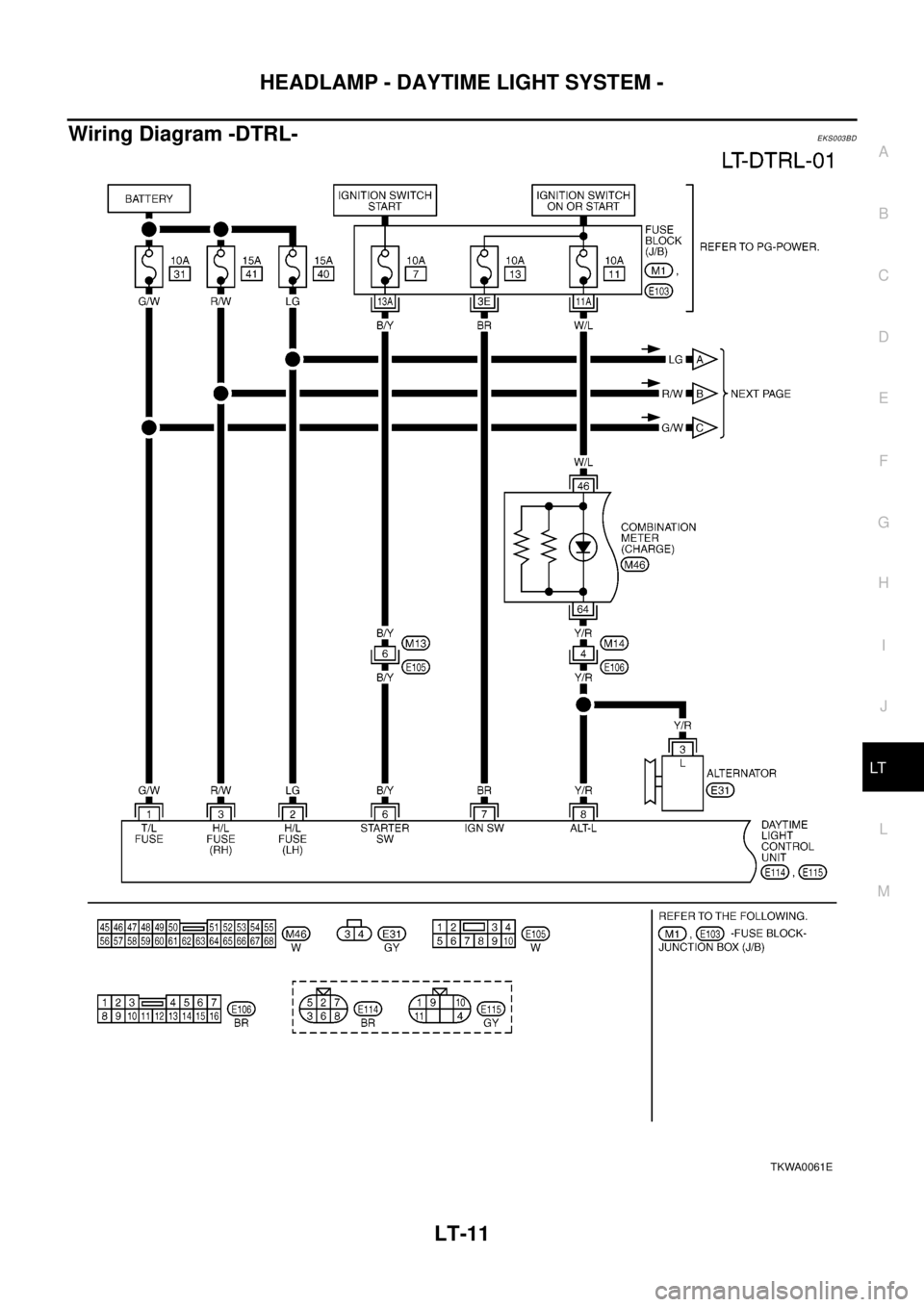

Wiring Diagram -DTRL-EKS003BD
TKWA0061E

Page 2410 of 3066

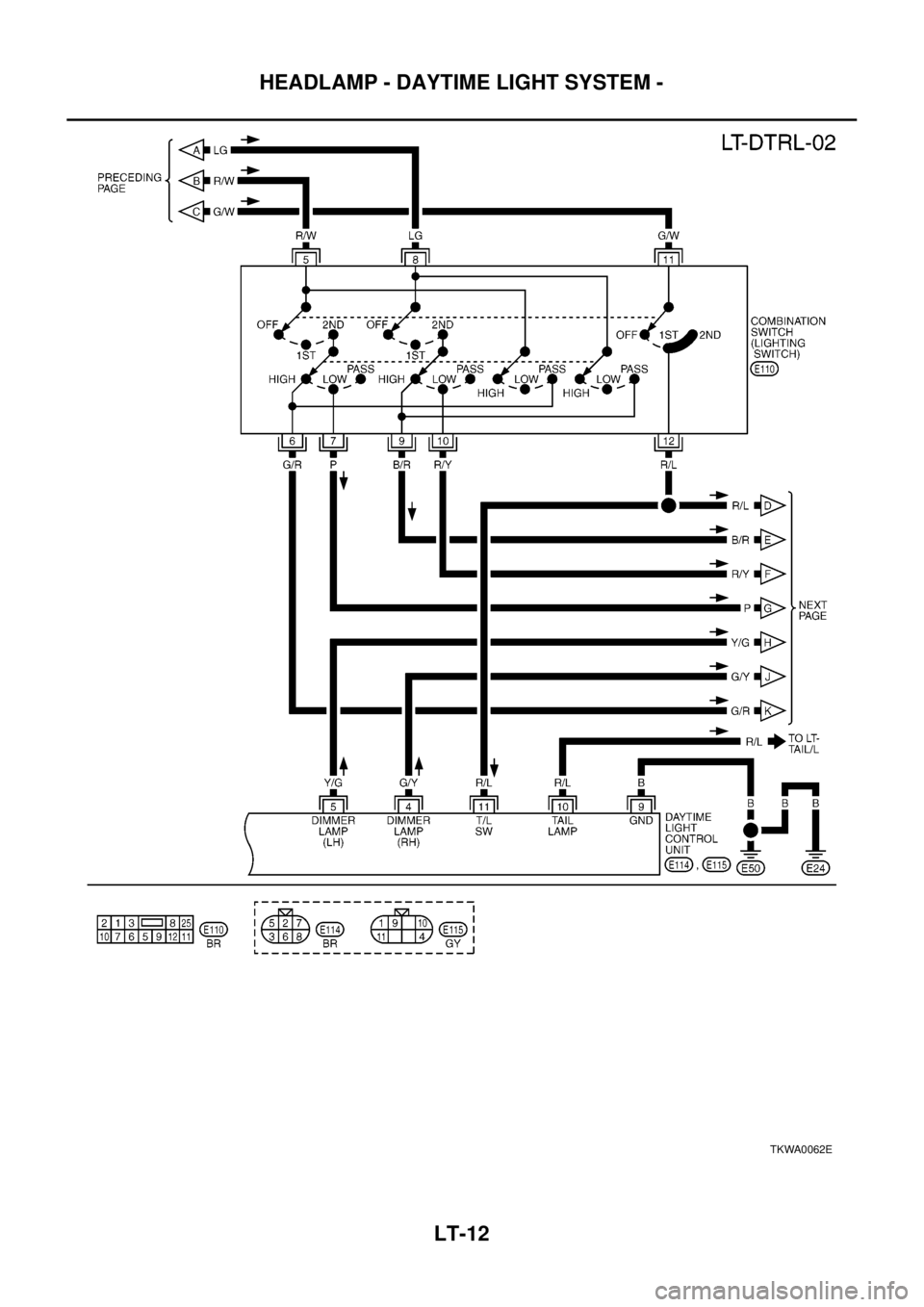

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-12
HEADLAMP - DAYTIME LIGHT SYSTEM -
TKWA0062E

Page 2411 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-13
C
D
E
F
G
H
I
J
L
MA
B
LT
TKWA0063E

Page 2412 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-14
HEADLAMP - DAYTIME LIGHT SYSTEM -
Trouble Diagnoses
EKS003CO
DAYTIME LIGHT UNIT INSPECTION TABLE
*: Daytime light operating: Lighting switch in “OFF” position with engine running.
Bulb Repla

Page 2413 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HEADLAMP AIMING CONTROL
LT-15
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP AIMING CONTROLPFP:26010
Wiring Diagram -H/AIM-EKS003BF
TKWA0064E

Page 2414 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-16
HEADLAMP AIMING CONTROL
Removal and Installation
EKS003CA
1. Remove the Instrument lower driver panel . Refer toIP-5,
"Removal and Installation"in “INSTRUMENT PANEL (IP)” sec-
tion.
2. Press

Page 2415 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System DescriptionEKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF po

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System DescriptionEKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
lthrough 10A fuse [No. 2, located in the fuse block (J/B)]
lto hazard switch terminal 2
lthrough terminal 1 of the hazard switch
lto combination flasher unit terminal 1
lthrough terminal 3 of the combination flasher unit
lto turn signal switch terminal 1.
Ground is supplied to combination flasher unit terminal 2 through body grounds M27 and M70.
LH Turn
When the turn signal switch is moved to the LH position, power is supplied from turn signal switch terminal 3 to
lfront turn signal lamp LH terminal 1
lside turn signal lamp LH terminal 1
lcombination meter terminal 57 (LHD models) or 12 (RHD models)
lrear combination lamp LH terminal 2.
Ground is supplied to the front turn signal lamp LH terminal 2 through body grounds E24 and E50.
Ground is supplied to the side turn signal lamp LH terminal 2 through body grounds E24 and E50.
Ground is supplied to the rear combination lamp LH terminal 2 through body grounds B8 and B18.
Ground is supplied to combination meter terminal 48 (LHD models) or 61 (RHD models) through body
grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH Turn
When the turn signal switch is moved to the RH position, power is supplied from turn signal switch terminal 2
to
lfront turn signal lamp RH terminal 1
lside turn signal lamp RH terminal 1
lcombination meter terminal 12 (LHD models) or 46 (RHD models)
lrear combination lamp RH terminal 2.
Ground is supplied to the front turn signal lamp RH terminal 2 through body grounds E24 and E50.
Ground is supplied to the side turn signal lamp RH terminal 2 through body grounds E24 and E50.
Ground is supplied to the rear combination lamp RH terminal 2 through body grounds B8 and B18.
Ground is supplied to combination meter terminal 48 (LHD models) or 61 (RHD models) through body grounds
M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal
lamps.
HAZARD LAMP OPERATION
Power is supplied at all times to hazard switch terminal 3 through:
l10A fuse (No. 35, located in the fuse and fusible link box).
With the hazard switch in the ON position, power is supplied
lthrough terminal 1 of the hazard switch
lto combination flasher unit terminal 1
lthrough terminal 3 of the combination flasher unit
lto hazard switch terminal 4.
Ground is supplied to combination flasher unit terminal 2 through body grounds M27 and M70.
Power is supplied through terminal 6 of the hazard switch to
lfront turn signal lamp LH terminal 1
lcombination meter terminal 57 (LHD models) or 12 (RHD models)

Page 2416 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-18
TURN SIGNAL AND HAZARD WARNING LAMPS
lrear combination lamp LH terminal 2.
Power is supplied through terminal 6 of the hazard switch to
lfront turn signal lamp RH terminal 1
lcombination meter t
