2003 NISSAN X-TRAIL Electronic Repair Manual

spark plugs replace mirror oil capacities fuse box diagram relay oil type

Load previous 8 pages

Page 1489 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POSITIVE CRANKCASE VENTILATION
EC-375
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

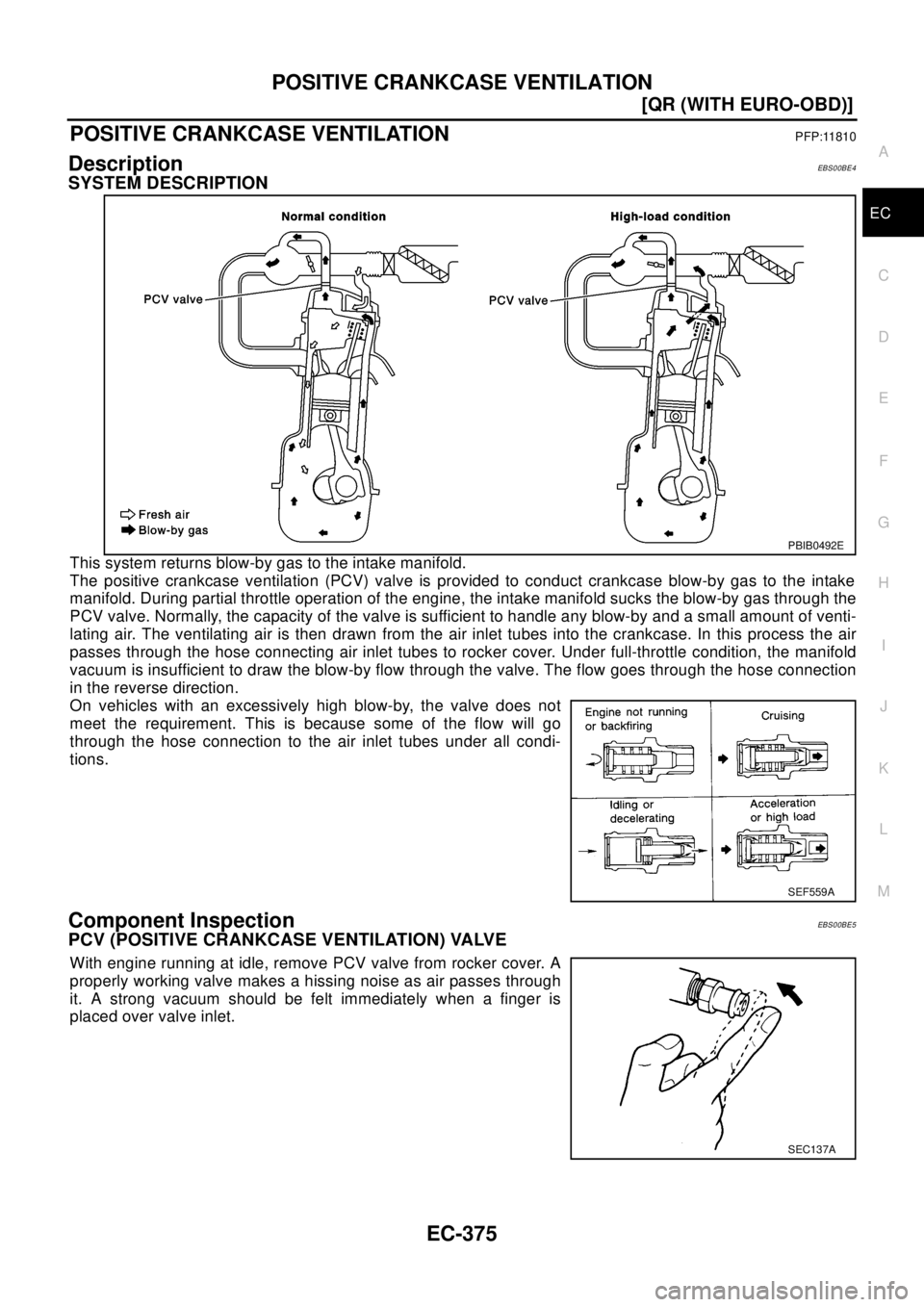

POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionEBS00BE4
SYSTEM DESCRIPTION
This system returns blow-by gas to t

Page 1490 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-376
[QR (WITH EURO-OBD)]
POSITIVE CRANKCASE VENTILATION
PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air. If any hose

Page 1491 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EC-377
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureEBS00BE6
Idle Speed and Ignition TimingEBS00BE7

Page 1492 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-378
[QR (WITH EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Throttle Control Motor
EBS00BEG
InjectorEBS00BEH
Fuel PumpEBS00BEI
Resistance [at 25°C(77°F)] Approximately 1 - 15W
Resistance [at 2

Page 1493 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual INDEX FOR DTC
EC-379
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
[QR (WITHOUT EURO-OBD)]INDEX FOR DTCPFP:00024
Alphabetical IndexEBS00BEJ
Check if the vehicle is a model with Euro-OBD (E-OBD) sy

Page 1494 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-380
[QR (WITHOUT EURO-OBD)]
INDEX FOR DTC
DTC No. Index
EBS00BEK
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the "Type approval number" on the
identification plate. Refer

Page 1495 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PRECAUTIONS
EC-381
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS00BEL
T

PRECAUTIONS
EC-381
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS00BEL
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WA RN ING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
On Board Diagnostic (OBD) System of Engine and A/TEBS00BEM
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
lBe sure to turn the ignition switch OFF and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MI to light up.
lBe sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
lCertain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer toPG-70, "
HAR-
NESS CONNECTOR".
lBe sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.
lBe sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel injection system, etc.
lBe sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionEBS00BEN
lAlways use a 12 volt battery as power source.
lDo not attempt to disconnect battery cables while engine is
running.
lBefore connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
lBefore removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

Page 1496 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-382
[QR (WITHOUT EURO-OBD)]
PRECAUTIONS
lDo not disassemble ECM.
lIf a battery terminal is disconnected, the memory will return
to the ECM value.
The ECM will now start to self-control at its initi
