Page 2737 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HARNESS PG-61 C D E F G H I J L MA B PG Wiring Diagram Codes (Cell Codes)EKS0032J Use the chart below to find out what each wiring diagram code stands for. Refer to the wiring diagram code in the alph

Page 2738 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-62 HARNESS HO2S1H EC Heated Oxygen Sensor 1 (Front) HO2S2 EC Heated Oxygen Sensor 1 (Rear) HO2S2H EC Heated Oxygen Sensor 1 (Rear) HORN WW Horn IATS EC Intake Air Temperature Sensor IATSEN EC Intak

Page 2739 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HARNESS PG-63 C D E F G H I J L MA B PG TCV AT Torque Converter Clutch Solenoid Valve TM/RLY EC Throttle Control Motor Relay TPS EC, AT Throttle Position Sensor TURN LT Turn Signal and Hazard Warning

Page 2740 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-64 ELECTRICAL UNITS LOCATION ELECTRICAL UNITS LOCATION PFP:25230 Electrical Units LocationEKS0032K

Page 2741 of 3066

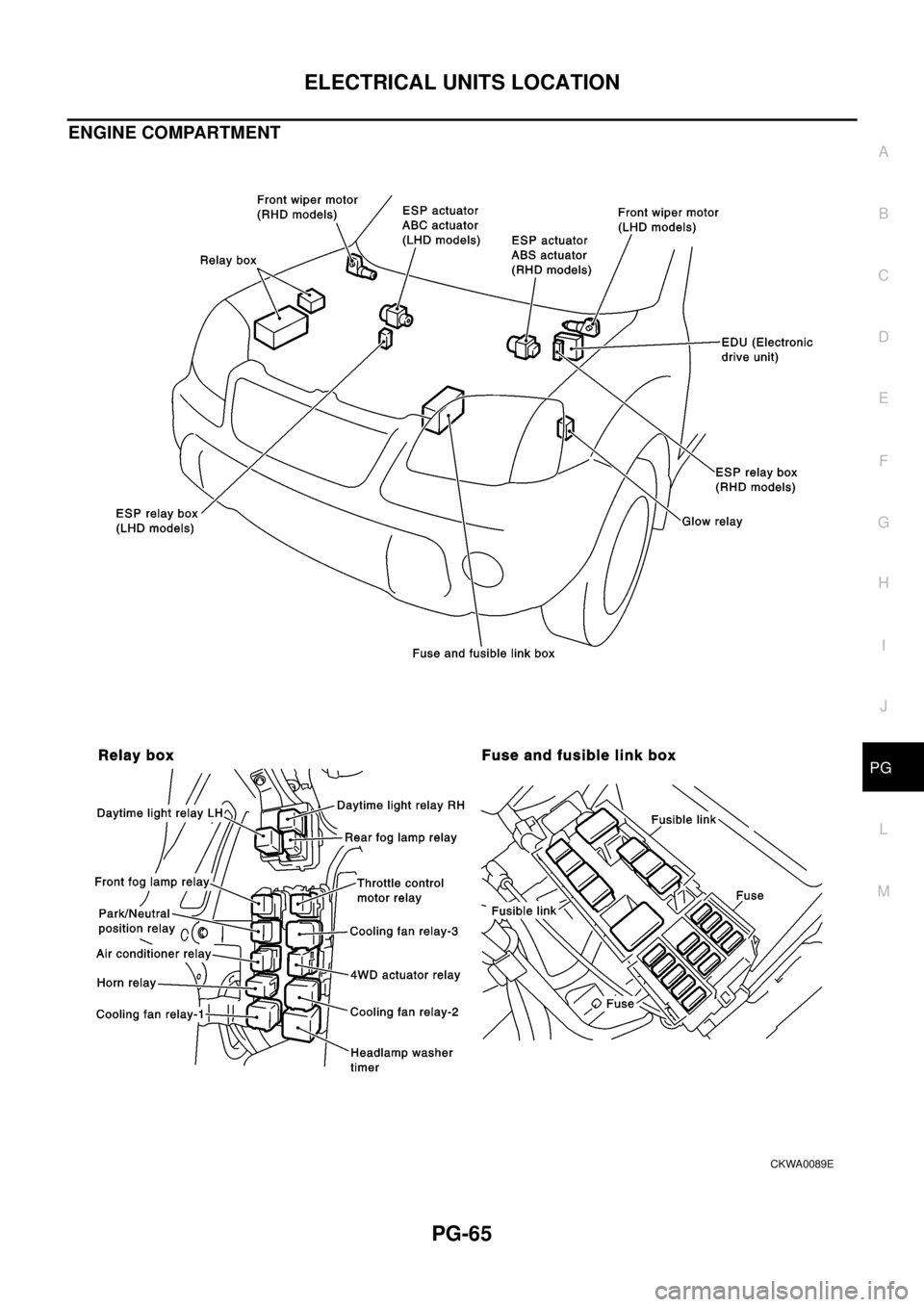

NISSAN X-TRAIL 2003 Electronic Repair Manual ELECTRICAL UNITS LOCATION PG-65 C D E F G H I J L MA B PG ENGINE COMPARTMENT CKWA0089E

Page 2742 of 3066

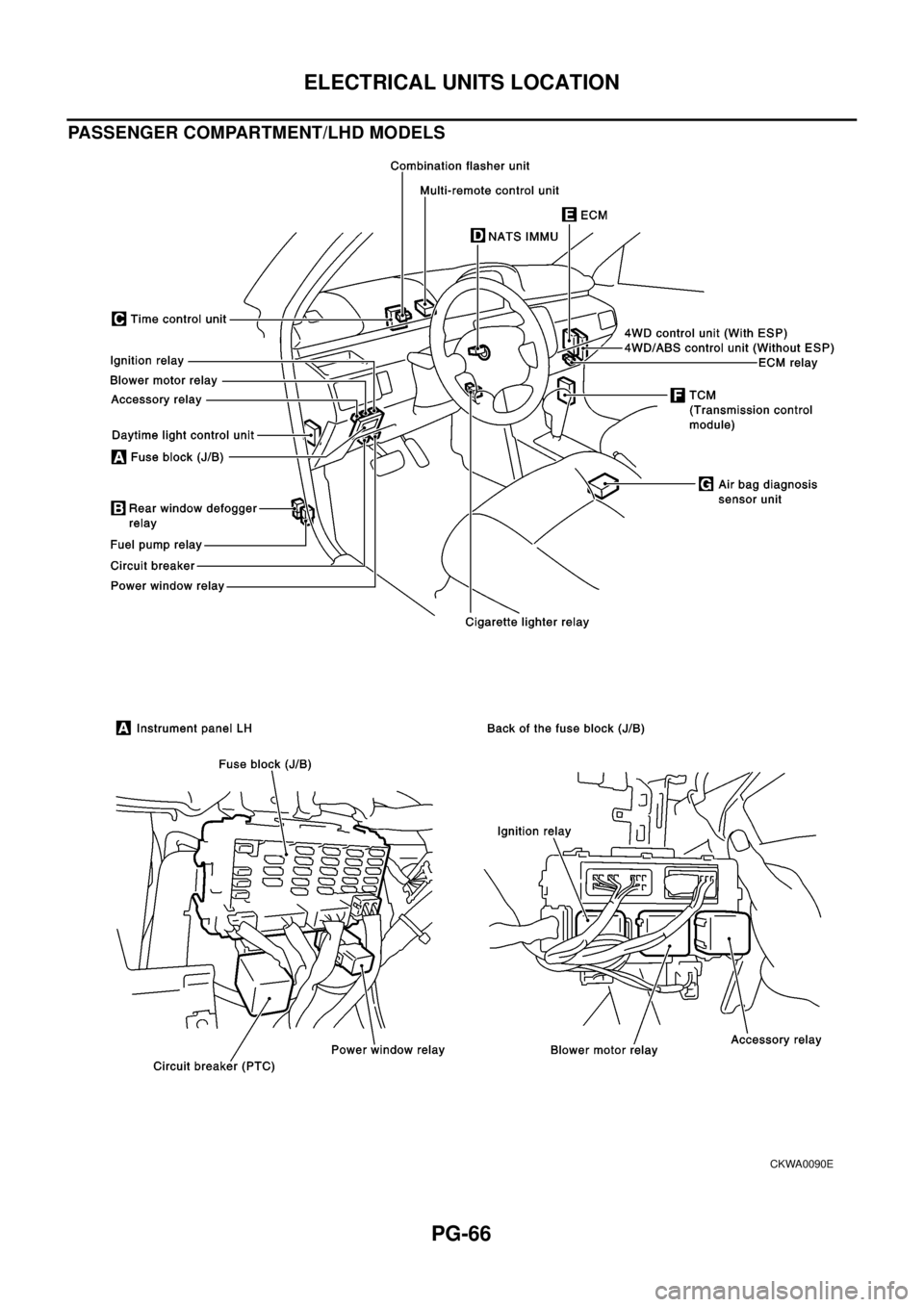

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-66 ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT/LHD MODELS CKWA0090E

Page 2743 of 3066

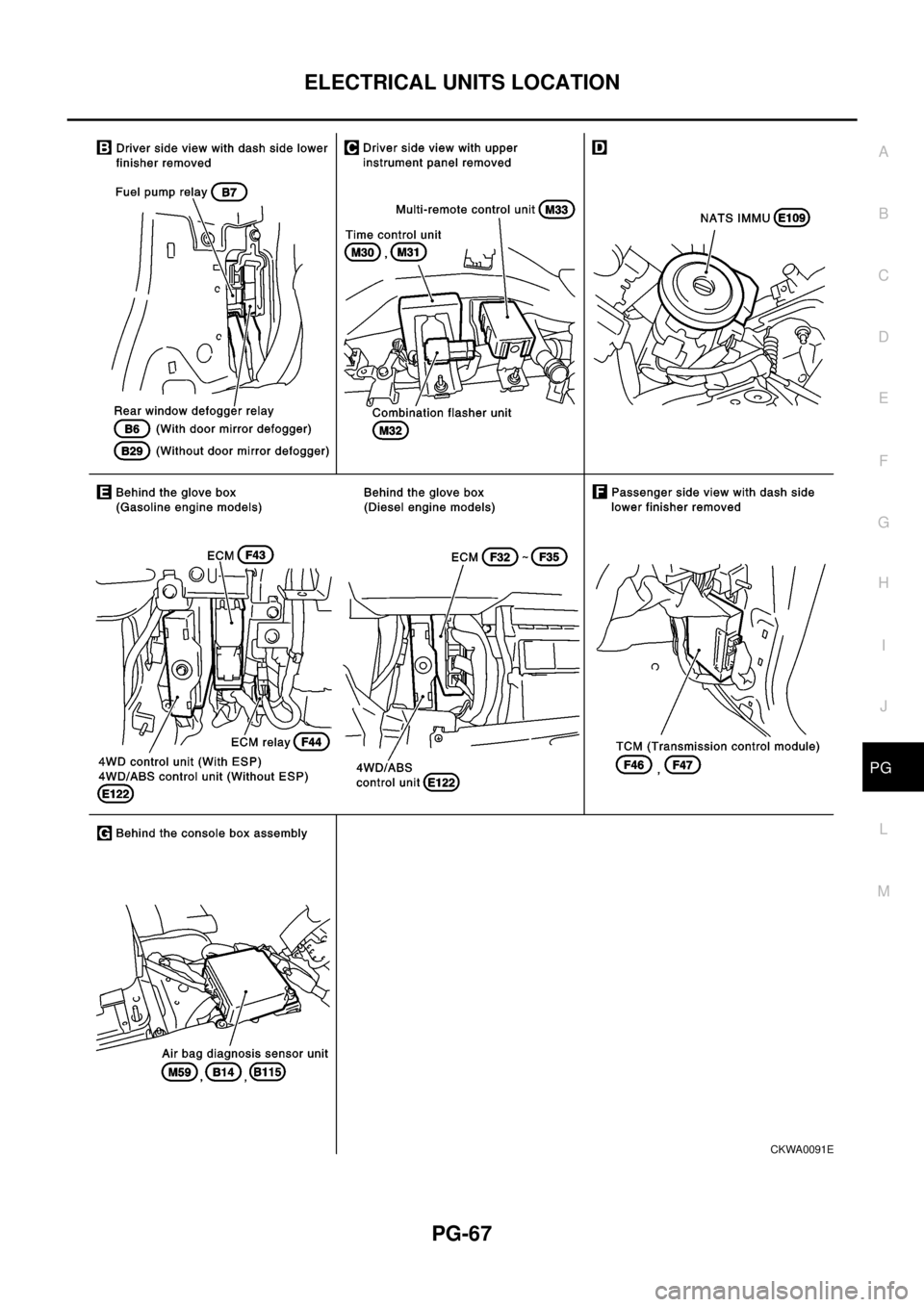

NISSAN X-TRAIL 2003 Electronic Repair Manual ELECTRICAL UNITS LOCATION PG-67 C D E F G H I J L MA B PG CKWA0091E

Page 2744 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-68 ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT/RHD MODELS CKWA0092E
