Page 1177 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-63 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC P0117 P0118Engine coolant tempera- ture sensor circuitEngine coolant temperature will be determined by ECM based on the time afte

Page 1178 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-64 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS Basic Inspection EBS00BMK 1.INSPECTION START 1. Check service records for any recent repairs that may indicate a related problem, or a current need for sch

Page 1179 of 3066

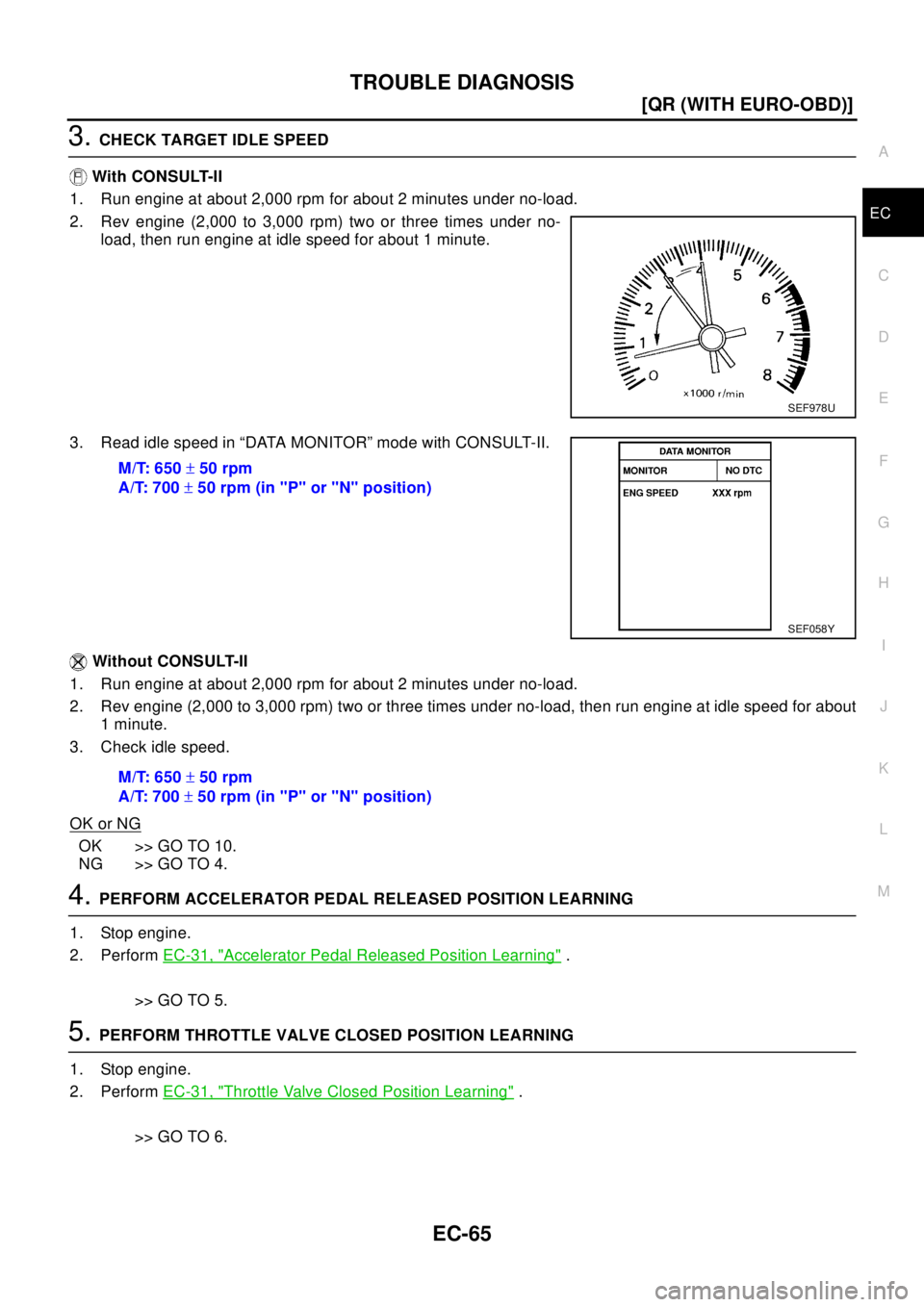

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-65 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 3.CHECK TARGET IDLE SPEED With CONSULT-II 1. Run engine at about 2,000 rpm for about 2 minutes under no-load. 2. Rev engine (2,00

Page 1180 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-66 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 6.PERFORM IDLE AIR VOLUME LEARNING Refer toEC-31, " Idle Air Volume Learning". CMPLT or INCMP CMPLT>>GOTO7. INCMP >> 1. Follow the construction of “Idle

Page 1181 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-67 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 10.CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END NG >>

Page 1182 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-68 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 15.CHECK IGNITION TIMING AGAIN 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END NG >> GO TO 16. 16.CHECK T

Page 1183 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSIS EC-69 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Symptom Matrix ChartEBS00BML SYSTEM — BASIC ENGINE CONTROL SYSTEM SYMPTOM Reference page HARD/NO START/RESTART (EXCP. HA) ENGIN

Page 1184 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-70 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 1 - 6: The numbers refer to the order of inspection. (continued on next page) SYSTEM — ENGINE MECHANICAL & OTHER PNP switch circuit 3 3 3 3 3 3 3EC-325 S
