Page 137 of 3066
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-131
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

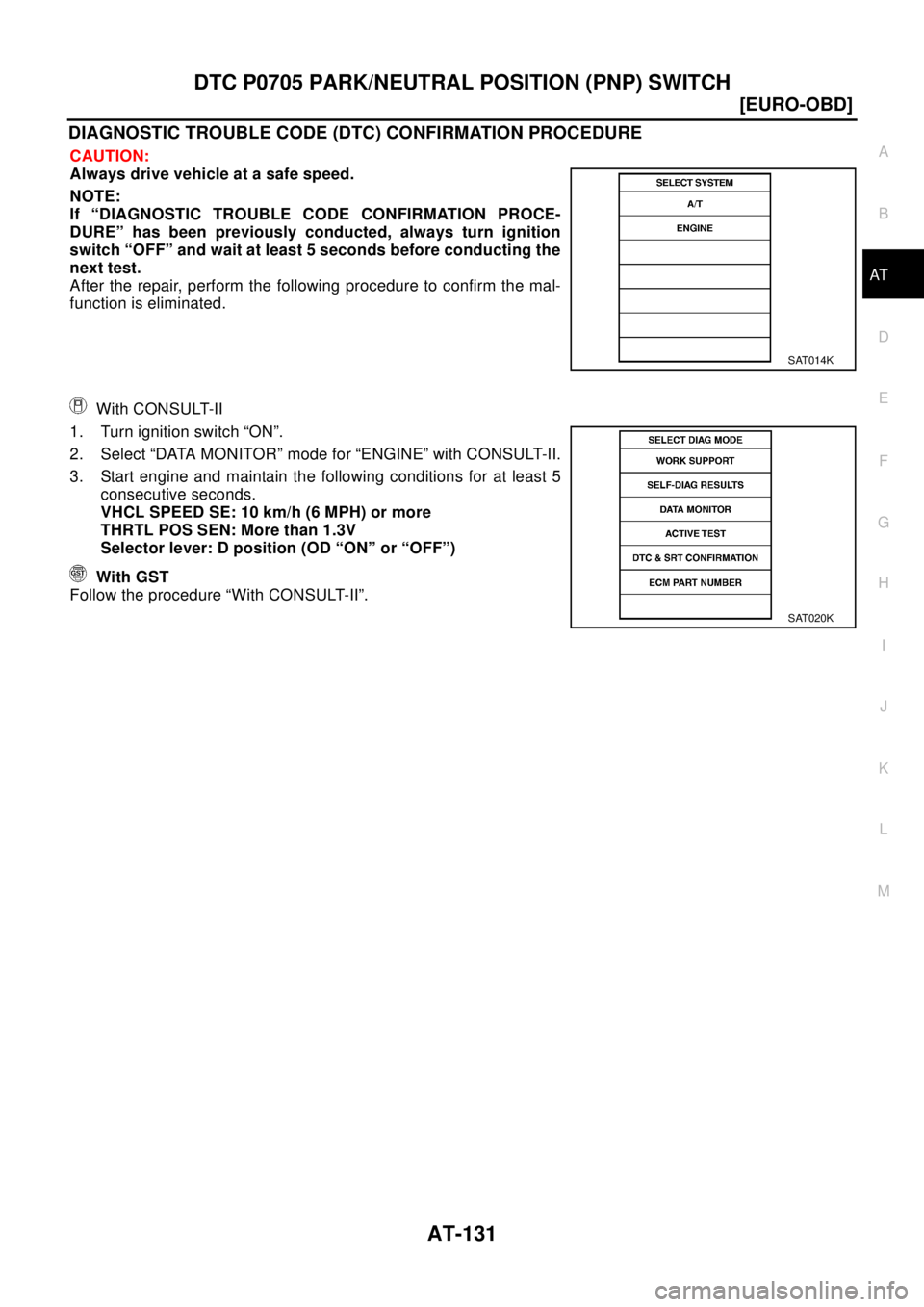

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD “ON” or “OFF”)
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 138 of 3066
AT-132
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
Wiring Diagram — AT — PNP/SW
ECS004QX
TCWA0047E
Page 139 of 3066
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-133
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004QY
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
Check the signal of the selector lever position is indicated prop-
erly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT-135, "
Compo-
nent Inspection".
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and
TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
SAT014K
SAT701J
Page 140 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual AT-134
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2 NISSAN X-TRAIL 2003 Electronic Repair Manual AT-134
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2](/manual-img/5/57402/w960_57402-139.png)
AT-134
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT - 1 3 5 , "
Component Inspection".
lHarness for short or open between ignition switch and PNP switch (Main harness)
lHarness for short or open between PNP switch and TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure,AT- 1 3 1 , "
DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l ta g e :
B : Battery voltage
0:0V
MTBL0136
SCIA0753E
Page 141 of 3066
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-135
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

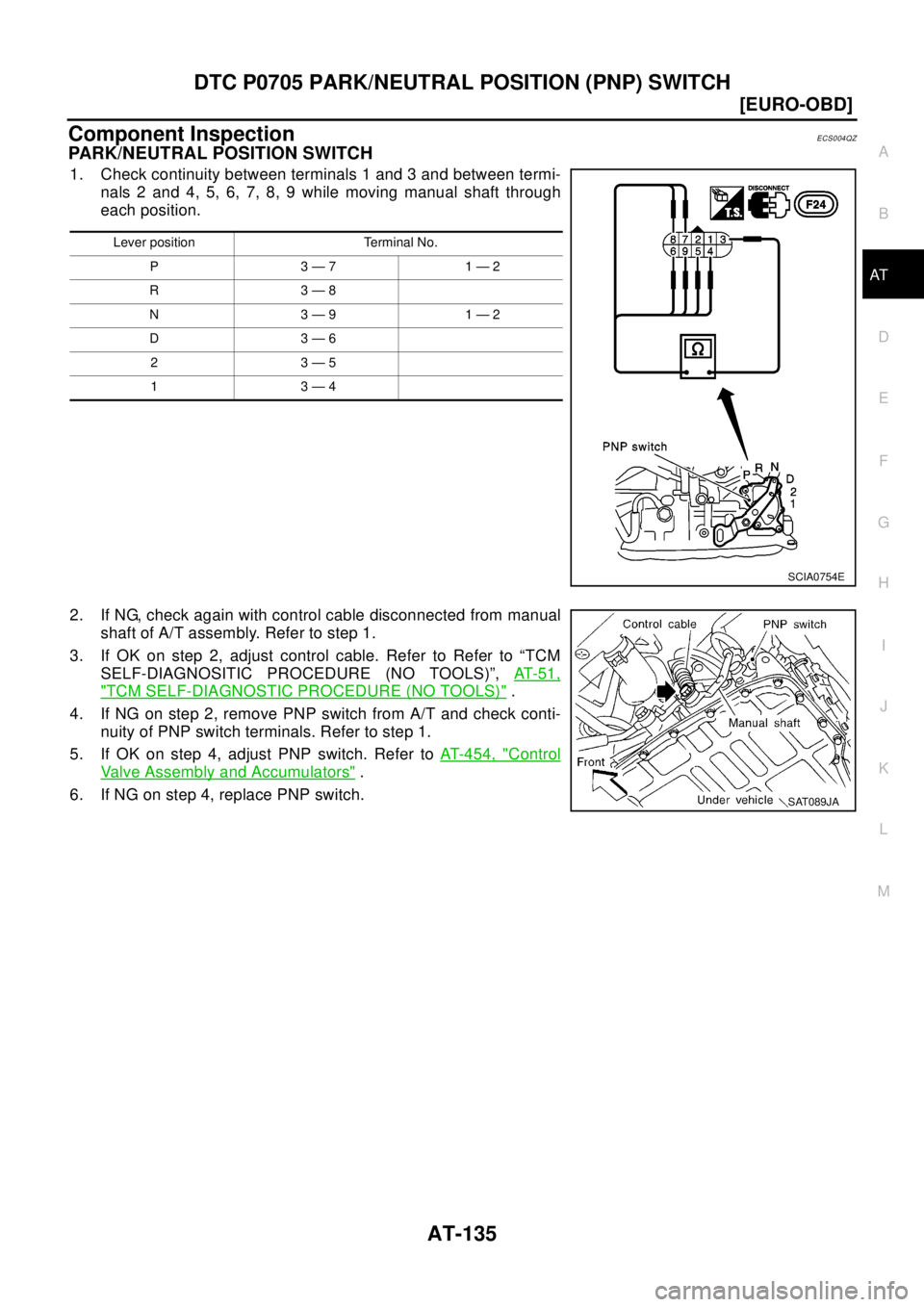

Component InspectionECS004QZ
PARK/NEUTRAL POSITION SWITCH
1. Check continuity between terminals 1 and 3 and between termi-
nals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with control cable disconnected from manual
shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust control cable. Refer to Refer to “TCM
SELF-DIAGNOSITIC PROCEDURE (NO TOOLS)”,AT - 5 1 ,
"TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)".
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer toAT-454, "
Control
Valve Assembly and Accumulators".
6. If NG on step 4, replace PNP switch.
Lever position Terminal No.
P3—71—2
R3—8
N3—91—2
D3—6
23—5
13—4
SCIA0754E
SAT089JA
Page 142 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual AT-136
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
PFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid tem NISSAN X-TRAIL 2003 Electronic Repair Manual AT-136
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
PFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid tem](/manual-img/5/57402/w960_57402-141.png)
AT-136
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
PFP:31940
DescriptionECS004R0
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C(68°F)]
¯
Hot [80°C(176°F)]1.5V
¯
0.5V2.5 kW
¯
0.3 kW
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
42 BThrottle position
sensor
(Ground)———
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: ATF TEMP SEN/CIRC
TCM receives an excessively low or high
voltage from the sensor.
lHarness or connectors
(The sensor circuit is open or shorted.)
lA/T fluid temperature sensor
: P0710
Page 143 of 3066
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
AT-137
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
CMPS·RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (OD “ON”)
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 144 of 3066
AT-138
[EURO-OBD]
DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT
Wiring Diagram — AT — FTS
ECS004R1
TCWA0048E
