Page 2977 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
TF-7
C
E
F
G
H
I
J
K
L
MA
B
TF
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartEDS000I4
Use the chart belo

Page 2978 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TF-8
TRANSFER FLUID
TRANSFER FLUID
PFP:KLD30
ReplacementEDS0004Q
DRAINING

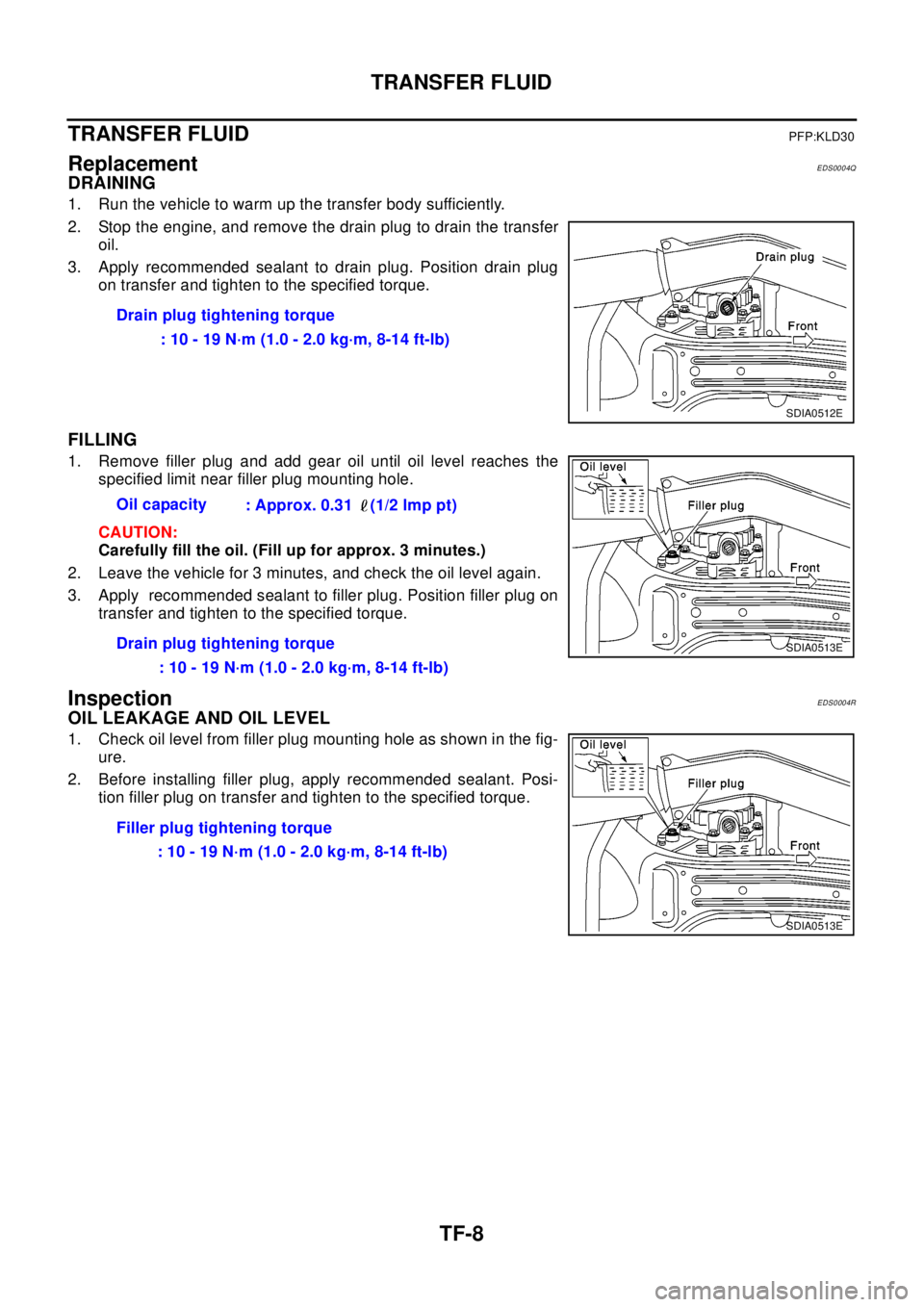

1. Run the vehicle to warm up the transfer body sufficiently.
2. Stop the engine, and remove the drain plug to drain the trans

Page 2979 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SIDE OIL SEAL
TF-9
C
E
F
G
H
I
J
K
L
MA
B
TF
SIDE OIL SEALPFP:33142
Removal and InstallationEDS0004S
REMOVAL
1. Remove the drive shaft.
2. Remove the side shaft.

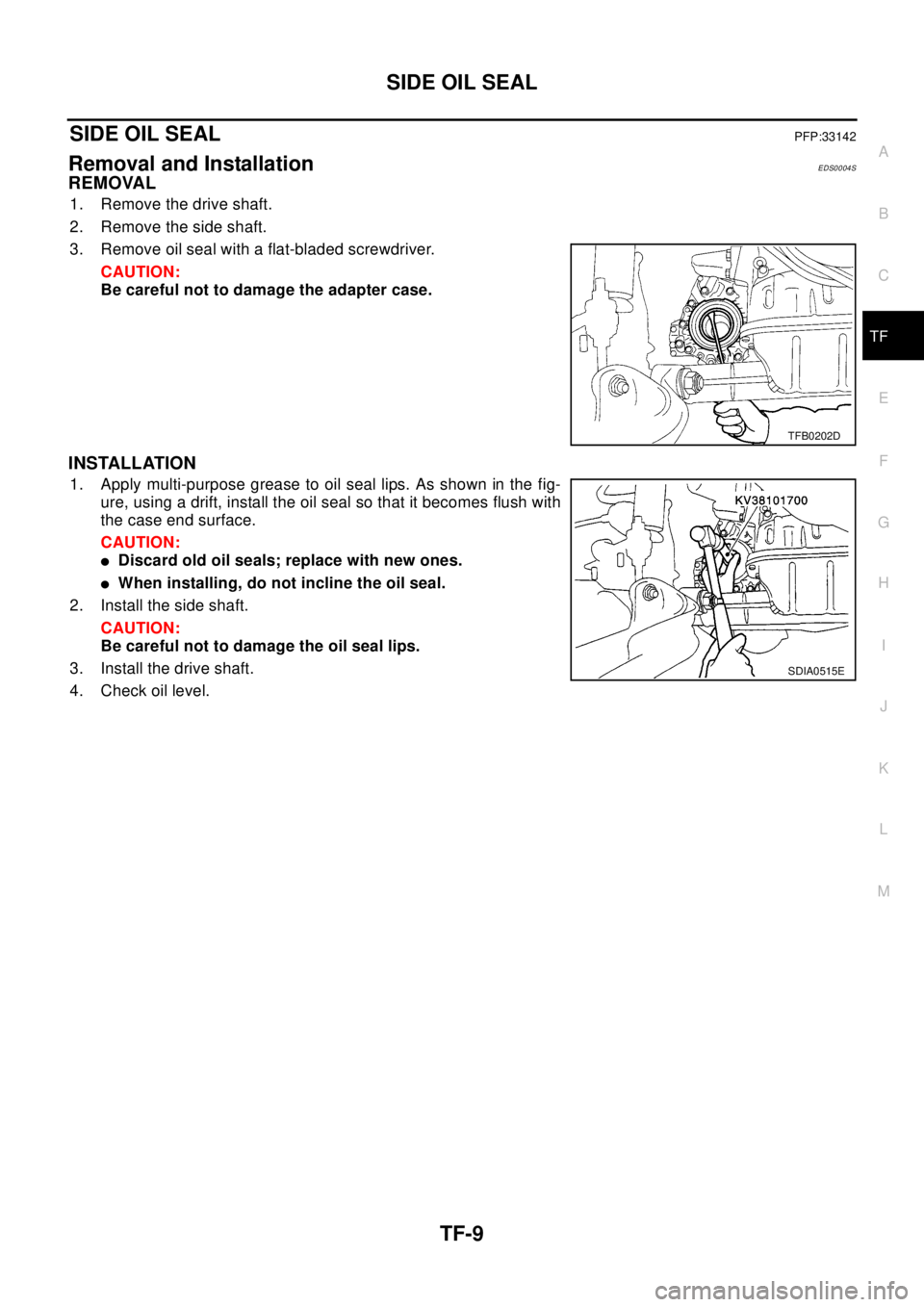

3. Remove oil seal with a flat-bladed

Page 2980 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TF-10
AIR BREATHER HOSE
AIR BREATHER HOSE
PFP:31098
Removal and InstallationEDS0004T
SDIA0491E

Page 2981 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AIR BREATHER HOSE
TF-11
C
E
F
G
H
I
J
K
L
MA
B
TF

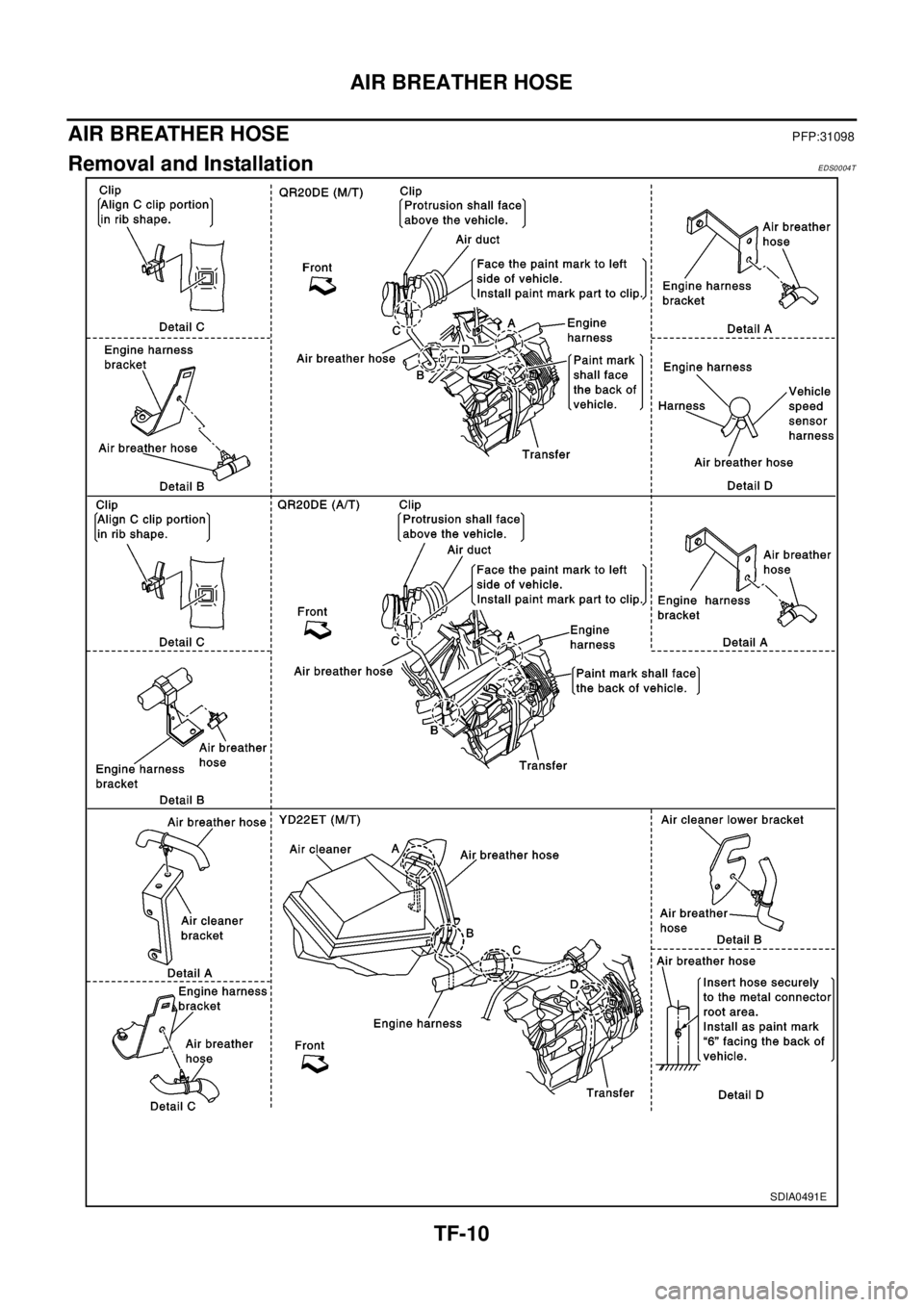

lRefer to the figure for air breather hose removal and installation information.
CAUTION:
lBe sure to insert air breather hose into transfer tube (met

Page 2982 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TF-12
TRANSFER ASSEMBLY
TRANSFER ASSEMBLY
PFP:33100
Removal and Installation from VehicleEDS0004U
REMOVAL
1. Remove the exhaust front tube, propeller shaft, and RH drive shaft.
2. Remove the side shaf

Page 2983 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TRANSFER ASSEMBLY
TF-13
C
E
F
G
H
I
J
K
L
MA
B
TF
lWhen installing the transfer to the transaxle, install the mounting
bolts following the standard below.
CAUTION:
When installing the transfer to the

Page 2984 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TF-14
TRANSFER ASSEMBLY

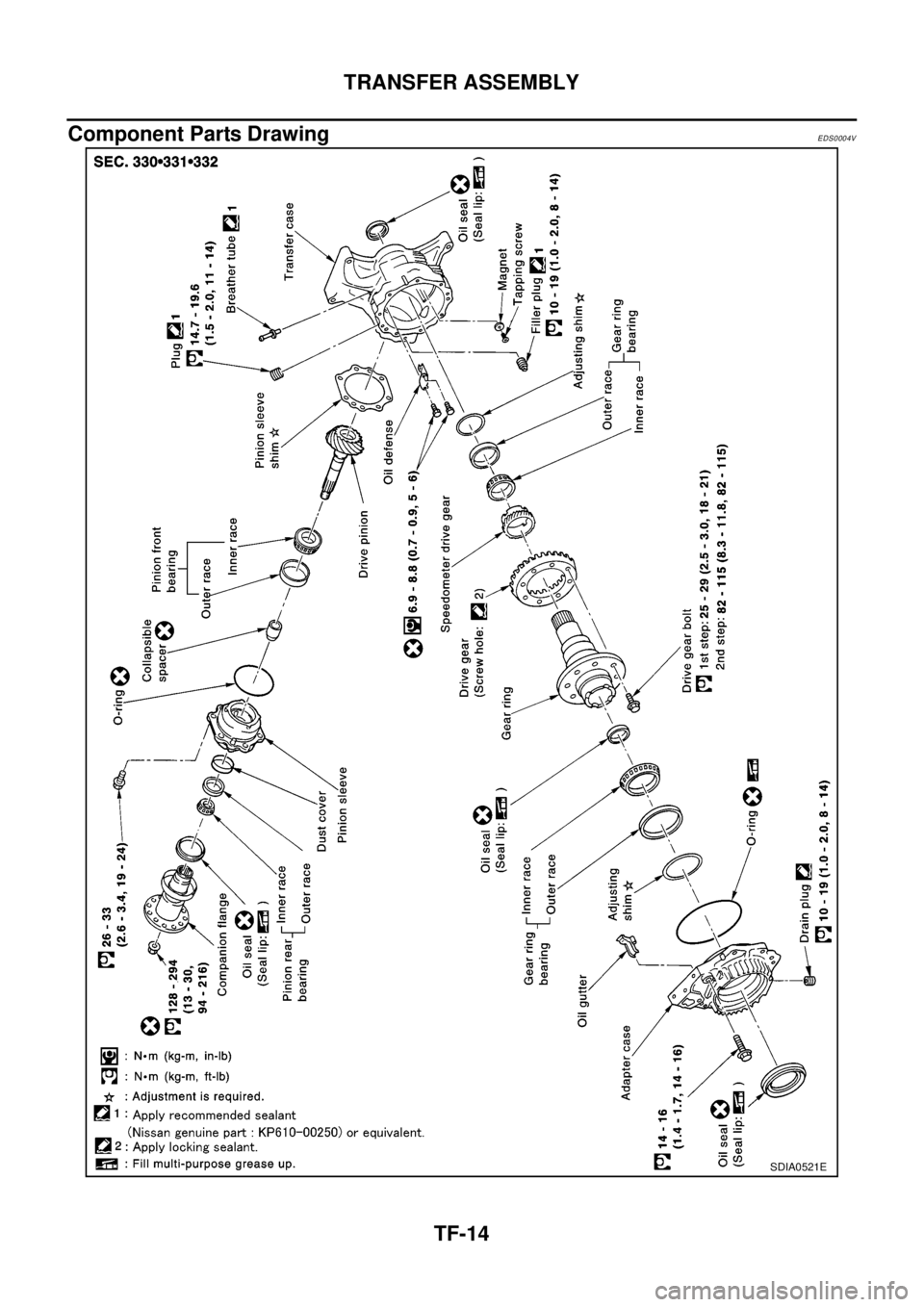

Component Parts Drawing
EDS0004V
SDIA0521E
