NISSAN X-TRAIL 2003 Electronic Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-19
C
D
E
F
G
H
I
J
L
MA
B
LT
Wiring Diagram — TURN —EKS003BY
TKWA0072E

Page 2418 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-20
TURN SIGNAL AND HAZARD WARNING LAMPS
TKWA0073E

Page 2419 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-21
C
D
E
F
G
H
I
J
L
MA
B
LT
Trouble DiagnosesEKS003BG
Electrical Components InspectionEKS0034C
COMBINATION FLASHER UNIT CHECK
lBefore checking, ensure that bul

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-21
C
D
E
F
G
H
I
J
L
MA
B
LT
Trouble DiagnosesEKS003BG
Electrical Components InspectionEKS0034C
COMBINATION FLASHER UNIT CHECK
lBefore checking, ensure that bulbs meet specifications.
lConnect a battery and test lamp to the combination flasher unit,
as shown. Combination flasher unit is properly functioning if it
blinks when power is supplied to the circuit.
Symptom Possible cause Repair order
Turn signal and hazard warning lamps do
not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit
for open circuit.
Turn signal lamps do not operate but haz-
ard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal switch
4. Open in turn signal switch circuit1. Check 10A fuse [No. 2, located in fuse
block (J/B)]. Turn ignition switch ON and
verify battery positive voltage is present
at terminal 2 of hazard switch.
2. Check hazard switch.
3. Check turn signal switch.
4. Check the wire between combination
flasher unit terminal 3 and turn signal
switch terminal 1 for open circuit.
Hazard warning lamps do not operate but
turn signal lamps operate.1. 10A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 10A fuse(No. 35, located in the
fuse and fusible link box). Verify battery
positive voltage is present at terminal 3
of hazard switch.
2. Check hazard switch.
3. Check the wire between combination
flasher unit terminal 3 and hazard switch
terminal 4 for open circuit.
Front turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
Rear turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds B8 and B181. Check bulb.
2. Check grounds B8 and B18.
Side turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
LH and RH turn indicators do not operate. 1. Ground 1. Check grounds M27 and M70.
LH or RH turn indicator does not operate. 1. Bulb 1. Check bulb in combination meter.
SEL122E

Page 2420 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-22
TURN SIGNAL AND HAZARD WARNING LAMPS
Bulb Replacement
EKS0034D
FRONT TURN SIGNAL LAMP
1. Remove the front turn signal lamp. Refer toLT- 2 2 , "Removal and
Installation for Front Turn Signal Lamp

Page 2421 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-23
C
D
E
F
G
H
I
J
L
MA
B
LT
Removal and Installation for Side Turn Signal LampEKS003BI
1. Push the side turn signal lamp toward A direction in the figure,
and

Page 2422 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-24
LIGHTING AND TURN SIGNAL SWITCH
LIGHTING AND TURN SIGNAL SWITCH
PFP:25540
Removal and InstallationEKS0034F
1. Remove the steering column cover. Refer toPS-9, "STEERING
COLUMN"in “POWER STEERIN

Page 2423 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual HAZARD SWITCH
LT-25
C
D
E
F
G
H
I
J
L
MA
B
LT
HAZARD SWITCHPFP:25290
Removal and InstallationEKS003BZ
REMOVAL
1. Remove Instrument lower center panel. Refer toIP-3, "INSTRU-
MENT PANEL ASSEMBLY".in �

Page 2424 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-26
STOP LAMP
STOP LAMP
PFP:26550

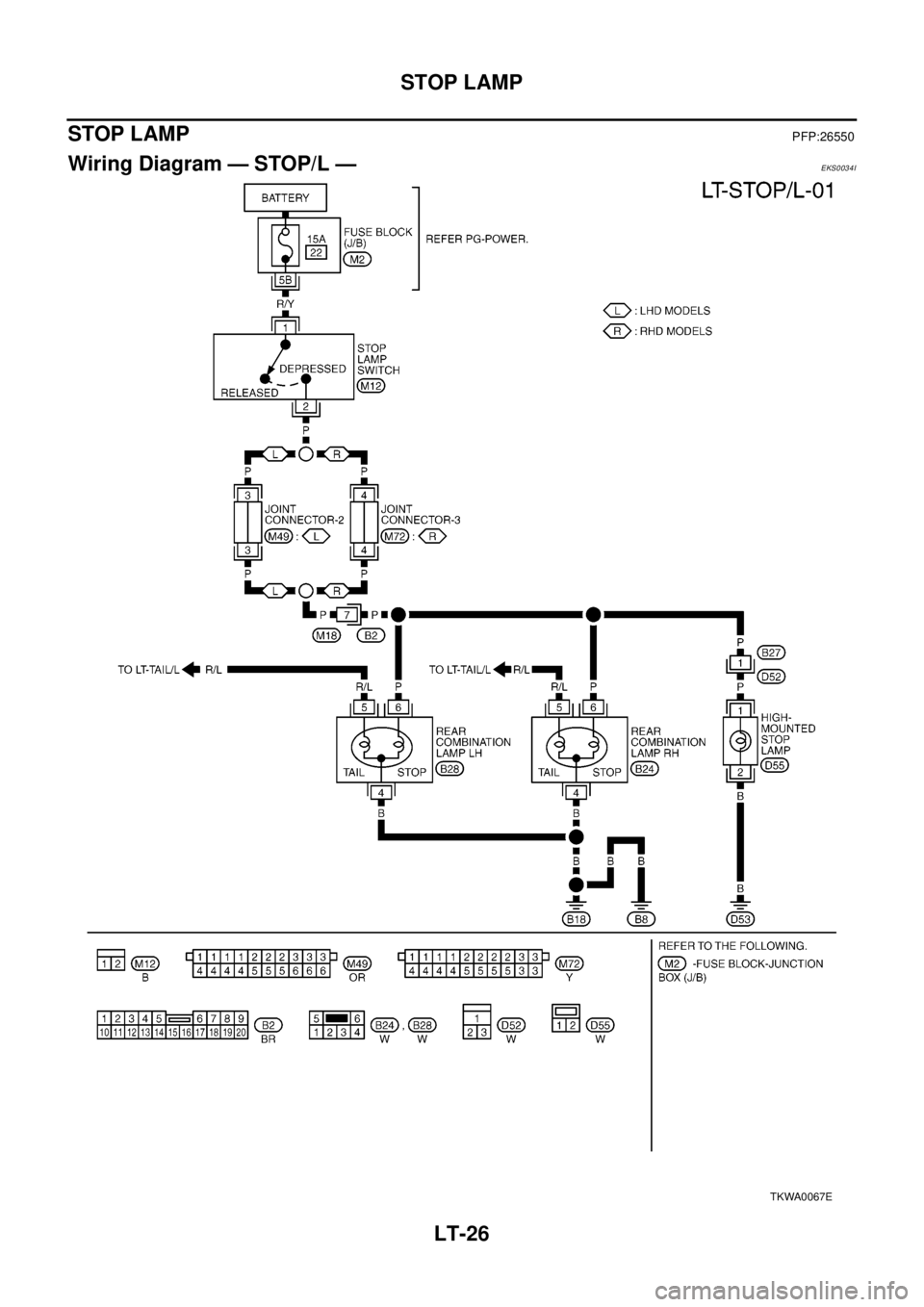

Wiring Diagram — STOP/L —EKS0034I
TKWA0067E
