TROUBLE DIAGNOSES FOR SYMPTOMS
AT-259
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
19.A/TDoesNotShift:22®11, When Selector Lever “2”®“1” PositionECS004TC
SYMPTOM:
A/T does not shift from 2
2to 11when changing selector lever from “2” to “1” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to “21. TCM Self-diag-
nosis Does Not Activate (PNP & Overdrive Control
switches, and Throttle Position Sensor Circuit Checks)”,
AT-260, "
21. TCM Self-diagnosis Does Not Activate
(PNP & Overdrive Control Switches, and Throttle Posi-
tion Sensor Circuit Checks)".
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
20. Vehicle Does Not Decelerate By Engine BrakeECS004TD
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2(12)to11.
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> Go to 15. Engine Speed Does Not Return To Idle (Light Braking D4®D3),AT - 2 5 5 , "15. Engine
Speed Does Not Return To Idle (Light Braking D4®D3)".
No >> Go to 6. Vehicle Does Not Creep Backward In “R” Position,AT-237, "
6. Vehicle Does Not Creep
Backward In“R”Position".
SCIA0706E
SAT778B
Page 266 of 3066
AT-260
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)
ECS0 04 T E
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION
lPNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.
lOverdrive control switch
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
lThrottle position sensor *
*: This sensor means accelerator pedal position (APP) senror.
Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.
SCIA0752E
SCIA0776E
PBIB0498E
Page 267 of 3066
![NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-261
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC PROCEDURE
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” positio NISSAN X-TRAIL 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-261
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC PROCEDURE
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” positio](/manual-img/5/57402/w960_57402-266.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-261
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC PROCEDURE
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GOTO3
NG >> Check the following items:
lPNP switch (Refer to “Component Inspection”,AT-
265, "COMPONENT INSPECTION".)
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and
TCM (Main harness)
lDiode (P, N positions)
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GOTO4
NG >> Check the following items:
lPNP switch (Refer to “Component Inspection”,AT-
265, "COMPONENT INSPECTION".)
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and TCM (Main harness)
lDiode (P, N positions)
SAT701J
Vo l ta g e :
B : Battery voltage
0:0V
Lever
positionTe r m i n a l N o .
36 35 34 27 26
P, N B 0 0 0 0
R0 B000
D0 0 B00
2000B0
10000B
SCIA0777E
Page 268 of 3066
AT-262
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GOTO5
NG >> Check the following items:
lOverdrive control switch (Refer to “Component
Inspection”,AT-265, "
COMPONENT INSPECTION".)
lHarness for short or open between TCM and over-
drive control switch (Main harness)
lHarness of ground circuit for overdrive control switch
(Main harness) for short or openSAT645J
Page 269 of 3066
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-263
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)

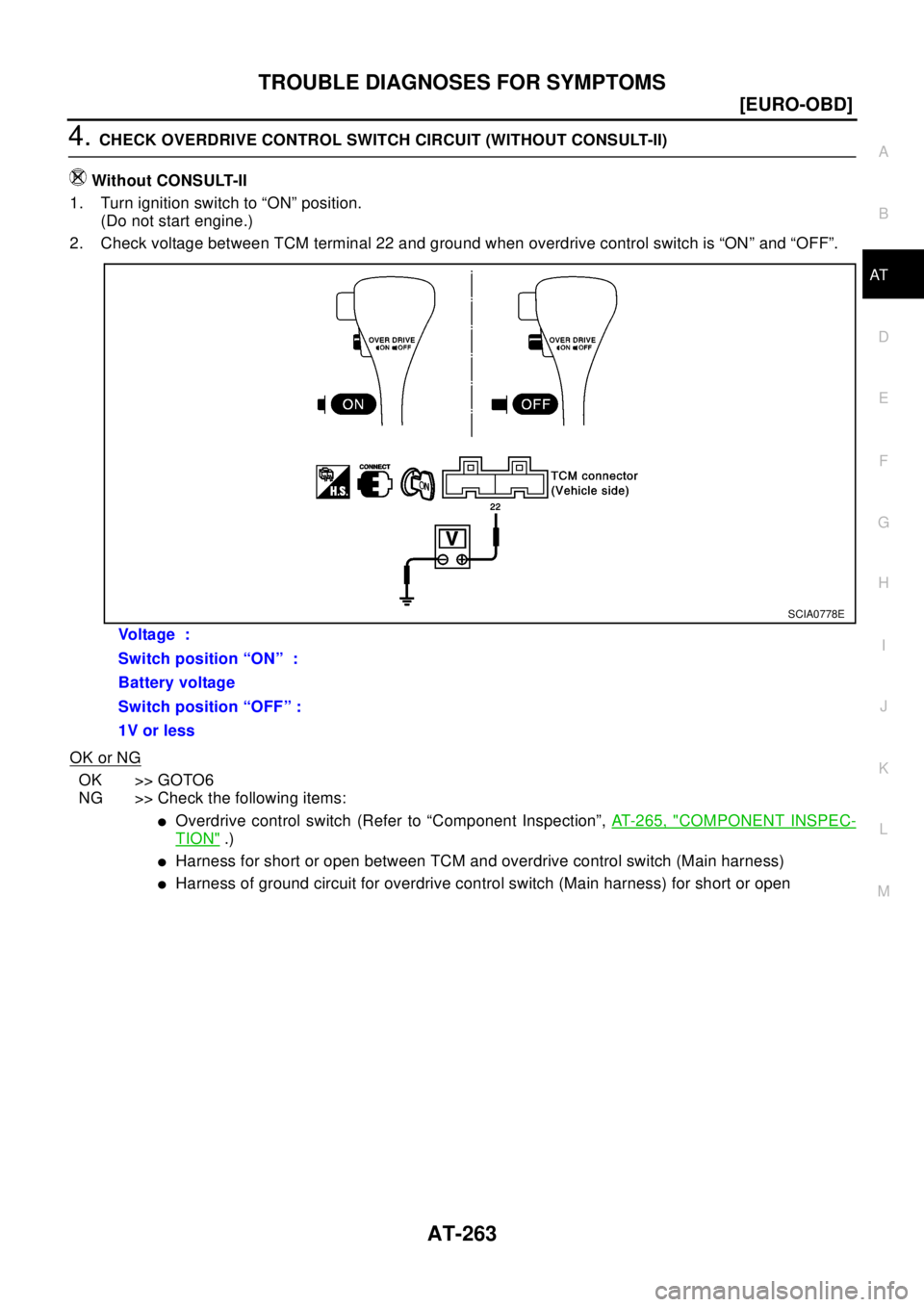

2. Check voltage between TCM terminal 22 and ground when overdrive control switch is “ON” and “OFF”.
