Page 2345 of 3066

GW-42
FRONT DOOR GLASS AND REGULATOR
6. Disconnect regulator assembly connector.
7. Remove regulator assembly and guide rail mounting bolts
through the access hole.
Install in the reverse order of removal.
INSPECTION AFTER REMOVAL
lCheck regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.
Wire wear
Regulator deformation
Grease condition for each sliding part
lThe arrows in the figure show body grease application points.
INSPECTION AFTER INSTALLATION
Setting of limit switch (driver)
If any of the following work has been done, set the limit switch (integrated in the motor).
lRemoval and installation of regulator
lRemoval and installation of motor from the regulator
lOperate regulators as a unit
lRemoval and installation of glass
lRemoval and installation of glass run
Reset operation
After installing each component to the vehicle, follow the steps
below.
1. Raise glass to the top dead center.
2. While pressing and holding reset switch, lower glass to the bot-
tom dead center.
3. Release reset switch, and check that reset switch returns to the
original position. Then raise glass to the top dead center.
NOTE:
Do not operate glass automatically to raise glass to the top dead
center.
FITTING INSPECTION
lCheck that glass is securely fit into glass run groove.
lWhile raising and lowering the window, check for abnormal operation.
PIIA0552E
OCC3424D
PIIA0553E
Page 2346 of 3066
REAR DOOR GLASS AND REGULATOR
GW-43
C
D
E
F
G
H
J
K
L
MA
B
GW

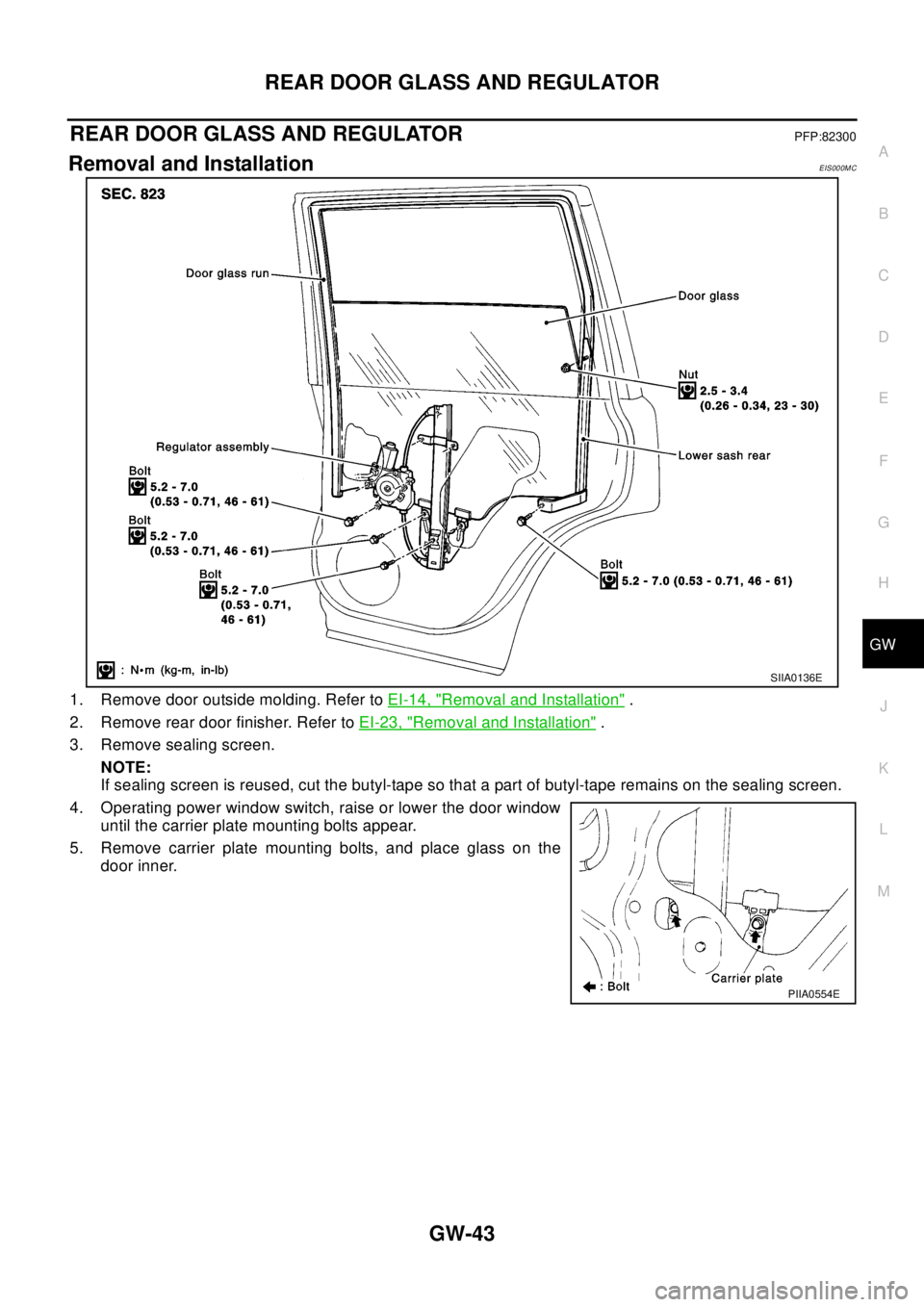

REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationEIS000MC
1. Remove door outside molding. Refer toEI-14, "Removal and Installation".
2. Remove rear door finisher. Refer toEI-23, "
Removal and Installation".
3. Remove sealing screen.
NOTE:
If sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
4. Operating power window switch, raise or lower the door window
until the carrier plate mounting bolts appear.
5. Remove carrier plate mounting bolts, and place glass on the
door inner.
SIIA0136E
PIIA0554E
Page 2347 of 3066
GW-44
REAR DOOR GLASS AND REGULATOR
6. Using a slotted screwdriver or similar tool, remove clip on the
corner inner cover. Slide upper hook to remove, and remove the
cover.
7. Slide the corner inner cover sash cover forward to remove.
8. Remove corner outer cover mounting bolts. Disconnect upper
hook, and remove the cover.
9. Remove mounting nuts on upper portion of rear lower sash.
10. Remove mounting bolts from lower portion of rear lower sash.
11. Rotate rear lower sash, and remove door window from glass
run.
12. Pull out the door window toward the outside of the door to
remove.
13. Remove glass run from rear lower sash.
14. Remove rear lower sash.
SIIA0132E
SIIA0140E
SIIA0133E
SIIA0134E
Page 2348 of 3066
REAR DOOR GLASS AND REGULATOR
GW-45
C
D
E
F
G
H
J
K
L
MA
B
GW
15. Disconnect regulator assembly connector.
16. Remove regulator assembly and the guide rail mounting bolts
through the access hole.
Install in the reverse order of removal.
INSPECTION AFTER REMOVAL
lCheck regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.
Gear wear
Regulator deformation
Spring damage
Grease condition for each sliding part
lThe arrows in the figure show body grease application points.
FITTING INSPECTION
lCheck that glass is securely fit into glass run groove.
lWhile raising and lowering the window, check for abnormal operation.
PIIA0556E
OCC3565D
Page 2349 of 3066

GW-46
DOOR MIRROR
DOOR MIRROR
PFP:96301

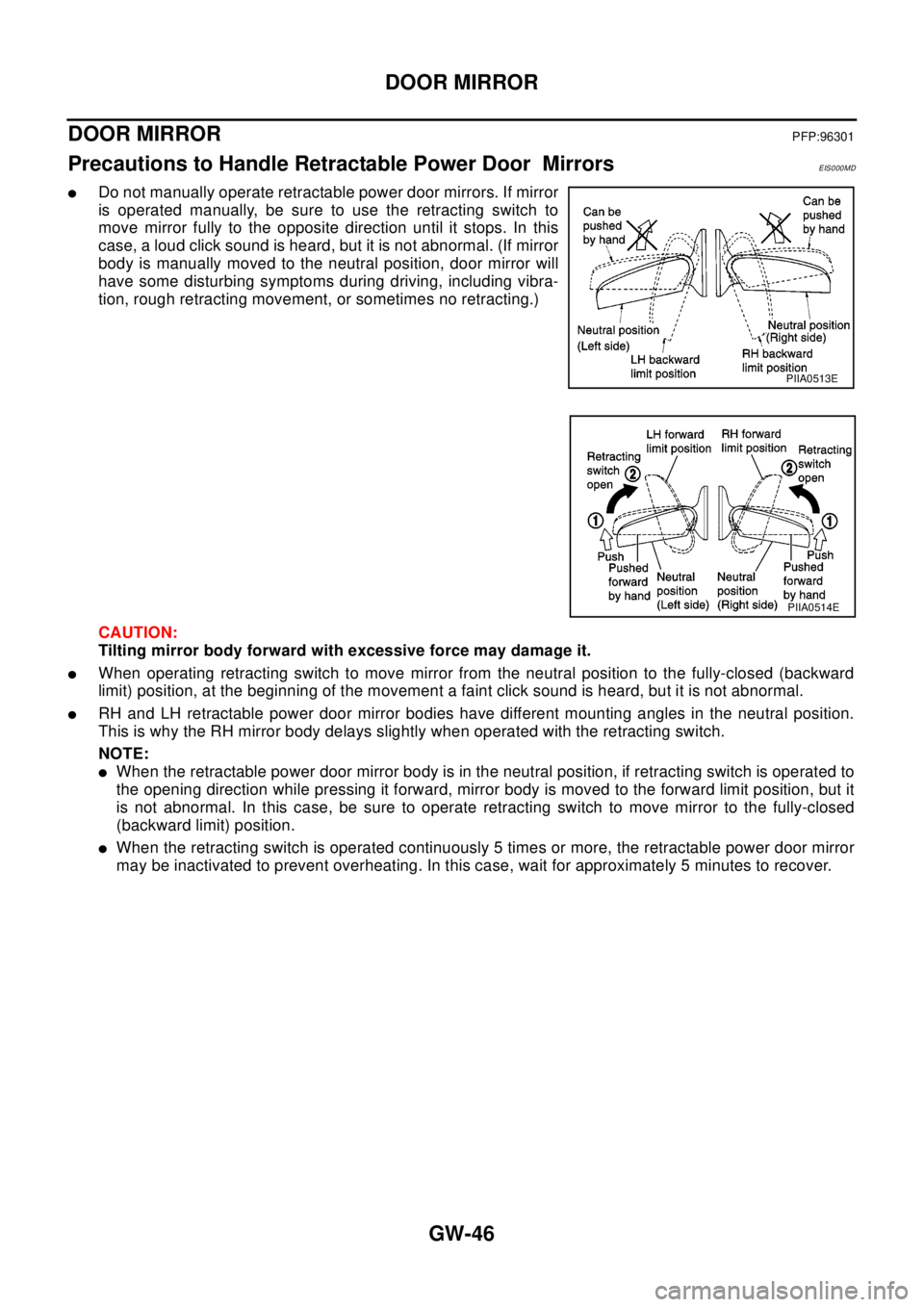

Precautions to Handle Retractable Power Door MirrorsEIS000MD
lDo not manually operate retractable power door mirrors. If mirror
is operated manually, be sure to use the retracting switch to
move mirror fully to the opposite direction until it stops. In this
case, a loud click sound is heard, but it is not abnormal. (If mirror
body is manually moved to the neutral position, door mirror will
have some disturbing symptoms during driving, including vibra-
tion, rough retracting movement, or sometimes no retracting.)
CAUTION:
Tilting mirror body forward with excessive force may damage it.
lWhen operating retracting switch to move mirror from the neutral position to the fully-closed (backward
limit) position, at the beginning of the movement a faint click sound is heard, but it is not abnormal.
lRH and LH retractable power door mirror bodies have different mounting angles in the neutral position.
This is why the RH mirror body delays slightly when operated with the retracting switch.
NOTE:
lWhen the retractable power door mirror body is in the neutral position, if retracting switch is operated to
the opening direction while pressing it forward, mirror body is moved to the forward limit position, but it
is not abnormal. In this case, be sure to operate retracting switch to move mirror to the fully-closed
(backward limit) position.
lWhen the retracting switch is operated continuously 5 times or more, the retractable power door mirror
may be inactivated to prevent overheating. In this case, wait for approximately 5 minutes to recover.
PIIA0513E
PIIA0514E
Page 2350 of 3066
DOOR MIRROR
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

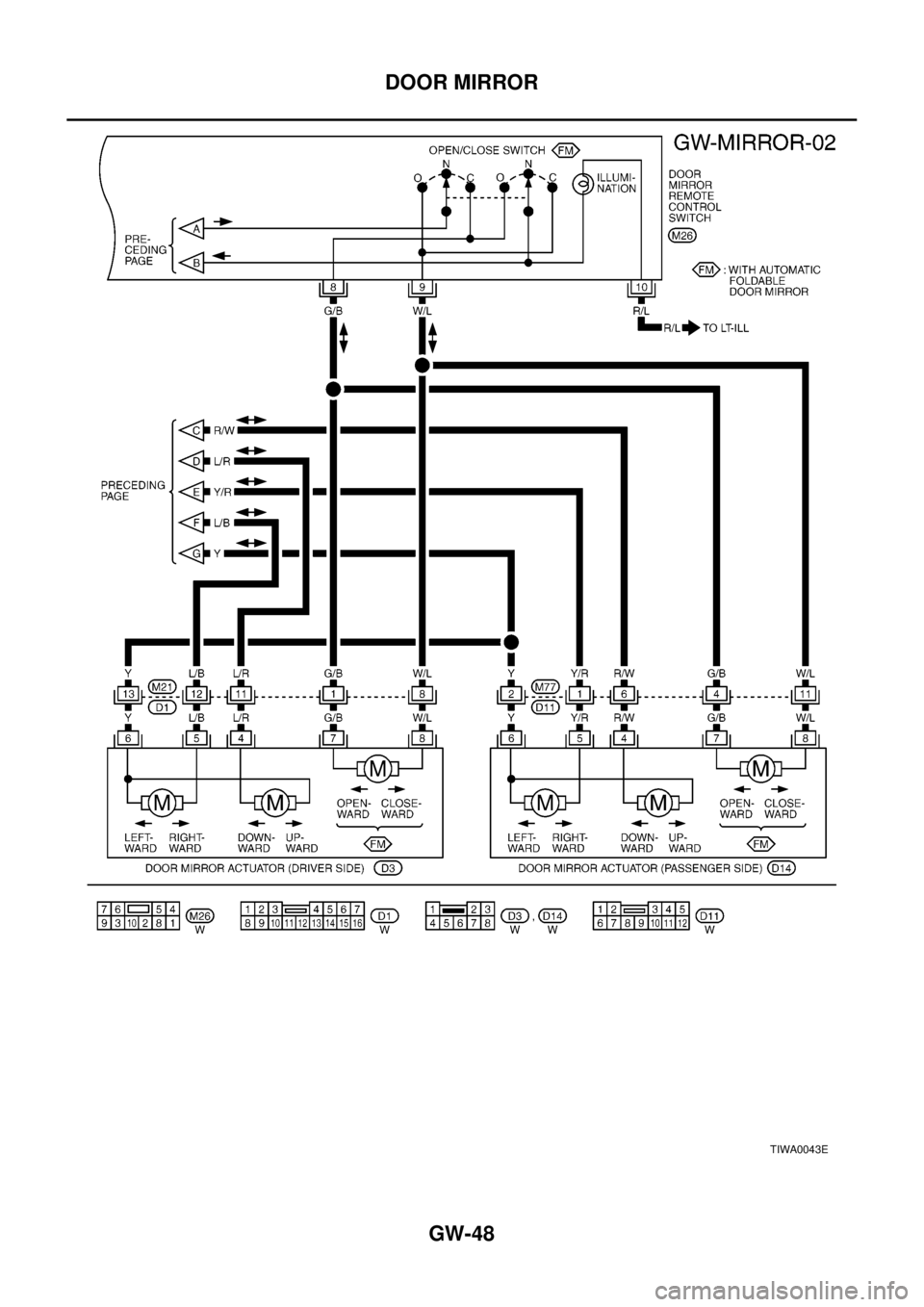

Wiring Diagram –MIRROR– LHD modelsEIS001SZ
TIWA0042E
Page 2351 of 3066
GW-48
DOOR MIRROR
TIWA0043E
Page 2352 of 3066
DOOR MIRROR
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW

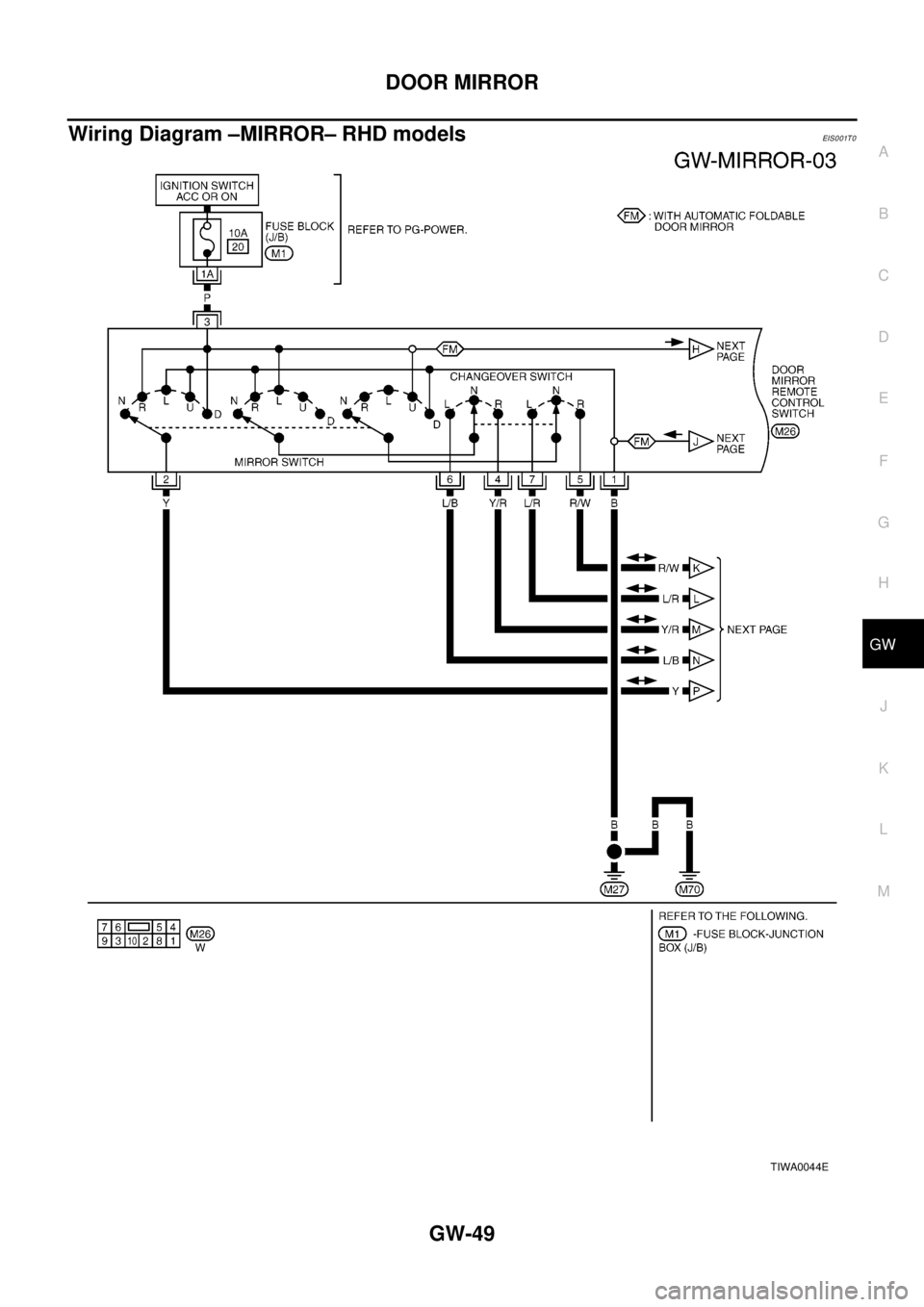

Wiring Diagram –MIRROR– RHD modelsEIS0 01T 0
TIWA0044E
