NISSAN X-TRAIL 2003 Electronic Repair Manual ELECTRICAL LOAD SIGNAL EC-367 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 5.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I Wi th ou t C O N S U LT-I I 1. Turn ignition switch “ON”. 2. Check volta

Page 1482 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-368 [QR (WITH EURO-OBD)] ELECTRICAL LOAD SIGNAL 9.CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3. Disconnect rear window de

Page 1483 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual ELECTRICAL LOAD SIGNAL EC-369 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 13.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3. Disconnect

Page 1484 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-370 [QR (WITH EURO-OBD)] ELECTRICAL LOAD SIGNAL 17.CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Stop engine. 2. Disconnect ECM harness connector. 3. Disconnect A/C AUTO AMP. harness connect

Page 1485 of 3066

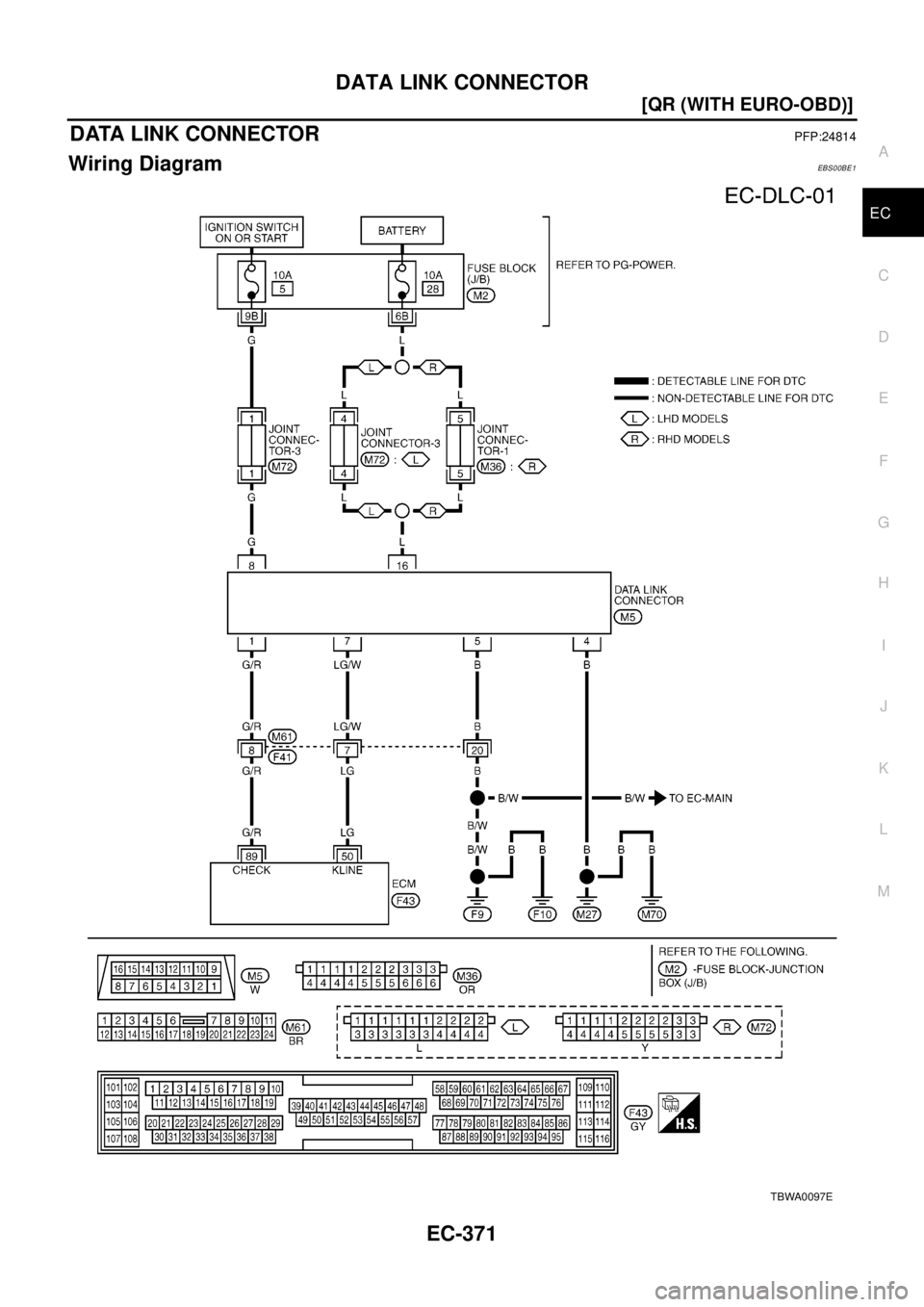

NISSAN X-TRAIL 2003 Electronic Repair Manual DATA LINK CONNECTOR EC-371 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC DATA LINK CONNECTORPFP:24814 Wiring DiagramEBS00BE1 TBWA0097E

Page 1486 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-372 [QR (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM EVAPORATIVE EMISSION SYSTEM PFP:14950 DescriptionEBS00BE2 SYSTEM DESCRIPTION The evaporative emission system is used to reduce hydrocarbons emit

Page 1487 of 3066

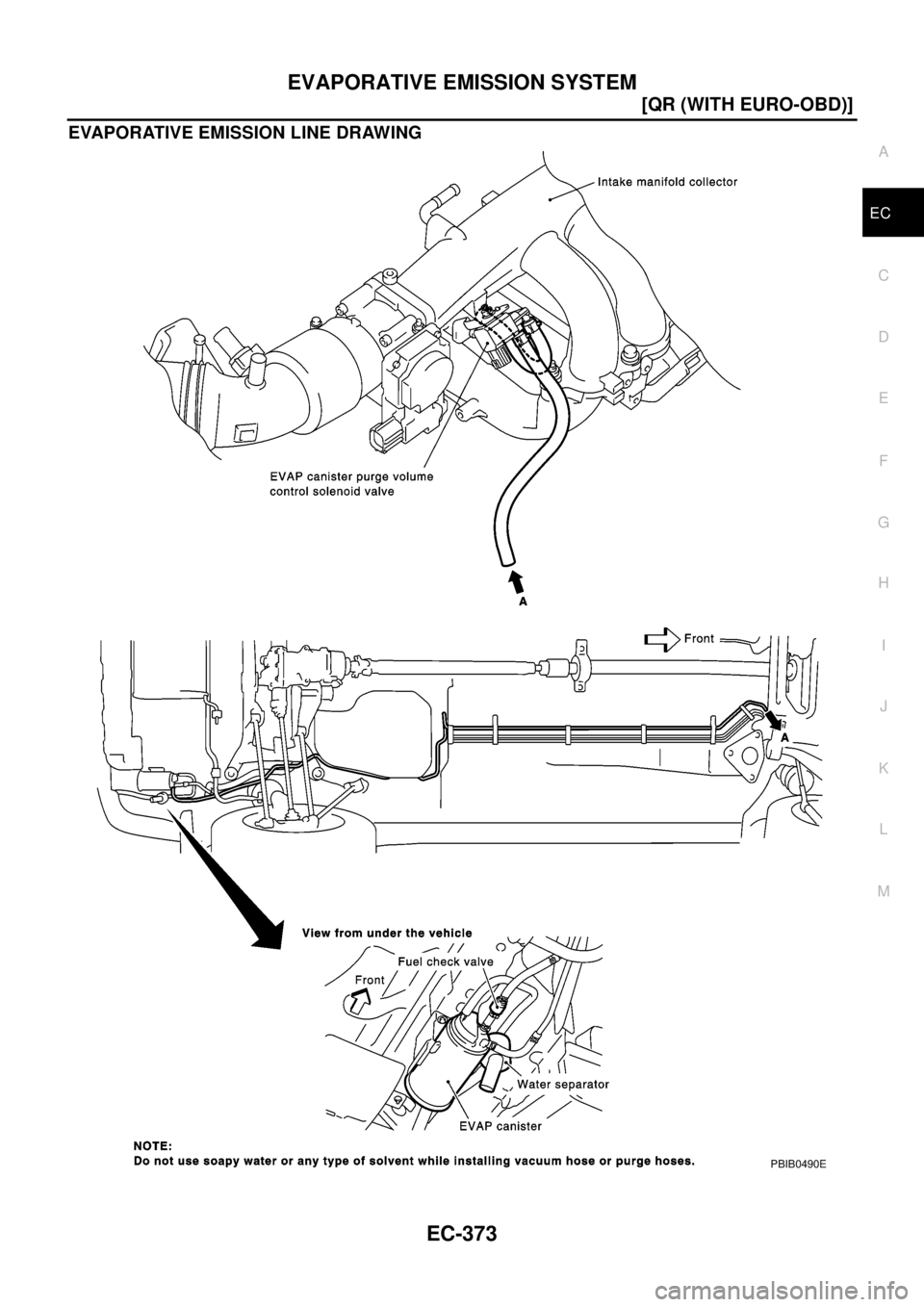

NISSAN X-TRAIL 2003 Electronic Repair Manual EVAPORATIVE EMISSION SYSTEM EC-373 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC EVAPORATIVE EMISSION LINE DRAWING PBIB0490E

Page 1488 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-374 [QR (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM Component Inspection EBS00BE3 EVAP CANISTER Check EVAP canister as follows: 1. Block portB. Orally blow air through portA. Check that air flows
