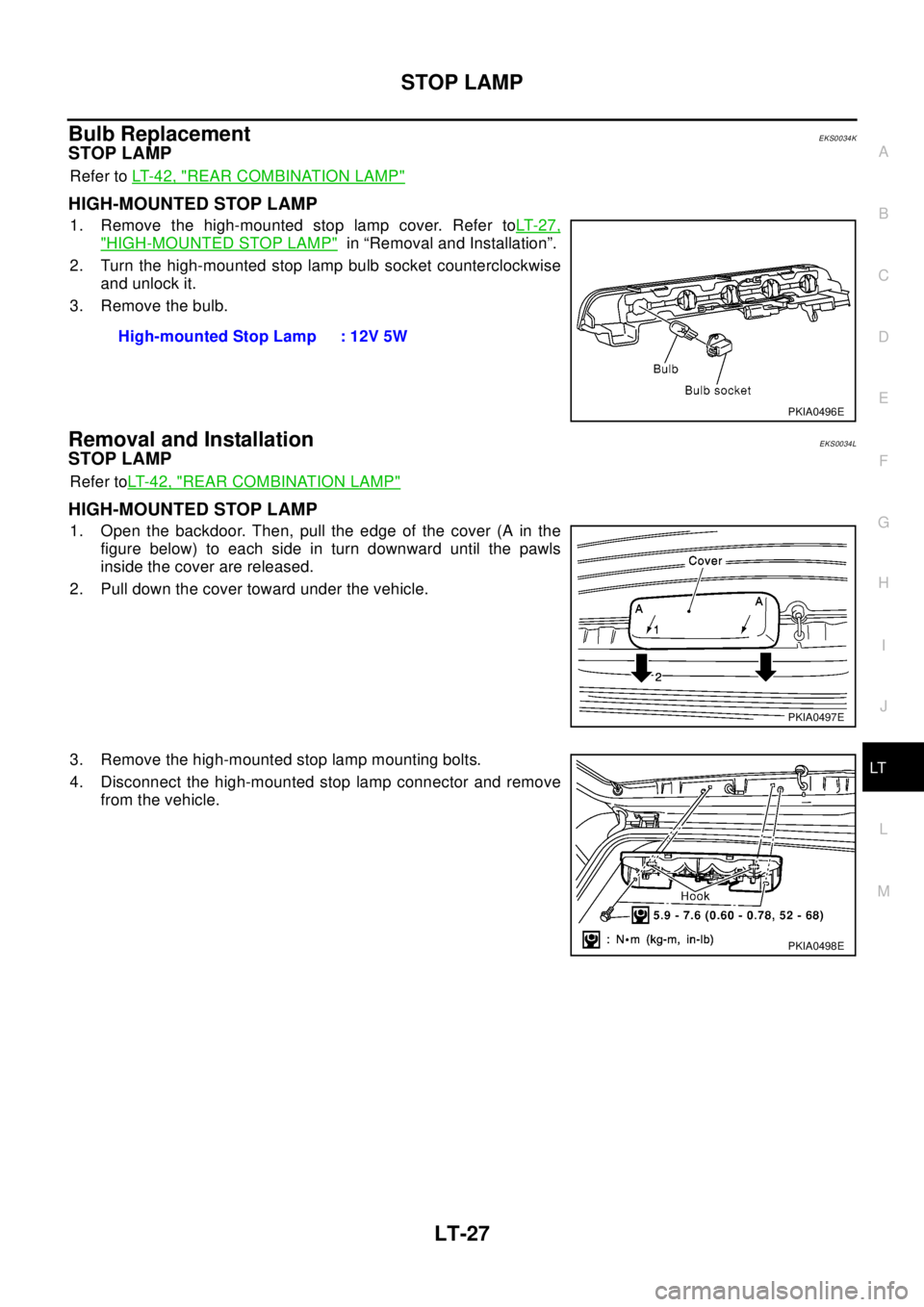

NISSAN X-TRAIL 2003 Electronic Repair Manual STOP LAMP LT-27 C D E F G H I J L MA B LT Bulb ReplacementEKS0034K STOP LAMP Refer toLT- 4 2 , "REAR COMBINATION LAMP" HIGH-MOUNTED STOP LAMP 1. Remove the high-mounted stop lamp cover. Refer toLT- 2

Page 2426 of 3066

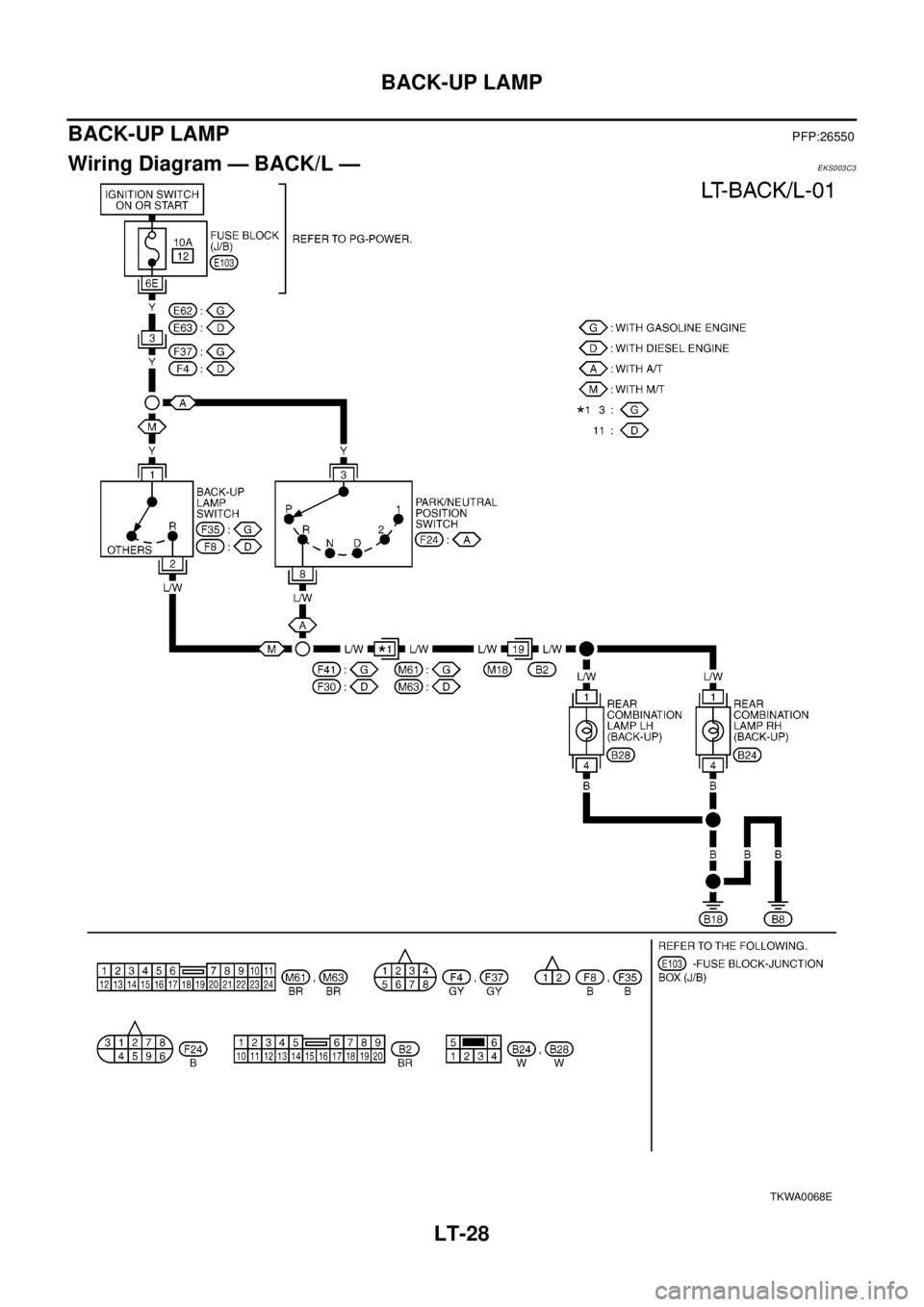

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-28 BACK-UP LAMP BACK-UP LAMP PFP:26550 Wiring Diagram — BACK/L —EKS003C3 TKWA0068E

Page 2427 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BACK-UP LAMP LT-29 C D E F G H I J L MA B LT Bulb ReplacementEKS003C4 Refer toLT- 4 2 , "REAR COMBINATION LAMP". Removal and InstallationEKS003C5 Refer toLT-42, "REAR COMBINATION LAMP".

Page 2428 of 3066

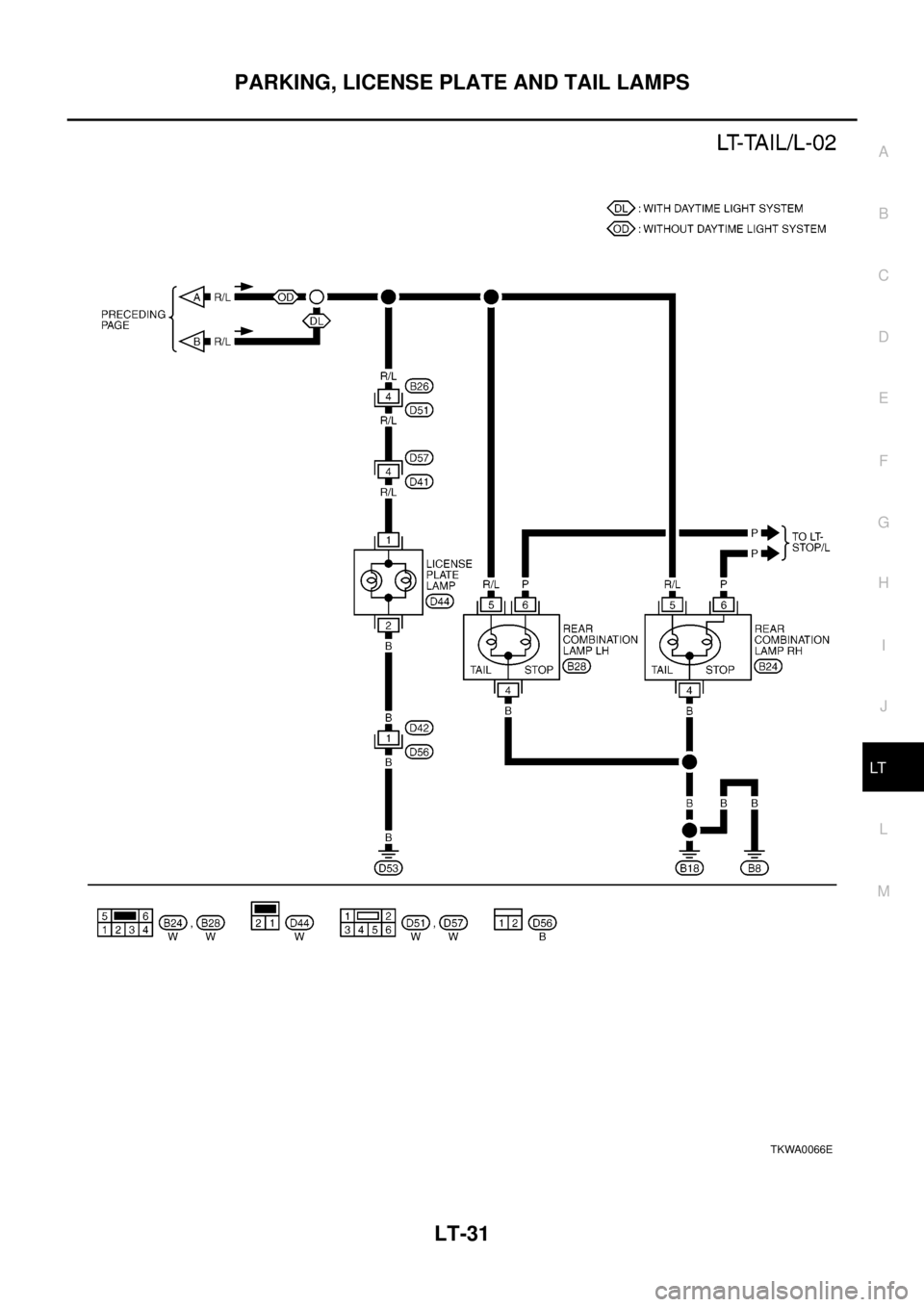

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-30 PARKING, LICENSE PLATE AND TAIL LAMPS PARKING, LICENSE PLATE AND TAIL LAMPS PFP:26550 Wiring Diagram — TAIL/L —EKS003C0 TKWA0065E

Page 2429 of 3066

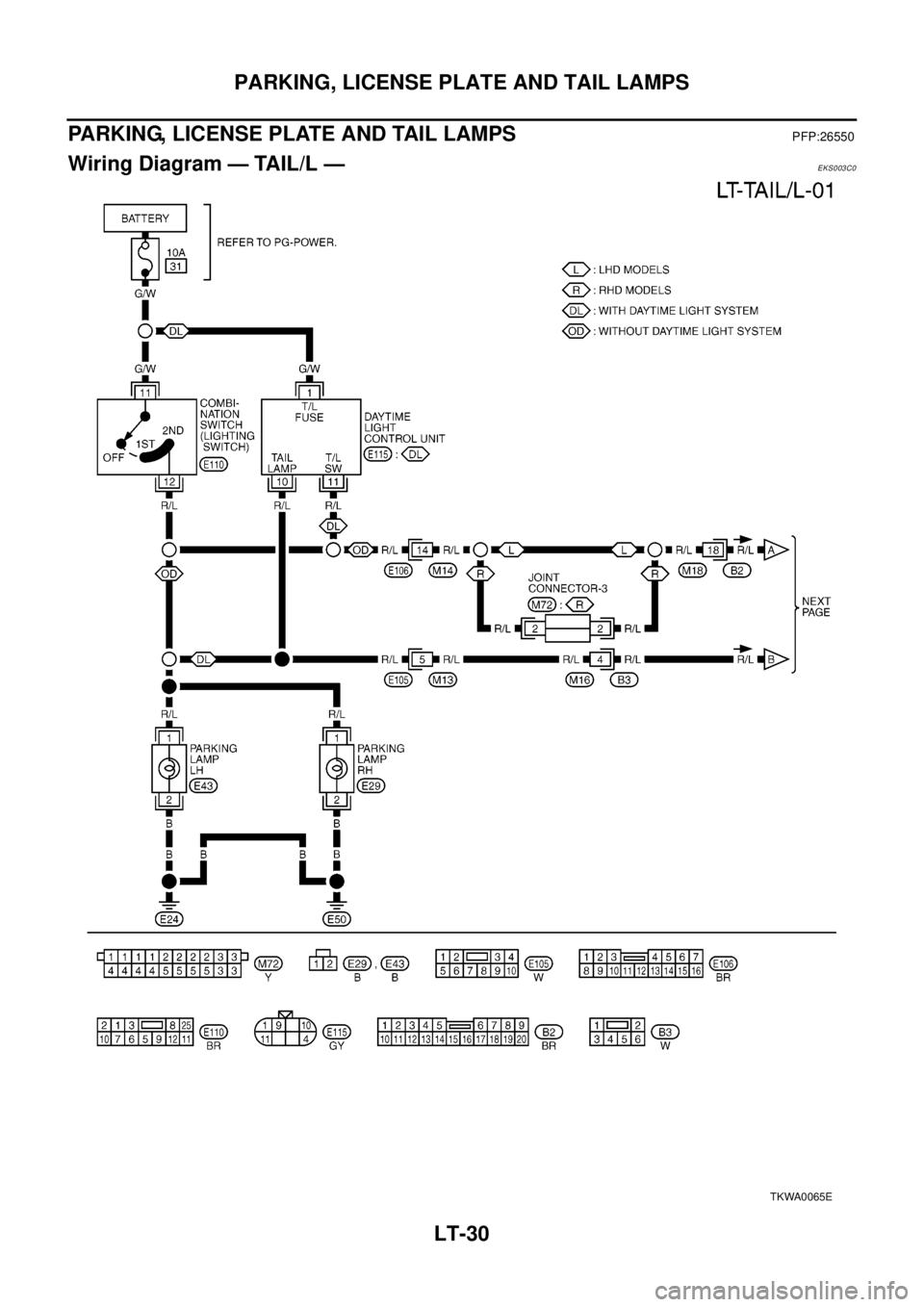

NISSAN X-TRAIL 2003 Electronic Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-31 C D E F G H I J L MA B LT TKWA0066E

Page 2430 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-32 PARKING, LICENSE PLATE AND TAIL LAMPS Bulb Replacement EKS003C1 PARKING AND TAIL LAMPS Refer toLT- 4 2 , "REAR COMBINATION LAMP". LICENSE PLATE LAMP 1. Remove license plate lamp. 2. Turn bulb so

Page 2431 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT FOG LAMP LT-33 C D E F G H I J L MA B LT FRONT FOG LAMPPFP:00011 System DescriptionEKS003DF DESCRIPTION Power is supplied at all times to fog lamp relay terminal 3 lthrough 15A fuse (No. 42, loc

Page 2432 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual LT-34 FRONT FOG LAMP Wiring Diagram — F/FOG — EKS003DG TKWA0069E
