Page 2681 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY ROUTING PG-5 C D E F G H I J L MA B PG TKWA0122E

Page 2682 of 3066

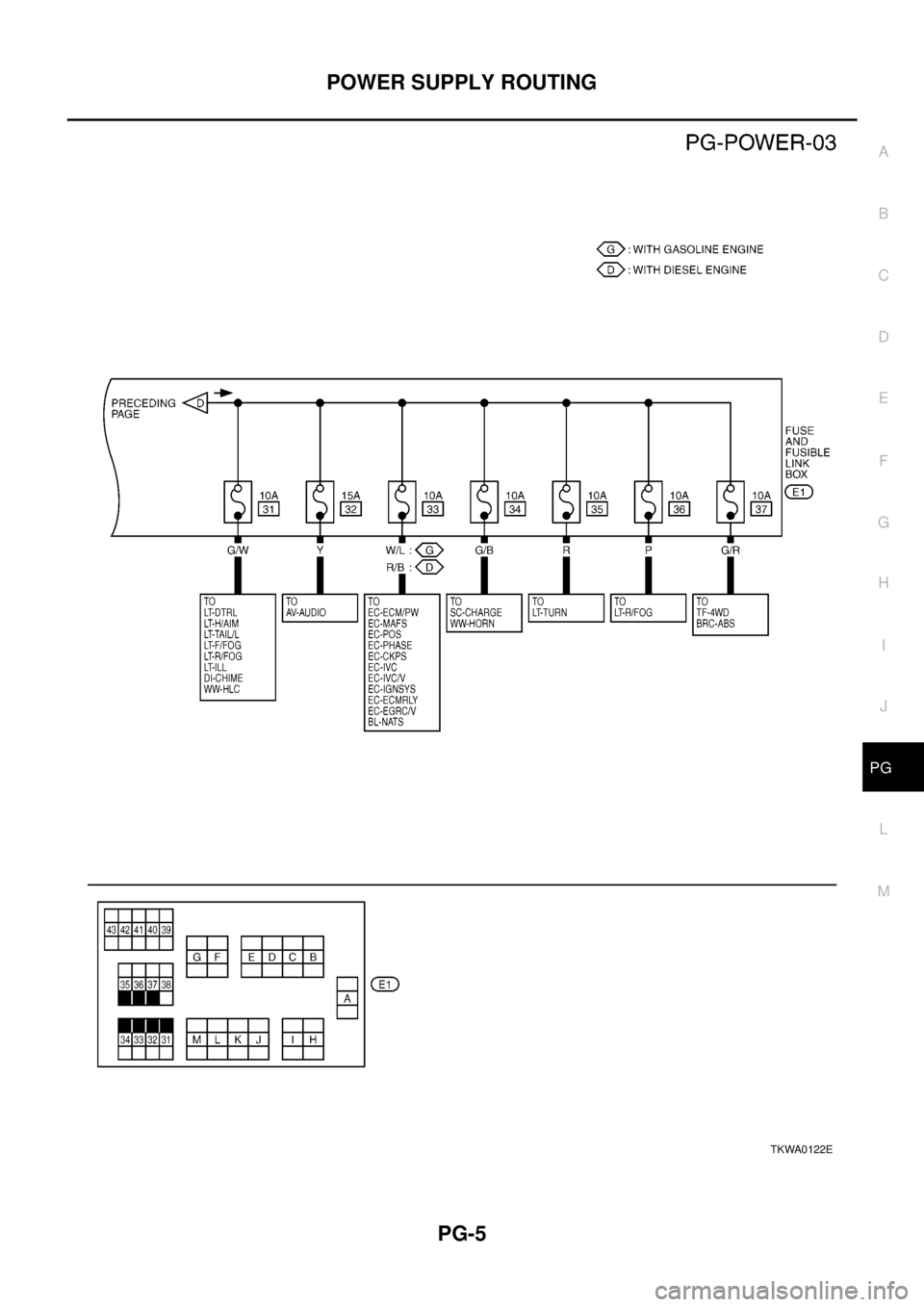

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-6 POWER SUPPLY ROUTING TKWA0132E

Page 2683 of 3066

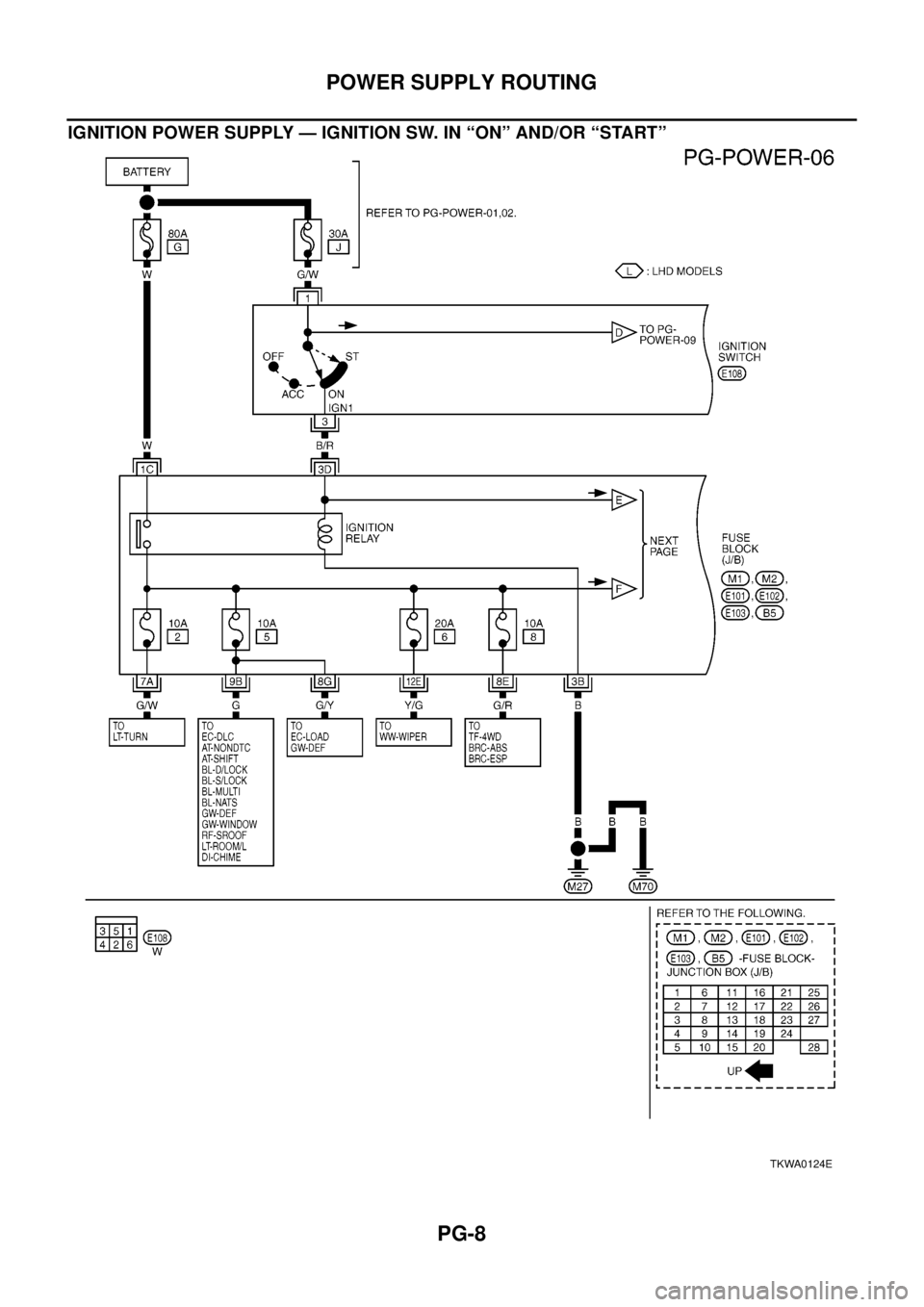

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY ROUTING PG-7 C D E F G H I J L MA B PG ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON” TKWA0123E

Page 2684 of 3066

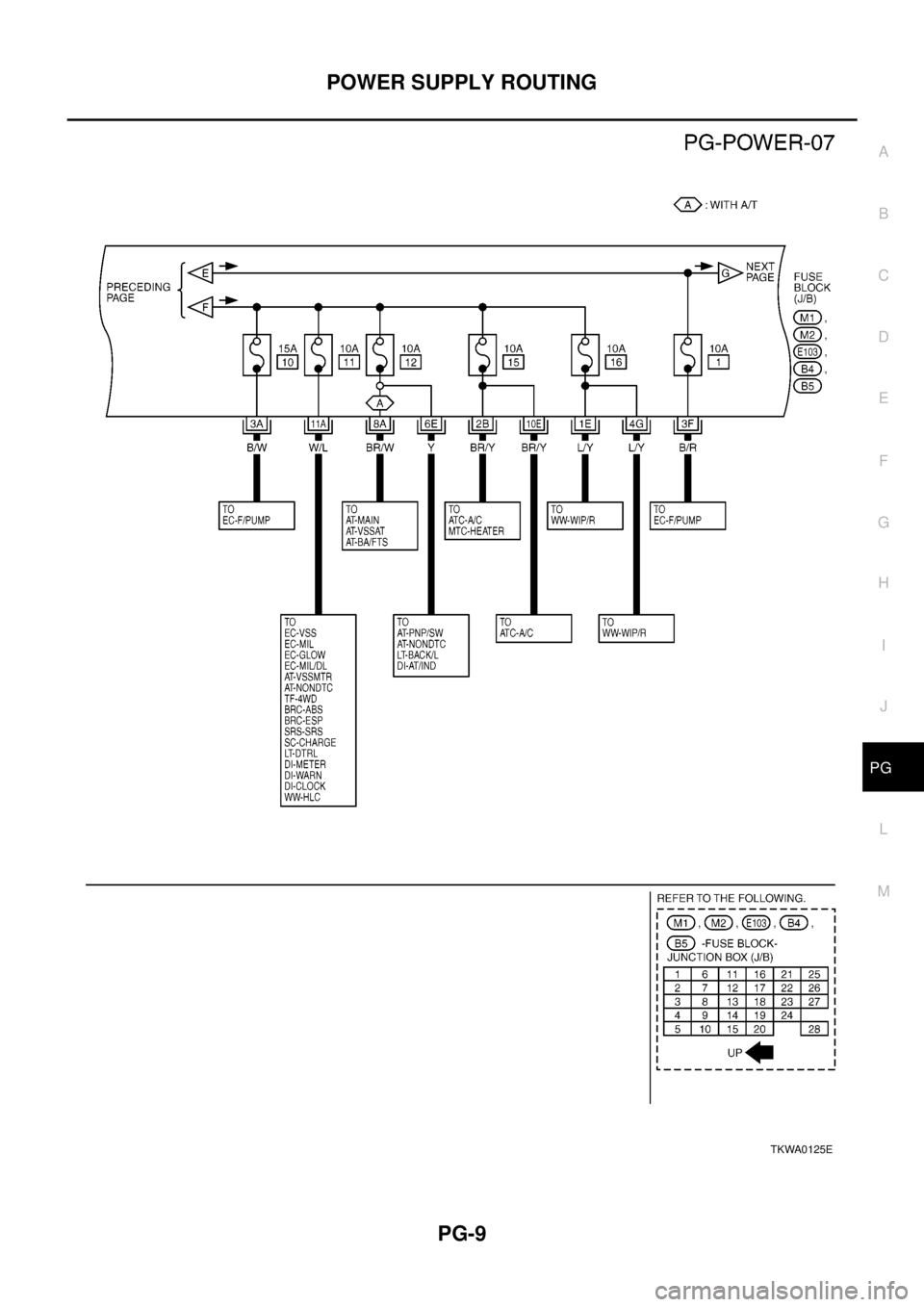

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-8 POWER SUPPLY ROUTING IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START” TKWA0124E

Page 2685 of 3066

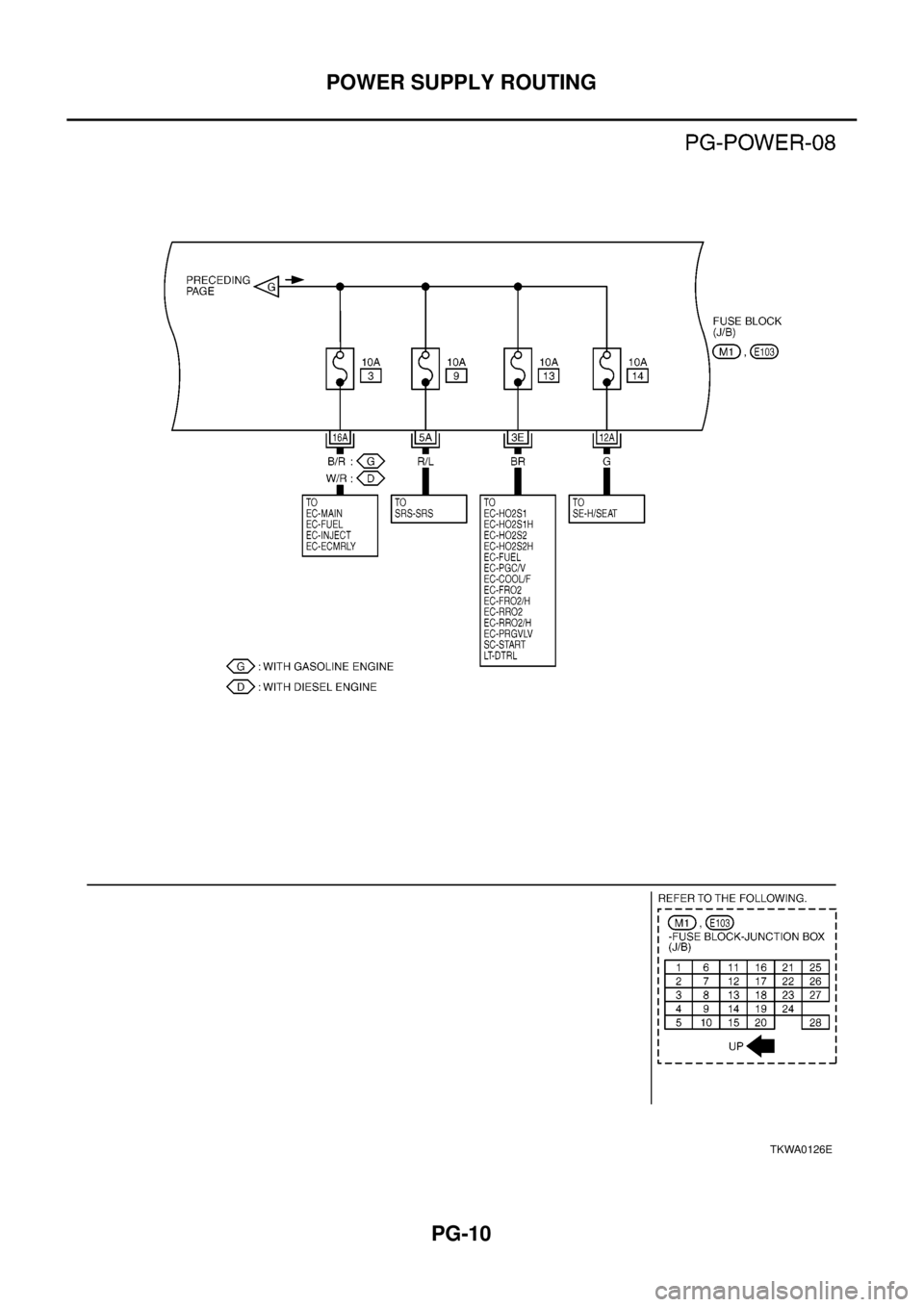

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY ROUTING PG-9 C D E F G H I J L MA B PG TKWA0125E

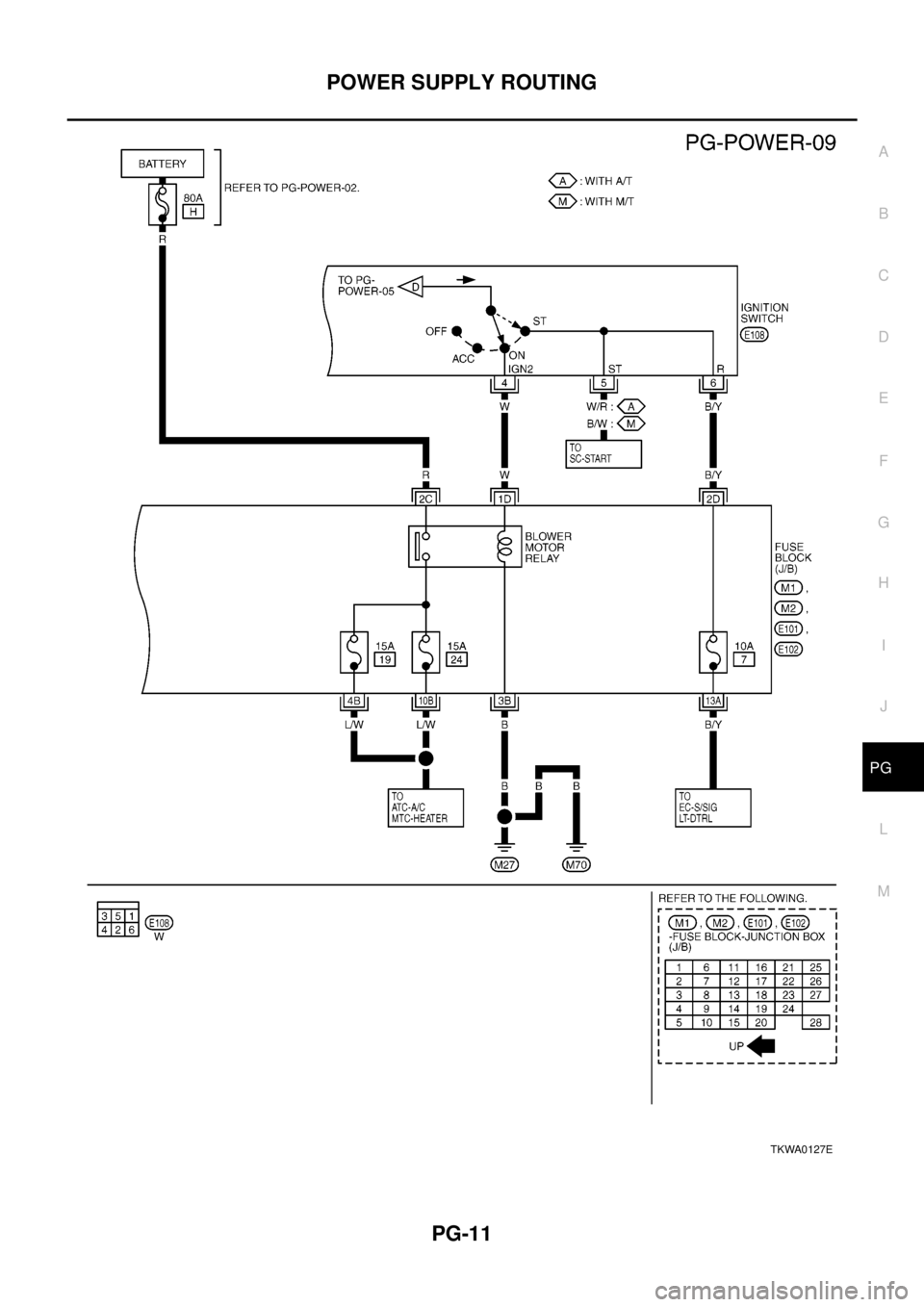

Page 2686 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-10 POWER SUPPLY ROUTING TKWA0126E

Page 2687 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER SUPPLY ROUTING PG-11 C D E F G H I J L MA B PG TKWA0127E

Page 2688 of 3066

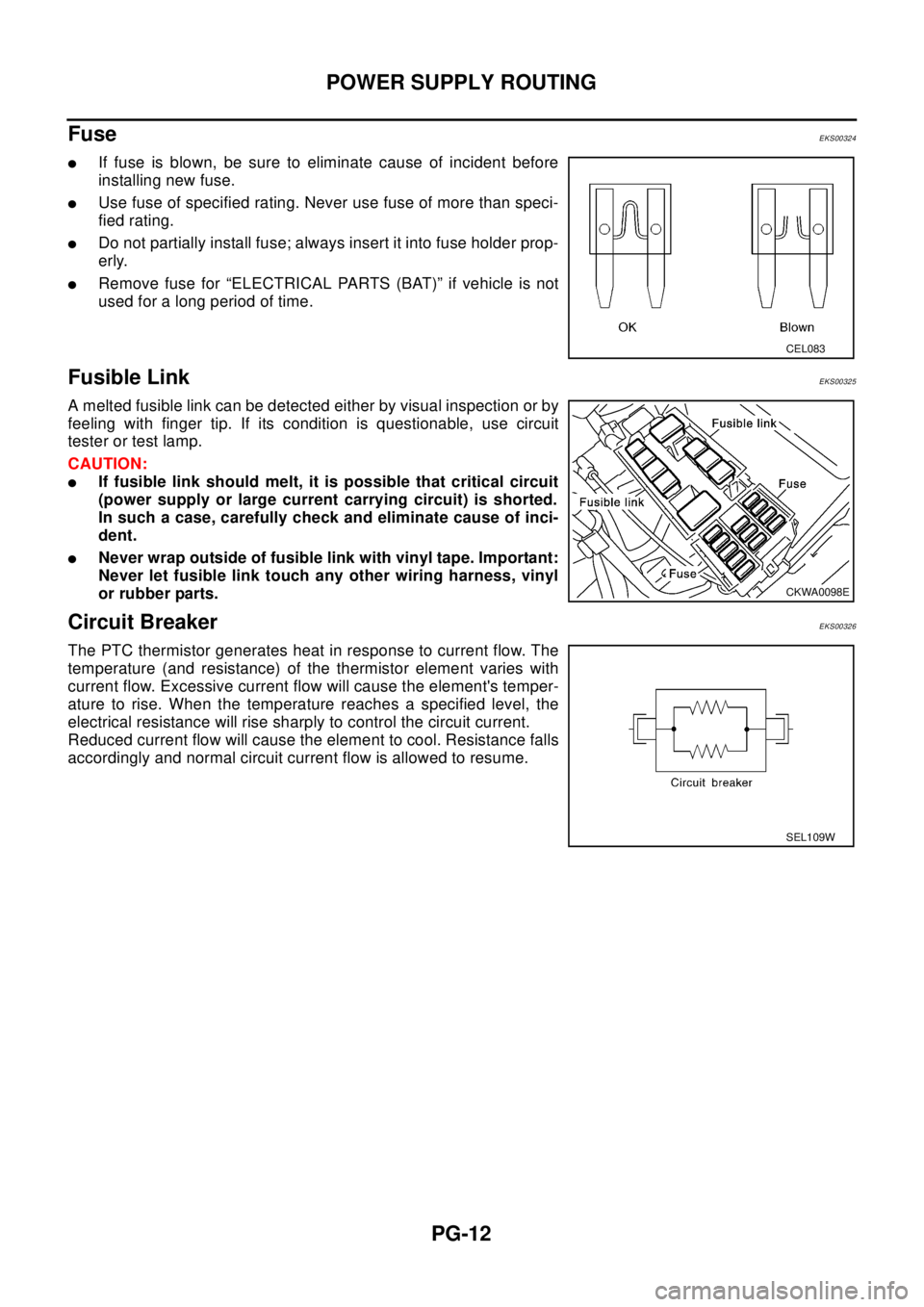

NISSAN X-TRAIL 2003 Electronic Repair Manual PG-12 POWER SUPPLY ROUTING Fuse EKS00324 lIf fuse is blown, be sure to eliminate cause of incident before installing new fuse. lUse fuse of specified rating. Never use fuse of more than speci- fied ra
