NISSAN X-TRAIL 2003 Electronic Repair Manual OVERALL SYSTEM AT-19 D E F G H I J K L MA B AT Shift MechanismECS004QD CONSTRUCTION FUNCTION OF CLUTCH AND BRAKE CLUTCH AND BAND CHART 1. Torque converter 2. Oil pump 3. Input shaft 4. Brake band 5. R

Page 26 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-20 OVERALL SYSTEM l*1: Operates when overdrive control switch is set in “OFF” position. l*2: Oil pressure is applied to both 2nd “apply” side and 3rd “release” side of band servo piston

Page 27 of 3066

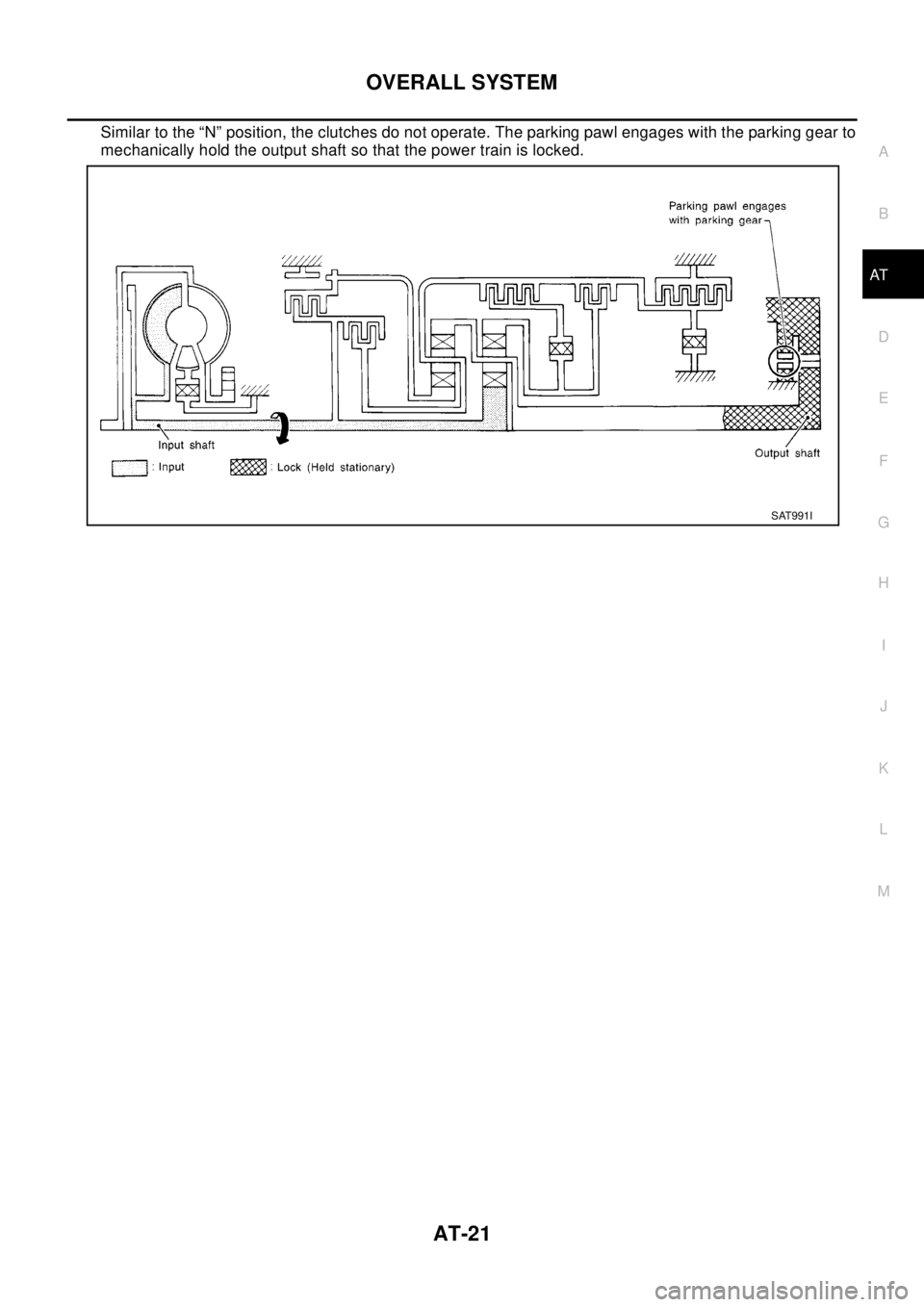

NISSAN X-TRAIL 2003 Electronic Repair Manual OVERALL SYSTEM AT-21 D E F G H I J K L MA B AT Similar to the “N” position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so tha

Page 28 of 3066

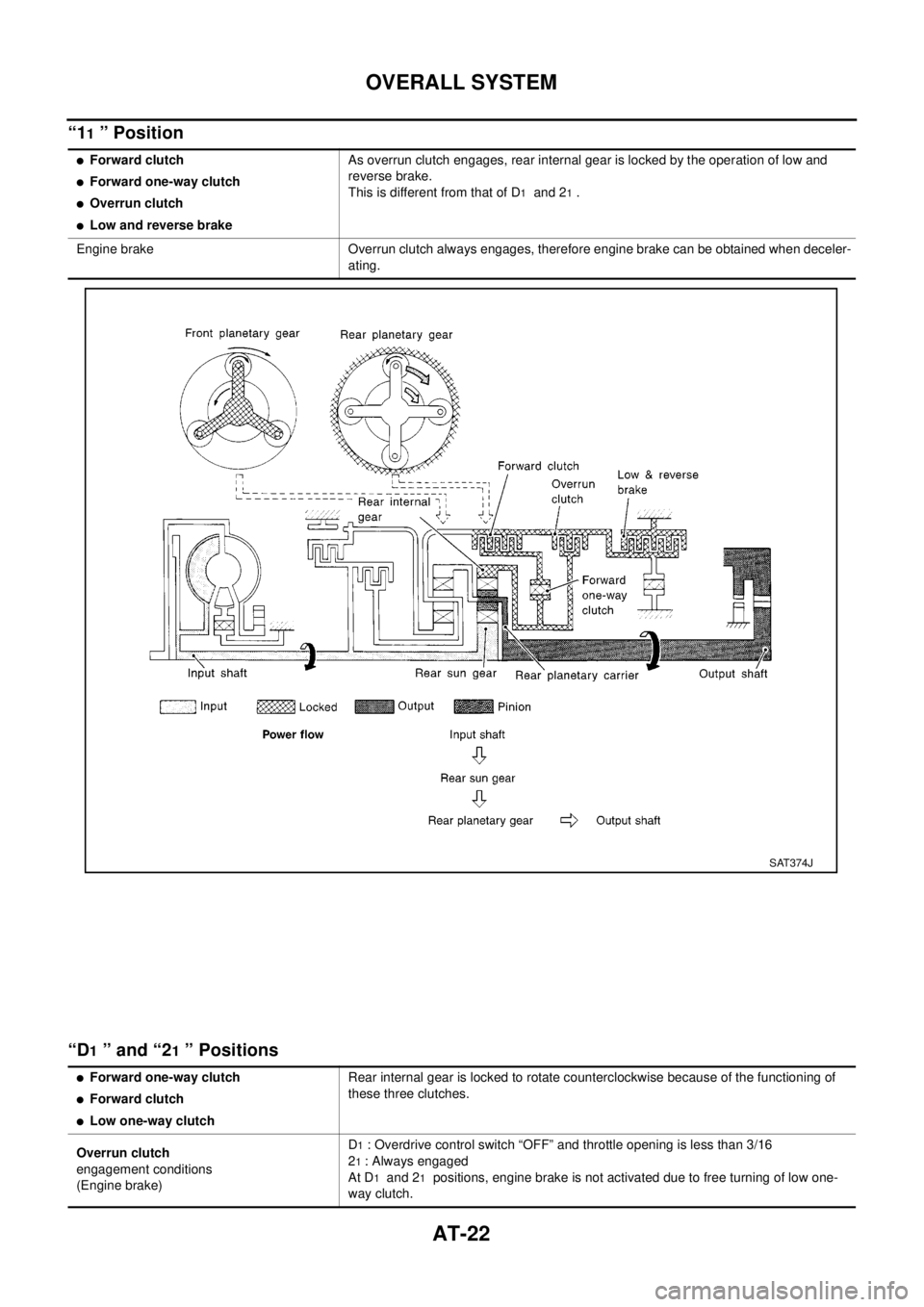

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-22 OVERALL SYSTEM “11”Position “D 1”and“21” Positions lForward clutch lForward one-way clutch lOverrun clutch lLow and reverse brakeAs overrun clutch engages, rear internal gear is lock

Page 29 of 3066

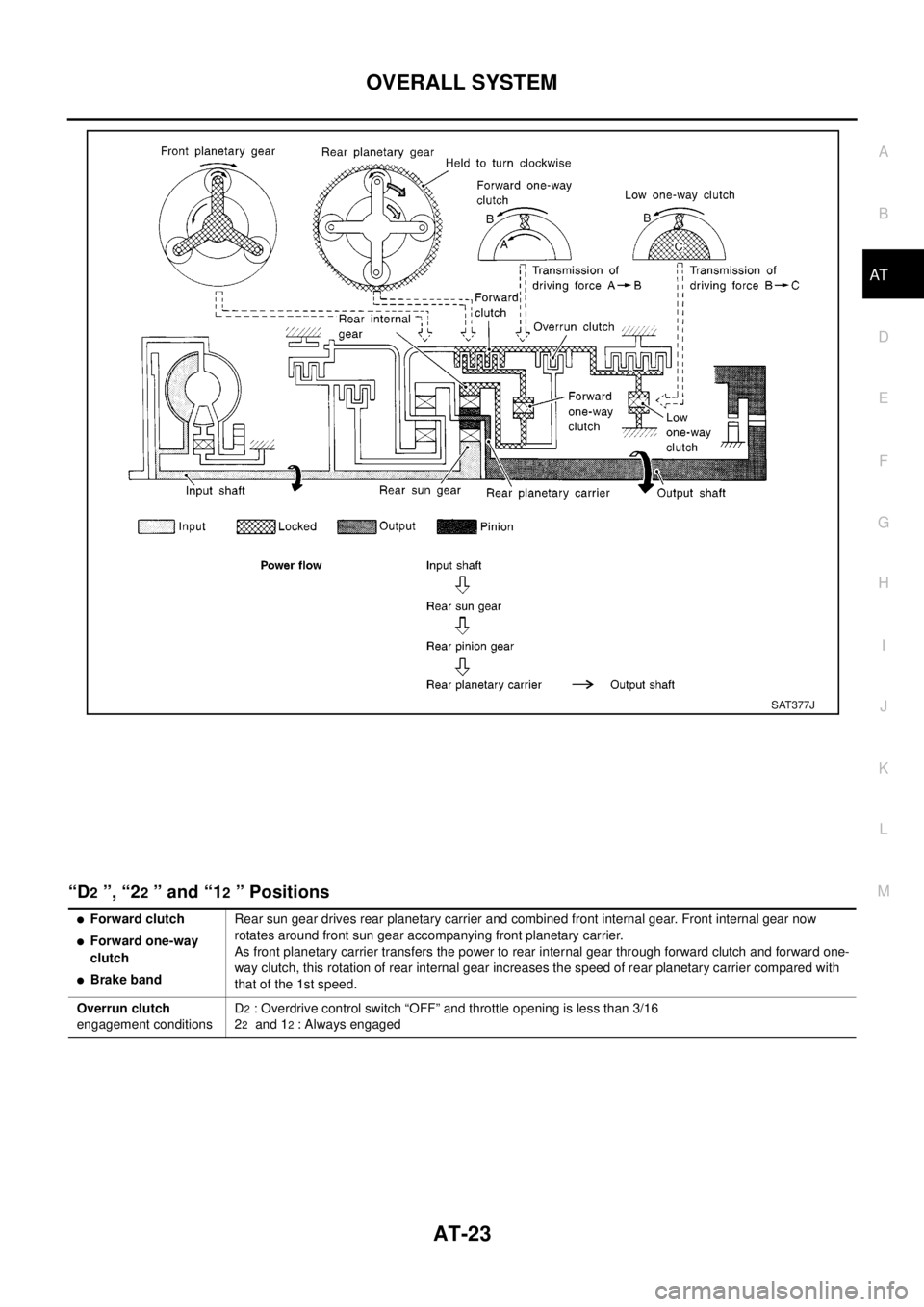

NISSAN X-TRAIL 2003 Electronic Repair Manual OVERALL SYSTEM AT-23 D E F G H I J K L MA B AT “D2”, “22”and“12” Positions SAT377J lForward clutch lForward one-way clutch lBrake bandRear sun gear drives rear planetary carrier and combin

Page 30 of 3066

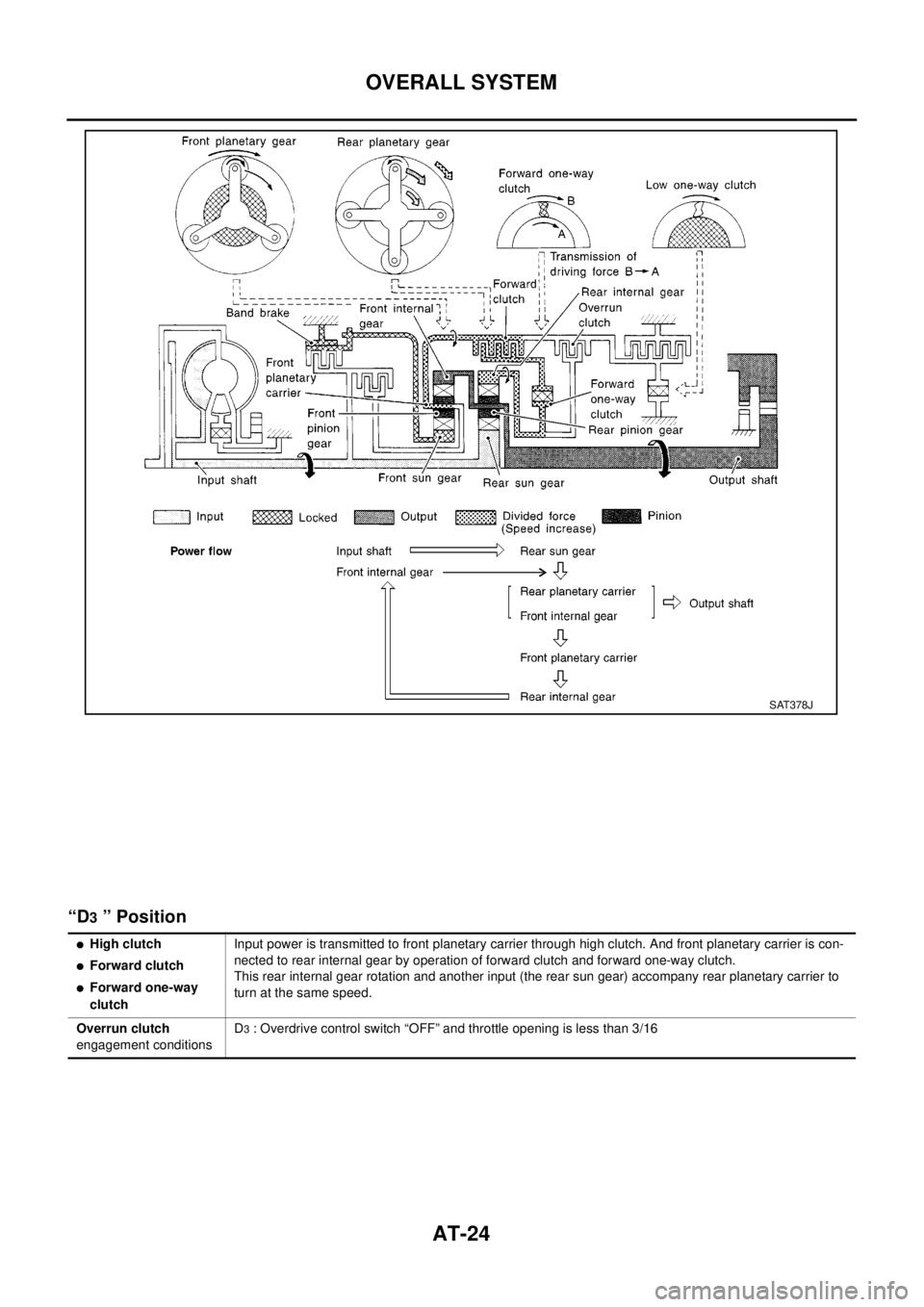

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-24 OVERALL SYSTEM “D3” Position SAT378J lHigh clutch lForward clutch lForward one-way clutchInput power is transmitted to front planetary carrier through high clutch. And front planetary carrie

Page 31 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual OVERALL SYSTEM AT-25 D E F G H I J K L MA B AT “D4” (OD) Position SAT379J lHigh clutch lBrake band lForward clutch(Does not affect power transmission)Input power is transmitted to front carrier th

Page 32 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-26 OVERALL SYSTEM “R” Position SAT380J lReverse clutch lLow and reverse brakeFront planetary carrier is stationary because of the operation of low and reverse brake. Input power is transmitted
