Page 1361 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0550 PSP SENSOR EC-247 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00CZP 1.RETIGHTEN GROUND SCREWS 1. Turn ignition switch “OFF”. 2. Loosen and retighten engine grou

Page 1362 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-248 [QR (WITH EURO-OBD)] DTC P0550 PSP SENSOR 4.CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Check harness continuity between ECM terminal 67 and

Page 1363 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0605 ECM EC-249 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P0605 ECMPFP:23710 Component DescriptionEBS00B72 The ECM consists of a microcomputer and connectors for signal input and output

Page 1364 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-250 [QR (WITH EURO-OBD)] DTC P0605 ECM PROCEDURE FOR MALFUNCTION B With CONSULT-II 1. Turn ignition switch “ON” and wait at least 1 second. 2. Select “DATA MONITOR” mode with CONSULT-II. 3.

Page 1365 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0605 ECM EC-251 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00B75 1.INSPECTION START With CONSULT-II 1. Turn ignition switch “ON”. 2. Select “SELF DIAG RESULTS”

Page 1366 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-252 [QR (WITH EURO-OBD)] DTC P0650 MI DTC P0650 MI PFP:24810 Component DescriptionEBS00B76 Malfunction Indicator (MI) is located on the instrument panel. When the ignition switch is turned ON witho

Page 1367 of 3066

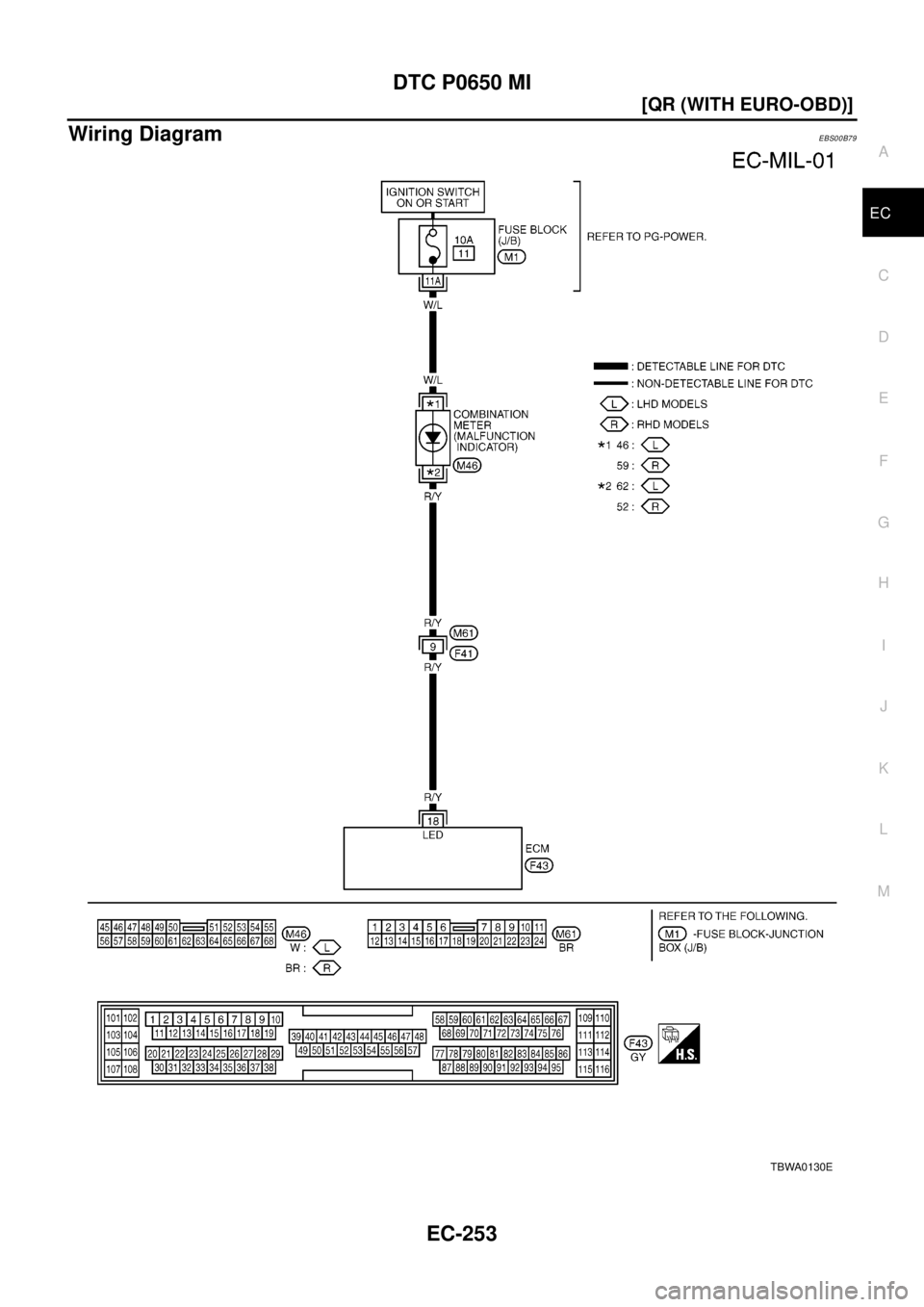

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0650 MI EC-253 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS00B79 TBWA0130E

Page 1368 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EC-254 [QR (WITH EURO-OBD)] DTC P0650 MI Diagnostic Procedure EBS00B7A 1.CHECK MI POWER SUPPLY 1. Turn ignition switch “OFF”. 2. Disconnect combination meter harness connector. 3. Turn ignition sw
