ENGINE ASSEMBLY
EM-61
[QR20DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS009R7
WA RN ING:
lSituate vehicle on a flat and solid surface.
lPlace chocks at front and back of rear wheels.
lFor engines not equipped with engine slingers, attach proper slingers and bolts described in
PA R T S C ATA L O G.
CAUTION:
lAlways be careful to work safely, avoid forceful or uninstructed operations.
lDo not start working until exhaust system and coolant are cool enough.
lIf items or work required are not covered by the engine main body section, refer to the applicable
sections.
lAlways use the support point specified for lifting.
lUseeither2-polelifttypeorseparatetypeliftasbestyoucan.Ifboard-ontypeisusedfor
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.
lFor supporting points for lifting and jacking point at rear axle, refer toGI-37, "Garage Jack and
Safety Stand".
REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle down ward.
Separate suspension member, and then separate engine and transaxle.
Preparation

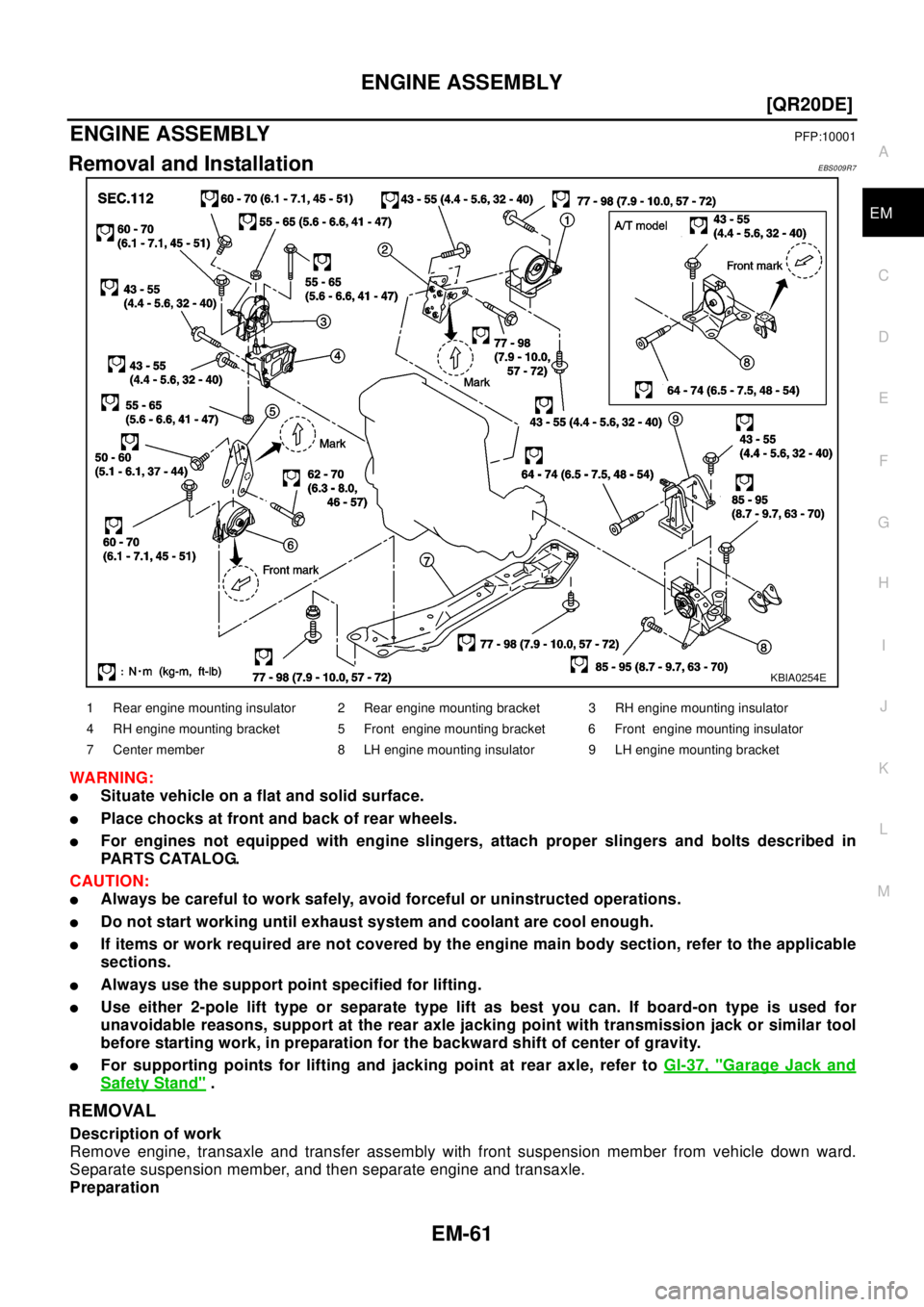

KBIA0254E
1 Rear engine mounting insulator 2 Rear engine mounting bracket 3 RH engine mounting insulator
4 RH engine mounting bracket 5 Front engine mounting bracket 6 Front engine mounting insulator
7 Center member 8 LH engine mounting insulator 9 LH engine mounting bracket

EM-184
[YD22DDTi]
ENGINE ASSEMBLY
ENGINE ASSEMBLY
PFP:10001
Removal and InstallationEBS00BOH
WAR NIN G:
lSituate vehicle on a flat and solid surface.
lPlace chocks at front and back of rear wheels.
lFor engines not equipped with engine slingers, attach proper slingers and bolts described in
PA R T S C ATA L O G.
CAUTION:
lAlways be careful to work safely, avoid forceful or uninstructed operations.
lDo not start working until exhaust system and coolant are cool enough.
lIf items or work required are not covered by the engine main body section, refer to the applicable
sections.
lAlways use the support point specified for lifting.
lUse either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.
lFor supporting points for lifting and jacking point at rear axle, refer toGI-37, "Garage Jack and
Safety Stand".
REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle down ward.
Separate suspension member, and then separate engine and transaxle.
Preparation

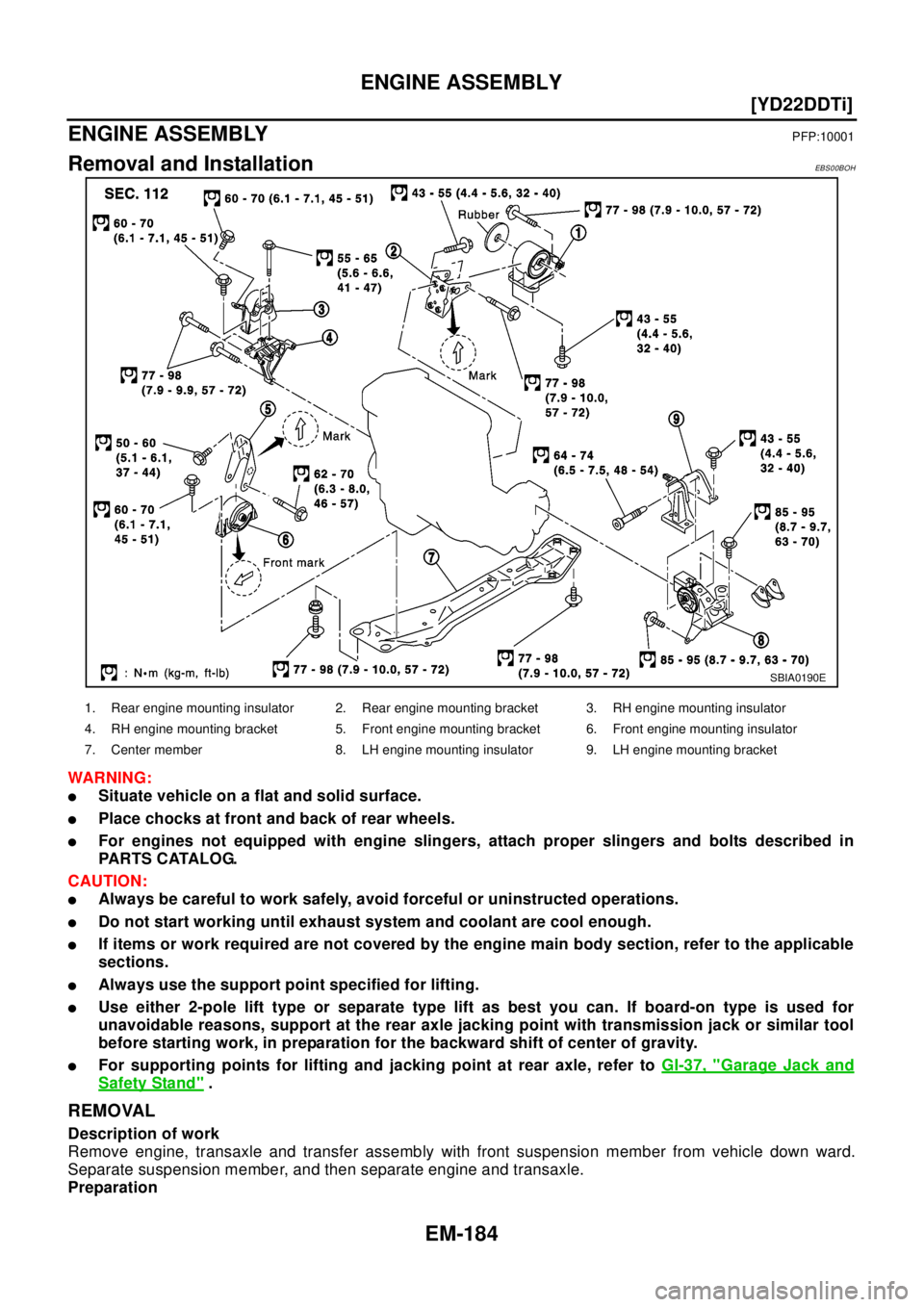

SBIA0190E
1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Center member 8. LH engine mounting insulator 9. LH engine mounting bracket
