NISSAN X-TRAIL 2003 Electronic Repair Manual NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING RAX-5 C E F G H I J K L MA B RAX NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003 NVH Troubleshooting ChartEDS0 00 F K Use the chart

Page 2802 of 3066

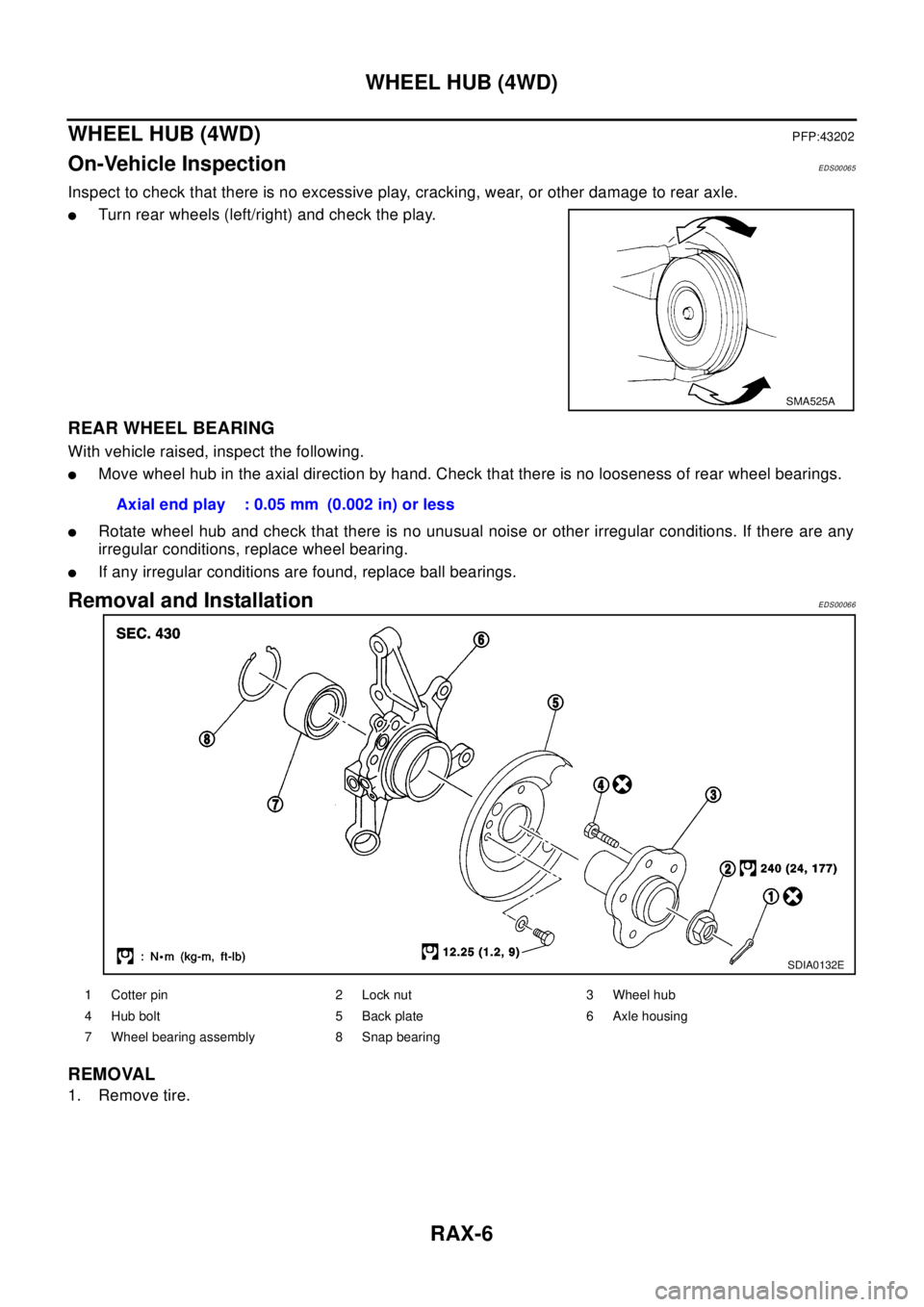

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-6 WHEEL HUB (4WD) WHEEL HUB (4WD) PFP:43202 On-Vehicle InspectionEDS00065 Inspect to check that there is no excessive play, cracking, wear, or other damage to rear axle. lTurn rear wheels (left/ri

Page 2803 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual WHEEL HUB (4WD) RAX-7 C E F G H I J K L MA B RAX 2. Remove wheel hub lock nuts. CAUTION: Discard the old hub lock nuts; replace with new ones. 3. Remove brake caliper from axle housing and hang it up

Page 2804 of 3066

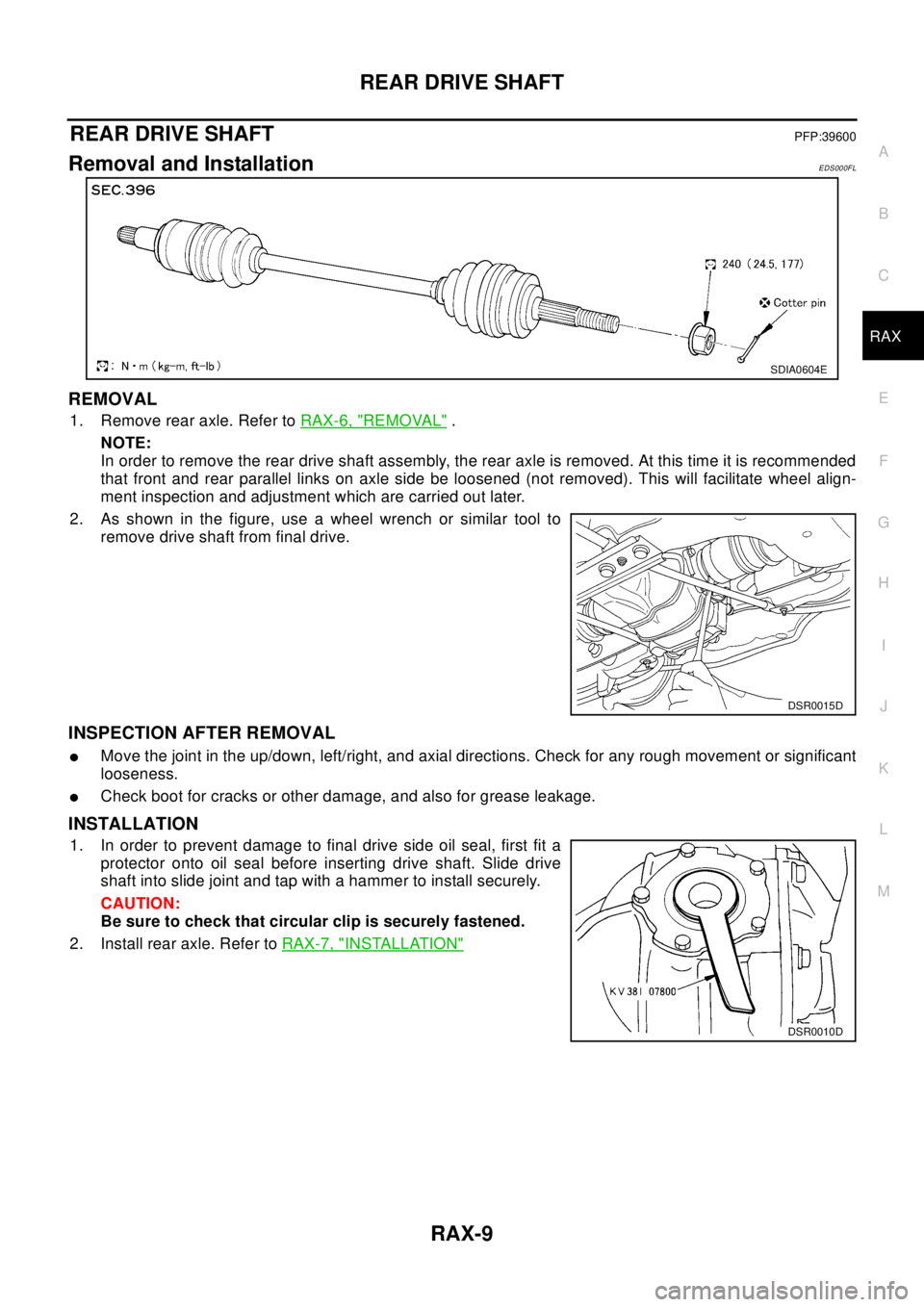

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-8 WHEEL HUB (4WD) INSPECTION AFTER DISASSEMBLY Wheel Hub lInspect wheel hub for deformation, cracks, and other damage. If any irregular conditions are found, replace wheel hub. Axle Housing lInspe

Page 2805 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR DRIVE SHAFT RAX-9 C E F G H I J K L MA B RAX REAR DRIVE SHAFTPFP:39600 Removal and InstallationEDS000FL REMOVAL 1. Remove rear axle. Refer toRAX-6, "REMOVAL". NOTE: In order to remove the rear dr

Page 2806 of 3066

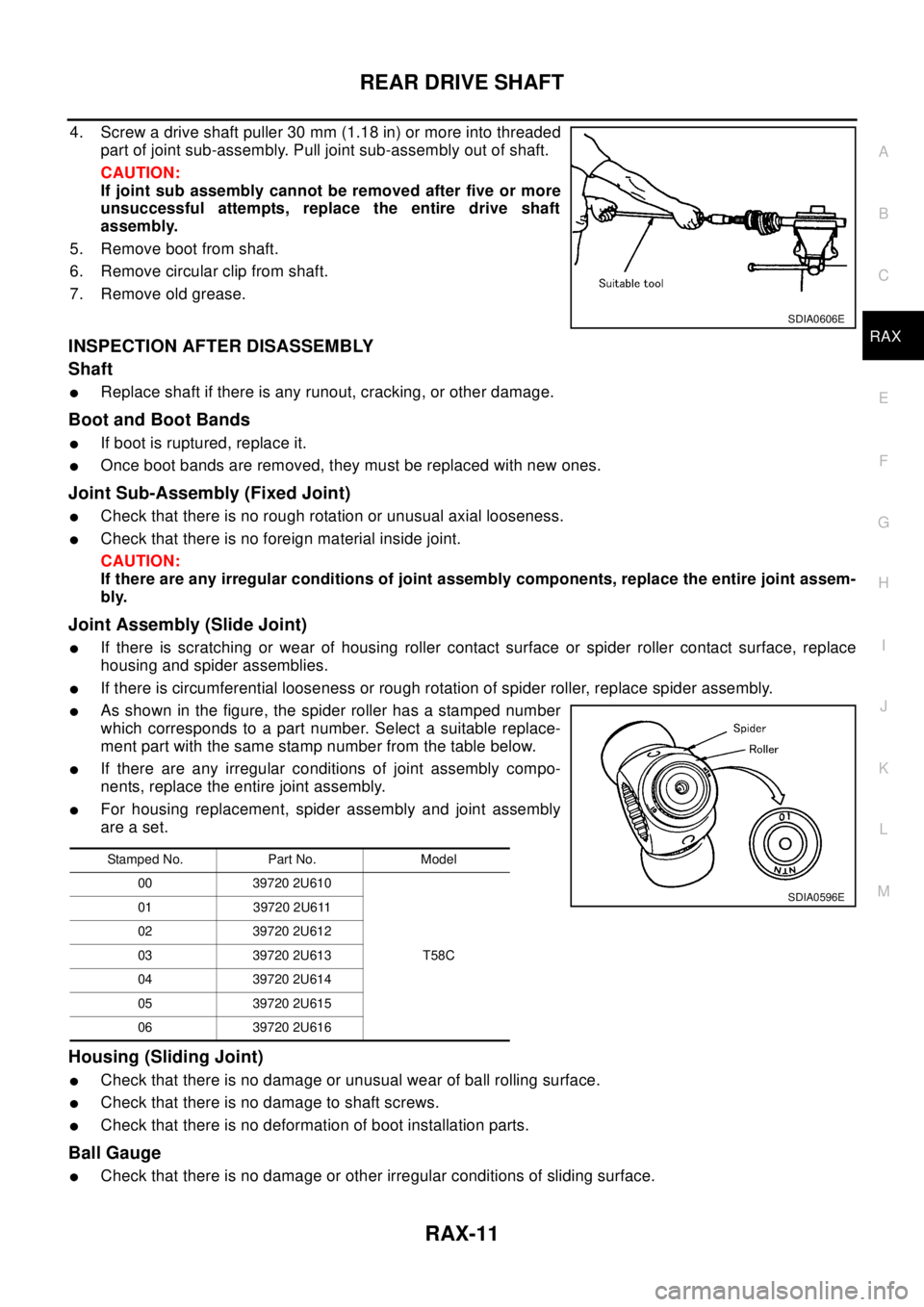

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-10 REAR DRIVE SHAFT Disassembly and Assembly EDS000FM DISASSEMBLY Final Drive Side 1. Remove boot bands. 2. Fix shaft to bench vise. CAUTION: When fixing shaft to bench vise, be sure to protect it

Page 2807 of 3066

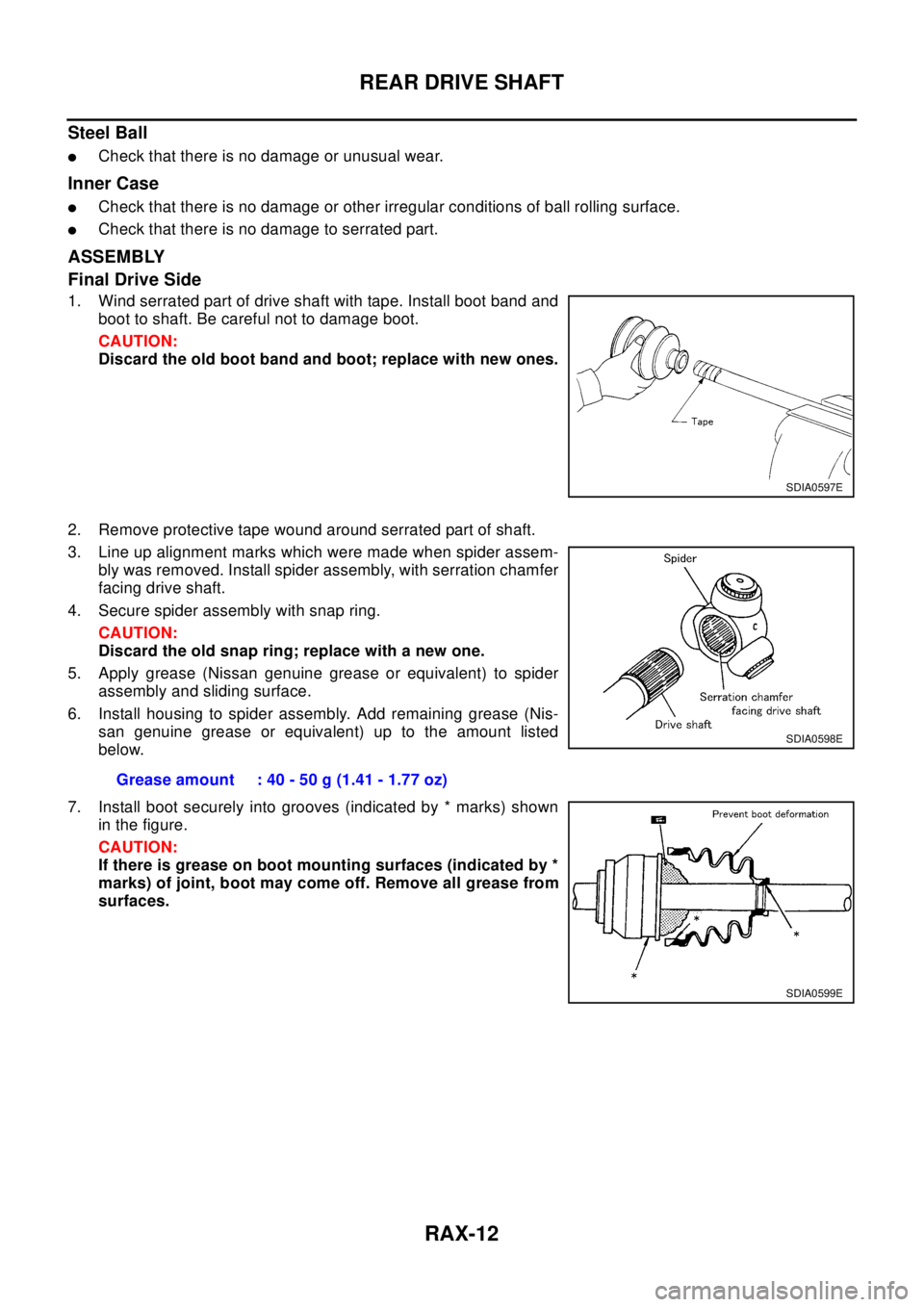

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR DRIVE SHAFT RAX-11 C E F G H I J K L MA B RAX 4. Screw a drive shaft puller 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly out of shaft. CAUTION: If joi

Page 2808 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual RAX-12 REAR DRIVE SHAFT Steel Ball lCheck that there is no damage or unusual wear. Inner Case lCheck that there is no damage or other irregular conditions of ball rolling surface. lCheck that there is
