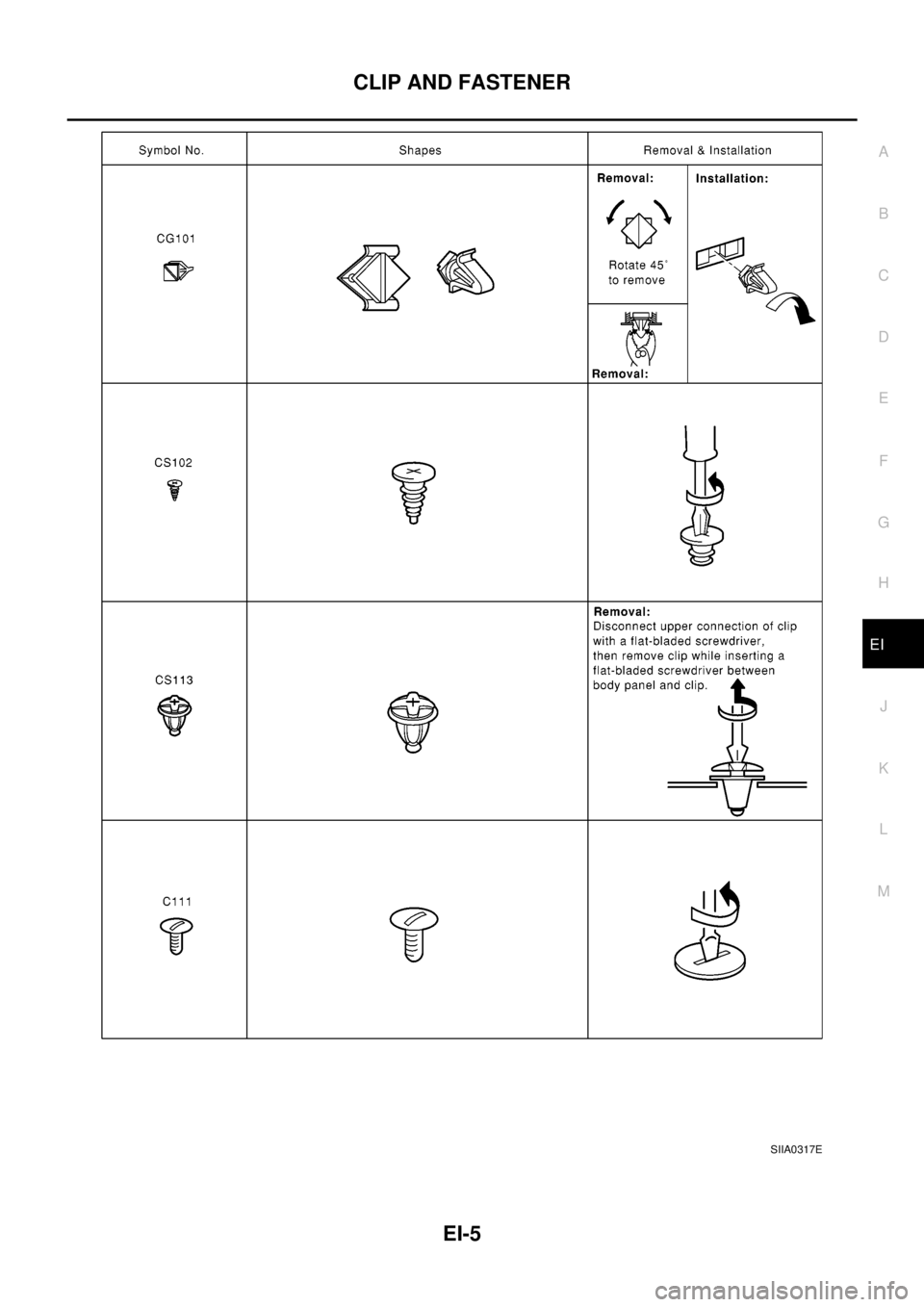

NISSAN X-TRAIL 2003 Electronic Repair Manual CLIP AND FASTENER EI-5 C D E F G H J K L MA B EI SIIA0317E

Page 1946 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-6 FRONT BUMPER FRONT BUMPER PFP:F2022 Removal and InstallationEIS000MX lBumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil.

Page 1947 of 3066

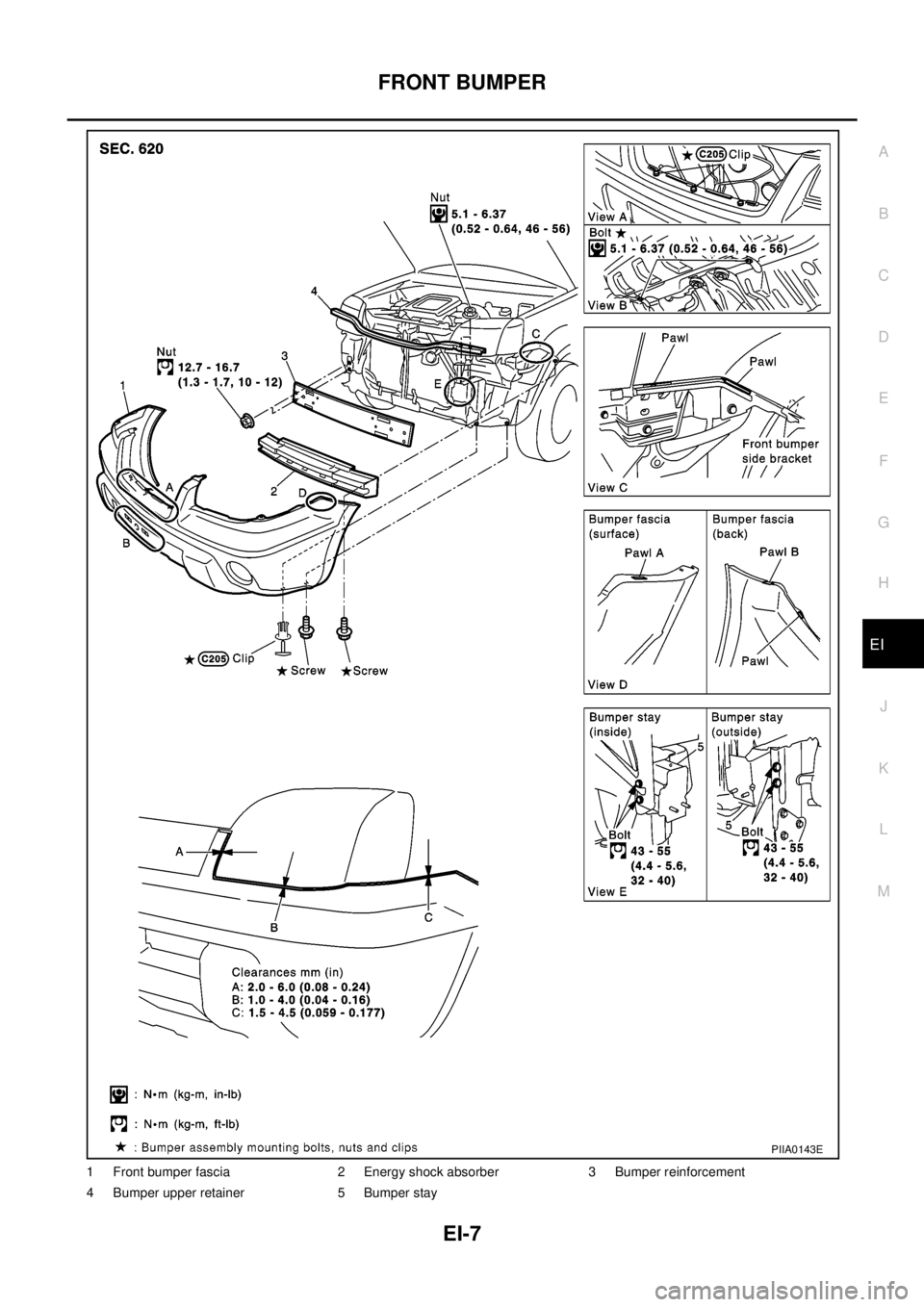

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT BUMPER EI-7 C D E F G H J K L MA B EI 1 Front bumper fascia 2 Energy shock absorber 3 Bumper reinforcement 4 Bumper upper retainer 5 Bumper stay PIIA0143E

Page 1948 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-8 FRONT BUMPER REMOVAL 1. Remove front grille. Refer toEI-11, "Removal and Installation". 2. Remove mounting screws and clips on RH/LH front fender protector. 3. Remove front bumper fascia mounting

Page 1949 of 3066

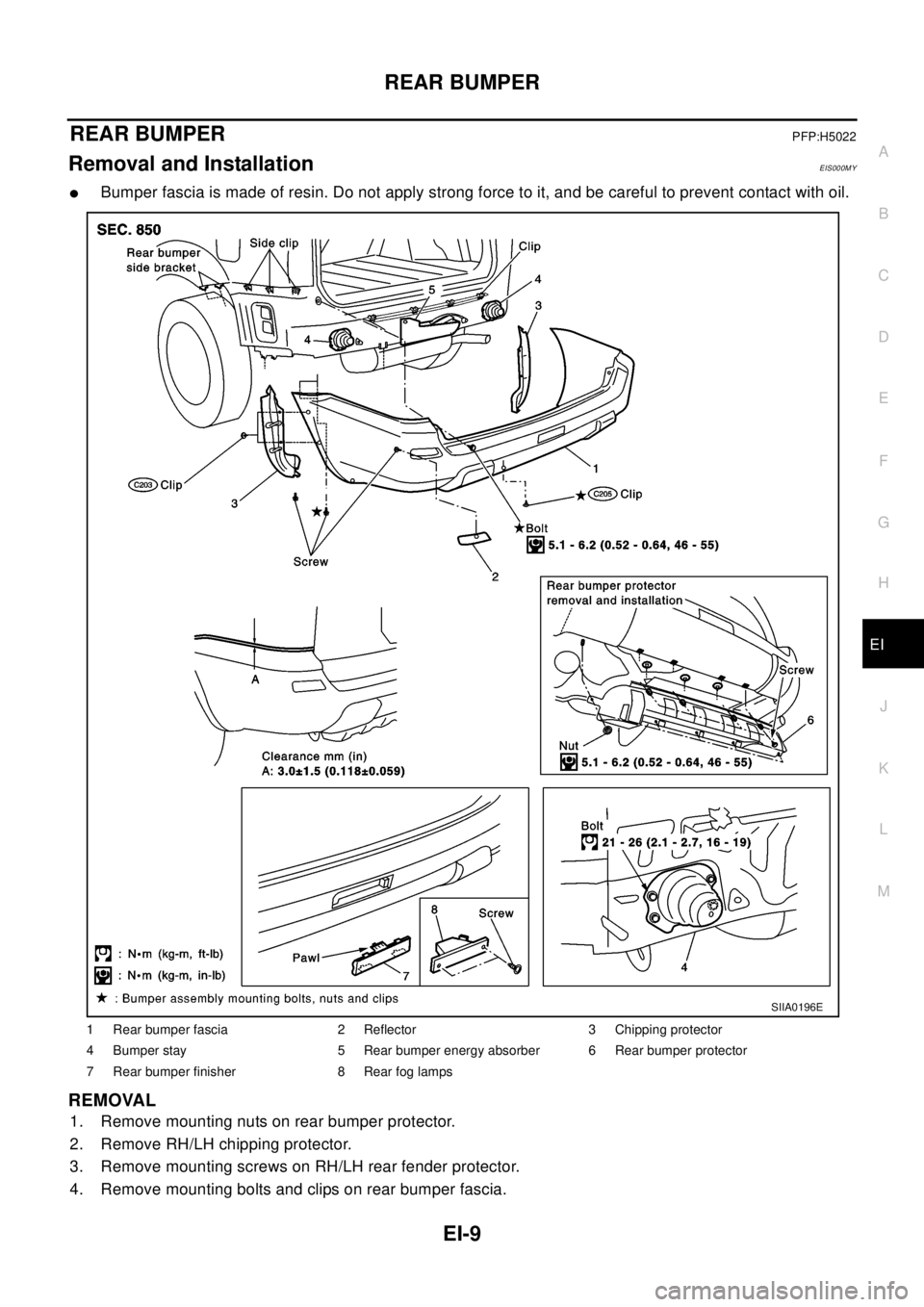

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR BUMPER EI-9 C D E F G H J K L MA B EI REAR BUMPERPFP:H5022 Removal and InstallationEIS000MY lBumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact wit

Page 1950 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-10 REAR BUMPER 5. Spread bumper fascia toward the outside and remove it from the side clips. 6. Remove rear fog lamp connectors. Pull bumper fascia assembly straight rearward to remove. 7. Remove m

Page 1951 of 3066

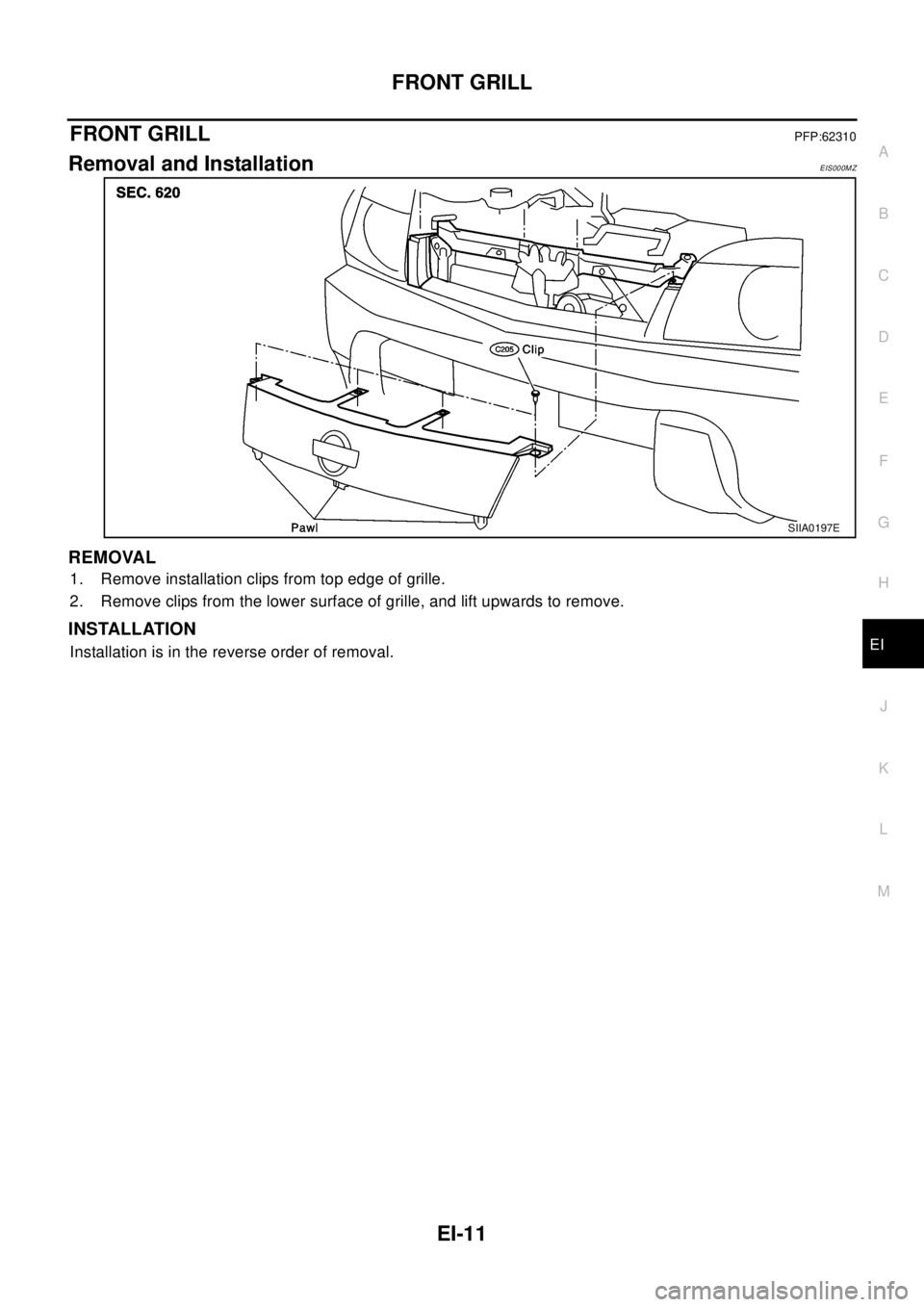

NISSAN X-TRAIL 2003 Electronic Repair Manual FRONT GRILL EI-11 C D E F G H J K L MA B EI FRONT GRILLPFP:62310 Removal and InstallationEIS000MZ REMOVAL 1. Remove installation clips from top edge of grille. 2. Remove clips from the lower surface o

Page 1952 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual EI-12 COWL TOP COWL TOP PFP:66100 Removal and InstallationEIS0 00 N0 REMOVAL 1. Remove wiper arms (left and right). Refer toWW-7, "Removal and Installation for Front Wiper Arms, Adjustment for Wiper A
