Page 2921 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual REAR SEAT
SE-15
C
D
E
F
G
H
J
K
L
MA
B
SE

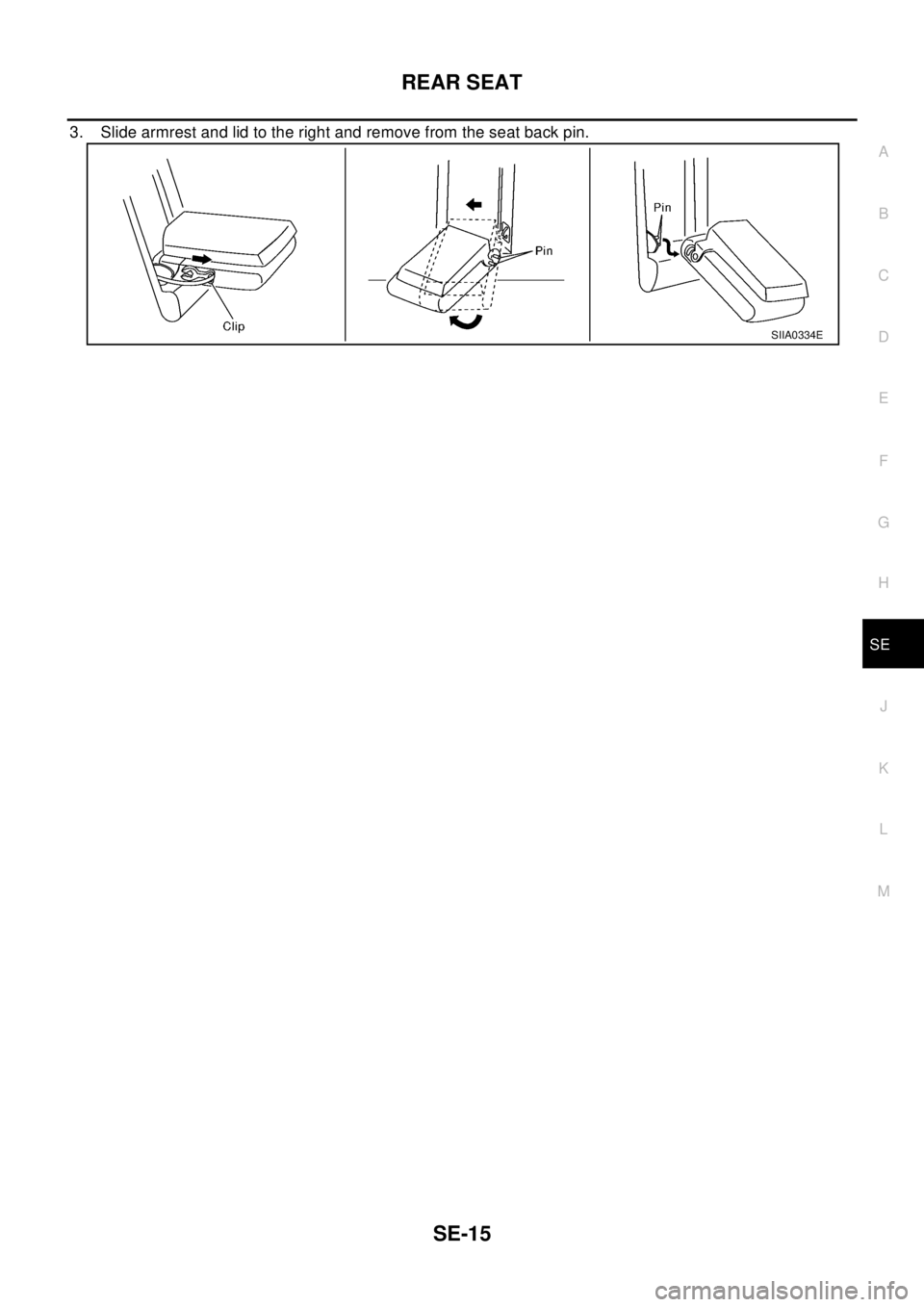

3. Slidearmrestandlidtotherightandremovefromtheseatbackpin.
SIIA0334E

Page 2922 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SE-16
REAR SEAT

Page 2923 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION
A
B
SRS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS ....................................................

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION
A
B
SRS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Supplemental Restraint System (SRS) “AIR BAG”
and “SEAT BELT PRE-TENSIONER” ...................... 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
Trouble Diagnosis Precaution .................................. 3
PREPARATION ........................................................... 4
Special Service Tool ................................................. 4
Commercial Service Tool ......................................... 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-tensioner with Load Limiter ...... 5
Front Side Air Bag .................................................... 5
TROUBLE DIAGNOSIS .............................................. 7
Trouble Diagnoses-Introduction ............................... 7
DIAGNOSIS FUNCTION ....................................... 7
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............... 7
WORK FLOW ........................................................ 7
SRS Components Parts Location ............................. 9
Wiring Diagram — SRS — /LHD models ............... 10
Wiring Diagram-SRS-/RHD models ....................... 12
CONSULT-II FUNCTION ........................................ 14
DIAGNOSIS MODE FOR CONSULT-II ............... 14
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 14
HOW TO ERASE SELF-DIAGNOSIS RESULTS... 14
SELF-DIAGNOSIS FUNCTION (WITHOUT CON-
SULT-II) .................................................................. 15
HOW TO CHANGE SELF-DIAGNOSIS MODE... 15
HOW TO ERASE SELF-DIAGNOSIS RESULTS... 15
SRS Operation Check ............................................ 15
DIAGNOSTIC PROCEDURE 1 ........................... 15
Trouble Diagnoses with CONSULT–II .................... 17
DIAGNOSTIC PROCEDURE 2 ........................... 17
DIAGNOSTIC PROCEDURE 3 ........................... 20
DIAGNOSTIC PROCEDURE 4 ........................... 20
Trouble Diagnoses Without CONSULT-II ............... 22
DIAGNOSTIC PROCEDURE 5 ........................... 22
WARNING LAMP FLASH CODE CHART ........... 23Trouble Diagnoses: “AIR BAG” Warning Lamp Does
Not Turn Off ............................................................ 25
DIAGNOSTIC PROCEDURE 6 ........................... 25
Trouble Diagnoses: “AIR BAG” Warning Lamp Does
Not Turn On ............................................................ 26
DIAGNOSTIC PROCEDURE 7 ........................... 26
DRIVER AIR BAG MODULE .................................... 27
Removal and Installation/With 4-Spoke Steering
Wheel ..................................................................... 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 28
Removal and Installation/With 3-Spoke Steering
Wheel ..................................................................... 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
SPIRAL CABLE ........................................................ 31
Removal and Installation ........................................ 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 32
Components Inspection .......................................... 32
FRONT PASSENGER AIR BAG MODULE .............. 33
Removal and Installation ........................................ 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 33
FRONT SIDE AIR BAG MODULE ............................ 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 36
SIDE AIR BAG (SATELLITE) SENSOR ................... 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION ................................................... 37
FRONT SEAT BELT PRE-TENSIONER ................... 38
Removal and Installation ........................................ 38
DIAGNOSIS SENSOR UNIT ..................................... 39
Removal and Installation ........................................ 39
REMOVAL ........................................................... 39
INSTALLATION ................................................... 39
ECU DISCRIMINATED NO. ................................ 39
DISPOSAL OF AIR BAG MODULE AND SEAT BELT

Page 2924 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-2
PRE-TENSIONER ..................................................... 40
Caution for Air Bag Module and Seat Belt Pre-ten-
sioner ..................................................................

Page 2925 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
PRECAUTIONSPFP:00001
Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER”
EHS000BG
The Supplemental Restraint System such

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
PRECAUTIONSPFP:00001
Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER”
EHS000BG
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types
of collision.
WA RN ING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow harness connector.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceEHS000BH
lDo not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
lBefore servicing the SRS, turn ignition switch “OFF”, disconnect battery ground cable and wait at least 3
minutes.
For approximately 3 minutes after the cables is removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
lDiagnosis sensor unit must always be installed with their arrow marks “Ü” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.
lThe spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
lHandle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and place front side air bag module standing with stud bolt side setting bottom.
lConduct self-diagnosis to check entire SRS for proper function after replacing any components.
lAfter air bag inflates, the front instrument panel assembly should be replaced if damaged.
Trouble Diagnosis PrecautionEHS000BI
Whenyoureadwiringdiagrams,refertothefollowings:
l“HOW TO READ WIRING DIAGRAMS” in GI section
lPG-2, "POWER SUPPLY ROUTING"in PG section
When you perform trouble diagnosis, refer to the followings:
l“HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS” in GI section
l“HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT” in GI section
Check for any service bulletins before servicing the vehicle.

Page 2926 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-4
PREPARATION
PREPARATION
PFP:00002

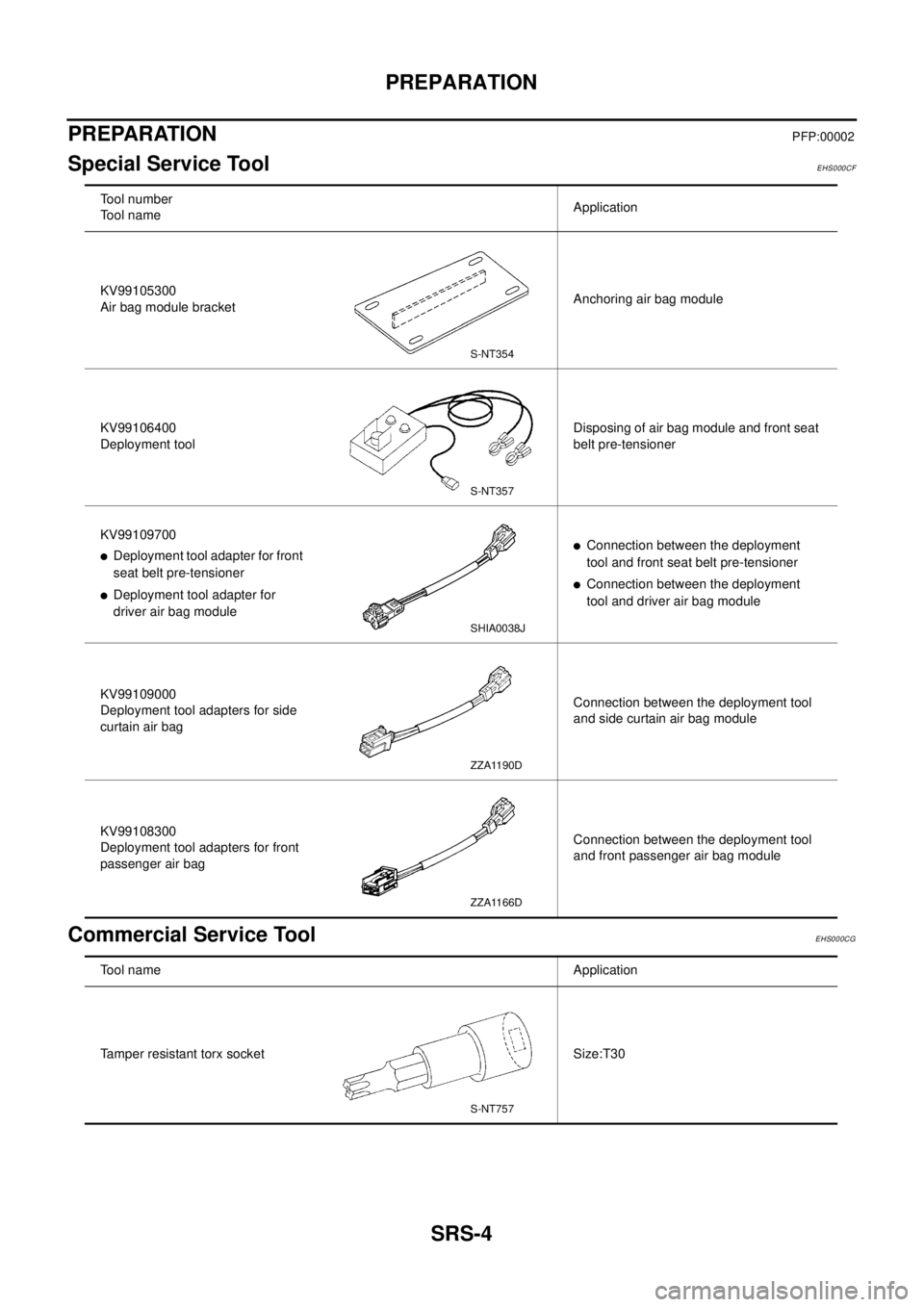

Special Service ToolEHS000CF
Commercial Service ToolEHS000CG
Tool number
Tool nameApplication
KV99105300
Air bag module bracketAnchoring air bag module
KV991064

Page 2927 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationEHS000CH
The air bag deploys if the diagnosis sensor unit activates w

Page 2928 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SRS-6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
The front seat backs with built-in type side air bag have the labels
showninfigureatright.
PHIA0039E
