Page 177 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0733 A/T 3RD GEAR FUNCTION
AT-171
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

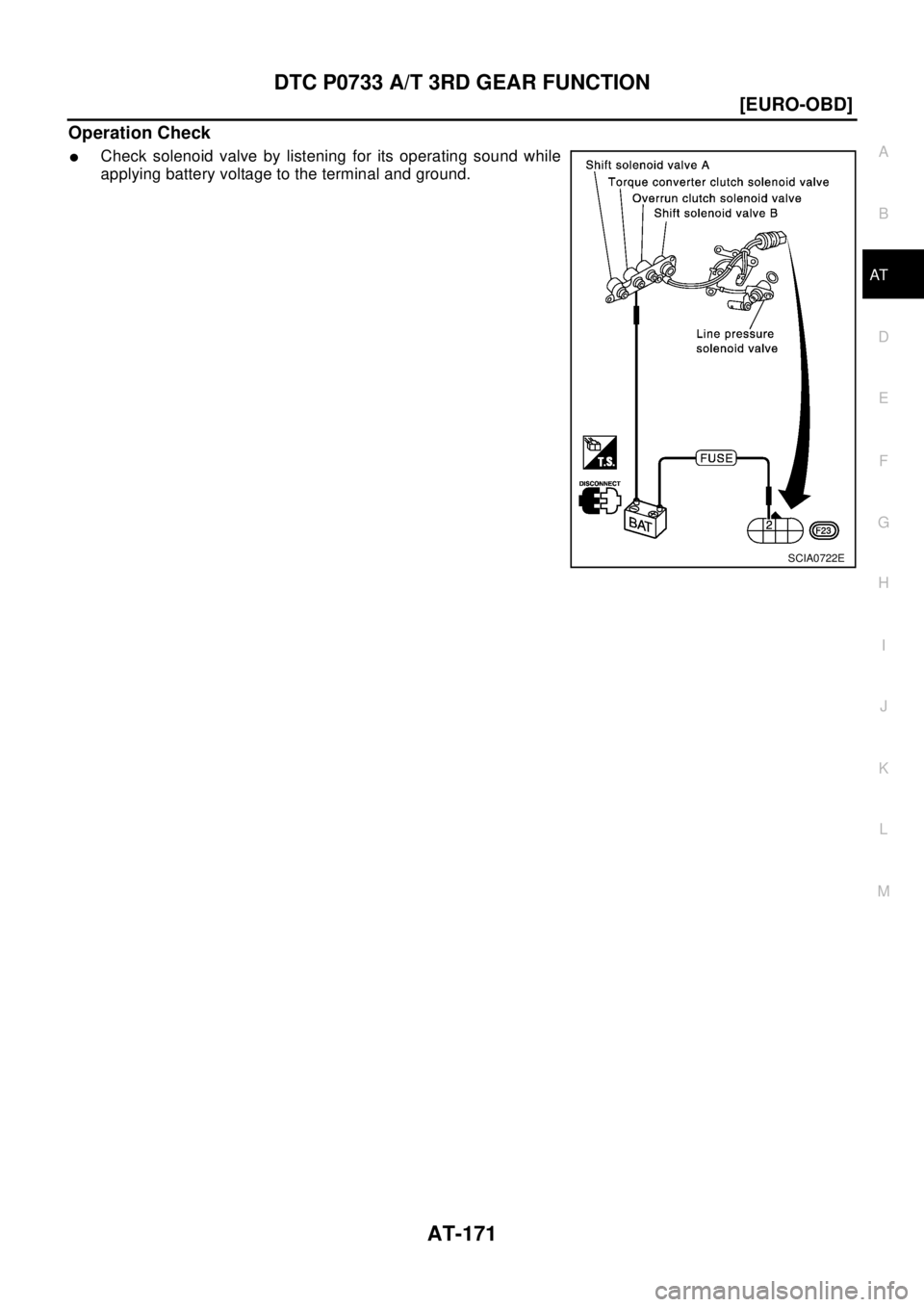

Operation Check
lCheck solenoid valve by listening for its operating sound while
applying battery voltage to the terminal an

Page 178 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-172
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
DTC P0734 A/T 4TH GEAR FUNCTION
PFP:31940
DescriptionECS0 04 RM
lThis is an OBD-II self-diagnostic item and not available in TCM self-diagnosis.
lThis

AT-172
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
DTC P0734 A/T 4TH GEAR FUNCTION
PFP:31940
DescriptionECS0 04 RM
lThis is an OBD-II self-diagnostic item and not available in TCM self-diagnosis.
lThis malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.
lThis malfunction is detected when the A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by the TCM. This is not caused by electrical malfunction (circuits
open or shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve
operation, malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSTIC LOGIC
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Specification
Line pressure solenoid valve dutySmall throttle opening
(Low line pressure)
¯
Large throttle opening
(High line pressure)Approximately 24%
¯
Approximately 95%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
11 L /WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1”or“D4”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2”or“D3”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1”or“D2”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3”or“D4”.)0V

Page 179 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0734 A/T 4TH GEAR FUNCTION
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be much
less than nor

Page 180 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-174
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
3. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 55 to

Page 181 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0734 A/T 4TH GEAR FUNCTION
AT-175
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

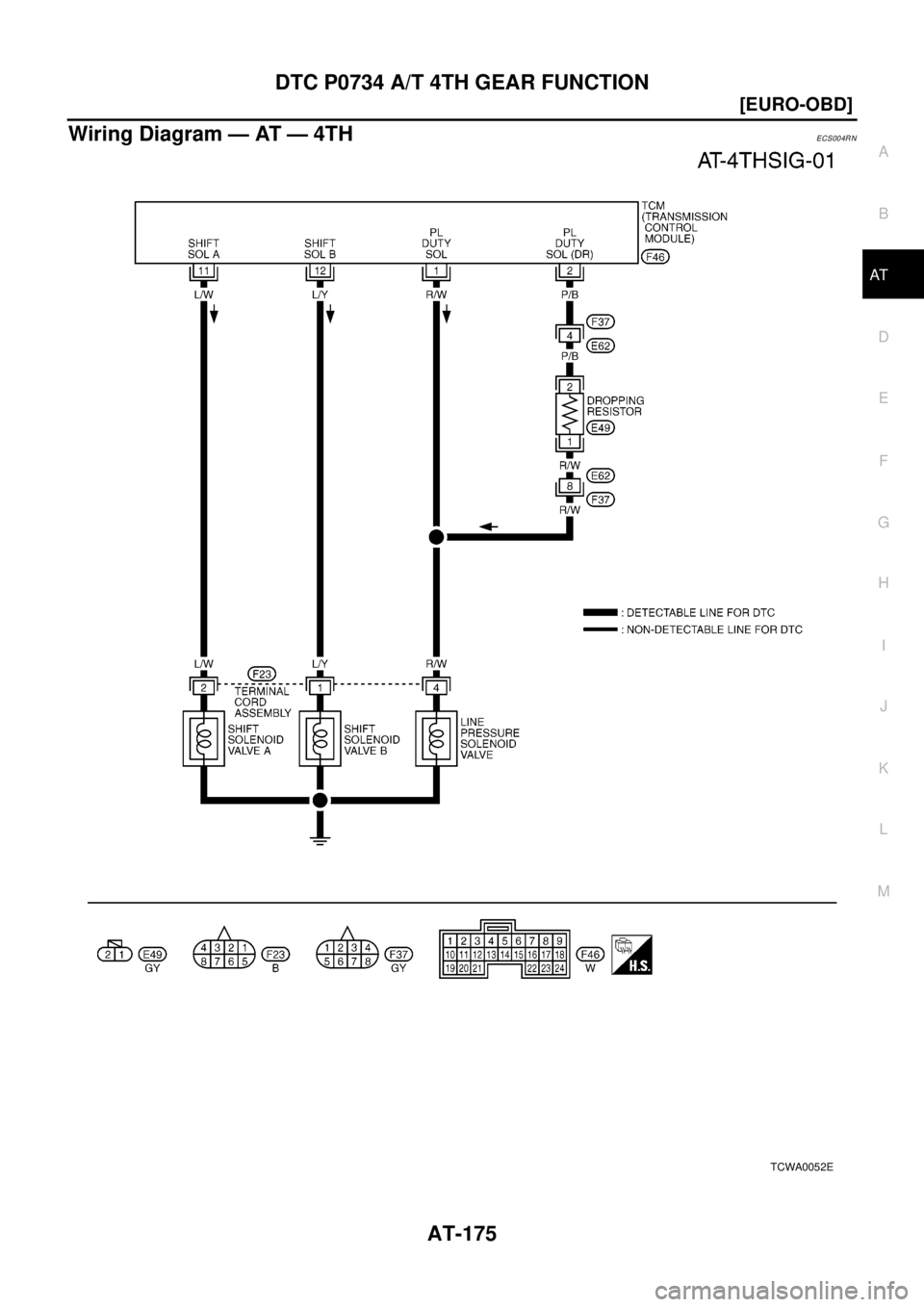

Wiring Diagram — AT — 4THECS004RN
TCWA0052E

Page 182 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-176
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
Diagnostic Procedure
ECS004RO
1.CHECK SHIFT UP (D3TO D4)
During “Cruise test — Part 1” (AT- 7 8 , "
Cruise Test—Part 1"), does
A/T shift from

Page 183 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DTC P0734 A/T 4TH GEAR FUNCTION
AT-177
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK CONTROL VALVE
1. Disassemble control valve assembly.
Refer to $$$$$.
2. Check to ensure that:
lValve, sleeve and plu

Page 184 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual AT-178
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION

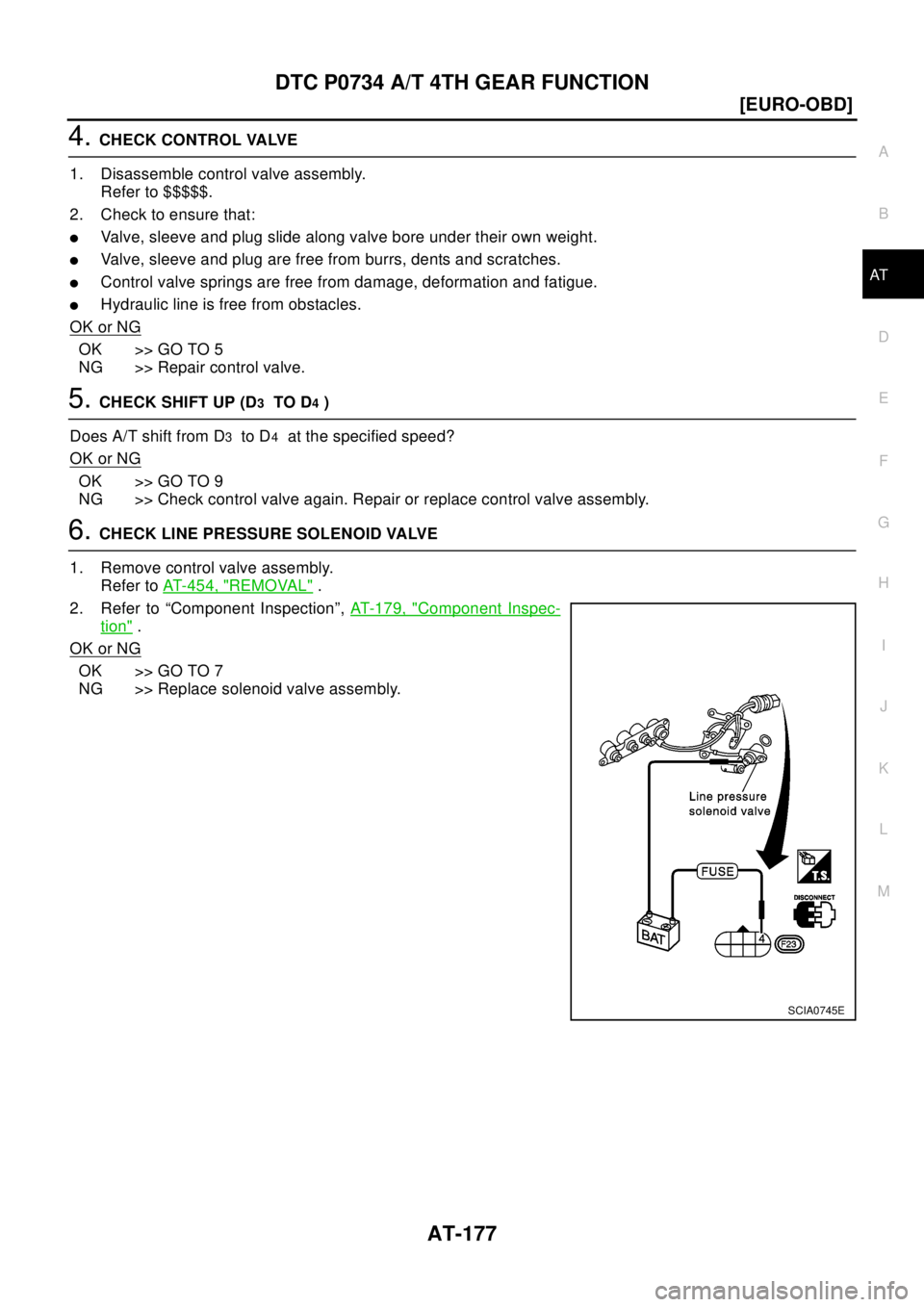

7.CHECK CONTROL VALVE
1. Disassemble control valve assembly.
Refer toAT-489, "
Control Valve Assembly".
2. Check line pressure circuit valves for stic
