AT-8
PRECAUTIONS
lVehicle has TCC shudder and/or no TCC apply. Replace only after all hydraulic and electrical diagnoses
have been made. (Converter clutch material may be glazed.)
lConverter is contaminated with engine coolant containing antifreeze.
lInternal failure of stator roller clutch.
lHeavy clutch debris due to overheating (blue converter).
lSteel particles or clutch lining material found in fluid filter or on magnet when no internal parts in unit are
worn or damaged — indicates that lining material came from converter.
The torque converter should not be replaced if:
lThe fluid has an odor, is discolored, and there is no evidence of metal or clutch facing particles.
lThe threads in one or more of the converter bolt holes are damaged.
lTransaxle failure did not display evidence of damaged or worn internal parts, steel particles or clutch plate
lining material in unit and inside the fluid filter.
lVehicle has been exposed to high mileage (only). The exception may be where the torque converter
clutch dampener plate lining has seen excess wear by vehicles operated in heavy and/or constant traffic,
such as taxi, delivery or police use.
EURO-OBD SELF-DIAGNOSIS — EURO-OBD —
lA/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the O/D OFF indicator lamp or the malfunction indicator lamp (MIL). Refer to the
table onAT-42, "
SELF-DIAGNOSTIC RESULT TEST MODE"for the indicator used to display each self-
diagnostic result.
lThe self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure “HOW TO ERASE DTC” onAT-39, "
HOW TO ERASE DTC"to com-
plete the repair and avoid unnecessary blinking of the MIL.
lThe following self-diagnostic items can be detected using ECM self-diagnostic results mode* only when
the O/D OFF indicator lamp does not indicate any malfunctions.
–PNP switch
–A/T 1st, 2nd, 3rd, or 4th gear function
*: For details of EURO-OBD, refer toAT - 3 7 , "
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION".
lCertain systems and components, especially those related to EURO-OBD, may use a new style
slide-locking type harness connector.
For description and how to disconnect, refer toPG-70, "
HARNESS CONNECTOR".
Wiring Diagrams and Trouble DiagnosisECS004Q4
When you read wiring diagrams, refer to the following:
lGI-14, "How to Read Wiring Diagrams".
lPG-2, "POWER SUPPLY ROUTING".
When you perform trouble diagnosis, refer to the following:
lGI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".
l"", “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”

REPAIR FOR COMPONENT PARTS
AT-485
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

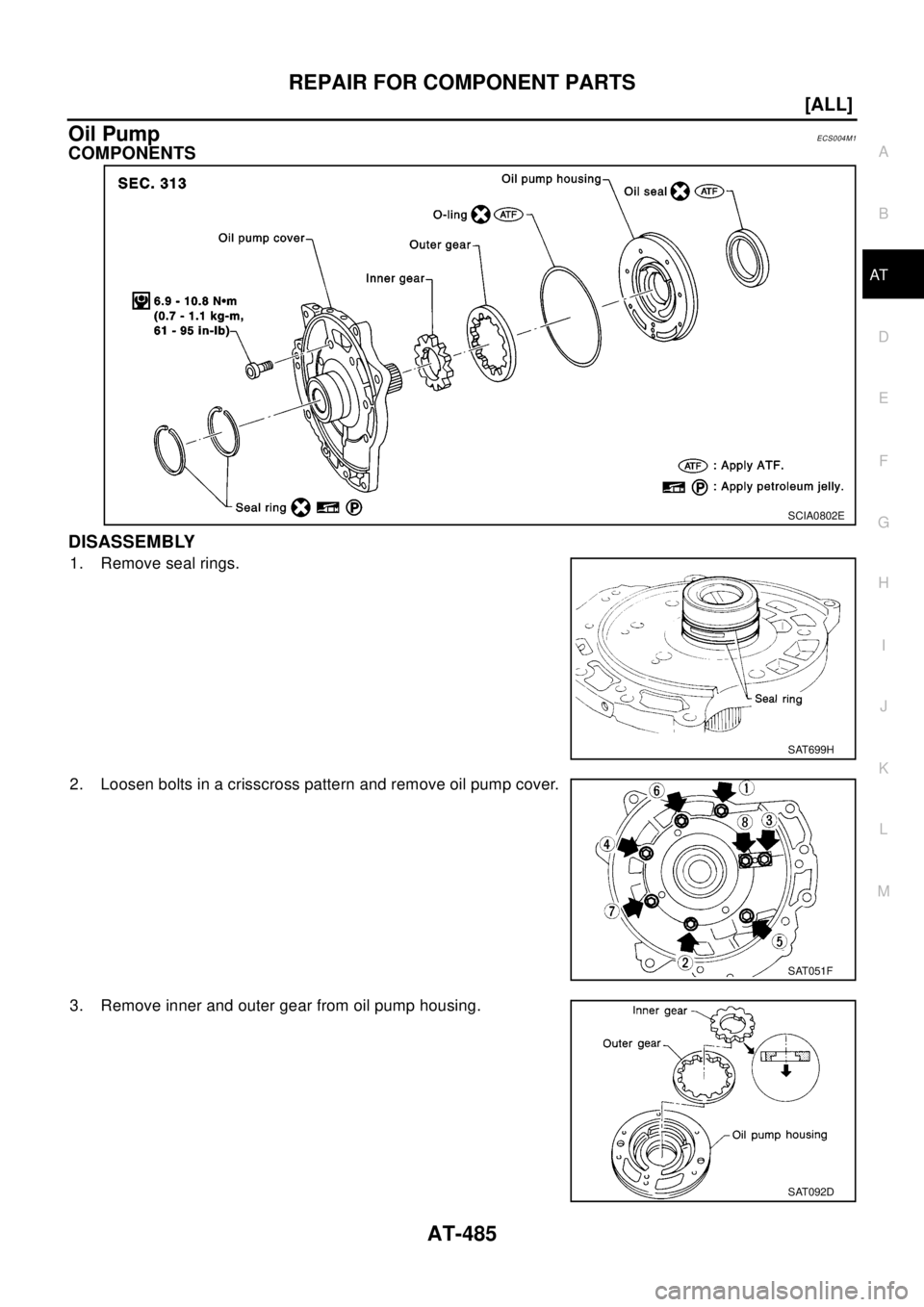

Oil PumpECS004M1
COMPONENTS
DISASSEMBLY
1. Remove seal rings.
2. Loosen bolts in a crisscross pattern and remove oil pump cover.
3. Remove inner and outer gear from oil pump housing.
SCIA0802E
SAT699H
SAT051F
SAT092D

AT-488
[ALL]
REPAIR FOR COMPONENT PARTS
3. Install inner and outer gears on oil pump housing.
lBe careful of direction of inner gear.
4. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten bolts in a crisscross pattern. Tighten oil pump cover
bolts to the specified torque. Refer toAT-489, "
Control Valve
Assembly".
5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
lDo not spread gap of seal ring excessively while install-
ing. The ring may be deformed.
SAT092D
SAT051F
SAT699H

REPAIR FOR COMPONENT PARTS
AT-539
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. Install speedometer drive gear on differential case.
lAlign the projection of speedometer drive gear with the
groove of differential case.
6. Press on differential side bearings.
7. Install final gear and tighten fixing bolts in a crisscross pattern.
SAT313D
SAT545FA
SAT546F

ASSEMBLY
AT-561
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
f. Tighten boltsI,Xandl.
Bolt length, number and location:
18. Install oil pan.
a. Attach a magnet to oil pan.
b. Install new oil pan gasket on transmission case.
c. Install oil pan on transmission case.
lAlways replace oil pan bolts as they are self-sealing
bolts.
lTighten four bolts in a criss-cross pattern to prevent dis-
location of gasket.
d. Tighten oil pan bolts and drain plug to the specified torque.
Refer toAT- 4 6 1 , "
OVERHAUL".
19. Install park/neutral position (PNP) switch.
a. Set manual shaft in P position.
b. Temporarily install park/neutral position (PNP) switch on manual
shaft.
c. Move selector lever to N position.
BoltIXl
Bolt length “ ” mm (in)40 (1.57) 33 (1.30)43.5
(1.713)
Number of bolts 5 6 2
SAT004F
SAT003F
SAT033J
