Auto Amp. Terminals and Reference ValueNJS000GI
Measure voltage between each terminal and ground by referring ter-
minals and reference value for unified meter and A/C amp.
PIN CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
RJIA4032E
RJIA4033E
Terminal
No.Wire
colorItemIgnition
switchConditionVoltage
(V)
38 L/Y Blower motor control signal ON Blower speed: 1st step
41 V Power supply from ACC ACC — Battery voltage
43 R Intake sensor — — —
44 GR In-vehicle sensor — — —
45 W/V Ambient sensor — — —
46 BR/Y Sunload sensor — — —
53 W/G Power supply from IGN ON — Battery voltage
54 W/G Power supply from BATT OFF — Battery voltage
55 B Ground ON — Approx. 0
56 L CAN-H — — —
59 O/B Intake sensor ground ON — Approx. 0
60 P In-vehicle sensor ground ON — Approx. 0
61 LG/R Ambient sensor ground ON — Approx. 0
62 V/R Sunload sensor ground ON — Approx. 0
SJIA1454J
Page 501 of 5621
ATC-54
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
65 OECV (Electric Control Valve)
signalONSelf-diagnosis. STEP-4
(Code No. 45)
69 R A/C LAN signal ON —
70 WPower supply for each door
motorON — Battery voltage
71 B Ground (Power) ON — Approx. 0
72 P CAN-L — — — Te r m i n a l
No.Wire
colorItemIgnition
switchConditionVoltag e
(V)
SJIA1458J
SJIA1453J
Page 502 of 5621
TROUBLE DIAGNOSIS
ATC-55
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
Self-diagnosis FunctionNJS000GJ
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The OFF
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step to
another is accomplished by means of pressing temperature control switch (driver side), as required.
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing (fan) UP switch.
RJIA4034E
Page 503 of 5621

ATC-56
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press OFF switch for at least 5 seconds.
CAUTION:
If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower
and as a result, the system may generate an error even when operation is normal. To avoid this,
start engine before performing this diagnosis.
Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis func-
tion.
>> GO TO 2.
2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature control (UP) switch (driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace Multifunction switch. (Temperature control switch is malfunctioning.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature control (DOWN) switch (driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning multifunction switch or unified meter and A/C amp. Refer to AT C - 111 , "
Self-Diag-
nosis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature control (UP) switch (driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.

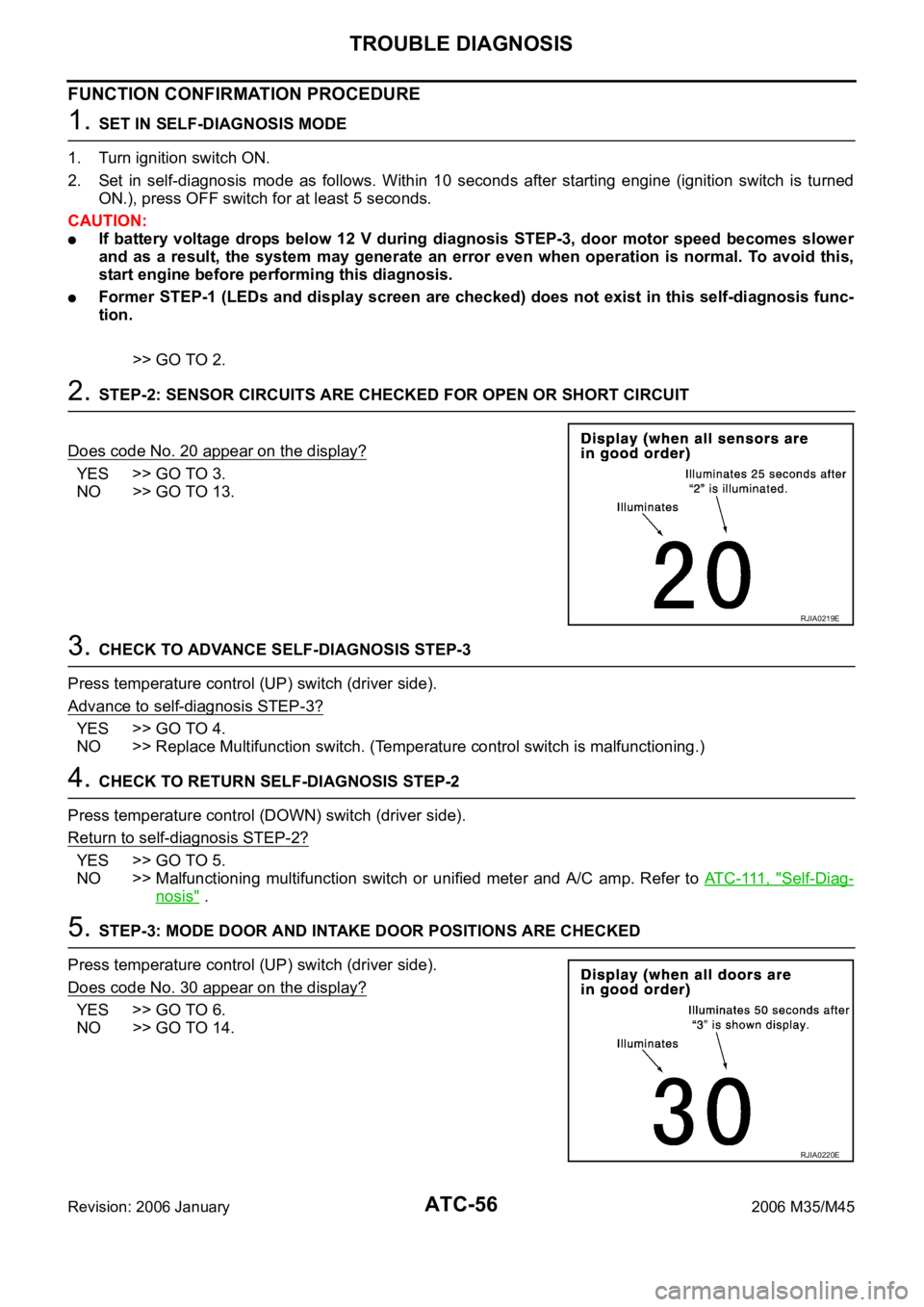

RJIA0219E
RJIA0220E
Page 504 of 5621
TROUBLE DIAGNOSIS
ATC-57
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 January2006 M35/M45
6. STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Press temperature control (UP) switch (driver side).
2. Press (DEF) switch. Code No. of each door motor test is
indicated on the display.
>> GO TO 7.
7. CHECK ACTUATORS
Refer to the following chart and check discharge air flow, air temperature, blower motor duty ratio and com-
pressor operation.
RJIA1968E
RJIA4035E
Code No. 41 42 43 44 45 46
Mode door position VENT B/L 1 B/L 2
FOOT
*1D/F DEF
Upper ventilator door
positionOPEN SHUT SHUT SHUT SHUT SHUT
Intake door position REC REC 20% FRE FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL HOT FULL HOT FULL HOTFULL HOT
Blower motor duty ratio 37% 91% 65% 65% 65% 91%
Compressor ON ON OFF OFF ON ON
E l e c t r o n i c c o n t r o l v a l v e
(ECV) duty ratio100% 100% 0% 0% 50% 100%
