EC-522
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
17. DETECT MALFUNCTIONING PART
Check the following.
10A fuse
Fuse block (J/B) connector E102
50A fusible link
Harness for open or short between cooling fan relay and fuse
Harness for open or short between cooling fan relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
18. CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E9.
3. Check harness continuity between the following;
Cooling fan relay terminal 2 and IPDM E/R terminal 56,
Cooling fan relay terminal 5 and cooling fan control module terminal 3.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 19.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
19. CHECK COOLING FAN RELAY
Refer to EC-524, "
Component Inspection" .
OK or NG
OK >> GO TO 20.
NG >> Replace cooling fan relay.
20. CHECK INTERMITTENT INCIDENT
Perform EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness connectors.
Main 12 Causes of OverheatingNBS00538
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1
Blocked radiator
Blocked condenser
Blocked radiator grille
Blocked bumper
Visual No blocking —
2
Coolant mixtureCoolant tester 50 - 50% coolant mixtureMA-13, "Anti-Freeze
Coolant Mixture Ratio"
3Coolant levelVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckMA-15, "Changing
Engine Coolant"
4Radiator capPressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)CO-16, "
Checking Radia-
tor Cap"
Page 2066 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Driv INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Driv](/manual-img/42/57023/w960_57023-2065.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-7, "
OVERHEATING CAUSE ANALYSIS" . ON*
25Coolant leaksVisual No leaksCO-11, "LEAK CHECK"
ON*26ThermostatTouch the upper and
lower radiator hosesBoth hoses should be hotCO-29, "WATER INLET
AND THERMOSTAT
ASSEMBLY"
ON*17Cooling fanCONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-512
).
OFF 8
Combustion gas leakColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39Coolant temperature
gaugeVisual Gauge less than 3/4
when driving—
Coolant overflow to
reservoir tankVisual No overflow during driving
and idlingMA-15, "Changing
Engine Coolant"
OFF*410Coolant return from
reservoir tank to radia-
torVisual Should be initial level in
reservoir tankMA-15, "Changing
Engine Coolant"
OFF 11Cylinder headStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-101, "CYLINDER
HEAD"
12Cylinder block and pis-
tonsVisual No scuffing on cylinder
walls or pistonEM-123, "CYLINDER
BLOCK"
Engine Step Inspection item Equipment Standard Reference page
Page 2067 of 5621
![INFINITI M35 2006 Factory Service Manual EC-524
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
Component InspectionNBS00539
COOLING FAN MOTORS -1 AND -2
Models With Sub Harneess
1. Disconnect cooling fan motor INFINITI M35 2006 Factory Service Manual EC-524
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
Component InspectionNBS00539
COOLING FAN MOTORS -1 AND -2
Models With Sub Harneess
1. Disconnect cooling fan motor](/manual-img/42/57023/w960_57023-2066.png)
EC-524
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
Component InspectionNBS00539
COOLING FAN MOTORS -1 AND -2
Models With Sub Harneess
1. Disconnect cooling fan motor harness connector.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Make sure that cooling fan speed of condition B is higher than that of A.
If NG, replace cooling fan motor.
Models Without Sub Harneess
1. Disconnect cooling fan control module harness connectors.
2. Supply cooling fan control module terminals with battery voltage
and check operation.
Make sure that cooling fan operates.
If NG, replace cooling fan motor.
COOLING FAN RELAY
1. Disconnect cooling fan relay harness connector.
2. Check continuity between terminals 3 and 5 under the following
conditions.
If NG, replace cooling fan relay.
ConditionTerminals
(+) ()
Cooling fan motorA1 3 and 4
2 3 and 4
1 and 2 3
1 and 2 4
B 1, 2 3, 4
PBIB2738E
Cooling fan motorTerminals
(+) ()
145
267
PBID0262J
Conditions Continuity
12V direct current supply
between terminals 1 and 2Ye s
No current supply No
SEF090M
Page 2068 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-525
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)PFP:17001
DescriptionNBS0053A
SYSTEM DES INFINITI M35 2006 Factory Service Manual DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-525
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)PFP:17001
DescriptionNBS0053A
SYSTEM DES](/manual-img/42/57023/w960_57023-2067.png)
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-525
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)PFP:17001
DescriptionNBS0053A
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
This system controls the fuel pump operation. The amount of fuel flow delivered from the fuel pump is altered
between two flow rates by the FPCM operation. The FPCM determines the voltage supplied to the fuel pump
(and therefore fuel flow) according to the following conditions.
COMPONENT DESCRIPTION

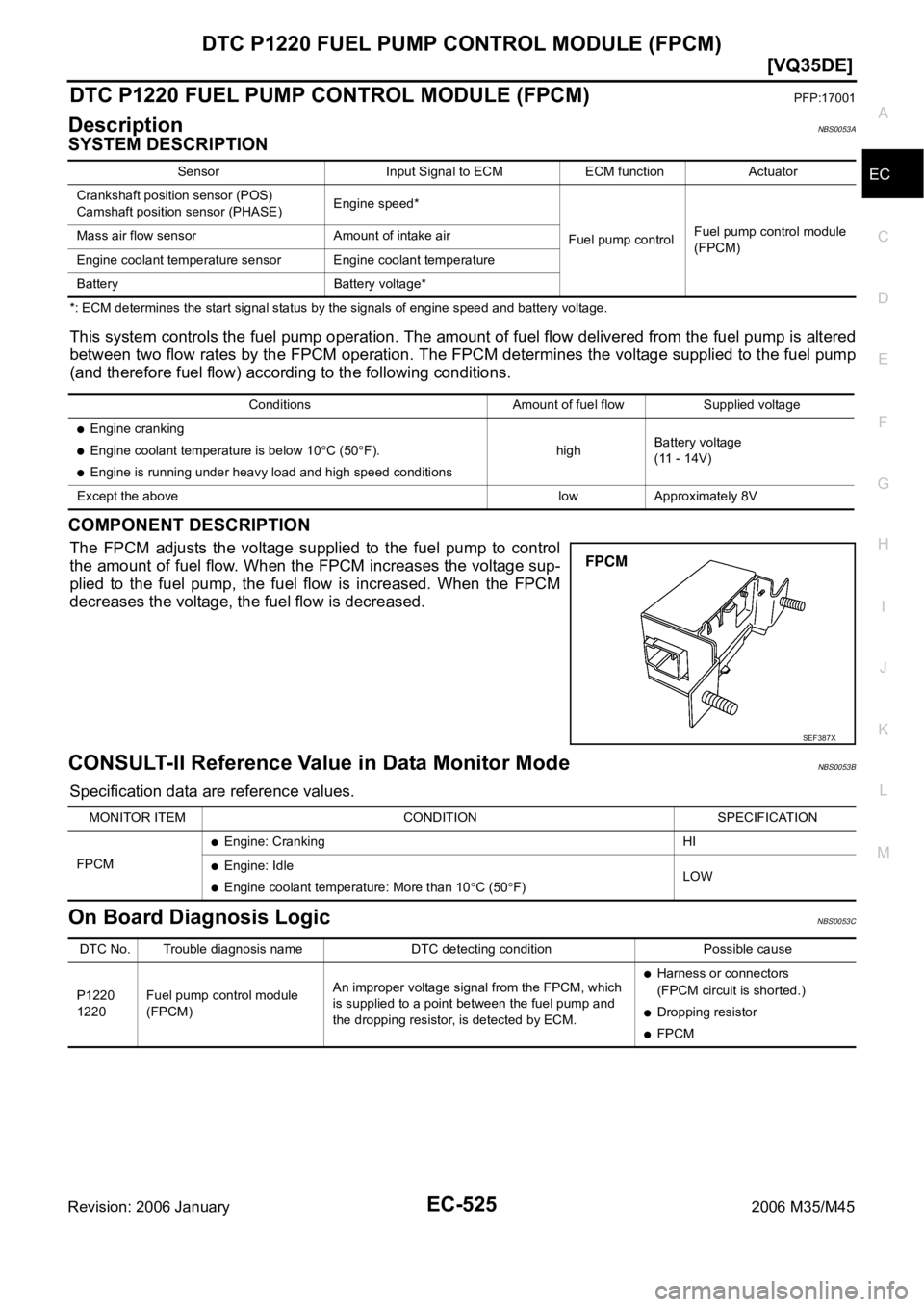

The FPCM adjusts the voltage supplied to the fuel pump to control
the amount of fuel flow. When the FPCM increases the voltage sup-
plied to the fuel pump, the fuel flow is increased. When the FPCM
decreases the voltage, the fuel flow is decreased.
CONSULT-II Reference Value in Data Monitor ModeNBS0053B
Specification data are reference values.
On Board Diagnosis LogicNBS0053C
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump controlFuel pump control module
(FPCM) Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery Battery voltage*
Conditions Amount of fuel flow Supplied voltage
Engine cranking
Engine coolant temperature is below 10C (50F).
Engine is running under heavy load and high speed conditionshighBattery voltage
(11 - 14V)
Except the above low Approximately 8V
SEF387X
MONITOR ITEM CONDITION SPECIFICATION
FPCM
Engine: Cranking HI
Engine: Idle
Engine coolant temperature: More than 10C (50F)LOW
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1220
1220Fuel pump control module
(FPCM)An improper voltage signal from the FPCM, which
is supplied to a point between the fuel pump and
the dropping resistor, is detected by ECM.
Harness or connectors
(FPCM circuit is shorted.)
Dropping resistor
FPCM
Page 2069 of 5621
![INFINITI M35 2006 Factory Service Manual EC-526
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0053D
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmati INFINITI M35 2006 Factory Service Manual EC-526
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0053D
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmati](/manual-img/42/57023/w960_57023-2068.png)
EC-526
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0053D
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V with ignition
switch ON.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Make sure that “COOLAN TEMP/S” indicates less than 70
C
(158
F). If not, cool down the engine.
3. Start engine.
4. Hold vehicle at the following conditions for 12 seconds.
5. If 1st trip DTC is detected, go to EC-528, "
Diagnostic Procedure" .
WITH GST
Follow the procedure WITH CONSULT-II above.
ENG SPEED1,550 - 3,250 rpm (AWD models)
1,450 - 3,100 rpm (2WD models)
VHCL SPEED SE More than 70 km/h (43 MPH)
B/FUEL SCHDL 1.5 - 31.8 msec
Selector lever Suitable position
SEF189Y
Page 2070 of 5621
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-527
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS0053E
TBWT0991E
Page 2071 of 5621
![INFINITI M35 2006 Factory Service Manual EC-528
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not INFINITI M35 2006 Factory Service Manual EC-528
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not](/manual-img/42/57023/w960_57023-2070.png)
EC-528
[VQ35DE]
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.

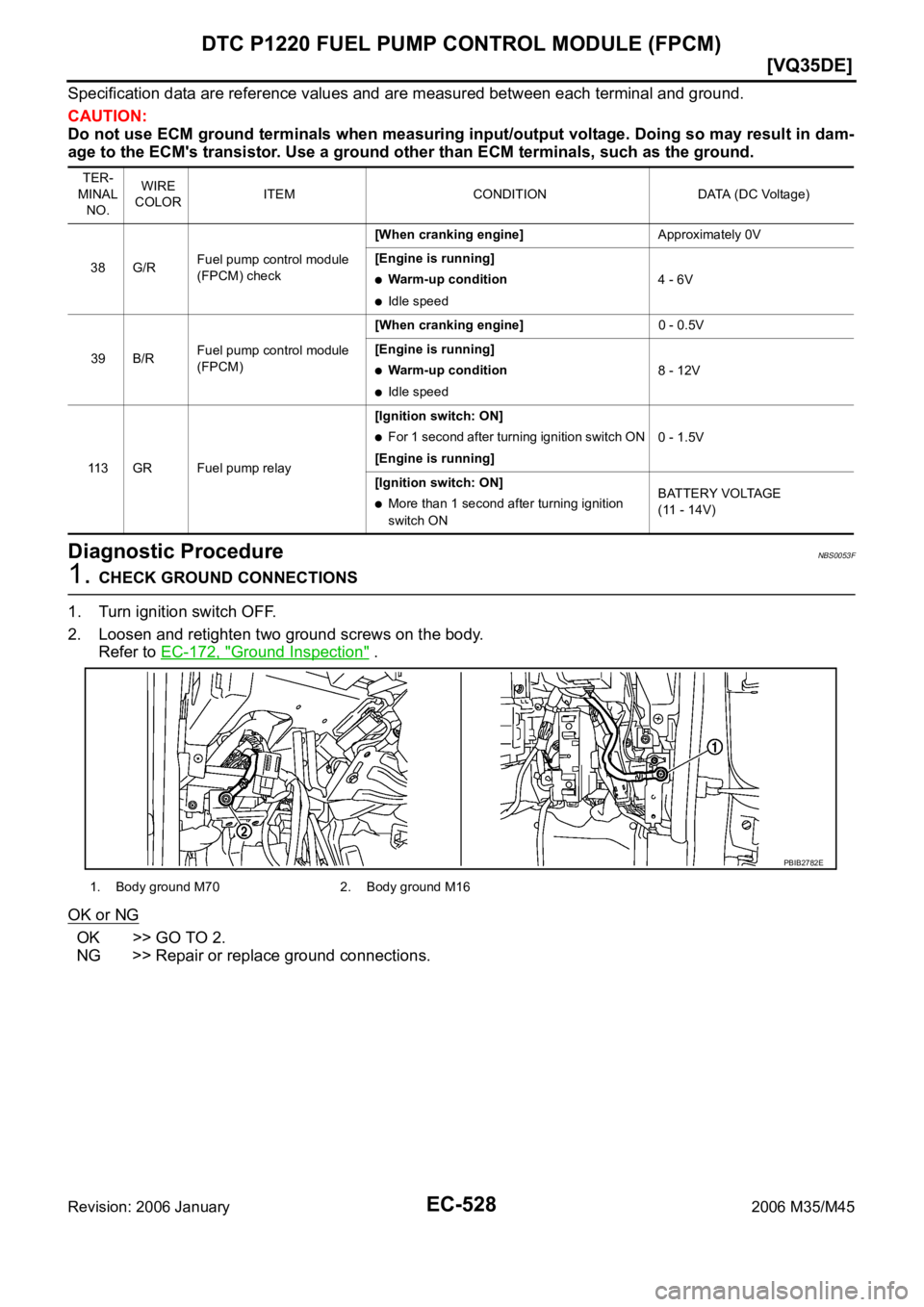

CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0053F
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-172, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
38 G/RFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]
Warm-up condition
Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]
Warm-up condition
Idle speed8 - 12V
113 GR Fuel pump relay[Ignition switch: ON]
For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]
More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2072 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-529
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

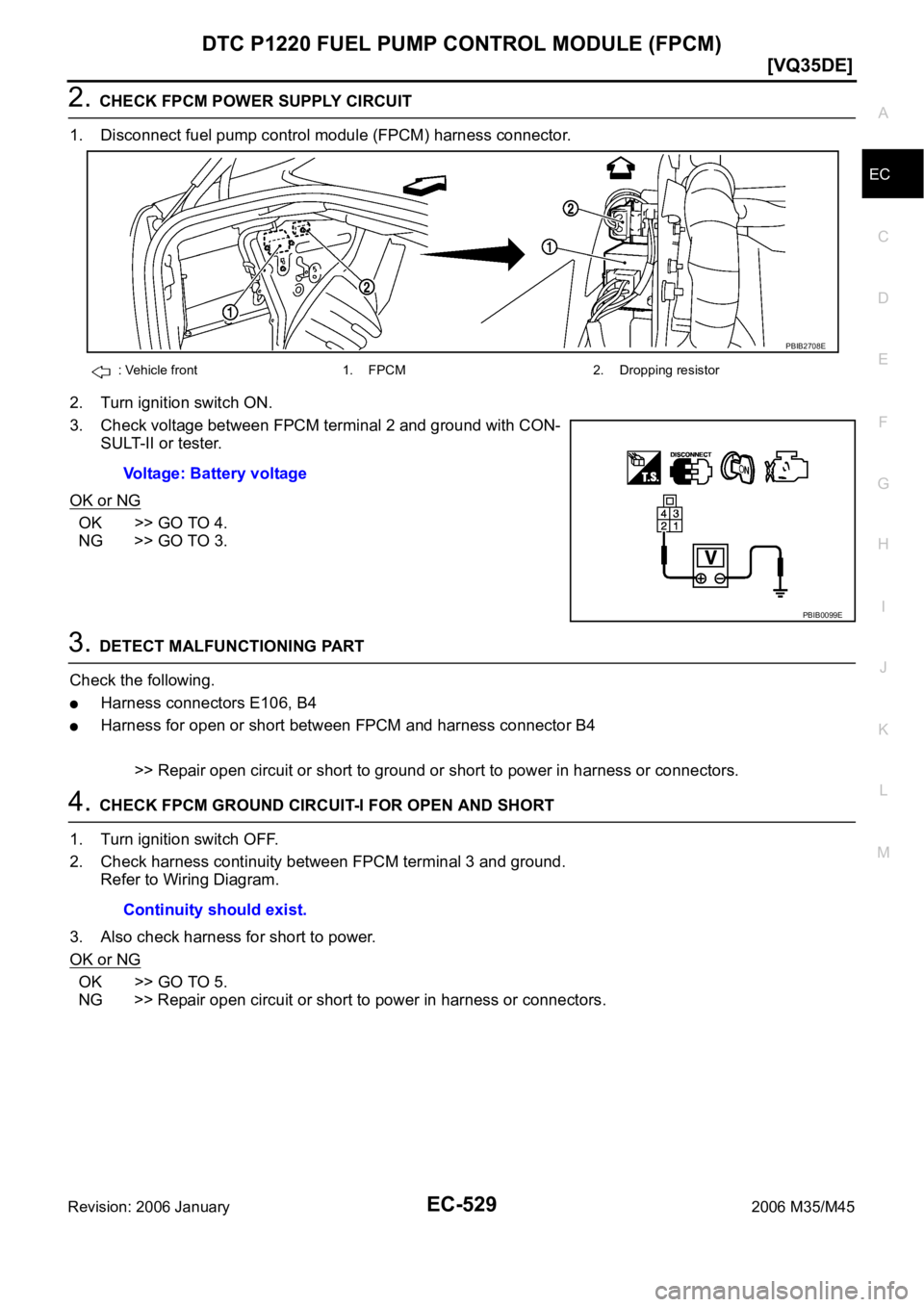

2. CHECK FPCM POWER SUPPLY CIRCUIT
1. Disconnect fuel pump control module (FPCM) INFINITI M35 2006 Factory Service Manual DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-529
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK FPCM POWER SUPPLY CIRCUIT
1. Disconnect fuel pump control module (FPCM)](/manual-img/42/57023/w960_57023-2071.png)
DTC P1220 FUEL PUMP CONTROL MODULE (FPCM)
EC-529
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK FPCM POWER SUPPLY CIRCUIT
1. Disconnect fuel pump control module (FPCM) harness connector.
2. Turn ignition switch ON.
3. Check voltage between FPCM terminal 2 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E106, B4
Harness for open or short between FPCM and harness connector B4
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FPCM GROUND CIRCUIT-I FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between FPCM terminal 3 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to power in harness or connectors.
: Vehicle front 1. FPCM 2. Dropping resistor
Voltage: Battery voltage
PBIB2708E
PBIB0099E
Continuity should exist.
