Page 3201 of 5621

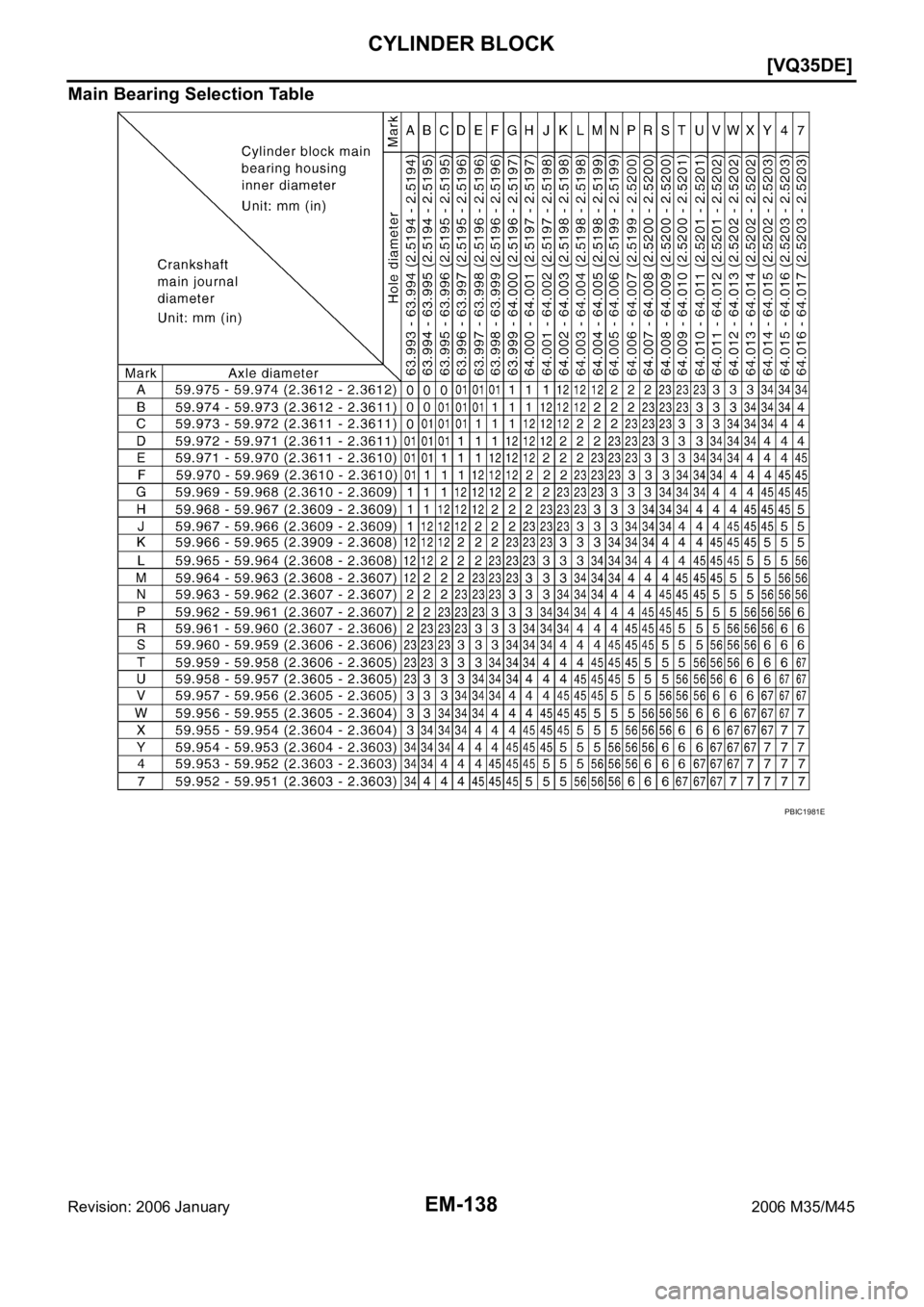

INFINITI M35 2006 Factory Service Manual EM-138 [VQ35DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 Main Bearing Selection Table PBIC1981E

Page 3202 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-139 [VQ35DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 Main Bearing Grade Table (All Journals) Undersize Bearing Usage Guide When the specified main bearing o

Page 3203 of 5621

INFINITI M35 2006 Factory Service Manual EM-140 [VQ35DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 Inspection after DisassemblyNBS004O3 CRANKSHAFT END PLAY Measure the clearance between thrust bearings and crankshaft arm when cranks

Page 3204 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-141 [VQ35DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 When replacing piston and piston pin assembly, refer to EM-135, "HOW TO SELECT PISTON" . NOTE: Pisto

Page 3205 of 5621

INFINITI M35 2006 Factory Service Manual EM-142 [VQ35DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 CONNECTING ROD BEND AND TORSION Check with a connecting rod aligner. If it exceeds the limit, replace connecting rod assembly. CONNECT

Page 3206 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-143 [VQ35DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 Piston Pin Outer Diameter Measure the outer diameter of piston pin with a micrometer. Connecting Rod Bushing

Page 3207 of 5621

INFINITI M35 2006 Factory Service Manual EM-144 [VQ35DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 Measure the distortion on the cylinder block upper face at some different points in six directions with a straightedge and a feeler

Page 3208 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-145 [VQ35DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 Piston Skirt Diameter Measure the outer diameter of piston skirt with a micrometer. Piston-to-Cylinder Bore
