Page 5513 of 5621

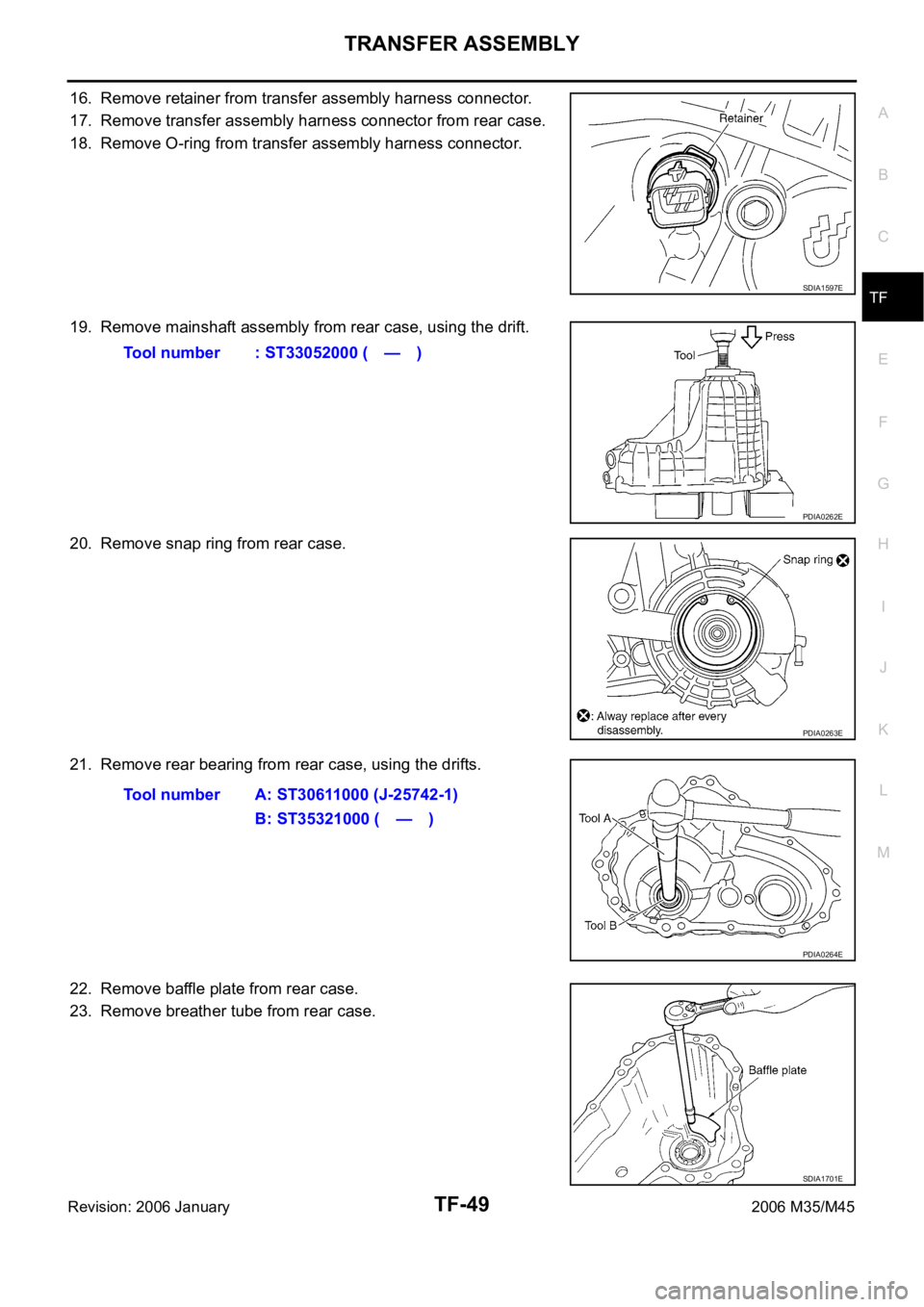

INFINITI M35 2006 Factory Service Manual TF-48 TRANSFER ASSEMBLY Revision: 2006 January2006 M35/M45 11. Remove snap ring from front case. 12. Remove mainshaft bearing from front case, using the drift. 13. Remove drive chain and front dr

Page 5514 of 5621

INFINITI M35 2006 Factory Service Manual TRANSFER ASSEMBLY TF-49 C E F G H I J K L MA B TF Revision: 2006 January2006 M35/M45 16. Remove retainer from transfer assembly harness connector. 17. Remove transfer assembly harness connector from r

Page 5515 of 5621

INFINITI M35 2006 Factory Service Manual TF-50 TRANSFER ASSEMBLY Revision: 2006 January2006 M35/M45 Mainshaft Assembly 1. Separate front case and rear case, then remove mainshaft assembly. Refer to TF-46, "Front Case and Re

Page 5516 of 5621

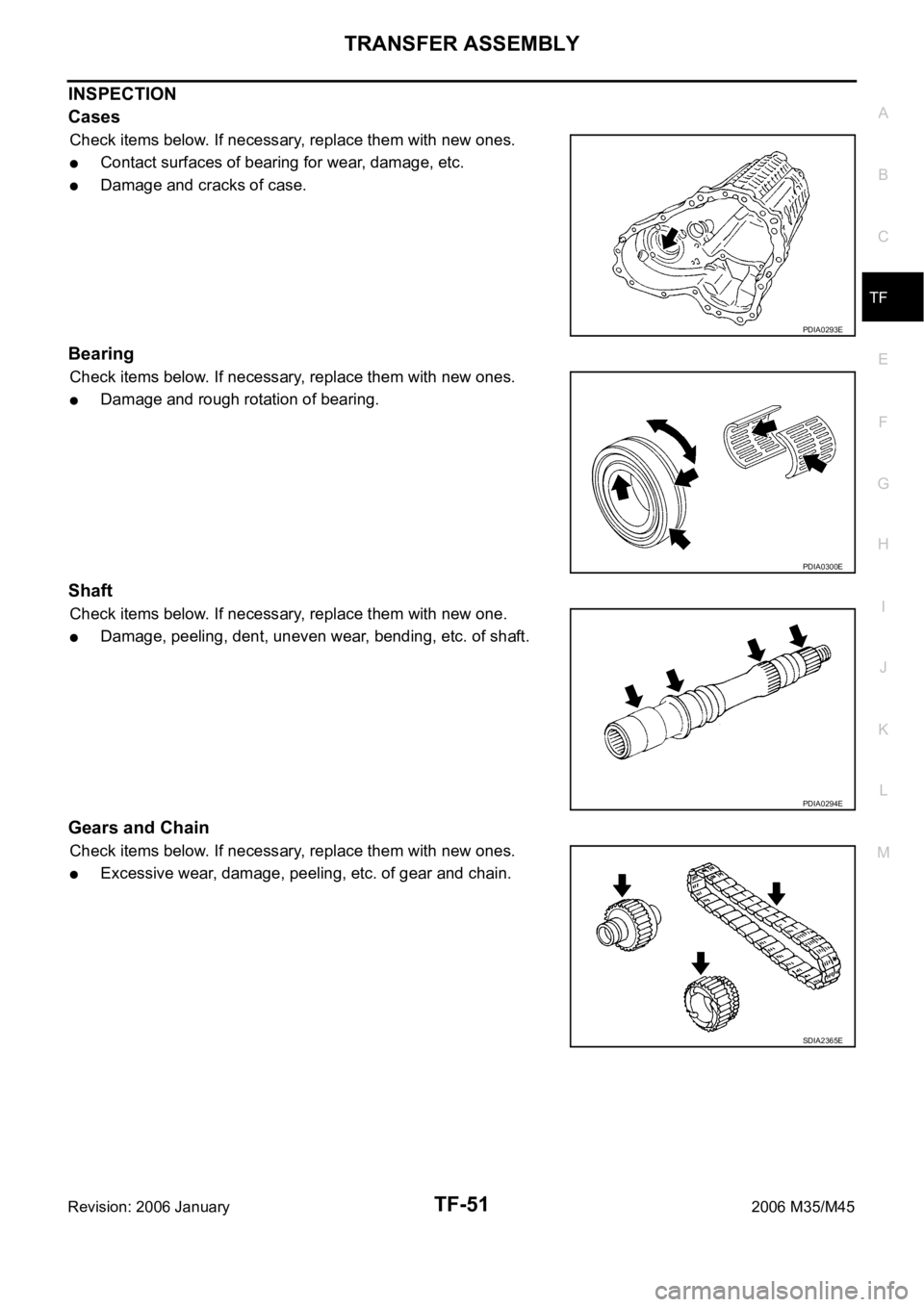

INFINITI M35 2006 Factory Service Manual TRANSFER ASSEMBLY TF-51 C E F G H I J K L MA B TF Revision: 2006 January2006 M35/M45 INSPECTION Cases Check items below. If necessary, replace them with new ones. Contact surfaces of bearing for wear

Page 5517 of 5621

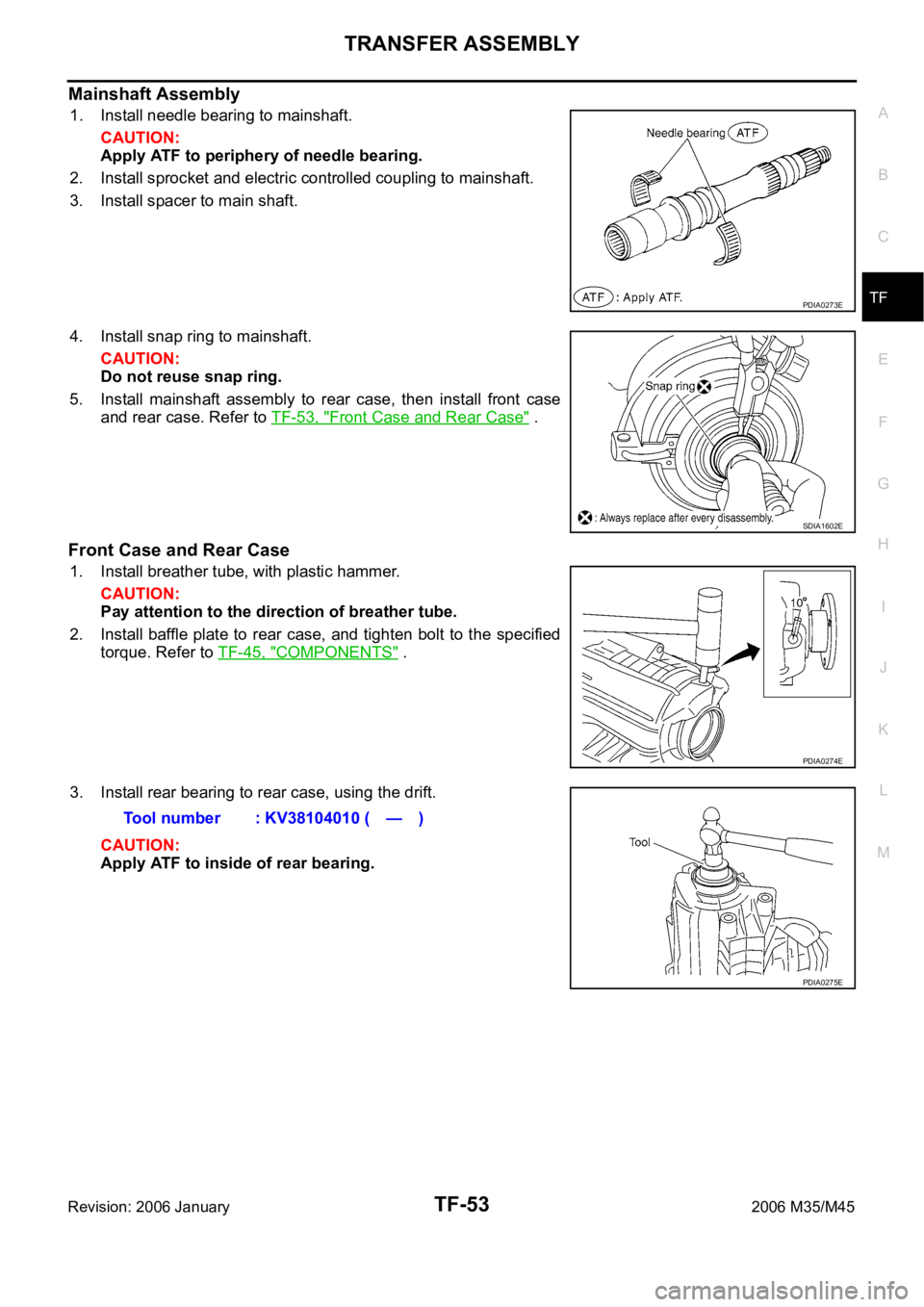

INFINITI M35 2006 Factory Service Manual TF-52 TRANSFER ASSEMBLY Revision: 2006 January2006 M35/M45 ASSEMBLY Front Drive Shaft and Drive Chain 1. Install front drive shaft front bearing, using the drift. 2. Install front drive shaft rear bea

Page 5518 of 5621

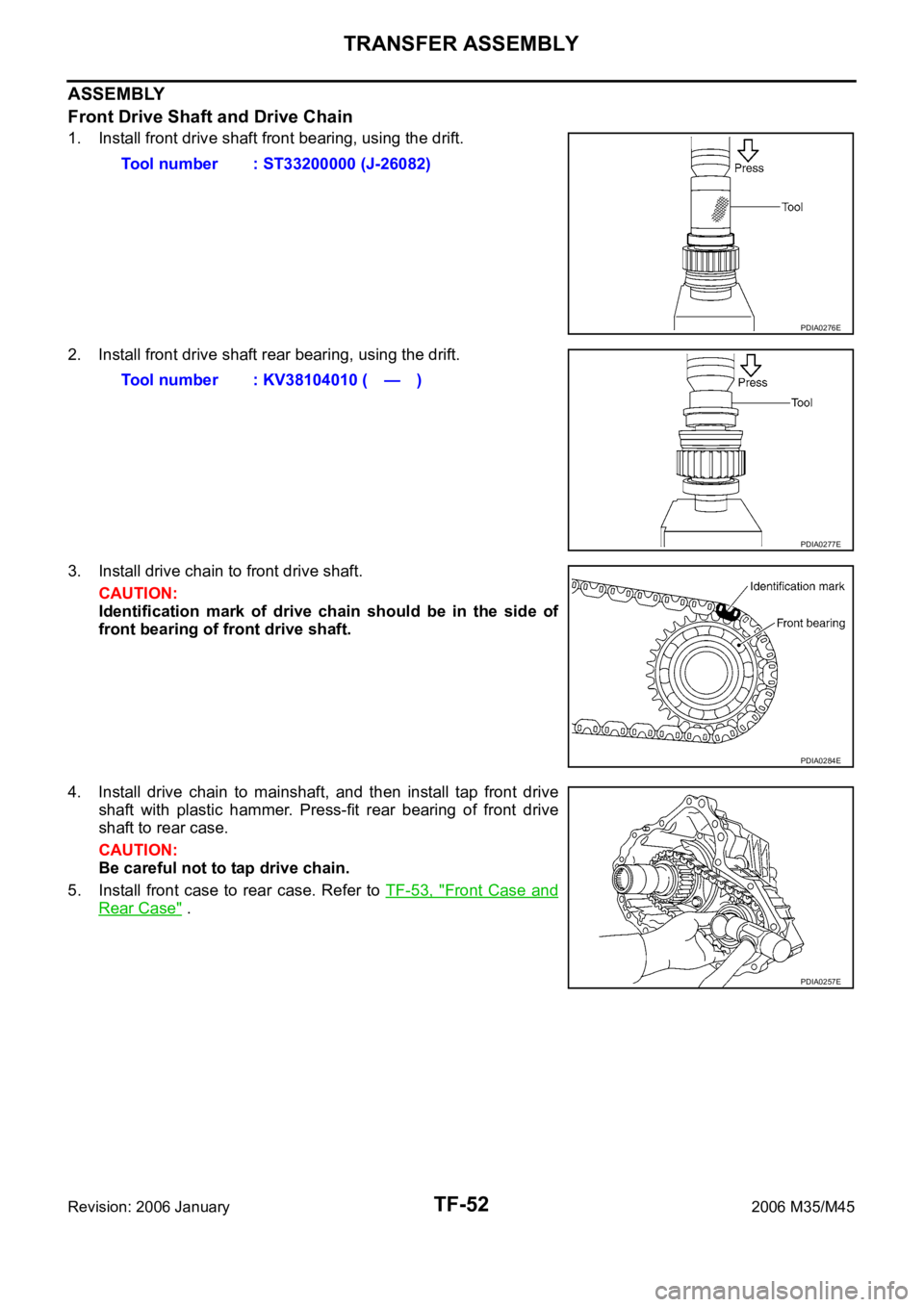

INFINITI M35 2006 Factory Service Manual TRANSFER ASSEMBLY TF-53 C E F G H I J K L MA B TF Revision: 2006 January2006 M35/M45 Mainshaft Assembly 1. Install needle bearing to mainshaft. CAUTION: Apply ATF to periphery of needle bearing. 2. In

Page 5519 of 5621

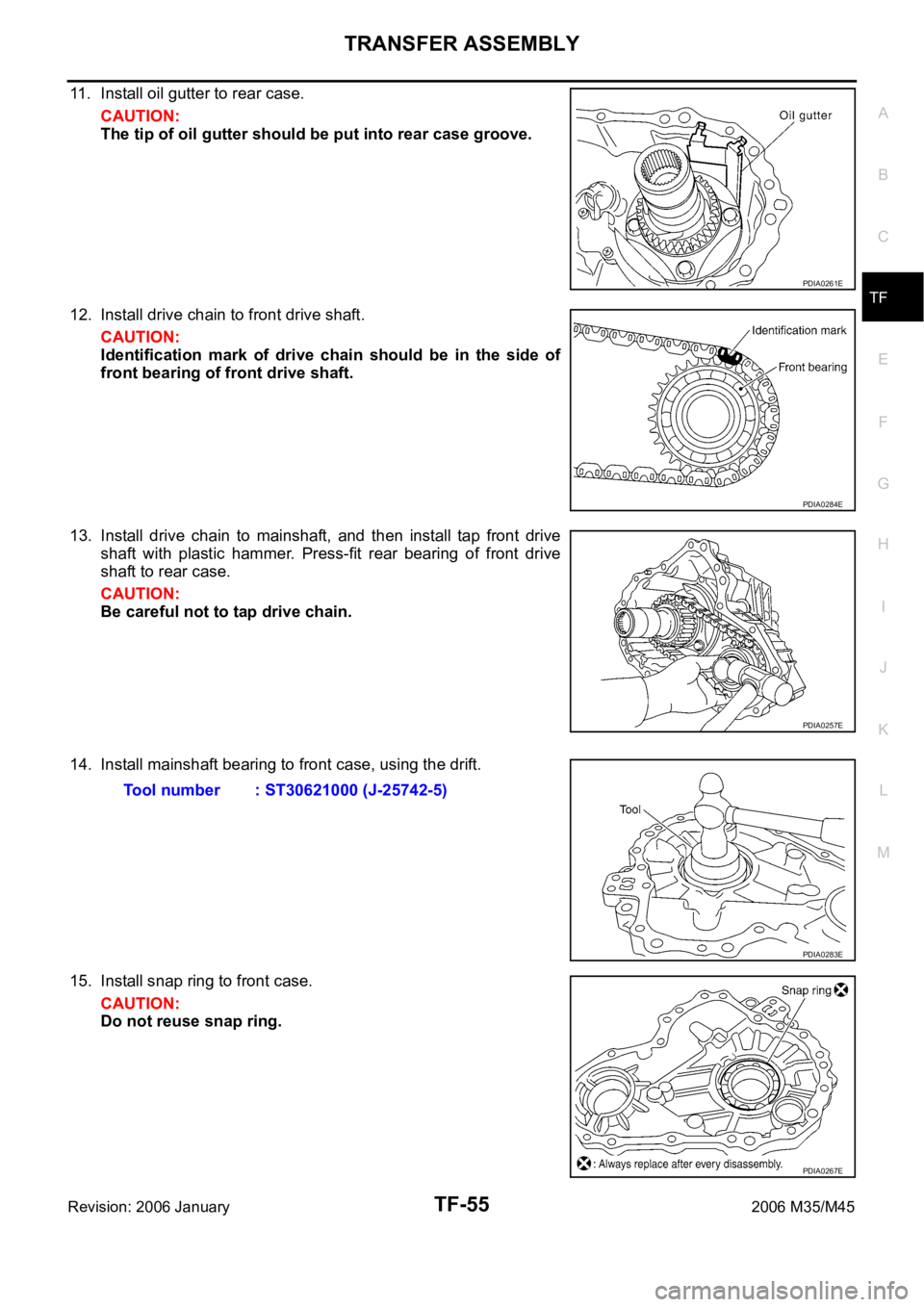

INFINITI M35 2006 Factory Service Manual TF-54 TRANSFER ASSEMBLY Revision: 2006 January2006 M35/M45 4. Install snap ring to rear case. CAUTION: Do not reuse snap ring. 5. Install mainshaft assembly to rear case, using the drift. CAUTION: ATF

Page 5520 of 5621

INFINITI M35 2006 Factory Service Manual TRANSFER ASSEMBLY TF-55 C E F G H I J K L MA B TF Revision: 2006 January2006 M35/M45 11. Install oil gutter to rear case. CAUTION: The tip of oil gutter should be put into rear case groove. 12. Instal
