Page 1921 of 5621

INFINITI M35 2006 Factory Service Manual EC-378
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 January2006 M35/M45

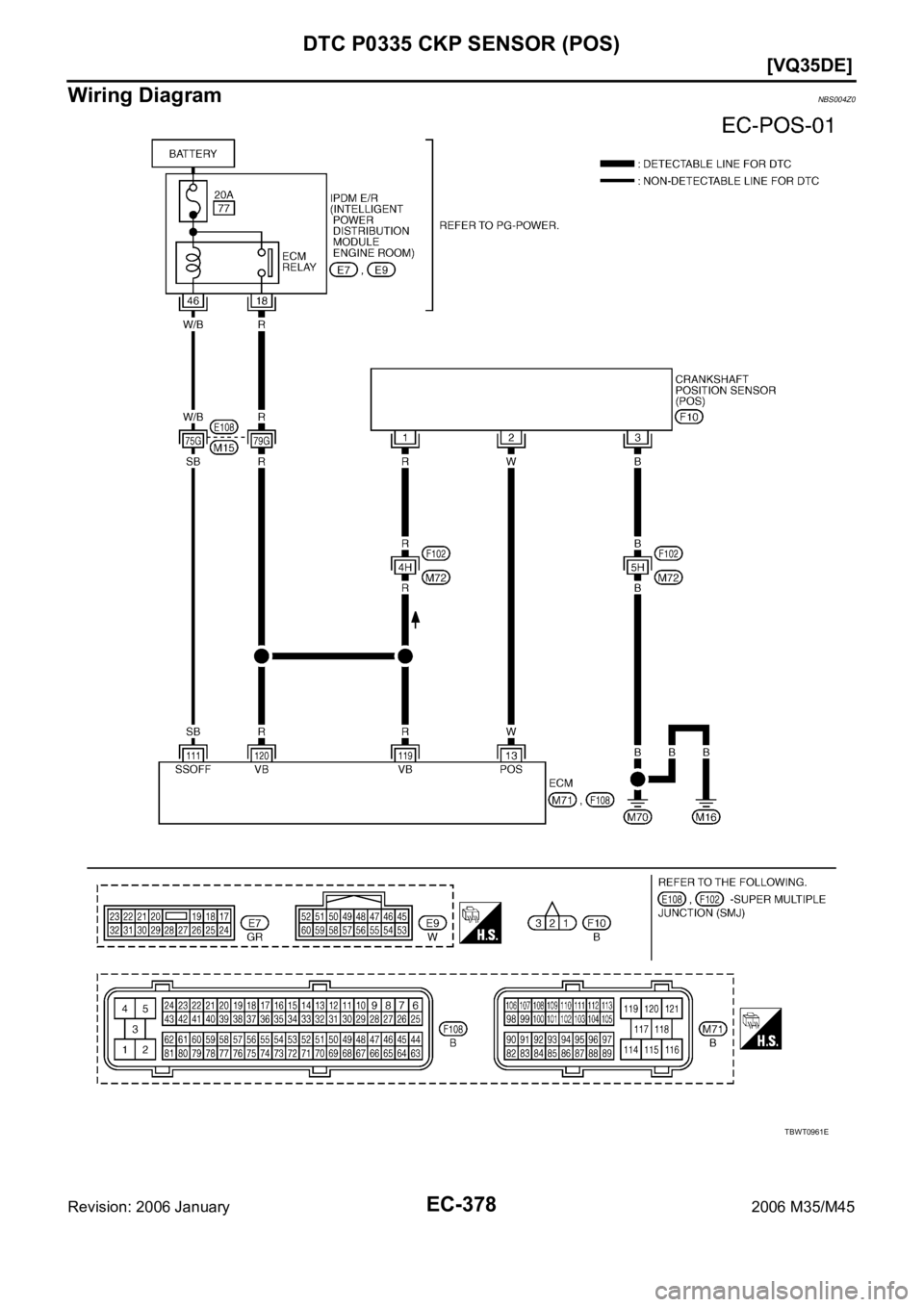

Wiring DiagramNBS004Z0
TBWT0961E

Page 1922 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0335 CKP SENSOR (POS)
EC-379
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse

Page 1923 of 5621

INFINITI M35 2006 Factory Service Manual EC-380
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 January2006 M35/M45
2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (

Page 1924 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0335 CKP SENSOR (POS)
EC-381
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
6. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness conn

Page 1925 of 5621

INFINITI M35 2006 Factory Service Manual EC-382
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 January2006 M35/M45
Component InspectionNBS004Z2
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crank

Page 1926 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0340, P0345 CMP SENSOR (PHASE)
EC-383
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS004Z4
The camshaf

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-383
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS004Z4
The camshaft position sensor (PHASE) senses the retraction of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeNBS004Z5
Specification data are reference values.
On Board Diagnosis LogicNBS004Z6
DTC Confirmation ProcedureNBS004Z7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON.
PBIB0562E
PBIB2744E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the
tachometer indication.Almost the same speed as the tachometer
indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340
(Bank 1)
Camshaft position sen-
sor (PHASE) circuit
The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
The cylinder No. signal is not sent to ECM
during engine running.
The cylinder No. signal is not in the normal
pattern during engine running.
Harness or connectors
(The sensor circuit is open or shorted)
Camshaft position sensor (PHASE)
Camshaft (INT)
Starter motor (Refer to SC-10, "START-
ING SYSTEM" .)
Starting system circuit (Refer to SC-10,
"STARTING SYSTEM" .)
Dead (Weak) battery P0345
0345
(Bank 2)

Page 1927 of 5621

INFINITI M35 2006 Factory Service Manual EC-384
[VQ35DE]
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 January2006 M35/M45
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least

Page 1928 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0340, P0345 CMP SENSOR (PHASE)
EC-385
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

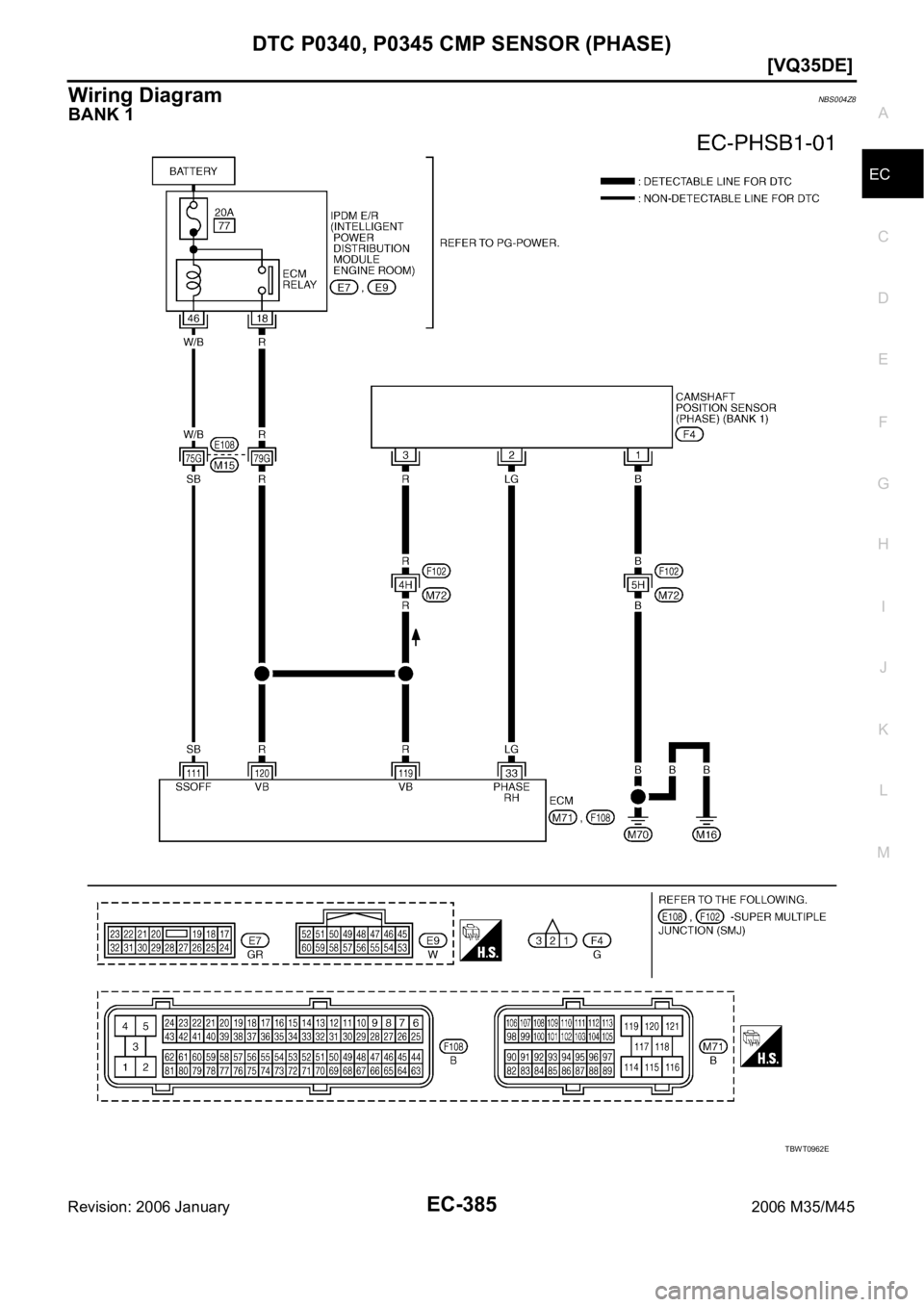

Wiring DiagramNBS004Z8
BANK 1
TBWT0962E
