HARNESS PFP:00011
Harness Layout NKS004ES
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:
Main Harness
Engine Room Harness (Engine Compartment)
Engine Control Harness
Body Harness (Passenger Compartment)
To Use the Grid Reference

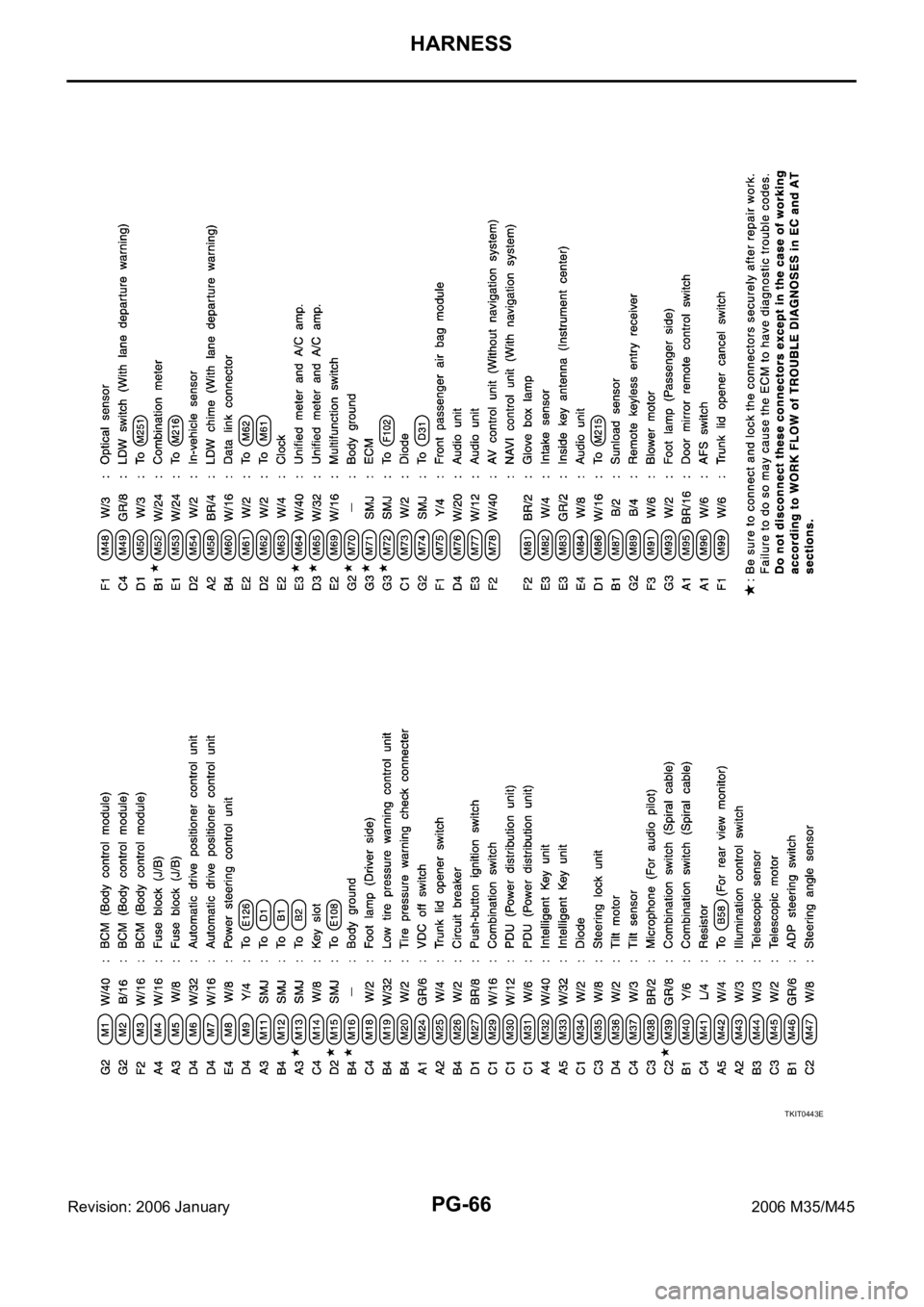

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

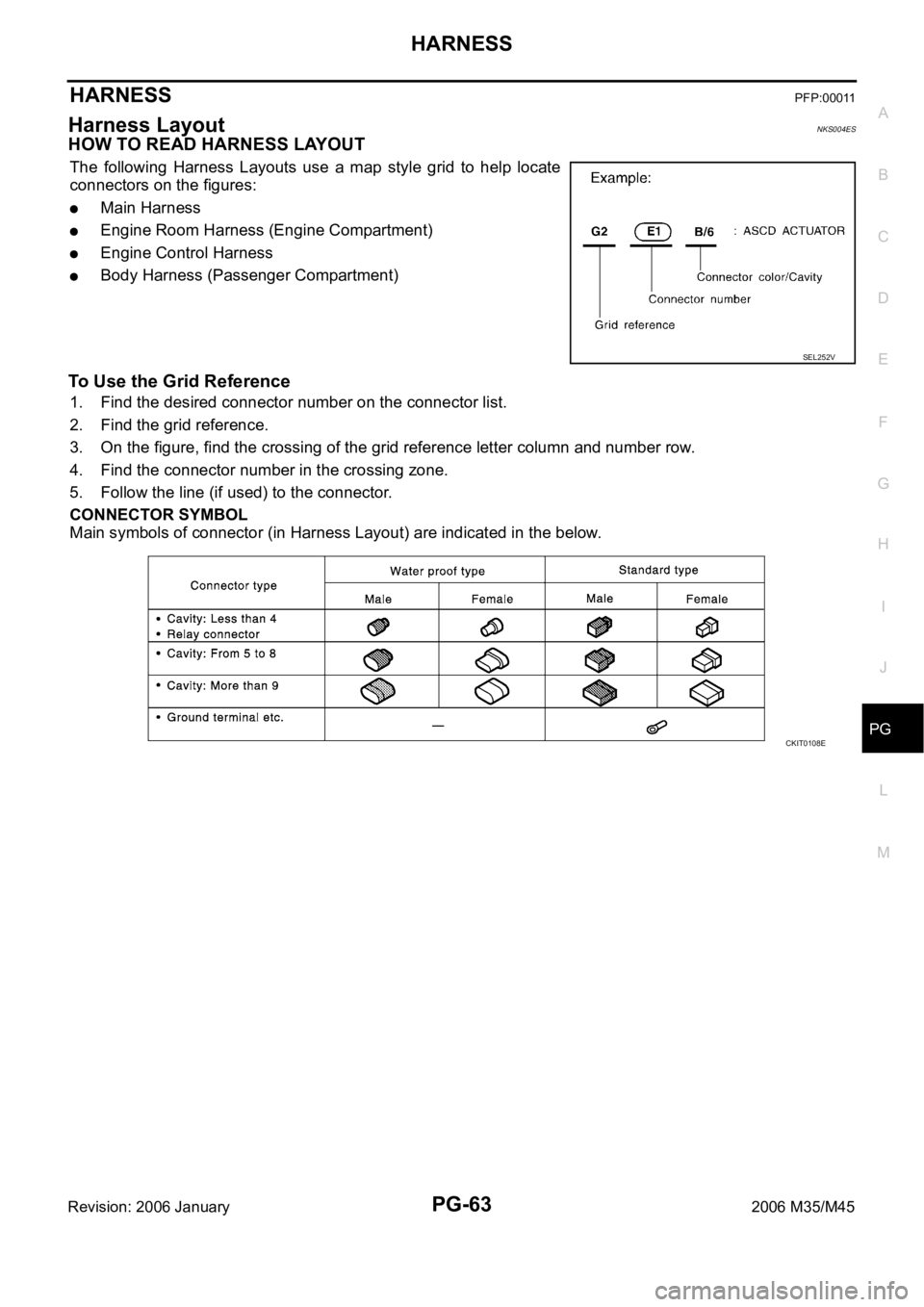

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E
Page 4891 of 5621
PG-64
HARNESS
Revision: 2006 January2006 M35/M45

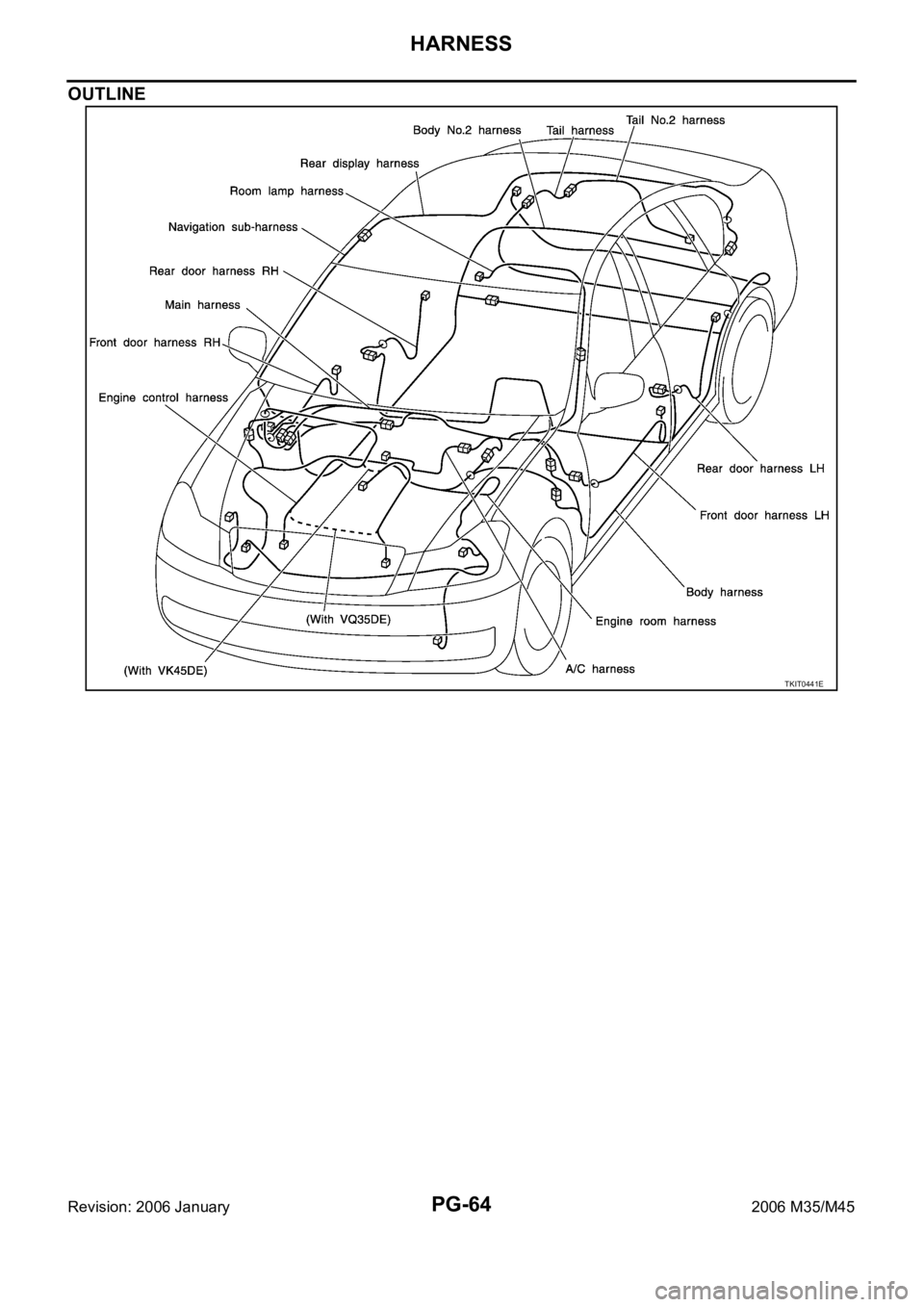

OUTLINE
TKIT0441E
Page 4892 of 5621
HARNESS
PG-65
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 January2006 M35/M45

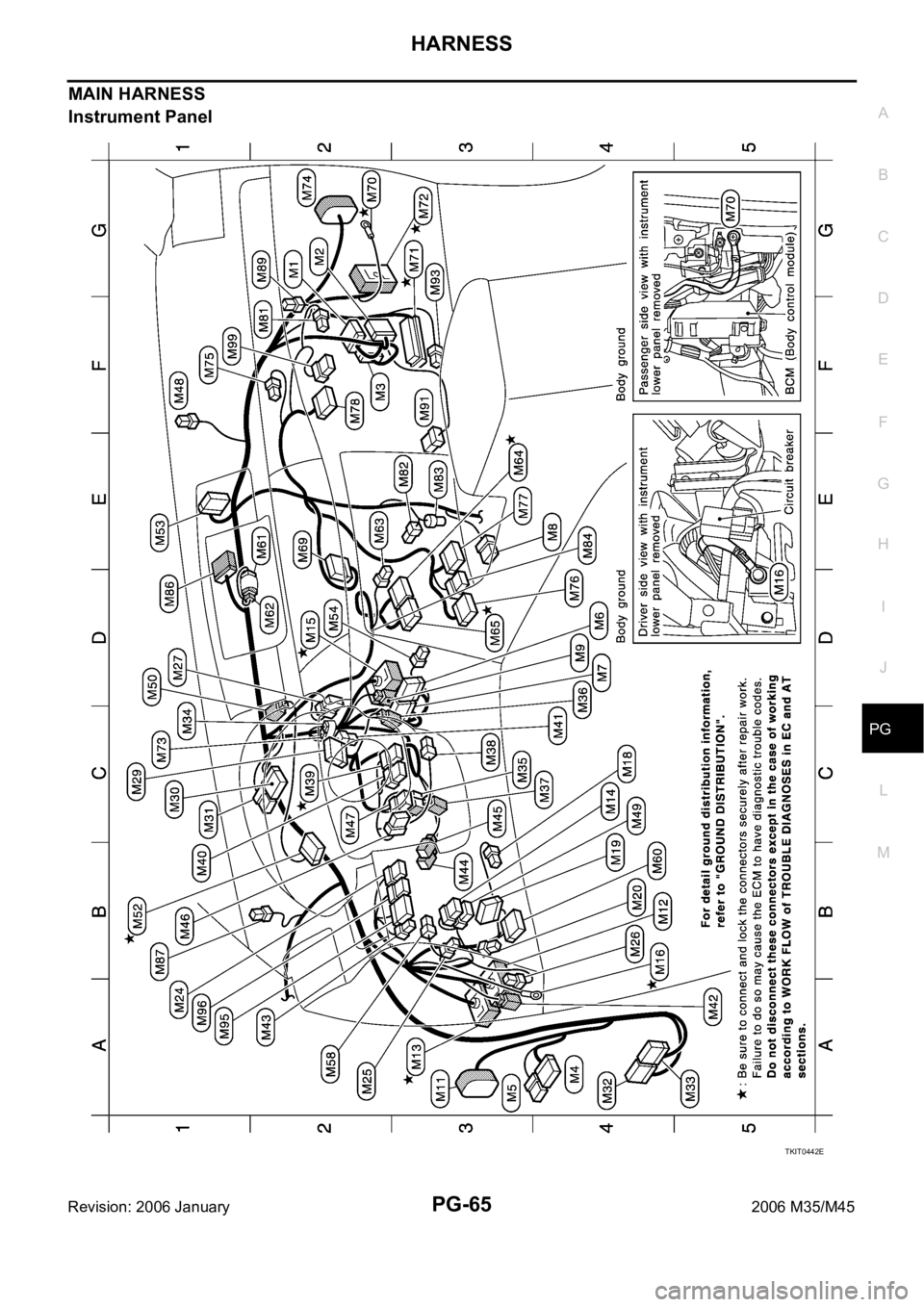

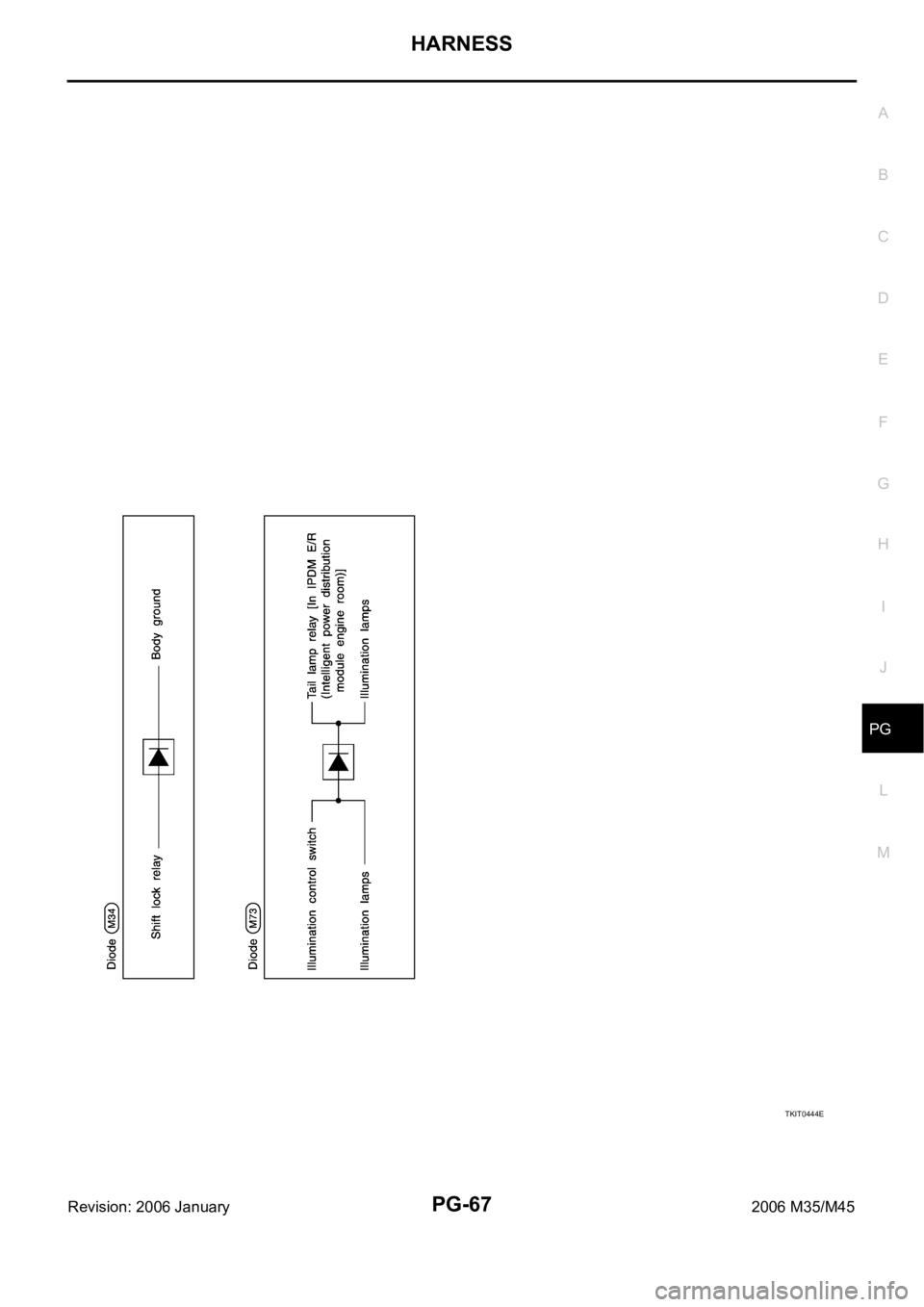

MAIN HARNESS
Instrument Panel
TKIT0442E
Page 4893 of 5621

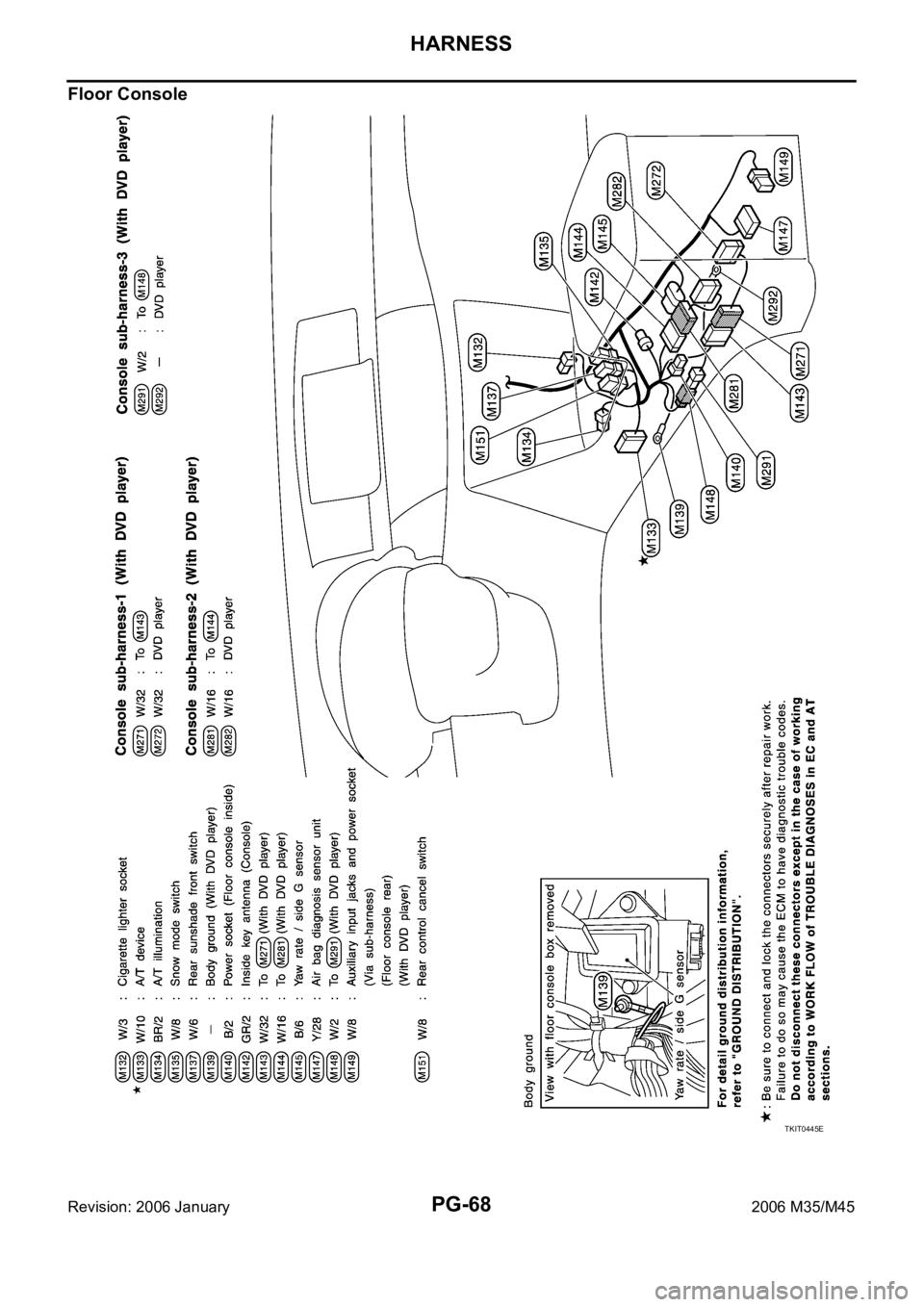

PG-66
HARNESS
Revision: 2006 January2006 M35/M45
TKIT0443E
Page 4894 of 5621
HARNESS
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 January2006 M35/M45
TKIT0444E
Page 4895 of 5621
PG-68
HARNESS
Revision: 2006 January2006 M35/M45
Floor Console
TKIT0445E
Page 4896 of 5621
HARNESS
PG-69
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 January2006 M35/M45

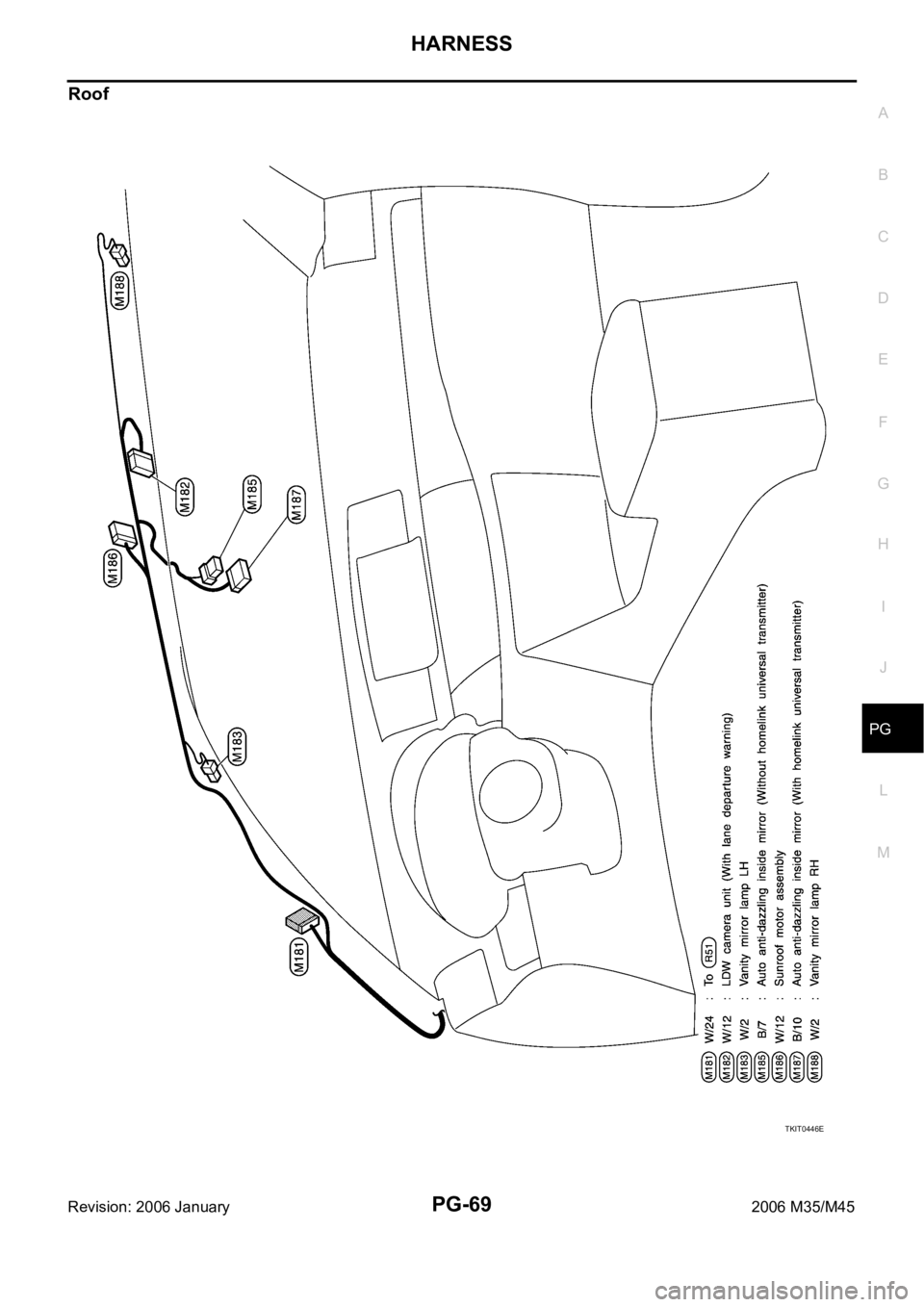

Roof
