LU-18
[VQ35DE]

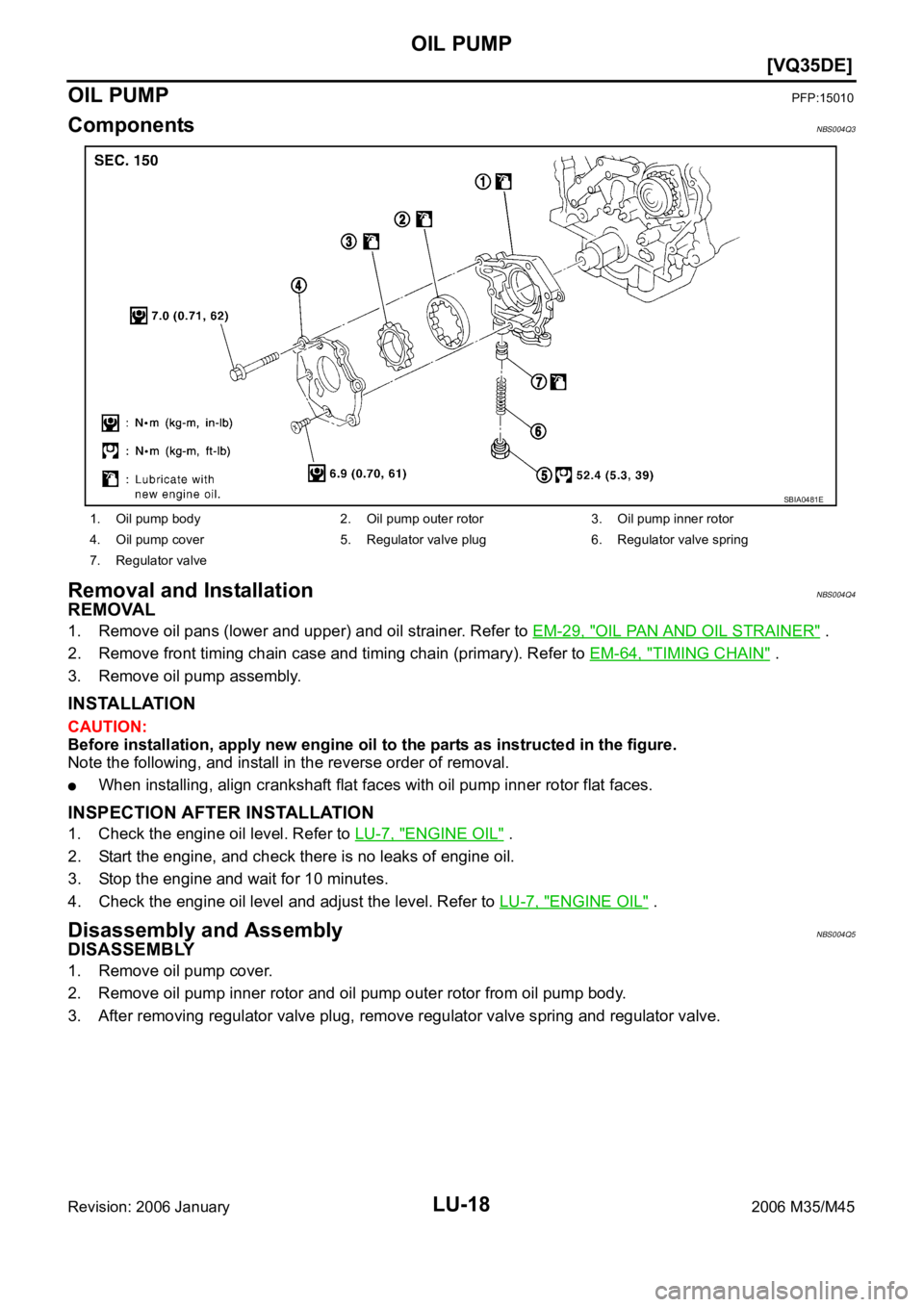

OIL PUMP
Revision: 2006 January2006 M35/M45
OIL PUMPPFP:15010
ComponentsNBS004Q3
Removal and InstallationNBS004Q4
REMOVAL
1. Remove oil pans (lower and upper) and oil strainer. Refer to EM-29, "OIL PAN AND OIL STRAINER" .
2. Remove front timing chain case and timing chain (primary). Refer to EM-64, "
TIMING CHAIN" .
3. Remove oil pump assembly.
INSTALLATION
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
Note the following, and install in the reverse order of removal.
When installing, align crankshaft flat faces with oil pump inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "ENGINE OIL" .
2. Start the engine, and check there is no leaks of engine oil.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and adjust the level. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyNBS004Q5
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve plug 6. Regulator valve spring
7. Regulator valve
SBIA0481E
Page 4762 of 5621
![INFINITI M35 2006 Factory Service Manual OIL PUMP
LU-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45

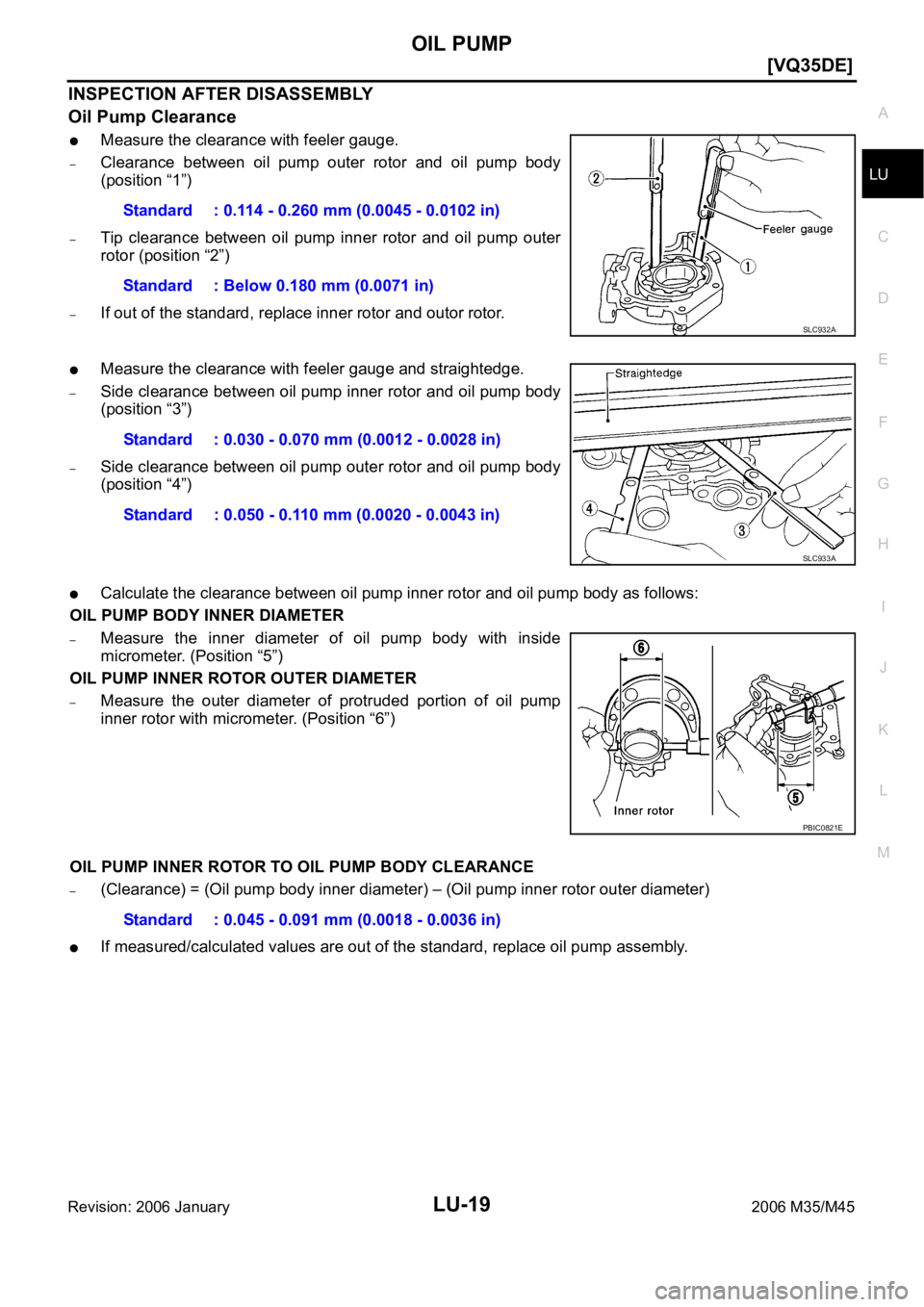

INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil INFINITI M35 2006 Factory Service Manual OIL PUMP
LU-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil](/manual-img/42/57023/w960_57023-4761.png)
OIL PUMP
LU-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil pump body
(position “1”)
–Tip clearance between oil pump inner rotor and oil pump outer
rotor (position “2”)
–If out of the standard, replace inner rotor and outor rotor.
Measure the clearance with feeler gauge and straightedge.
–Side clearance between oil pump inner rotor and oil pump body
(position “3”)
–Side clearance between oil pump outer rotor and oil pump body
(position “4”)
Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position “5”)
OIL PUMP INNER ROTOR OUTER DIAMETER
–Measure the outer diameter of protruded portion of oil pump
inner rotor with micrometer. (Position “6”)
OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)
If measured/calculated values are out of the standard, replace oil pump assembly. Standard : 0.114 - 0.260 mm (0.0045 - 0.0102 in)
Standard : Below 0.180 mm (0.0071 in)
SLC932A
Standard : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard : 0.050 - 0.110 mm (0.0020 - 0.0043 in)
SLC933A
PBIC0821E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
Page 4763 of 5621
LU-20
[VQ35DE]
OIL PUMP
Revision: 2006 January2006 M35/M45

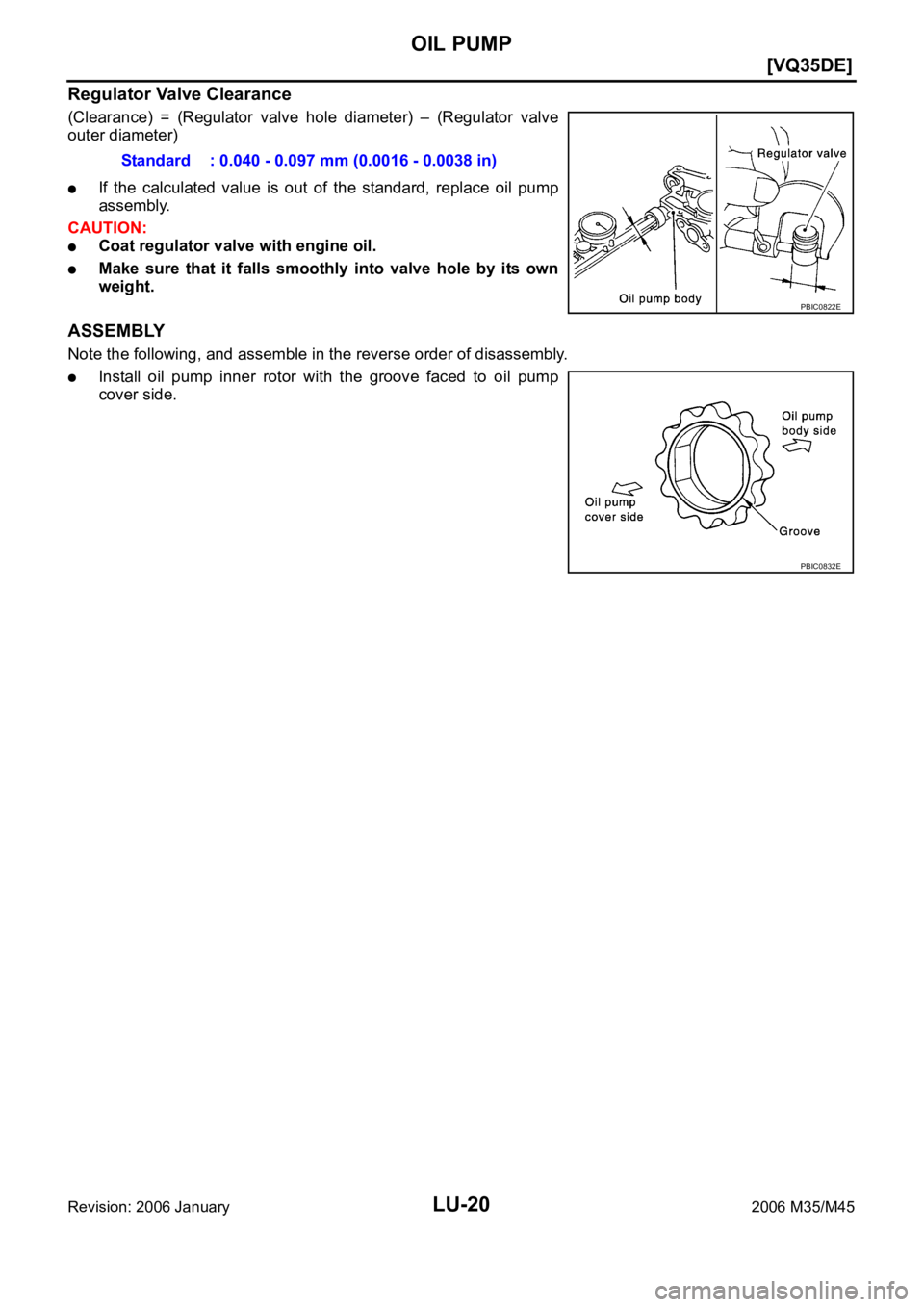

Regulator Valve Clearance
(Clearance) = (Regulator valve hole diameter) – (Regulator valve
outer diameter)
If the calculated value is out of the standard, replace oil pump
assembly.
CAUTION:
Coat regulator valve with engine oil.
Make sure that it falls smoothly into valve hole by its own
weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor with the groove faced to oil pump
cover side.Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0822E
PBIC0832E
Page 4764 of 5621
![INFINITI M35 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
LU-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS004Q6
ENGINE OIL P INFINITI M35 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
LU-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS004Q6
ENGINE OIL P](/manual-img/42/57023/w960_57023-4763.png)
SERVICE DATA AND SPECIFICATIONS (SDS)
LU-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS004Q6
ENGINE OIL PRESSURE
*: Engine oil temperature at 80C (176F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, lmp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in) Engine speed (rpm)
Approximate discharge pressure* [kPa (kg/cm
2 , psi)]
Idle speed More than 98 (1.0, 14)
2,000 More than 294 (3.0, 43)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.260 (0.0045 - 0.0102)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.0071)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Oil pump body to oil pump outer rotor axial clearance 0.050 - 0.110 (0.0020 - 0.0043)
Oil pump inner rotor to brazed portion of housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump cover clearance 0.040 - 0.097 (0.0016 - 0.0038)
Page 4765 of 5621
![INFINITI M35 2006 Factory Service Manual LU-22
[VK45DE]
PRECAUTIONS
Revision: 2006 January2006 M35/M45
[VK45DE]PRECAUTIONSPFP:00001

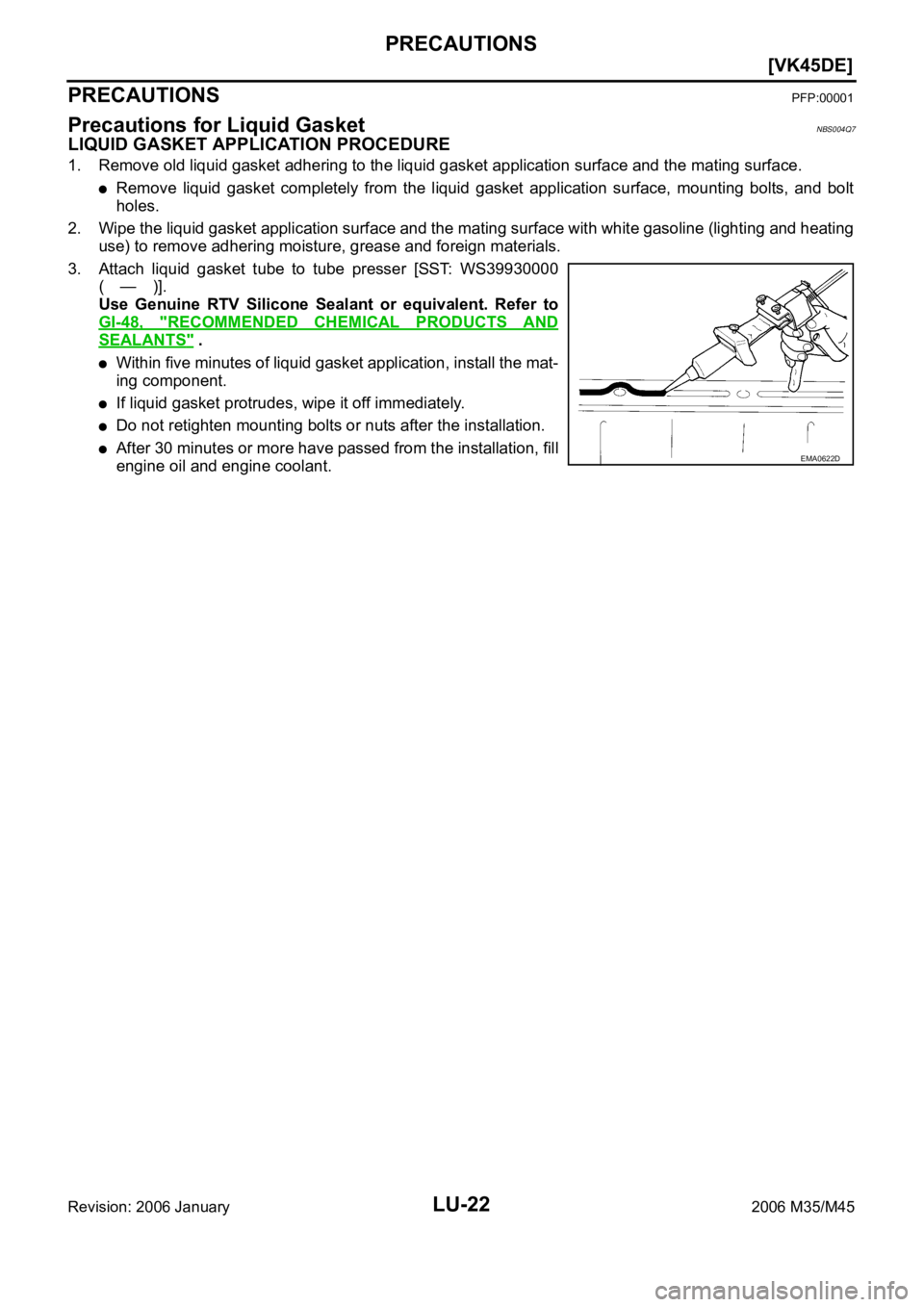

Precautions for Liquid GasketNBS004Q7
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adherin INFINITI M35 2006 Factory Service Manual LU-22
[VK45DE]
PRECAUTIONS
Revision: 2006 January2006 M35/M45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS004Q7
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adherin](/manual-img/42/57023/w960_57023-4764.png)
LU-22
[VK45DE]
PRECAUTIONS
Revision: 2006 January2006 M35/M45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS004Q7
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Within five minutes of liquid gasket application, install the mat-
ing component.
If liquid gasket protrudes, wipe it off immediately.
Do not retighten mounting bolts or nuts after the installation.
After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.EMA0622D
Page 4766 of 5621
PREPARATION
LU-23
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45

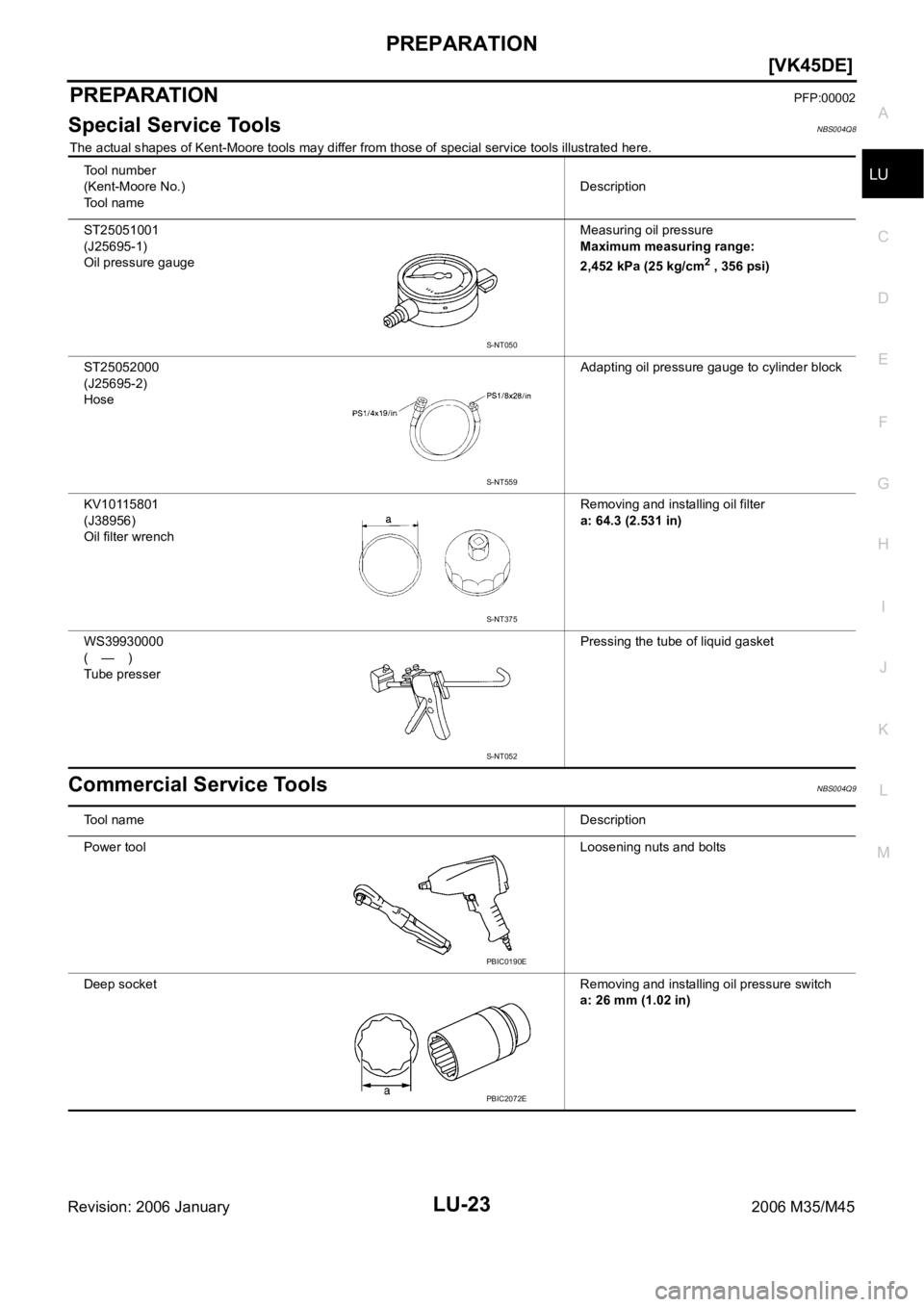

PREPARATIONPFP:00002
Special Service ToolsNBS004Q8
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNBS004Q9
Tool number
(Kent-Moore No.)
To o l n a m eDescription
ST25051001
(J25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J25695-2)
HoseAdapting oil pressure gauge to cylinder block
KV10115801
(J38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 (2.531 in)
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
S-NT375
S-NT052
To o l n a m eDescription
Power toolLoosening nuts and bolts
Deep socketRemoving and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E
Page 4767 of 5621
LU-24
[VK45DE]
LUBRICATION SYSTEM
Revision: 2006 January2006 M35/M45

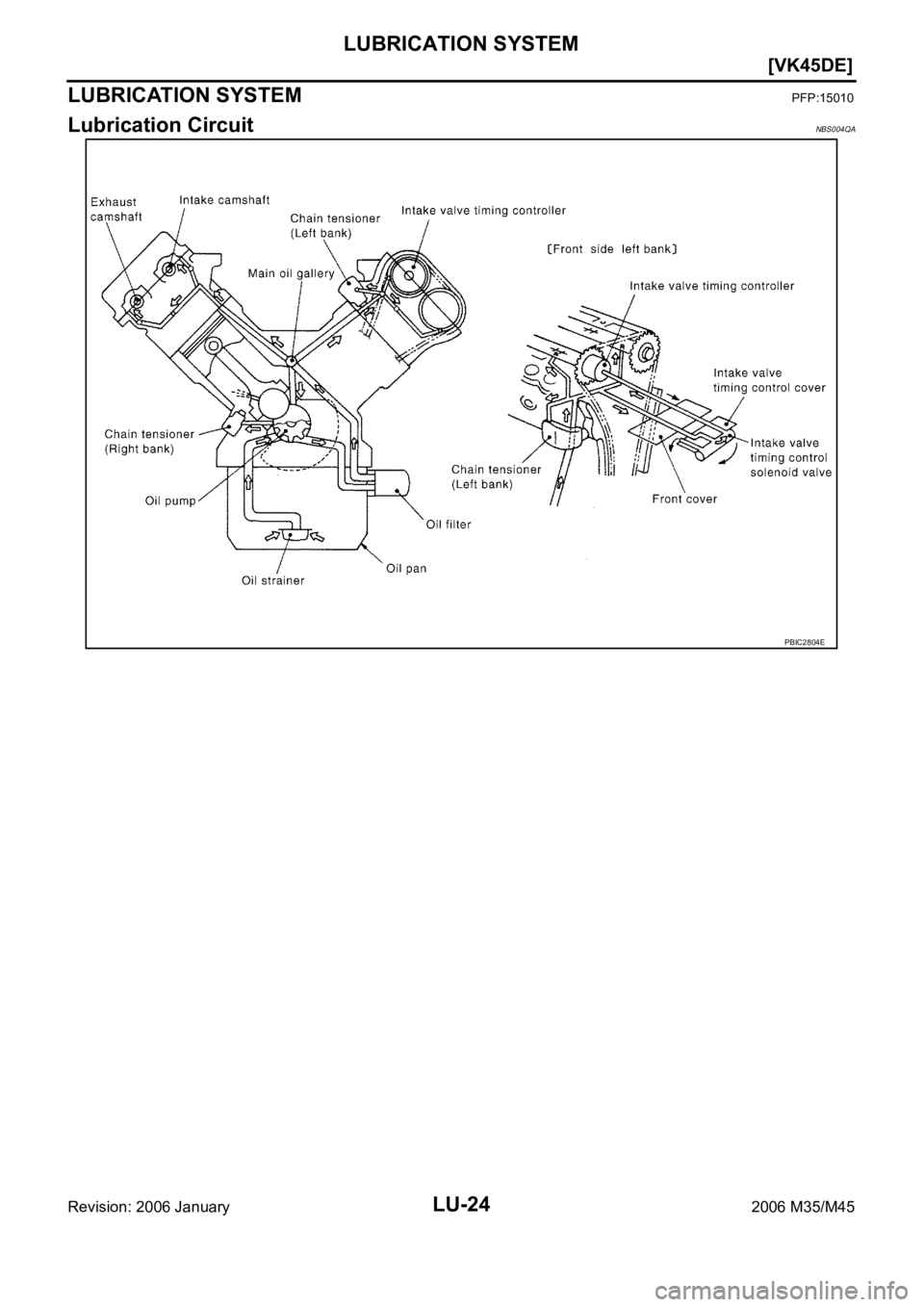

LUBRICATION SYSTEMPFP:15010
Lubrication CircuitNBS004QA
PBIC2804E
Page 4768 of 5621
LUBRICATION SYSTEM
LU-25
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2006 January2006 M35/M45

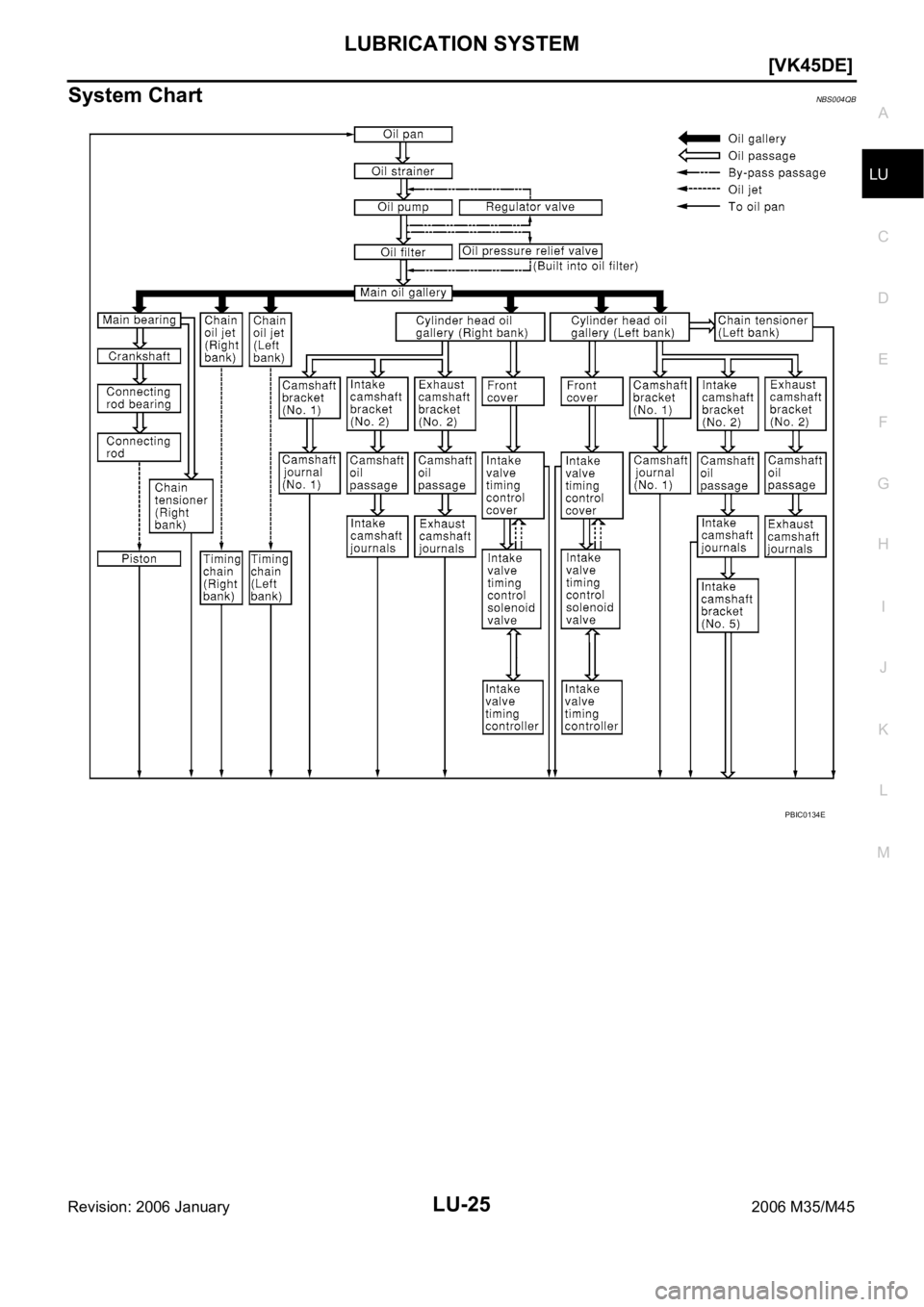

System ChartNBS004QB
PBIC0134E
