Page 2417 of 5621

INFINITI M35 2006 Factory Service Manual EC-874 [VK45DE] TROUBLE DIAGNOSIS - SPECIFICATION VALUE Revision: 2006 January2006 M35/M45 16. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2” 1. Start engine. 2. Select “A/F ALPHA-B1”, “A/F AL

Page 2418 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-875 [VK45DE] C D E F G H I J K L MA EC Revision: 2006 January2006 M35/M45 20. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL” Select

Page 2419 of 5621

INFINITI M35 2006 Factory Service Manual EC-876 [VK45DE] TROUBLE DIAGNOSIS - SPECIFICATION VALUE Revision: 2006 January2006 M35/M45 25. CHECK INTAKE SYSTEM Check for the cause of uneven air flow through mass air flow sensor. Refer to the fol

Page 2420 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-877 [VK45DE] C D E F G H I J K L MA EC Revision: 2006 January2006 M35/M45 30. CHECK “B/FUEL SCHDL” Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)”

Page 2421 of 5621

INFINITI M35 2006 Factory Service Manual EC-878 [VK45DE] TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT Revision: 2006 January2006 M35/M45 TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006 DescriptionNBS005AV Intermittent incidents may occur

Page 2422 of 5621

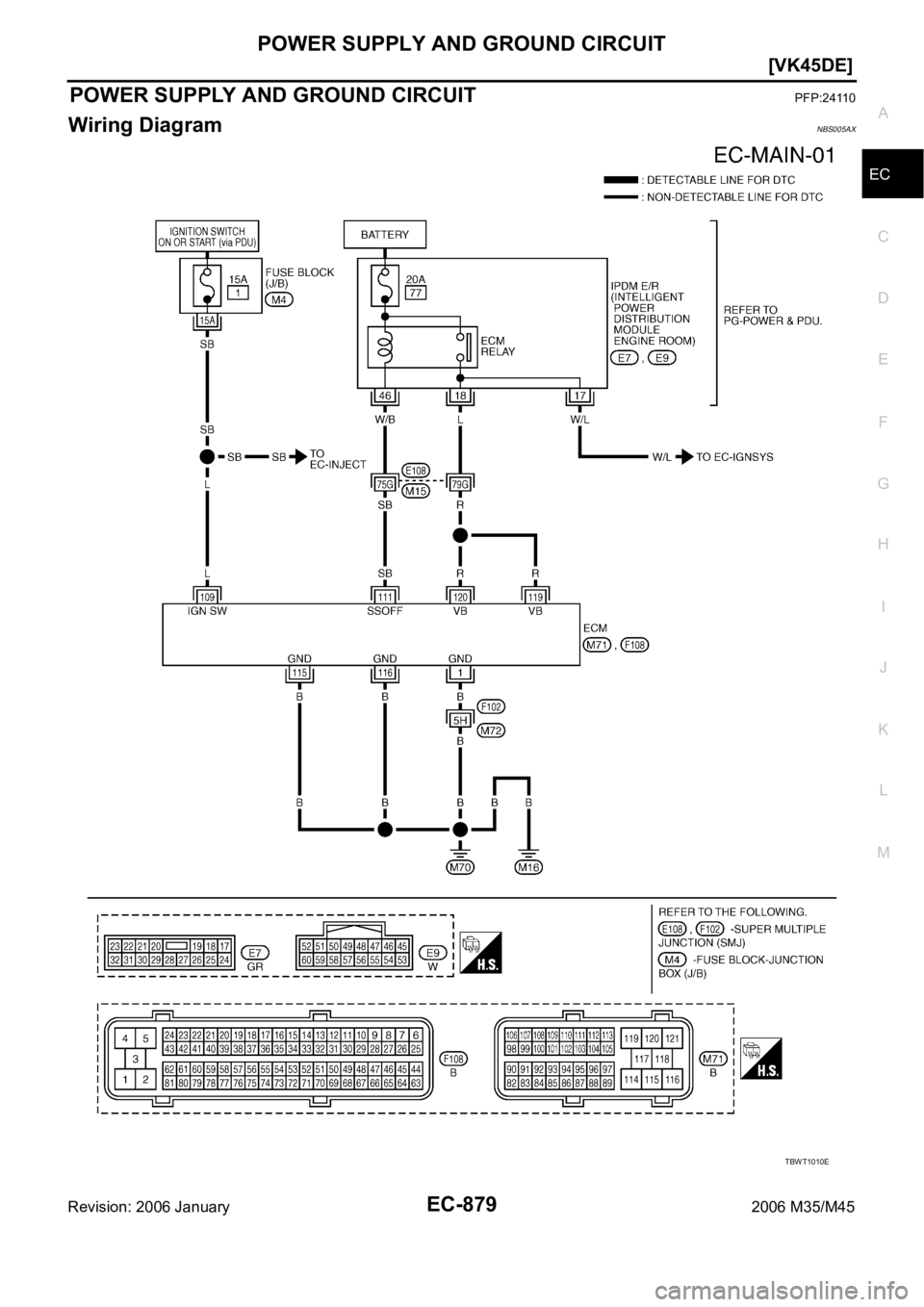

INFINITI M35 2006 Factory Service Manual POWER SUPPLY AND GROUND CIRCUIT EC-879 [VK45DE] C D E F G H I J K L MA EC Revision: 2006 January2006 M35/M45 POWER SUPPLY AND GROUND CIRCUITPFP:24110 Wiring DiagramNBS005AX TBWT1010E

Page 2423 of 5621

INFINITI M35 2006 Factory Service Manual EC-880 [VK45DE] POWER SUPPLY AND GROUND CIRCUIT Revision: 2006 January2006 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM gr

Page 2424 of 5621

INFINITI M35 2006 Factory Service Manual POWER SUPPLY AND GROUND CIRCUIT EC-881 [VK45DE] C D E F G H I J K L MA EC Revision: 2006 January2006 M35/M45 3. DETECT MALFUNCTIONING PART Check the following. Fuse block (J/B) connector M4 15A fuse H
