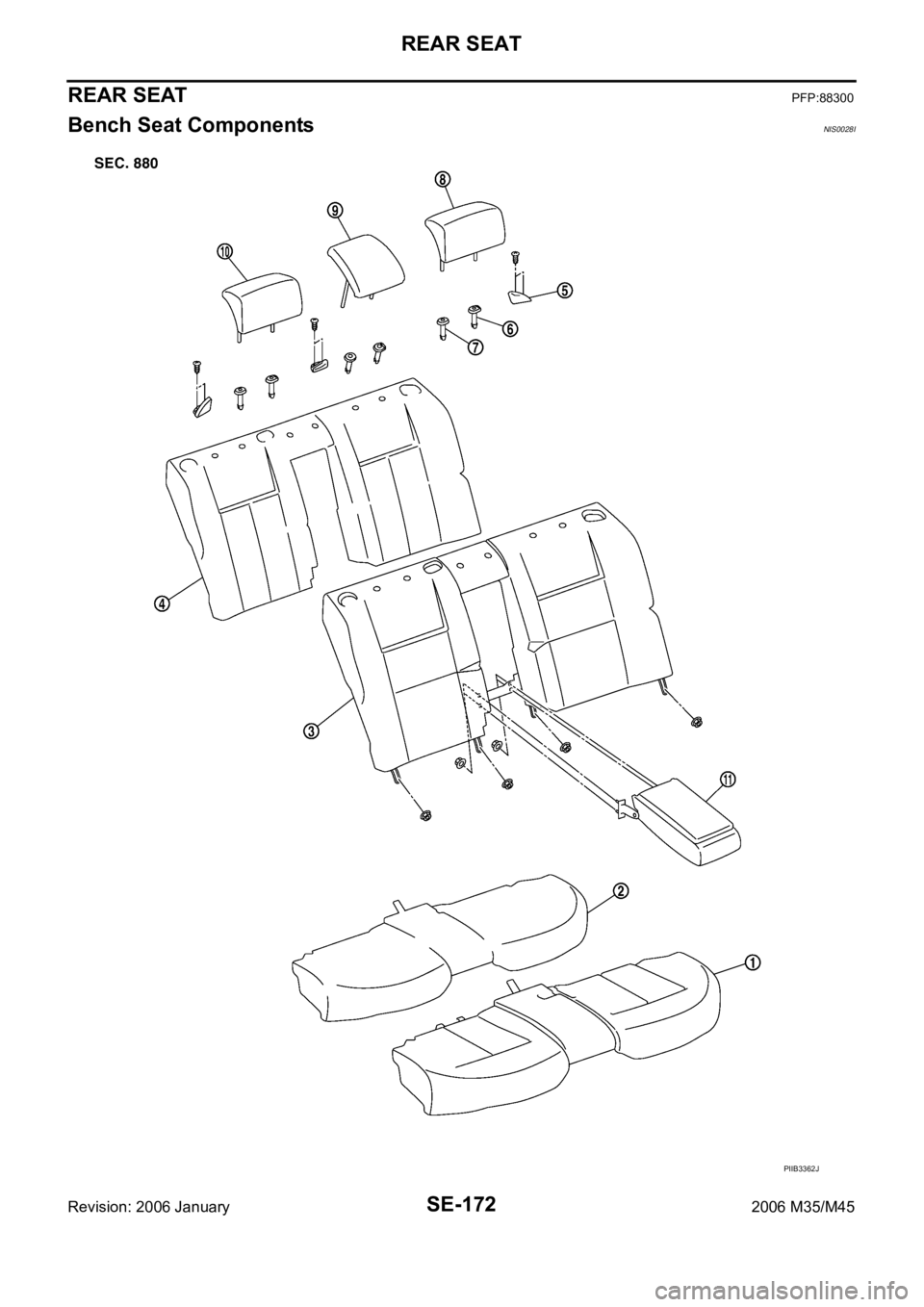

INFINITI M35 2006 Factory Service Manual SE-172 REAR SEAT Revision: 2006 January2006 M35/M45 REAR SEATPFP:88300 Bench Seat ComponentsNIS0028I PIIB3362J

Page 5354 of 5621

INFINITI M35 2006 Factory Service Manual REAR SEAT SE-173 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 1. Seat cushion trim 2. Seat cushion pad 3. Seatback pad 4. Seatback trim 5. Seat belt guide 6. Headrest holder (locked) 7

Page 5355 of 5621

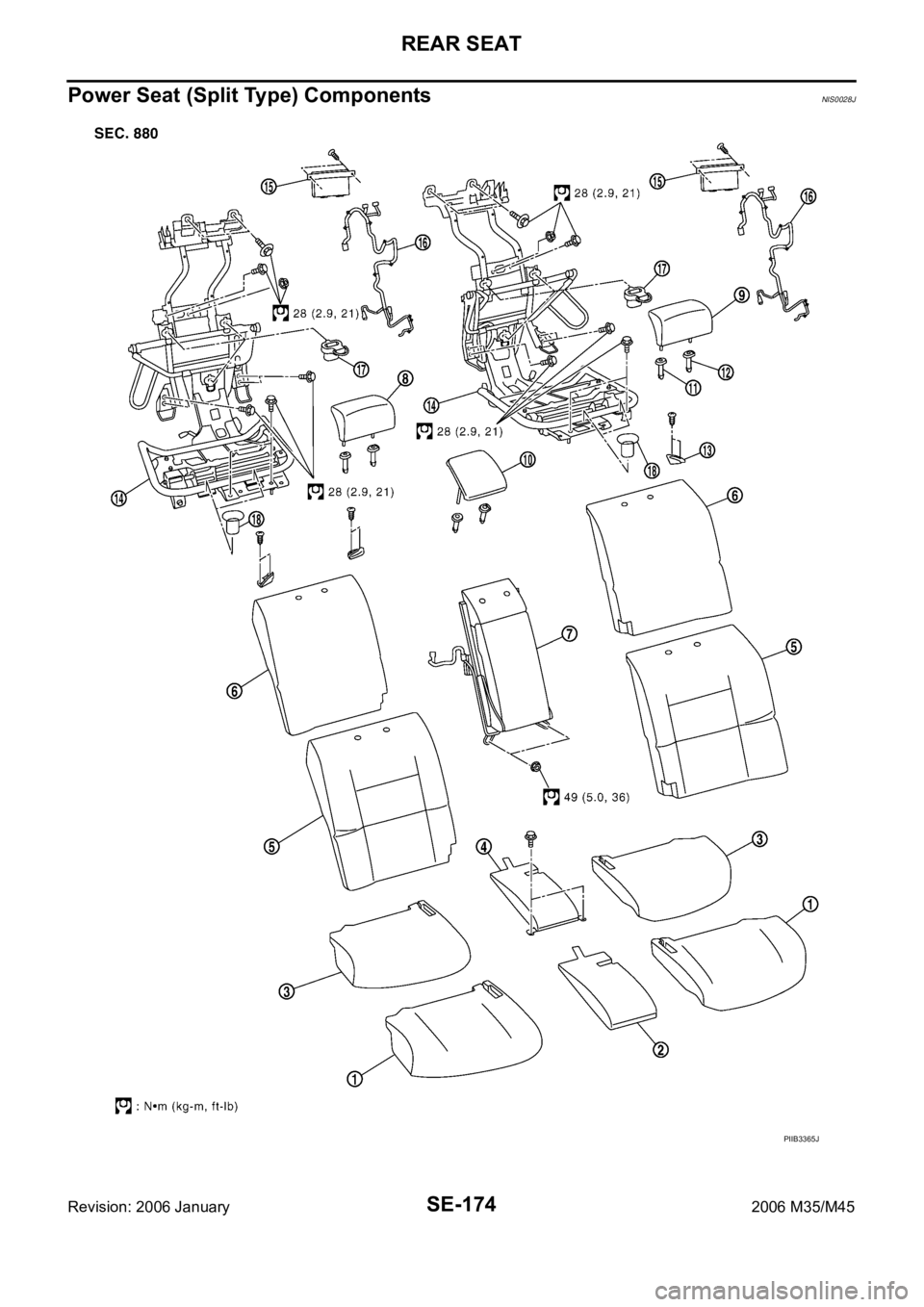

INFINITI M35 2006 Factory Service Manual SE-174 REAR SEAT Revision: 2006 January2006 M35/M45 Power Seat (Split Type) ComponentsNIS0028J PIIB3365J

Page 5356 of 5621

INFINITI M35 2006 Factory Service Manual REAR SEAT SE-175 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 1. Seat cushion side trim 2. Seat cushion center trim 3. Seat cushion side pad 4. Seat cushion center pad 5. Seatback trim

Page 5357 of 5621

INFINITI M35 2006 Factory Service Manual SE-176 REAR SEAT Revision: 2006 January2006 M35/M45 Removal and InstallationNIS0028K CAUTION: When removing and installing, use shop cloths to protect parts from damage. BENCH SEAT Removal 1. Remove s

Page 5358 of 5621

INFINITI M35 2006 Factory Service Manual REAR SEAT SE-177 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Disconnect the harness connector. Remove the headrest. Remove the seatback side from the vehicle. 4. Remove seatback cente

Page 5359 of 5621

INFINITI M35 2006 Factory Service Manual SE-178 REAR SEAT Revision: 2006 January2006 M35/M45 Install hog rings of seat cushion trim in position, and then securely connect the trim or trim code with the pad side wire. Disassembly

Page 5360 of 5621

INFINITI M35 2006 Factory Service Manual REAR SEAT SE-179 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Pull the rear seat box rearward and lift up, and then remove rear seat box from the armrest assembly. CAUTION:
