EC-1058
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2SBA/F sensor 1 heater
(bank 1)[Engine is running]
Warm-up condition
Idle speedApproximately 5V
16 W/L
A/F sensor 1 (bank 1)[Engine is running]
Warm-up condition
Idle speedApproximately 3.1V
35 GR/LApproximately 2.6V
56 LG/BApproximately 2.3V
75 YApproximately 2.3V
21
22
23
44W
R/Y
R/B
OFuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 7[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB1584E
PBIB0042E
PBIB0043E
Page 2602 of 5621
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1059
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

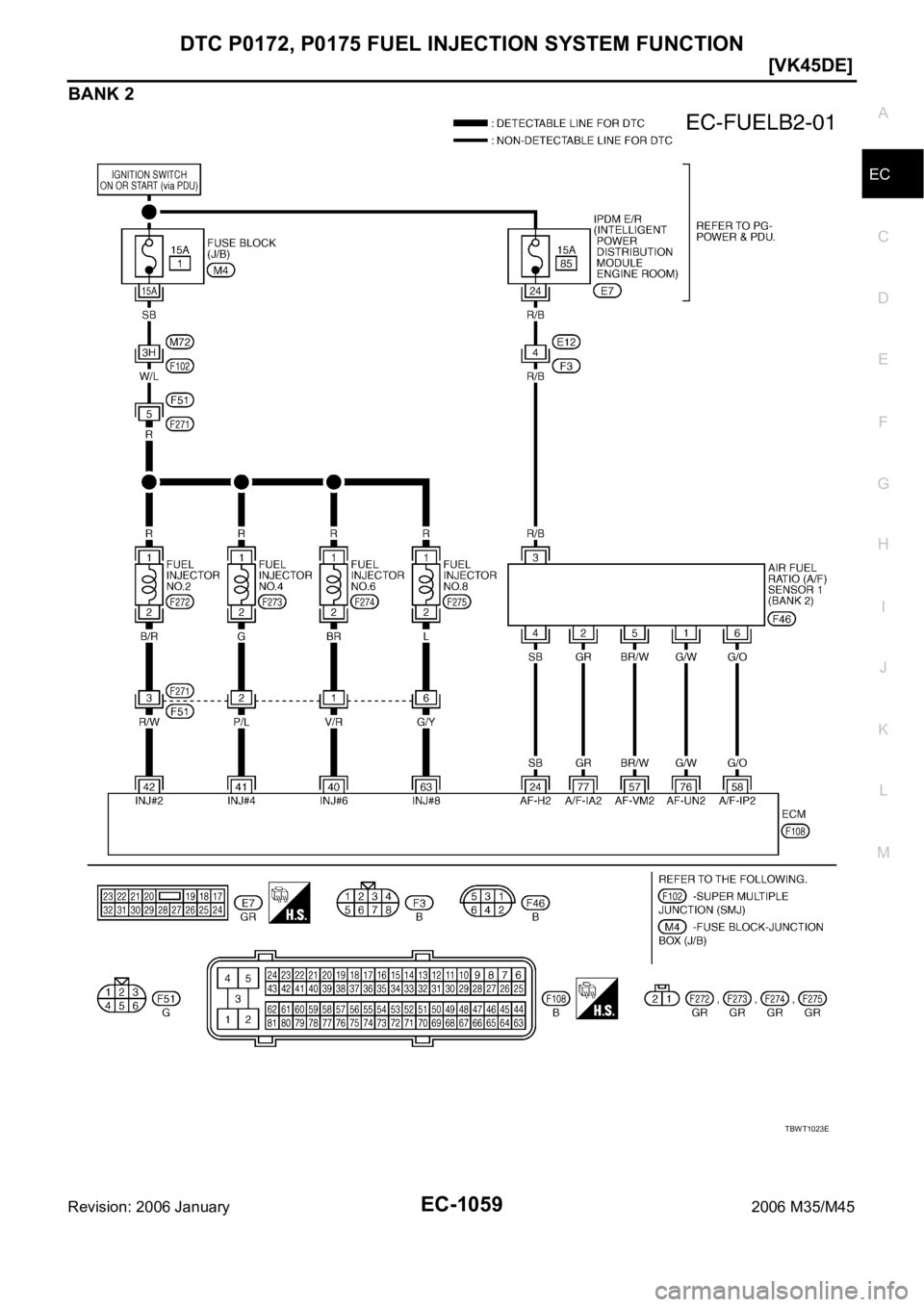

BANK 2
TBWT1023E
Page 2603 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1060
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse sig INFINITI M35 2006 Factory Service Manual EC-1060
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse sig](/manual-img/42/57023/w960_57023-2602.png)
EC-1060
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 SBA/F sensor 1 heater
(bank 2)[Engine is running]
Warm-up condition
Idle speedApproximately 5V
40
41
42
63V/R
P/L
R/W
G/YFuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 8[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
57 BR/W
A/F sensor 1 (bank 2)[Engine is running]
Warm-up condition
Idle speedApproximately 2.6V
58 G/OApproximately 2.3V
76 G/WApproximately 3.1V
77 GRApproximately 2.3V
PBIB1584E
PBIB0042E
PBIB0043E
Page 2604 of 5621
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1061
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005FG

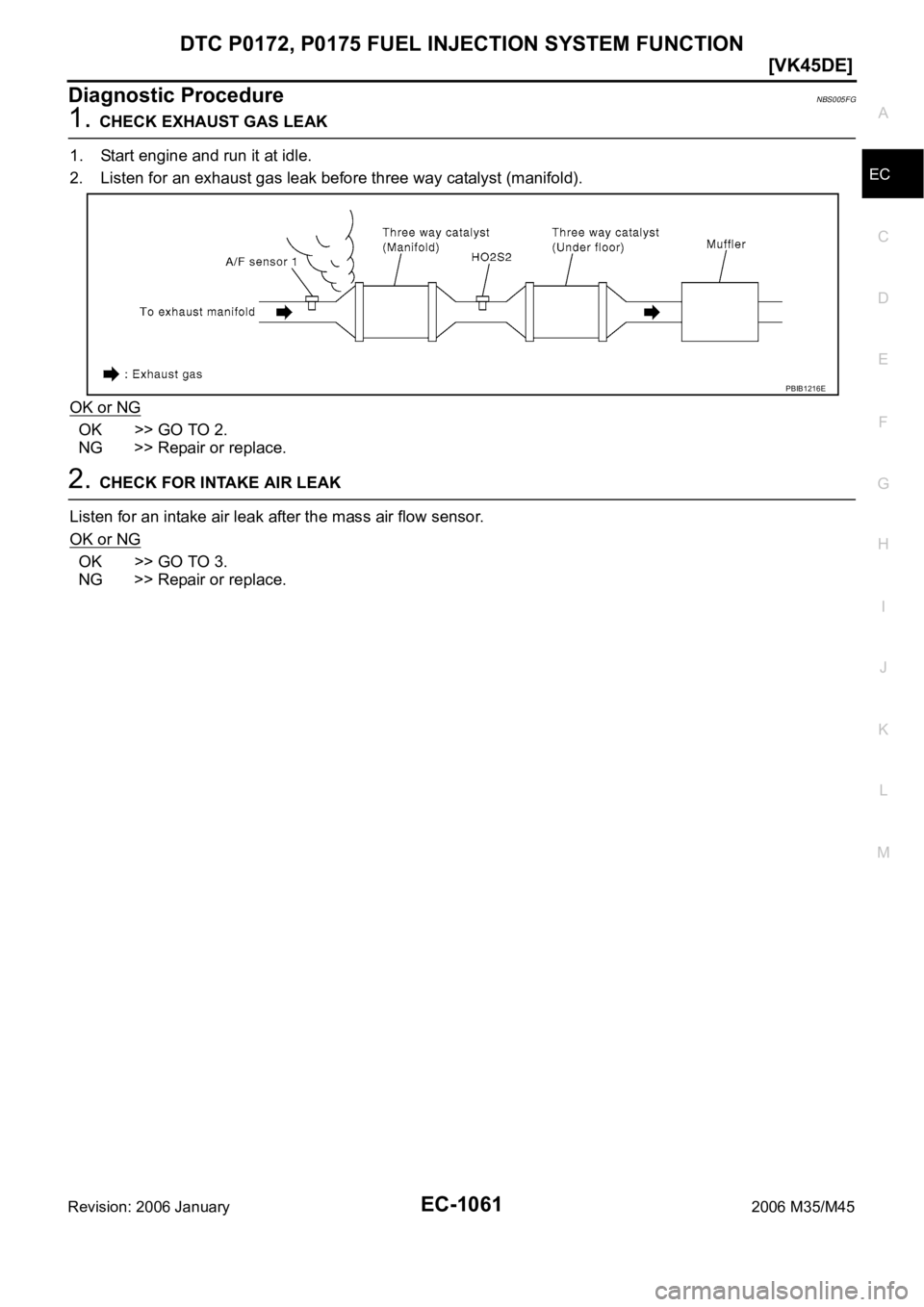

1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst (manifold).
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK FOR INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
PBIB1216E
Page 2605 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1062
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
3. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconne INFINITI M35 2006 Factory Service Manual EC-1062
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
3. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconne](/manual-img/42/57023/w960_57023-2604.png)
EC-1062
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
3. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding air fuel ratio (A/F) sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.

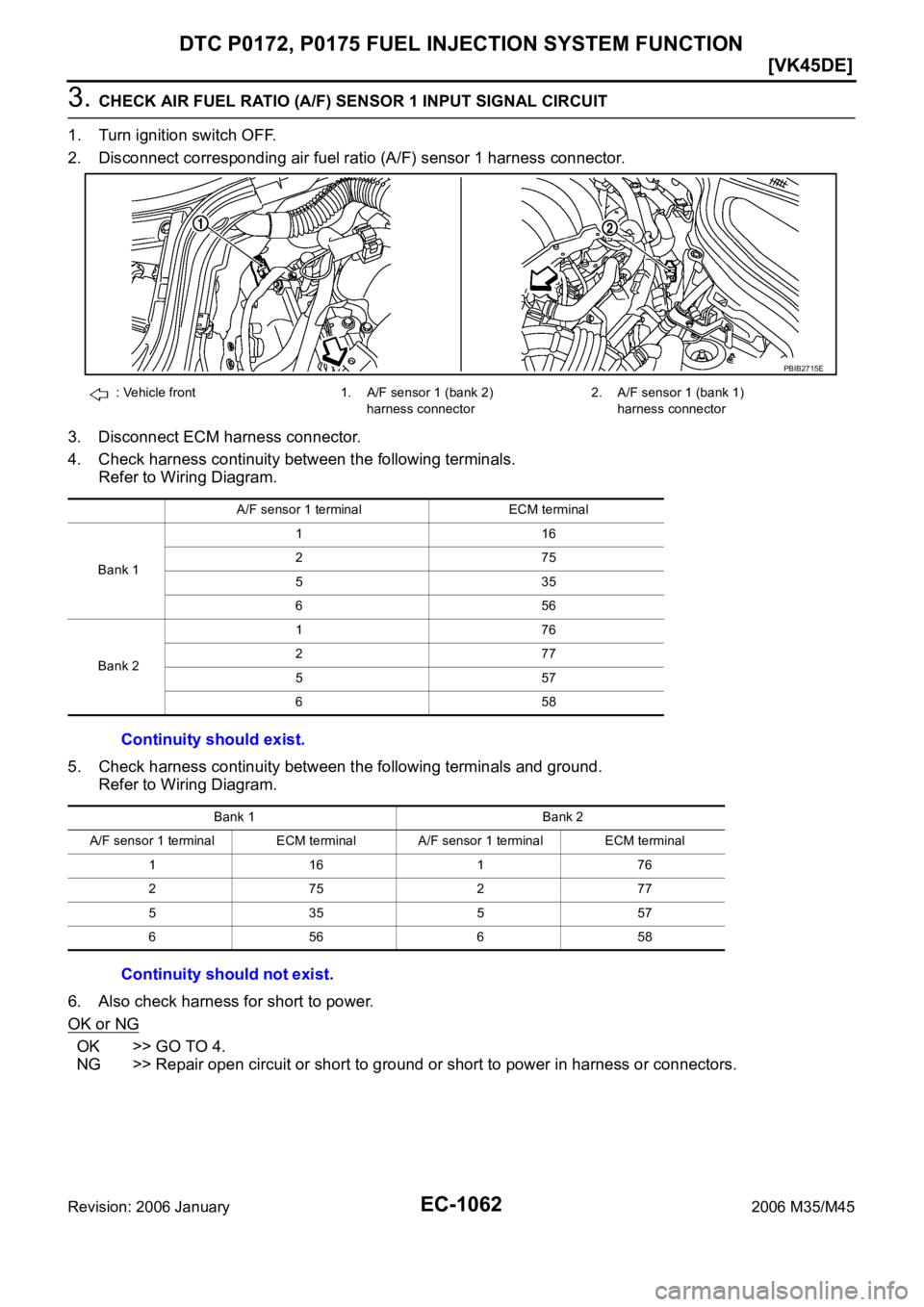

: Vehicle front 1. A/F sensor 1 (bank 2)
harness connector2. A/F sensor 1 (bank 1)
harness connector
A/F sensor 1 terminal ECM terminal
Bank 1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.
PBIB2715E
Page 2606 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1063
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

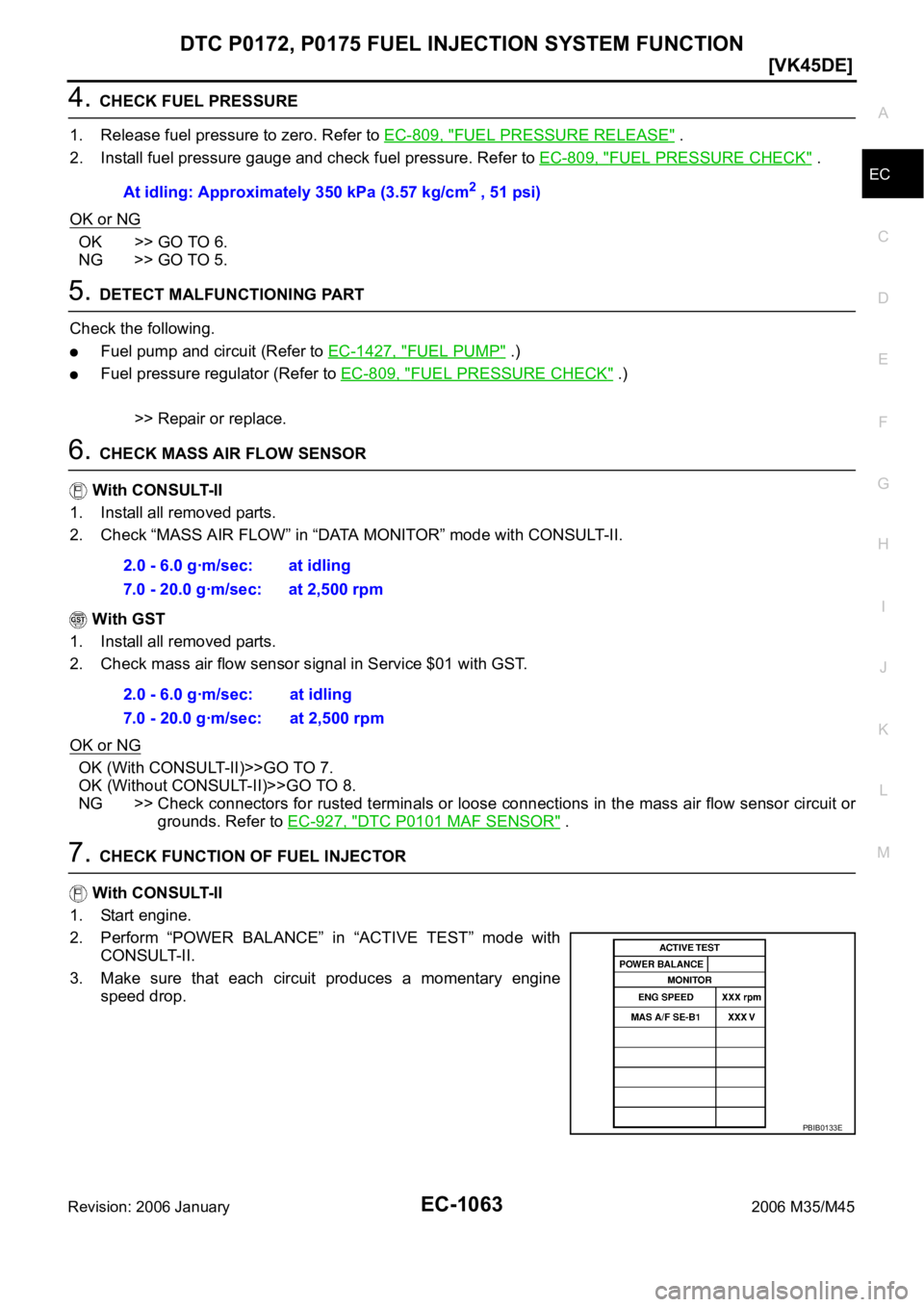

4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-809, INFINITI M35 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1063
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-809,](/manual-img/42/57023/w960_57023-2605.png)
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1063
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-809, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-809, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Fuel pump and circuit (Refer to EC-1427, "FUEL PUMP" .)
Fuel pressure regulator (Refer to EC-809, "FUEL PRESSURE CHECK" .)
>> Repair or replace.
6. CHECK MASS AIR FLOW SENSOR
With CONSULT-II
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK (With CONSULT-II)>>GO TO 7.
OK (Without CONSULT-II)>>GO TO 8.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
grounds. Refer to EC-927, "
DTC P0101 MAF SENSOR" .
7. CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.At idling: Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)
2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
PBIB0133E
Page 2607 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1064
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1420, "
FUEL INJECTOR" .
8. INFINITI M35 2006 Factory Service Manual EC-1064
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1420, "
FUEL INJECTOR" .
8.](/manual-img/42/57023/w960_57023-2606.png)
EC-1064
[VK45DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1420, "
FUEL INJECTOR" .
8. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect harness connectors F52, F251 (bank 1) and F51, F271 (bank 2).
3. Turn ignition switch ON.
4. Check voltage between the following;
harness connector F52 terminal 5 and ground,
harness connector F51 terminal 5 and ground
with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Perform trouble diagnosis for EC-1420, "
FUEL INJECTOR" .

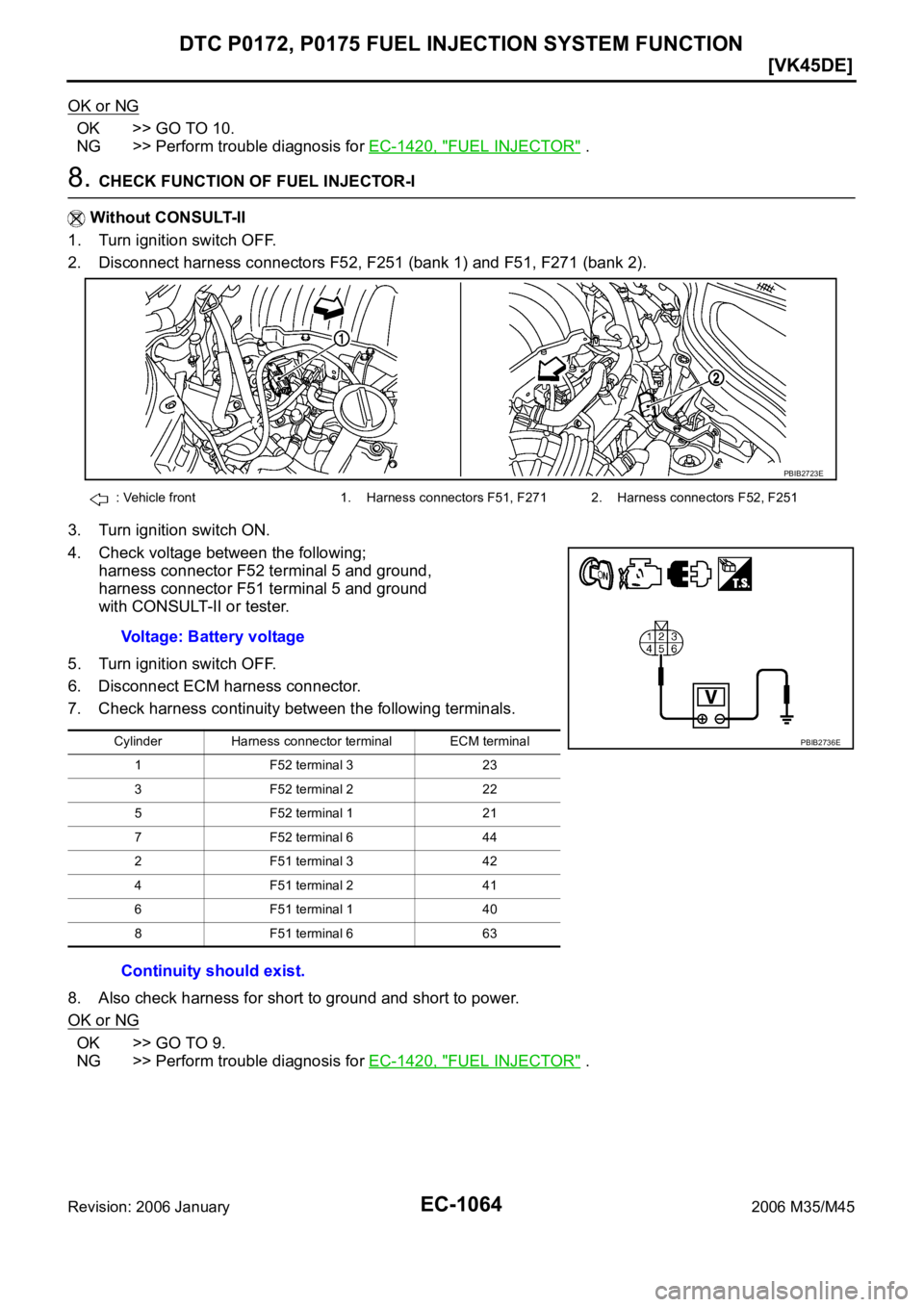

: Vehicle front 1. Harness connectors F51, F271 2. Harness connectors F52, F251
Voltage: Battery voltage
Cylinder Harness connector terminal ECM terminal
1 F52 terminal 3 23
3 F52 terminal 2 22
5 F52 terminal 1 21
7 F52 terminal 6 44
2 F51 terminal 3 42
4 F51 terminal 2 41
6 F51 terminal 1 40
8 F51 terminal 6 63
Continuity should exist.
PBIB2723E
PBIB2736E
Page 2608 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1065
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between INFINITI M35 2006 Factory Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1065
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between](/manual-img/42/57023/w960_57023-2607.png)
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-1065
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for EC-1420, "
FUEL INJECTOR" .
10. CHECK FUEL INJECTOR
1. Remove fuel tube assembly. Refer to EM-193, "
FUEL INJECTOR AND FUEL TUBE" .
Keep fuel hose and all fuel injectors connected to fuel tube.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect all fuel injector harness connectors.
4. Disconnect all ignition coil harness connectors.
5. Prepare pans or saucers under each fuel injectors.
6. Crank engine for about 3 seconds.
Make sure fuel does not drip from fuel injector.
OK or NG
OK (Does not drip.)>>GO TO 11.
NG (Drips.)>>Replace the fuel injectors from which fuel is dripping. Always replace O-ring with new one.
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Cylinder Harness connectorterminal
(+) (–)
1
F251 53
32
51
76
2
F271 53
42
61
86
Operating sound should exist.
PBIB2449E
