Page 2489 of 5621
EC-946
[VK45DE]
DTC P0112, P0113 IAT SENSOR
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005CQ
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-885, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between mass air flow sensor terminal 5 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
1. Body ground M70 2. Body ground M16
PBIB2782E
PBIB2682E
Voltage: Approximately 5V
PBIB1169E
Page 2490 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0112, P0113 IAT SENSOR
EC-947
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switc INFINITI M35 2006 Factory Service Manual DTC P0112, P0113 IAT SENSOR
EC-947
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switc](/manual-img/42/57023/w960_57023-2489.png)
DTC P0112, P0113 IAT SENSOR
EC-947
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between mass air flow sensor terminal 6 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-947, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
5. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005CR
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor (1) terminals 5
and 6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationNBS005CS
MASS AIR FLOW SENSOR
Refer to EM-177, "AIR CLEANER AND AIR DUCT" . Continuity should exist.
Intake air temperature C (F) Resistance k
25 (77) 1.800 - 2.200
PBIA9559J
SEF012P
Page 2491 of 5621
![INFINITI M35 2006 Factory Service Manual EC-948
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionNBS005CT
The engine coolant temperature sensor is used to detec INFINITI M35 2006 Factory Service Manual EC-948
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionNBS005CT
The engine coolant temperature sensor is used to detec](/manual-img/42/57023/w960_57023-2490.png)
EC-948
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionNBS005CT
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.
*: This data is reference value and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS005CU
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
SEF594K
Engine coolant temperature
C (F)Voltage* V Resistance k
–10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P0117
0117Engine coolant tem-
perature sensor cir-
cuit low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Engine coolant temperature sensor
P0118
0118Engine coolant tem-
perature sensor cir-
cuit high inputAn excessively high voltage from the sensor is
sent to ECM.
Detected items Engine operating condition in fail-safe mode
Engine coolant temper-
ature sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning ignition switch ON
or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or START 40
C (104F)
More than approx. 4 minutes after ignition ON or START 80
C (176F)
Except as shown above40 - 80
C (104 - 176F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates
while engine is running.
Page 2492 of 5621
DTC P0117, P0118 ECT SENSOR
EC-949
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005CV
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-951, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2493 of 5621
EC-950
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS005CW
TBWT1018E
Page 2494 of 5621
DTC P0117, P0118 ECT SENSOR
EC-951
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005CX
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-885, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect engine coolant temperature (ECT) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between ECT sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
1. Body ground M70 2. Body ground M16
PBIB2782E
: Vehicle front 1. Engine coolant temperature sensor
sub-harness connector2. Engine coolant temperature sensor
Voltage: Approximately 5V
PBIB2684E
PBIB0080E
Page 2495 of 5621
![INFINITI M35 2006 Factory Service Manual EC-952
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
3. DETECT MALFUNCTIONING RART
Check the following.
Harness connector F291, F50
Harness for open or short between ECM and INFINITI M35 2006 Factory Service Manual EC-952
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
3. DETECT MALFUNCTIONING RART
Check the following.
Harness connector F291, F50
Harness for open or short between ECM and](/manual-img/42/57023/w960_57023-2494.png)
EC-952
[VK45DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 January2006 M35/M45
3. DETECT MALFUNCTIONING RART
Check the following.
Harness connector F291, F50
Harness for open or short between ECM and engine coolant temperature sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECT sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connector F291, F50
Harness for open and short between ECT sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-953, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace engine coolant temperature sensor.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 2496 of 5621
DTC P0117, P0118 ECT SENSOR
EC-953
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

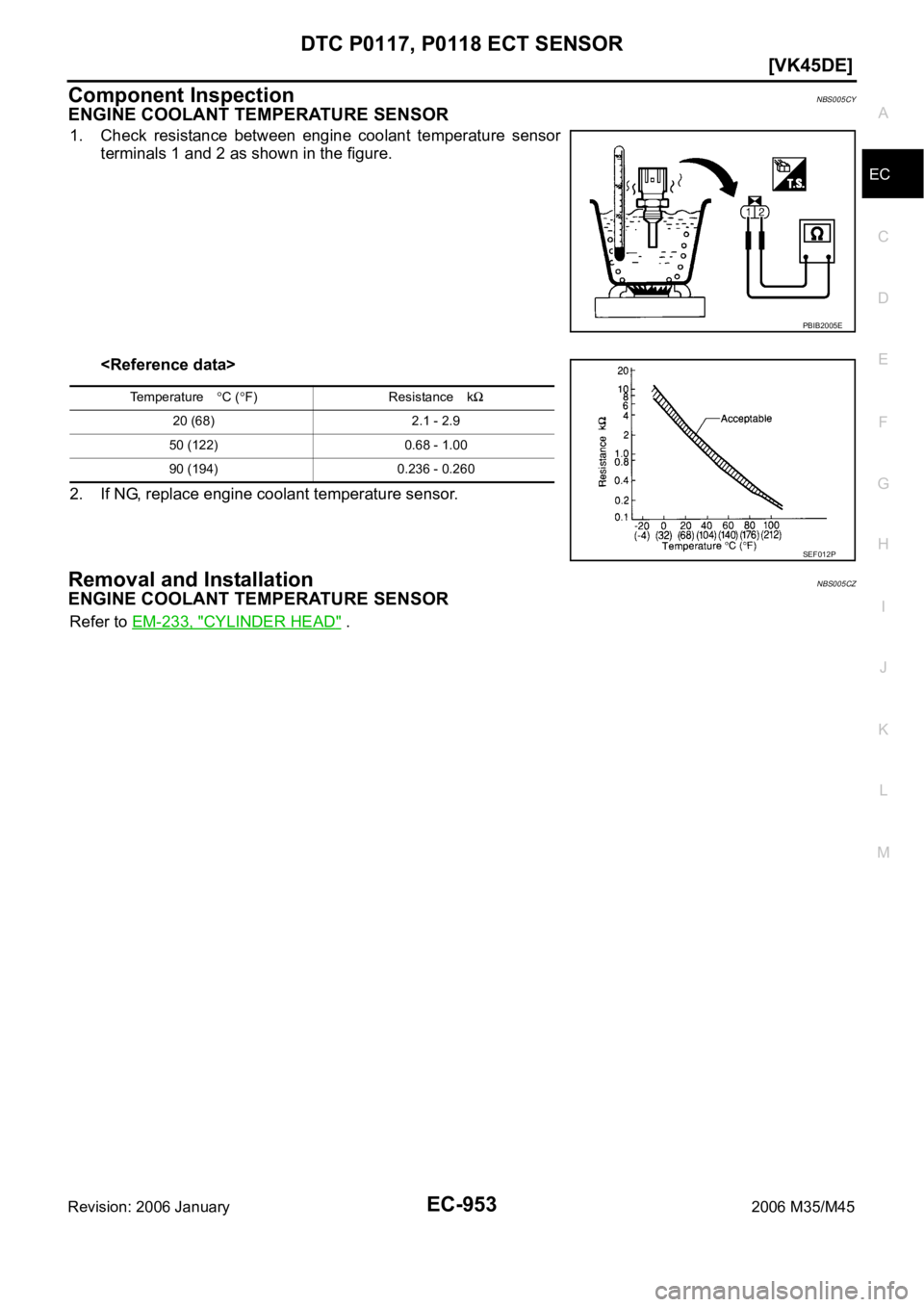

Component InspectionNBS005CY
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationNBS005CZ
ENGINE COOLANT TEMPERATURE SENSOR
Refer to EM-233, "CYLINDER HEAD" .
PBIB2005E
TemperatureC (F) Resistance k
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
