Page 3721 of 5621

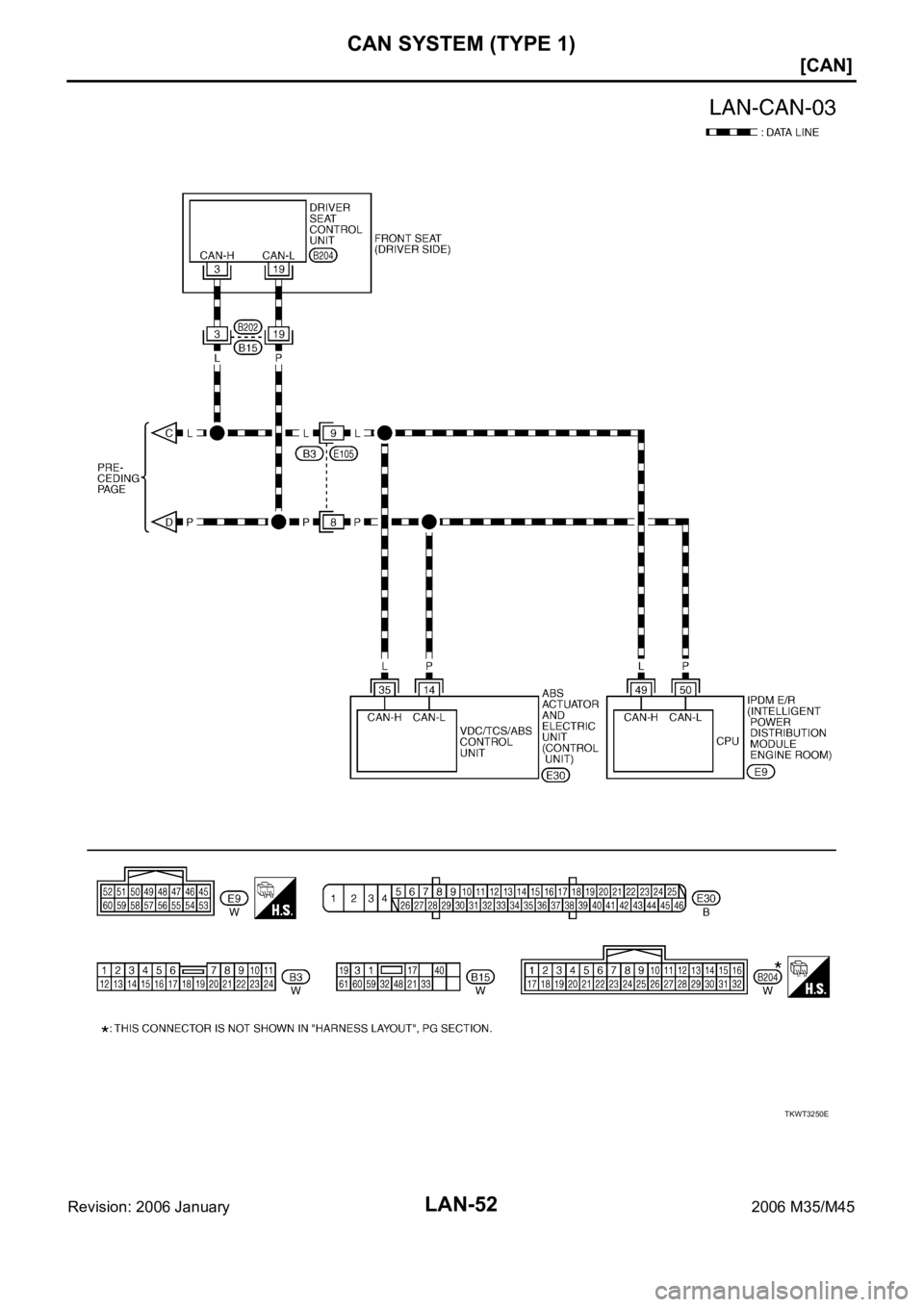

INFINITI M35 2006 Factory Service Manual LAN-52 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 January2006 M35/M45 TKWT3250E

Page 3722 of 5621

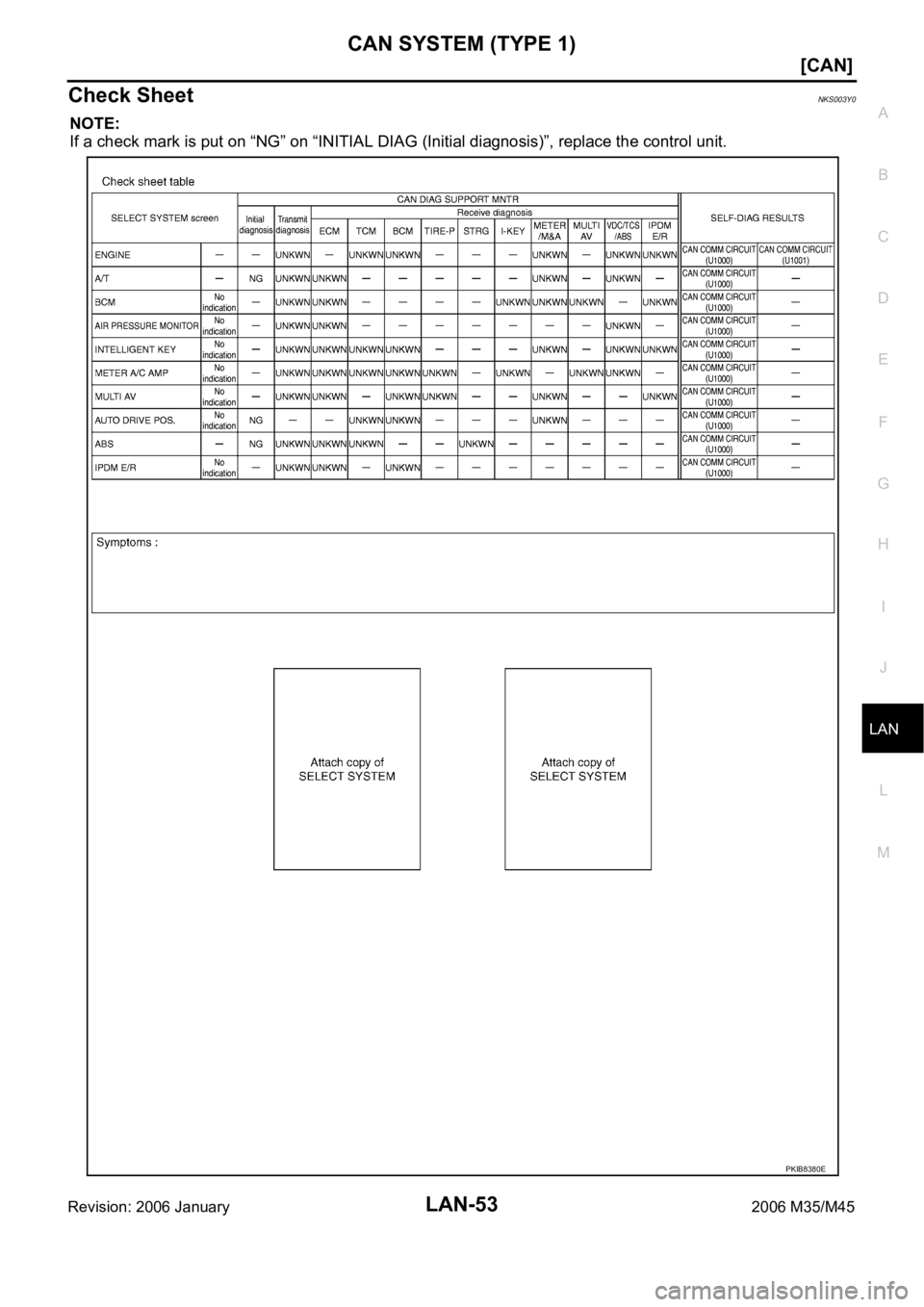

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-53 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Check SheetNKS003Y0 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, r

Page 3723 of 5621

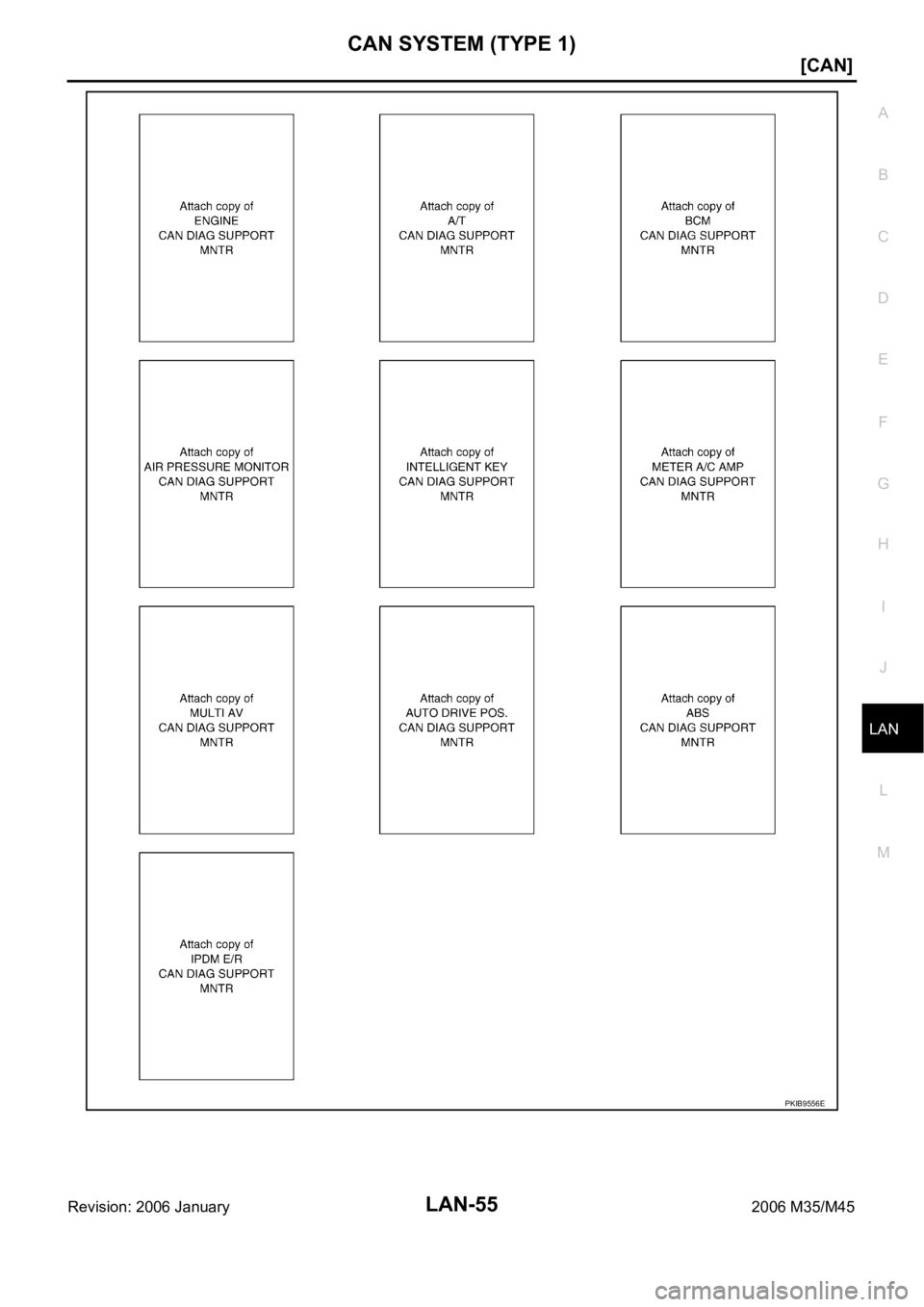

INFINITI M35 2006 Factory Service Manual LAN-54 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 January2006 M35/M45 PKIB9555E

Page 3724 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-55 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9556E

Page 3725 of 5621

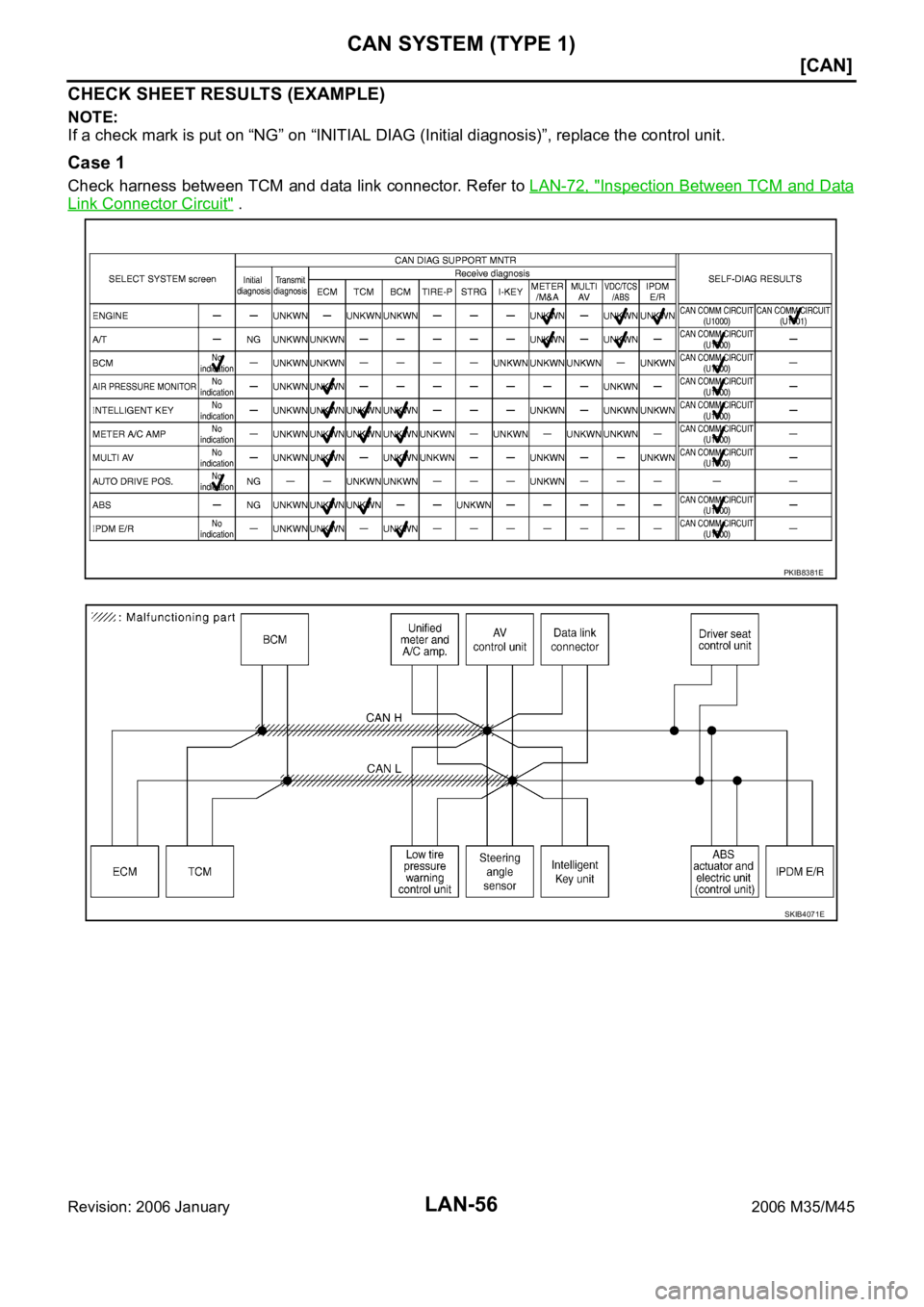

INFINITI M35 2006 Factory Service Manual LAN-56 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the contro

Page 3726 of 5621

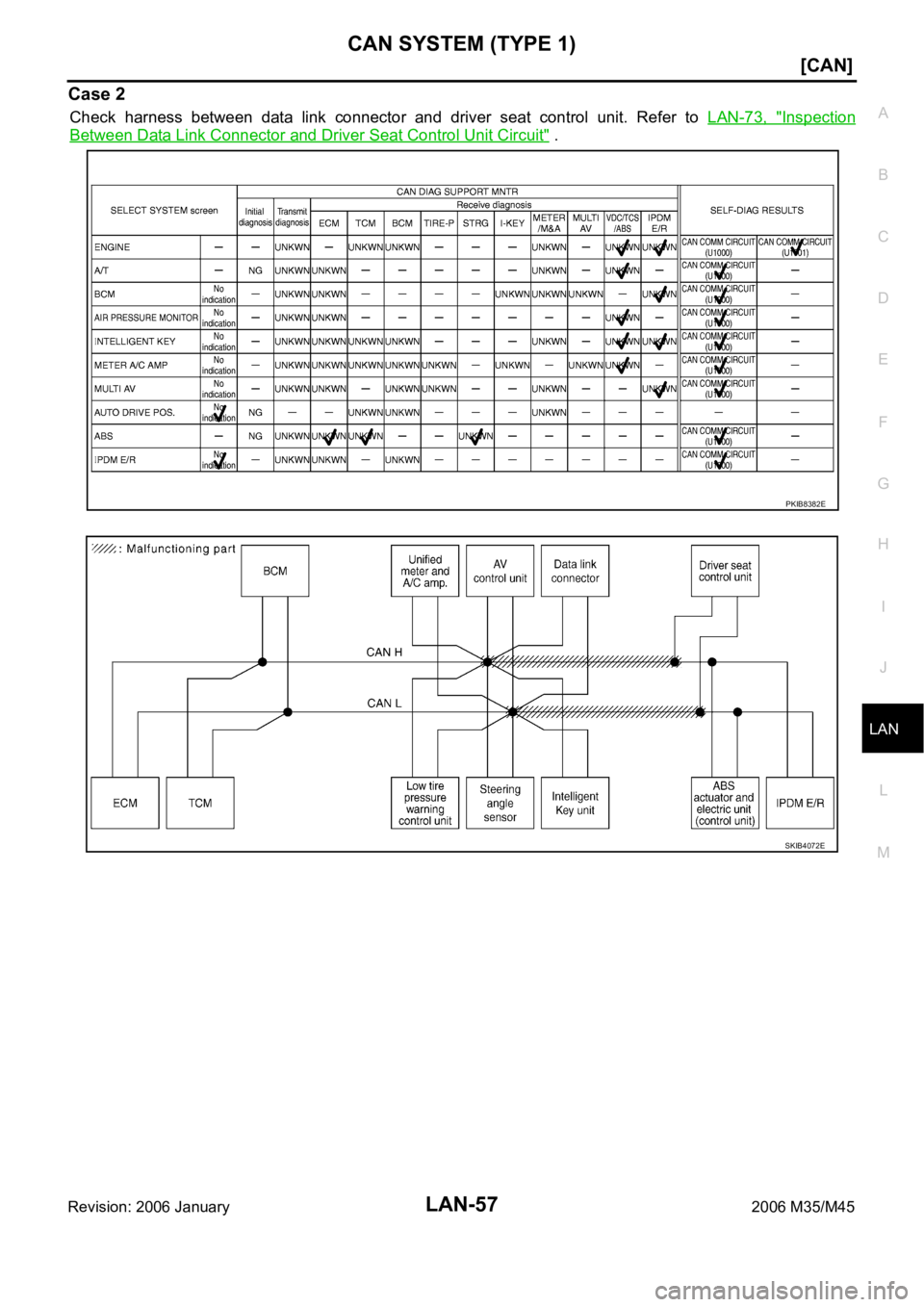

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-57 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and driver seat control unit. Refer to LAN-73,

Page 3727 of 5621

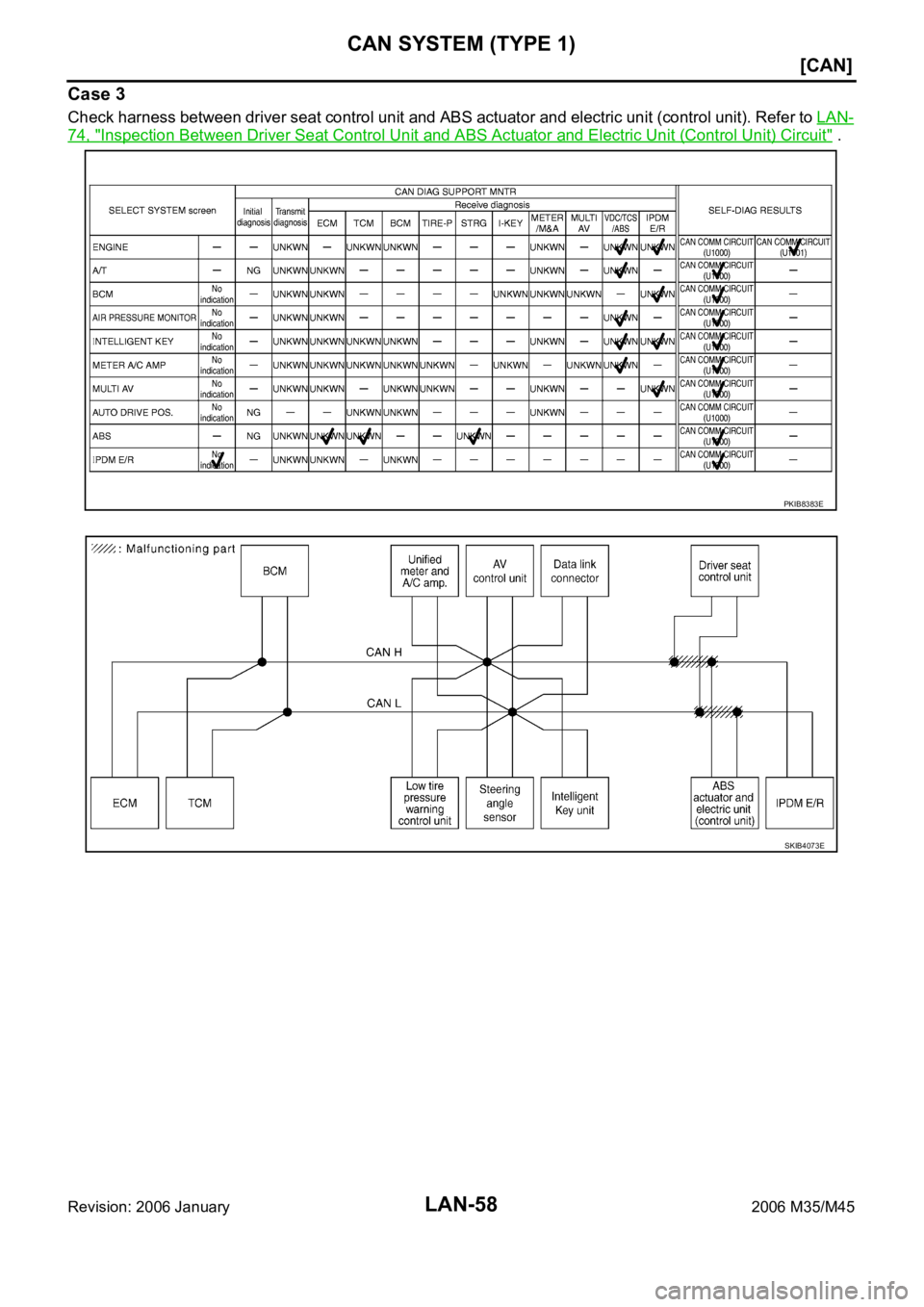

INFINITI M35 2006 Factory Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 January2006 M35/M45 Case 3 Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN- 74, "Insp

Page 3728 of 5621

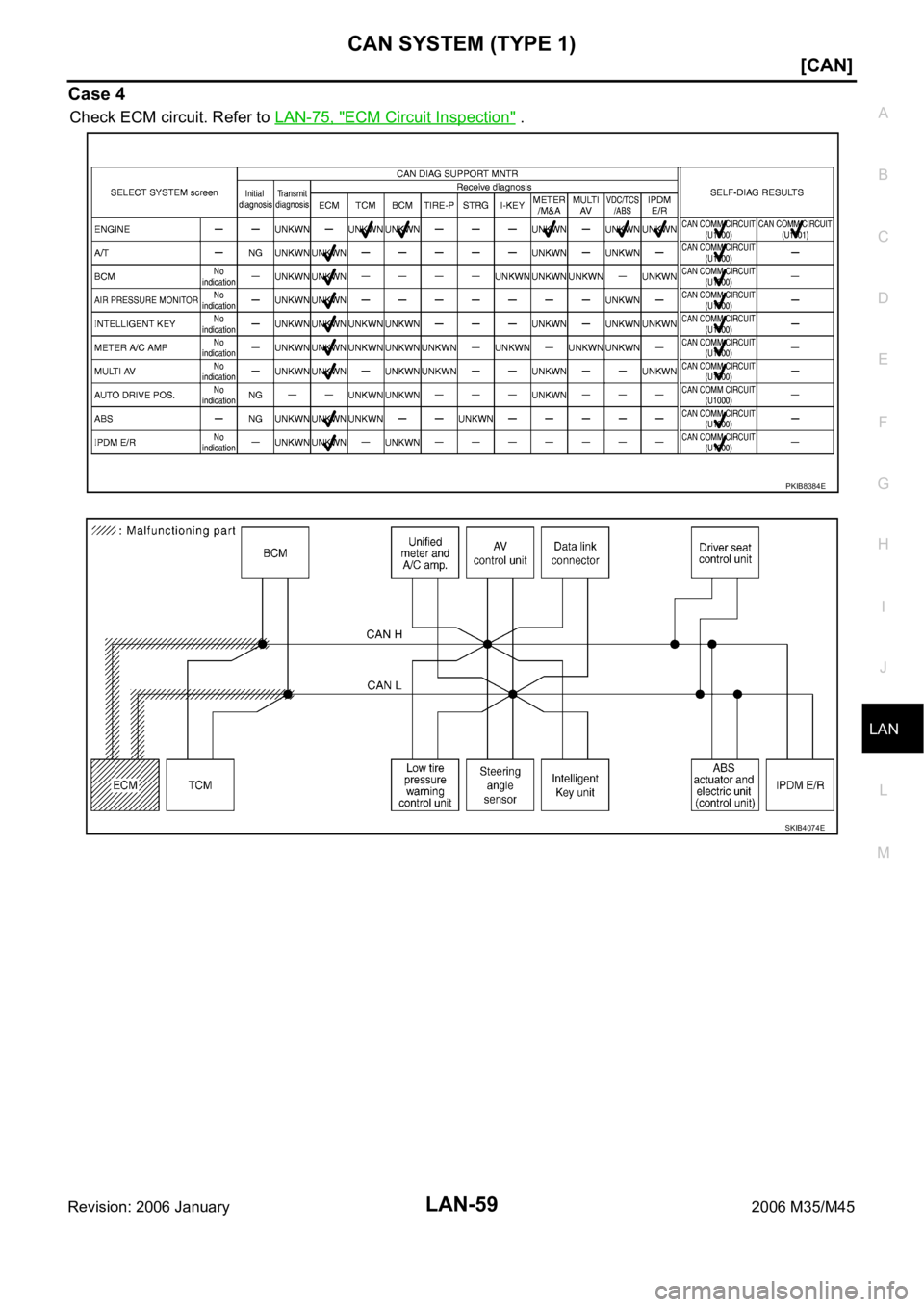

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1) LAN-59 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check ECM circuit. Refer to LAN-75, "ECM Circuit Inspection" . PKIB8384E SKIB4074E
