Page 4209 of 5621

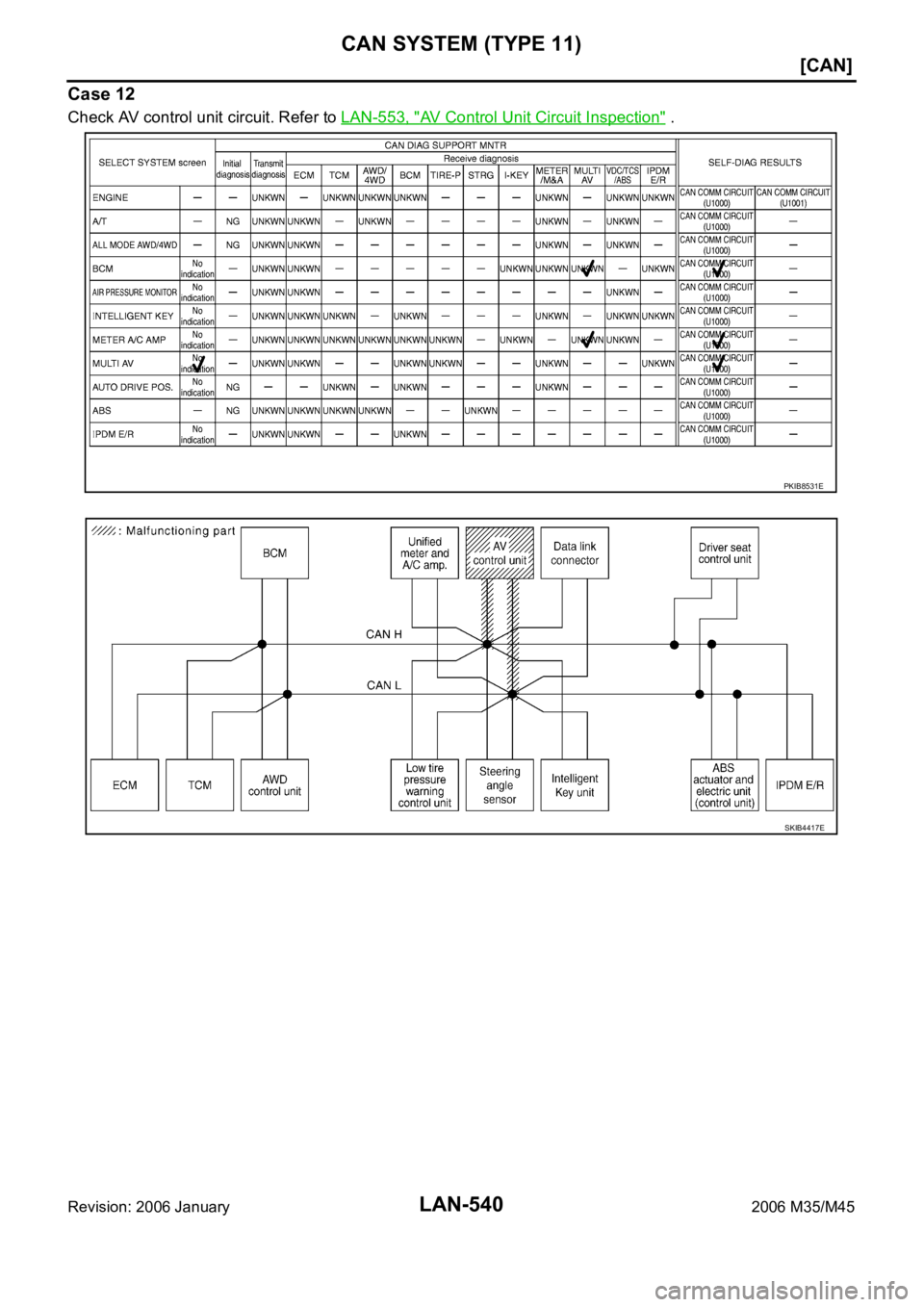

INFINITI M35 2006 Factory Service Manual LAN-540 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Case 12 Check AV control unit circuit. Refer to LAN-553, "AV Control Unit Circuit Inspection" . PKIB8531E SKIB4417E

Page 4210 of 5621

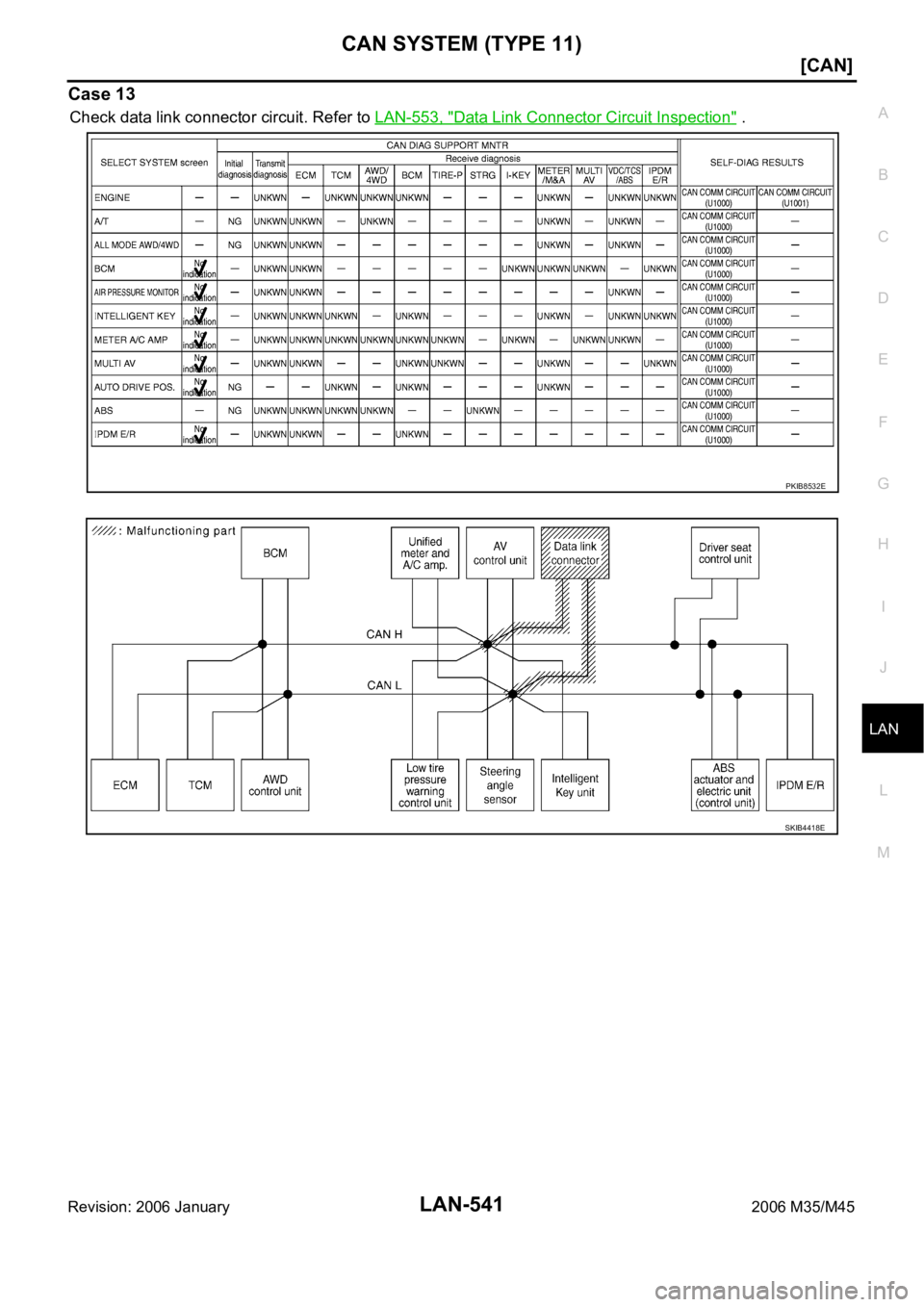

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-541 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 13 Check data link connector circuit. Refer to LAN-553, "Data Link Connector Circuit Inspectio

Page 4211 of 5621

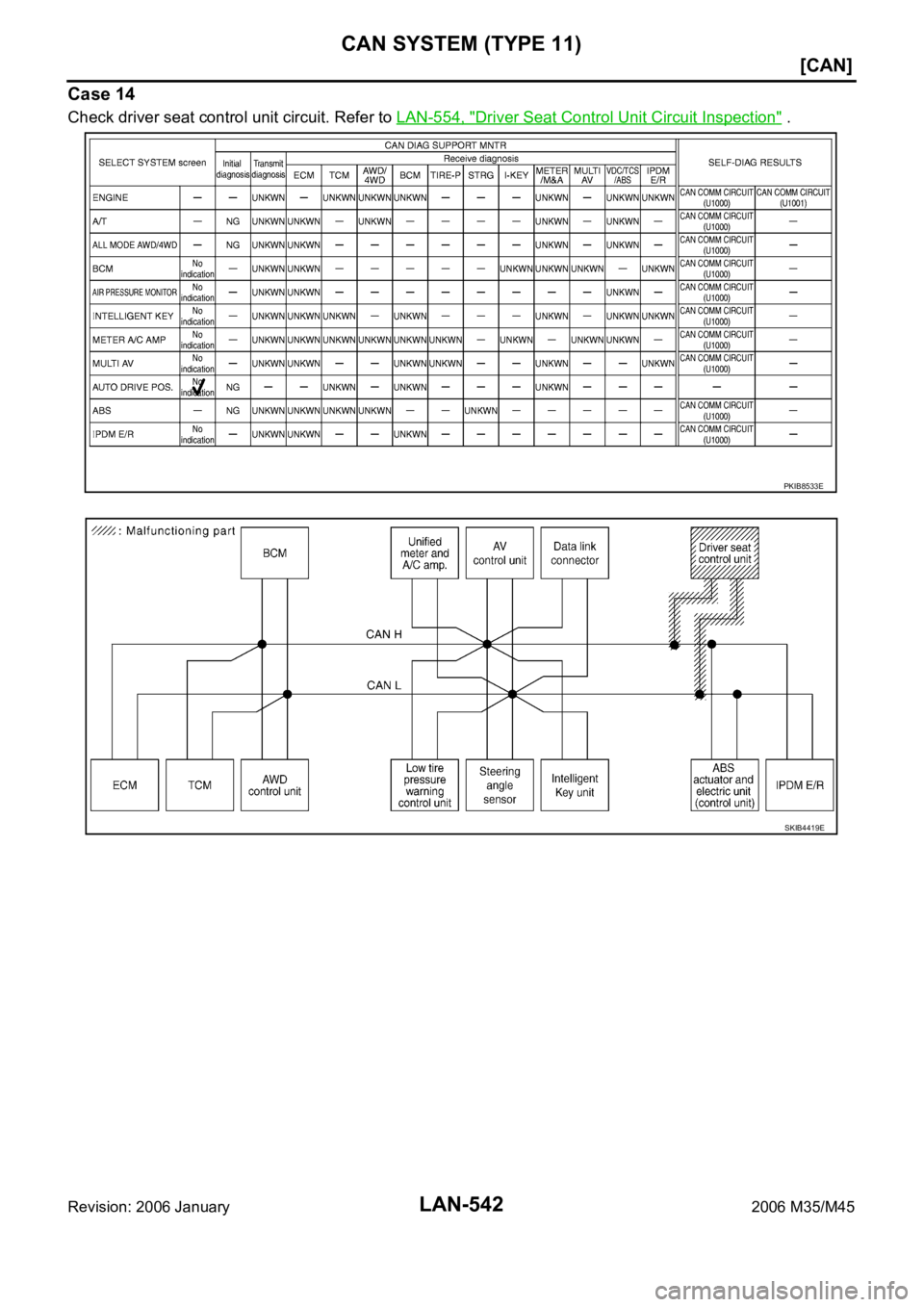

INFINITI M35 2006 Factory Service Manual LAN-542 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Case 14 Check driver seat control unit circuit. Refer to LAN-554, "Driver Seat Control Unit Circuit Inspection" . PKIB8533

Page 4212 of 5621

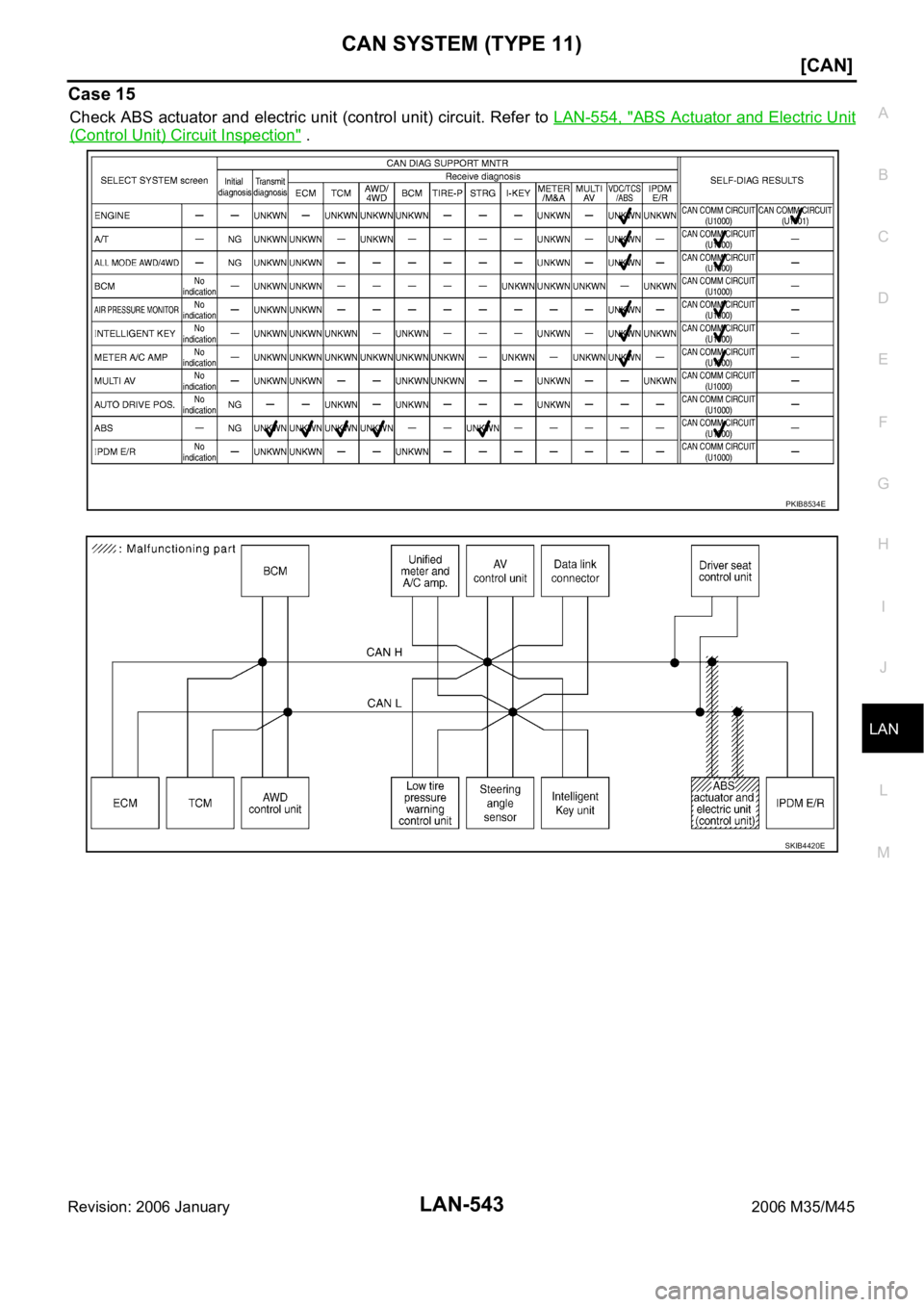

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-543 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 15 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-554, "ABS Actuato

Page 4213 of 5621

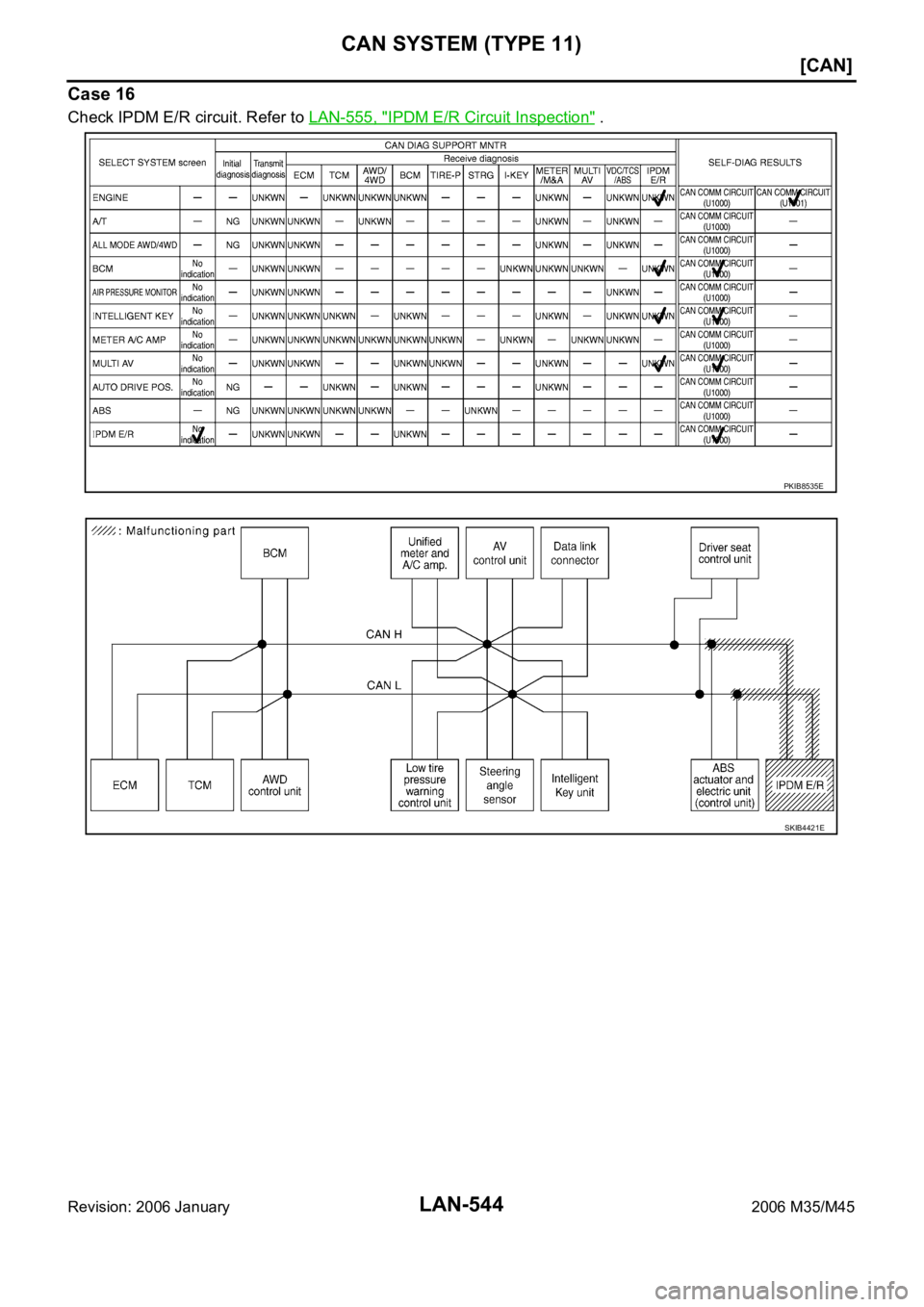

INFINITI M35 2006 Factory Service Manual LAN-544 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Case 16 Check IPDM E/R circuit. Refer to LAN-555, "IPDM E/R Circuit Inspection" . PKIB8535E SKIB4421E

Page 4214 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-545 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 17 Check CAN communication circuit. Refer to LAN-556, "CAN Communication Circuit Inspection

Page 4215 of 5621

INFINITI M35 2006 Factory Service Manual LAN-546 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Case 19 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-563, "IPDM E/R Ignition

Page 4216 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-547 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector (A) and data link c
