FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
Operation Mode
Combination switch reading function has operation modes shown below.
1. Normal status
–When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.
2. Sleep status
–When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low current
consumption mode. OUTPUT 2, 3, and 4 turn ON-OFF every 60 ms, and only input from lighting switch
system is accepted.

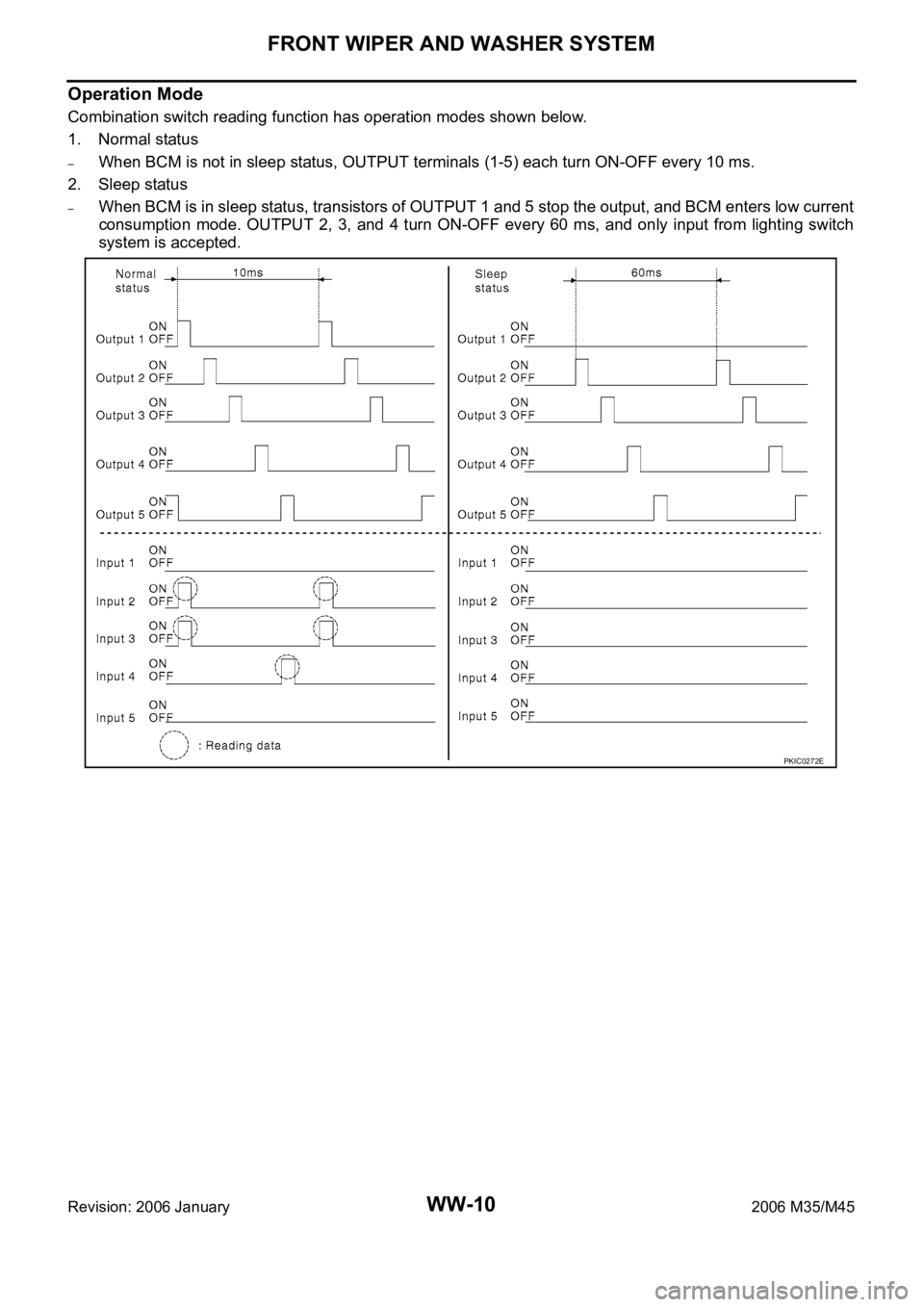

PKIC0272E
Page 5578 of 5621

FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
Wiper Dial Position Setting
Front wiper intermittent operation delay interval is determined from a combination of 3 switches (intermittent
operation dial position 1, 2, and 3) and vehicle speed signal.
After each intermittent operation delay interval, BCM sends front wiper request signal to IPDM E/R.
Example: For wiper dial position 1
Using combination switch reading function, BCM detects ON/OFF status of intermittent operation dial posi-
tions 1, 2, and 3.
When combination switch status is as listed below, BCM determines that it is wiper dial position 1.
Intermittent operation dial position 1: ON (Continuity exists between combination switch output 3 and input
1.)
Intermittent operation dial position 2: ON (Continuity exists between combination switch output 5 and input
1.)
Intermittent operation dial position 3: ON (Continuity exists between combination switch output 4 and input
2.)
BCM determines front wiper intermittent operation delay interval from wiper dial position and vehicle speed,
and sends wiper request signal (INT) to IPDM E/R.
CAN Communication System DescriptionNKS003WD
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-board multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003WE
Refer to LAN-34, "CAN Communication Unit" .
Wiper dial positionIntermittent operation
intervalCombination switch
Intermittent operation
dial position 1Intermittent operation
dial position 2Intermittent operation
dial position 3
1Short
LongON ON ON
2ONONOFF
3ONOFFOFF
4 OFF OFF OFF
5OFFOFFON
6 OFF ON ON
7 OFF ON OFF
Page 5579 of 5621
WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45

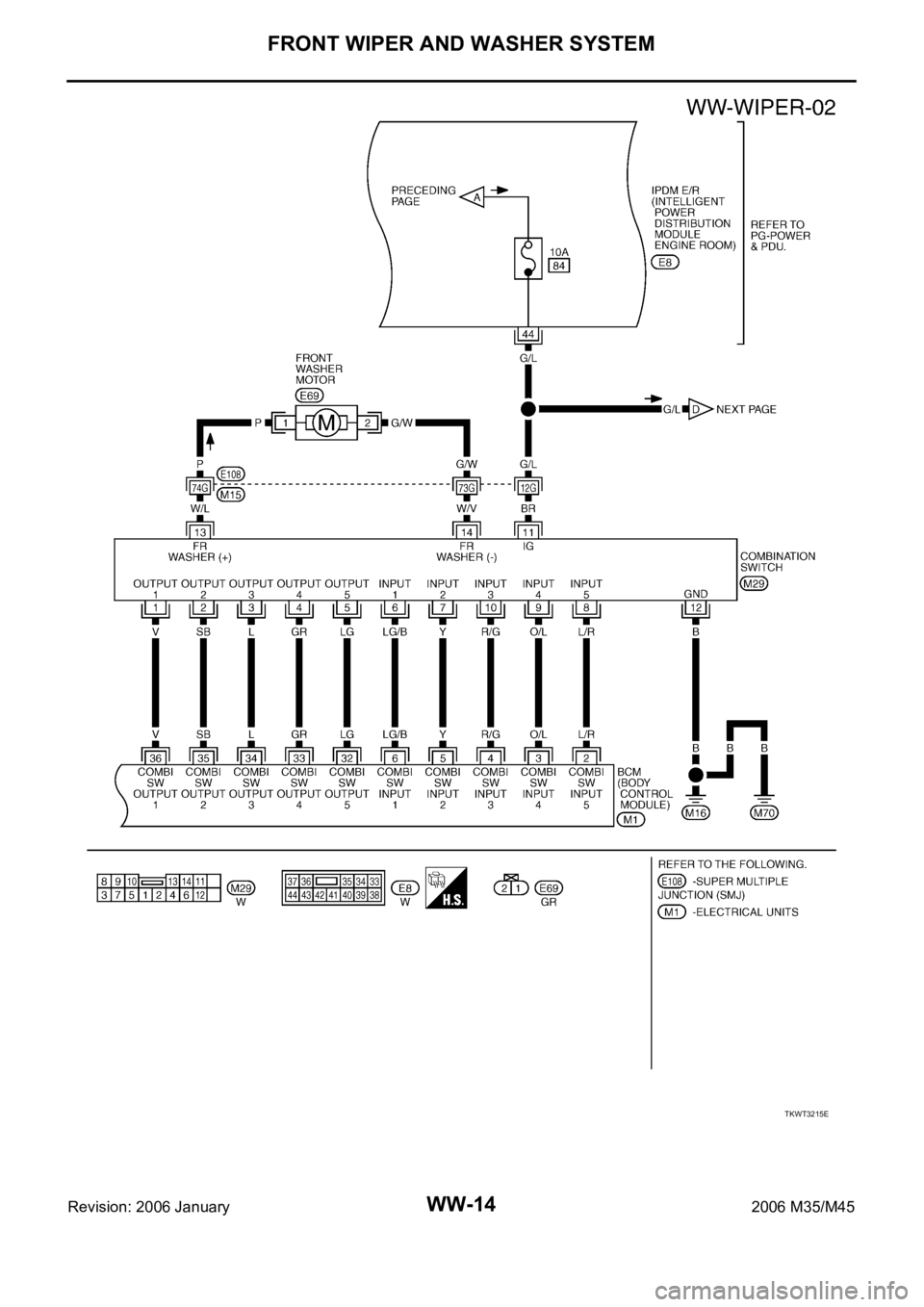

SchematicNKS003WF

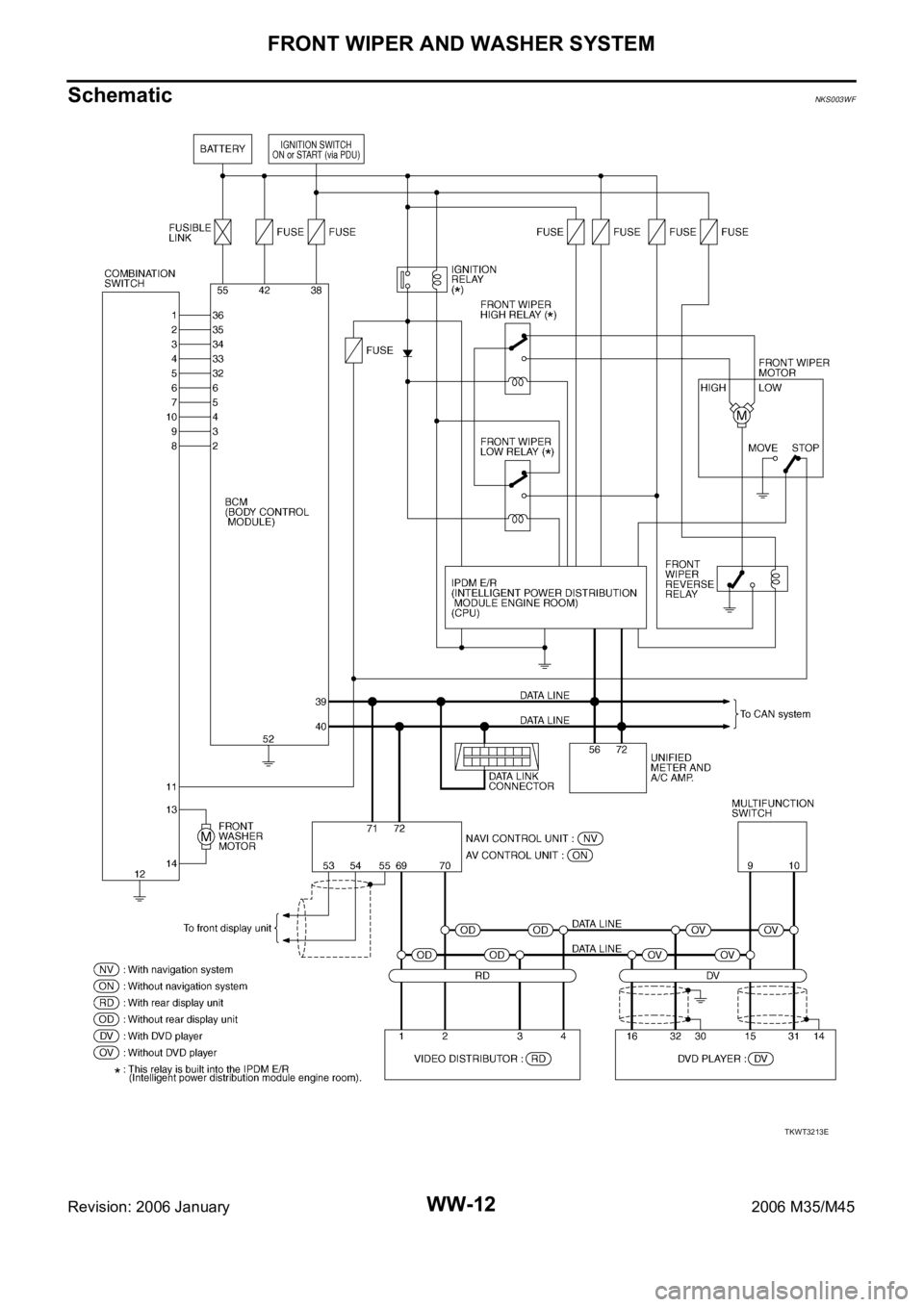

TKWT3213E
Page 5580 of 5621
FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45

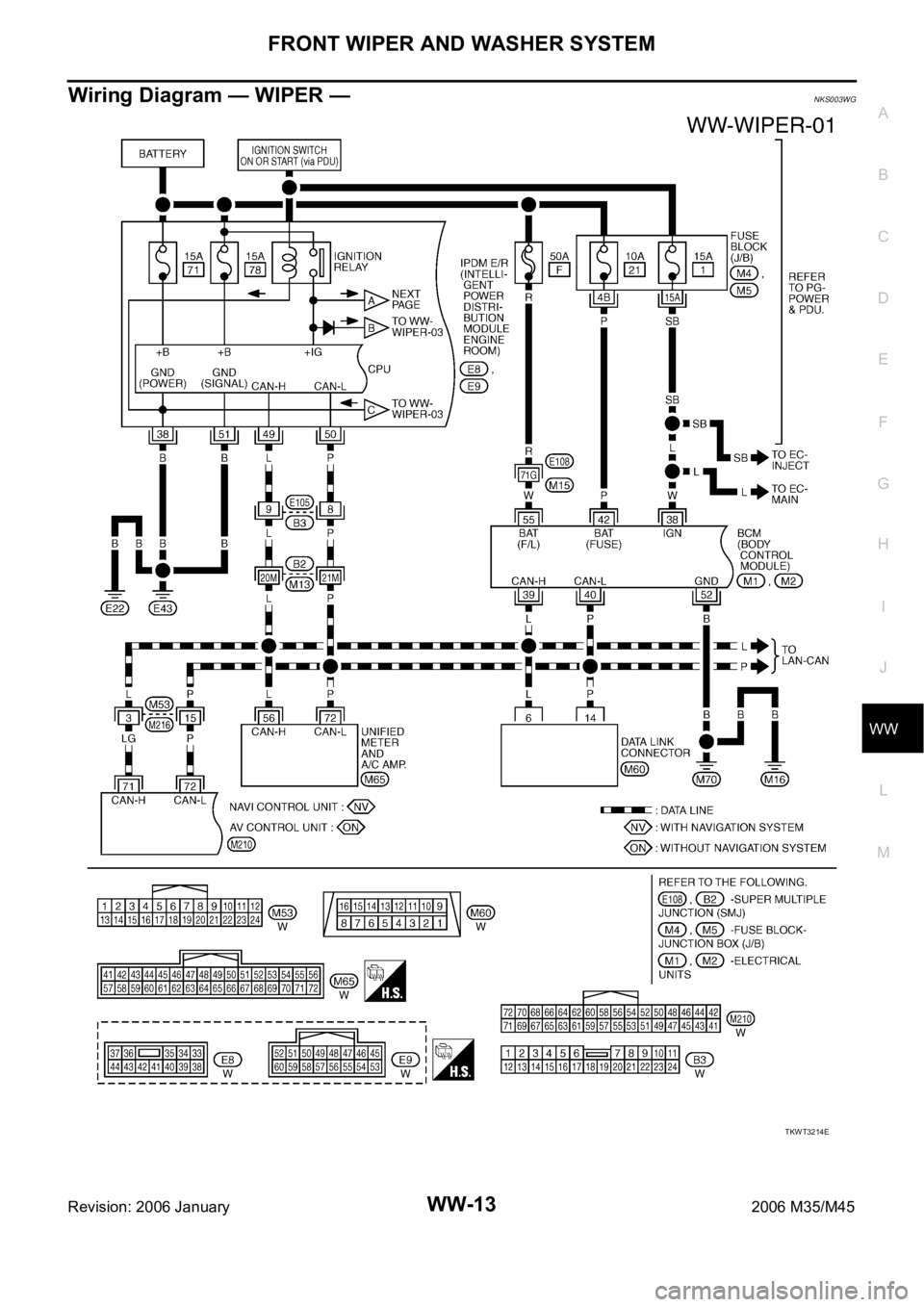

Wiring Diagram — WIPER —NKS003WG
TKWT3214E
Page 5581 of 5621
WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45

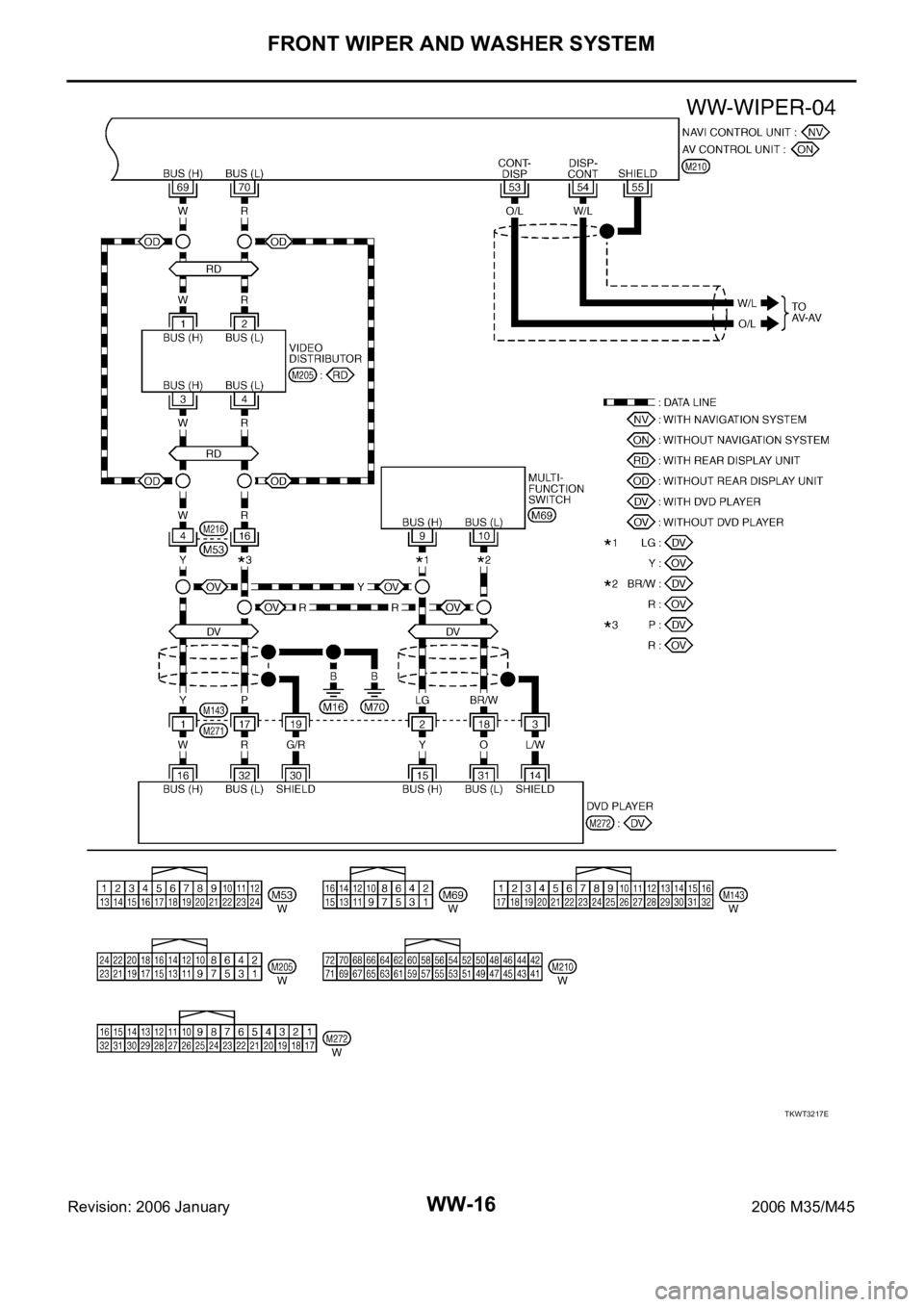

TKWT3215E
Page 5582 of 5621
FRONT WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45

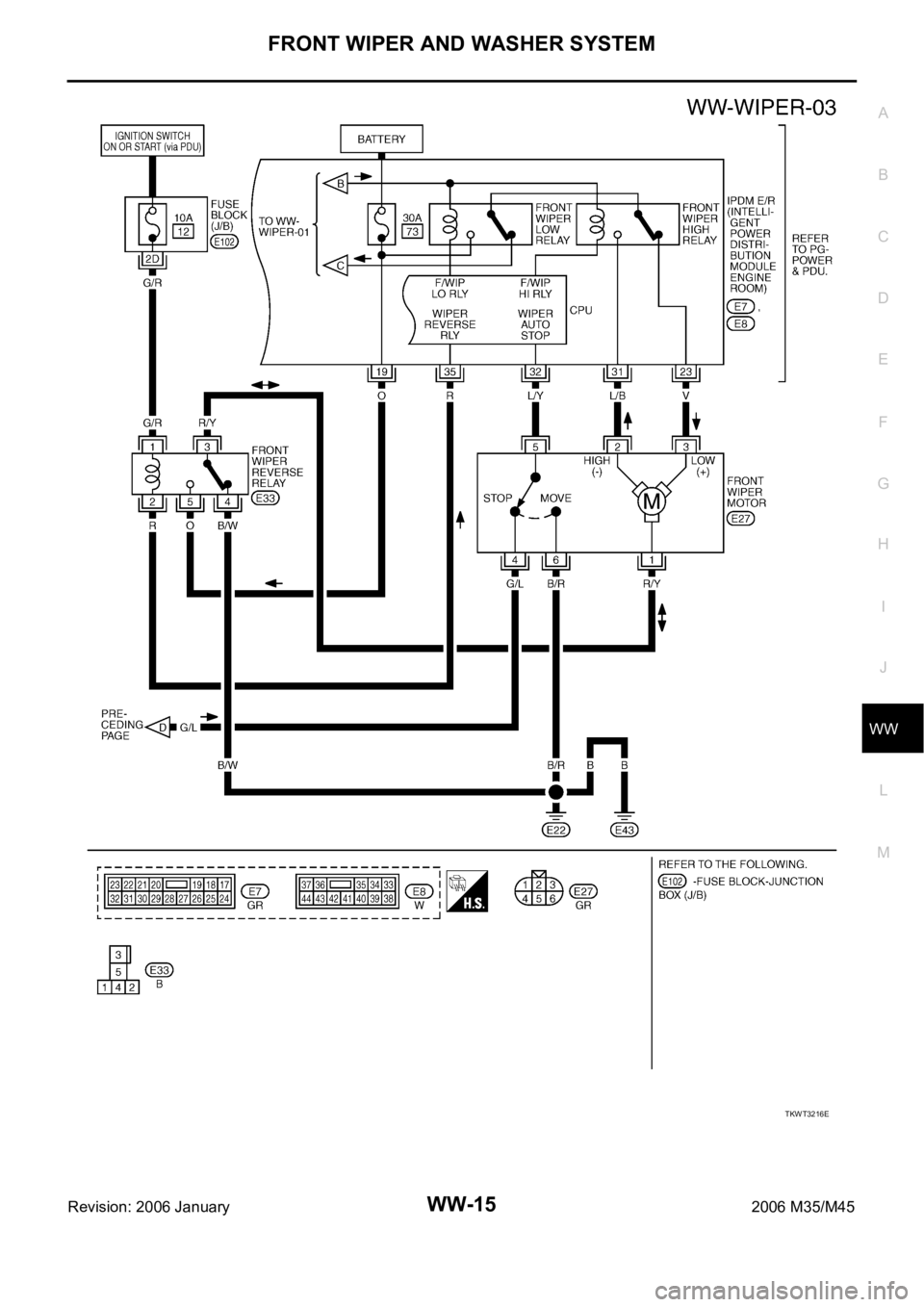

TKWT3216E
Page 5583 of 5621
WW-16
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
TKWT3217E
Page 5584 of 5621

FRONT WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
Terminals and Reference Values for BCMNKS003WH
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to WW-24, "
DATA MONITOR" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
4R/GCombination
switch input 3ONLighting, turn, wiper
OFF
(Wiper dial position 4)
Any of several con-
ditions below
Front wiper SW MIST
Front wiper SW INT
Front wiper SW LO
Approx. 1.0V
OFF Approx. 0V
5YCombination
switch input 2ONLighting, turn, wiper
OFF
Any of several con-
ditions below
Front washer switch
(Wiper dial position 4)
Wiper dial position 1
Wiper dial position 5
Wiper dial position 6
Approx. 1.0V
OFF
(Wiper dial position 4)Approx. 0V
