INFINITI M35 2006 Factory Service Manual WT-28
TROUBLE DIAGNOSES
Revision: 2006 January2006 M35/M45
Trouble Diagnosis ChartNES000K9
SELF-DIAGNOSIS
NOTICE:
186 kPa (1.86 kg/cm2 , 27 psi): Standard air pressure is for 230 kpa (2.3 kg/cm2 , 33

WT-28
TROUBLE DIAGNOSES
Revision: 2006 January2006 M35/M45
Trouble Diagnosis ChartNES000K9
SELF-DIAGNOSIS
NOTICE:
186 kPa (1.86 kg/cm2 , 27 psi): Standard air pressure is for 230 kpa (2.3 kg/cm2 , 33 psi) vehicles. Item
Reference Self-diagnosis function CONSULT-II
DTC (warning lamp blinks) Diagnosis item Diagnosis item
11Front-left tire pressure drops to * kPa
(* kg/cm
2 , * psi) or less. (Notice)FLAT_TIRE_FL
— 12Front-right tire pressure drops to * kPa
(* kg/cm
2 , * psi) or less. (Notice)FLAT_TIRE_FR
13Rear-right tire pressure drops to * kPa
(* kg/cm
2 , * psi) or less. (Notice)FLAT_TIRE_RR
14Rear-left tire pressure drops to * kPa (*
kg/cm
2 , * psi) or less. (Notice)FLAT_TIRE_RL
21 Transmitter no data (front - left) [NO_DATA]_FL
WT-30
22 Transmitter no data (front - right) [NO_DATA]_FR
23 Transmitter no data (rear - right) [NO_DATA]_RR
24 Transmitter no data (rear - left) [NO_DATA]_RL
25 Receiver data error (front - left) [RECEIVER_ERR]_FL
WT-31
26 Receiver data error (front - right) [RECEIVER_ERR]_FR
27 Receiver data error (rear - right) [RECEIVER_ERR]_RR
28 Receiver data error (rear - left) [RECEIVER_ERR]_RL
35Transmitter pressure data error (front -
left)[PRESSDATA_ERR]_FL
WT-32
36Transmitter pressure data error (front -
right)[PRESSDATA_ERR]_FR
37Transmitter pressure data error (rear -
right)[PRESSDATA_ERR]_RR
38Transmitter pressure data error (rear -
left)[PRESSDATA_ERR]_RL
41Transmitter function code error (front -
left)[CODE_ERROR]_FL
WT-32
42Transmitter function code error (front -
right)[CODE_ERROR]_FR
43Transmitter function code error (rear -
right)[CODE_ERROR]_RR
44Transmitter function code error (rear -
left)[CODE_ERROR]_RL
45Transmitter battery voltage low (front -
left)[BATT_VOLT_LOW]_FL
WT-33
46Transmitter battery voltage low (front -
right)[BATT_VOLT_LOW]_FR
47Transmitter battery voltage low (rear -
right)[BATT_VOLT_LOW]_RR
48Transmitter battery voltage low (rear -
left)[BATT_VOLT_LOW]_RL
51 Receiver ID no registration RECEIVER_ID_NO_REGWT-33
52 Vehicle speed signal VHCL_SPED_SIG_ERRWT-34
— CAN COMM CIRCUITWT-34

Page 5554 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSES
WT-29
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 January2006 M35/M45
DIAGNOSIS CHART BY SYMPTOM
Symptom Reference
Warning lamp does not come on when ignition switch is turned on.WT-35,

Page 5555 of 5621

INFINITI M35 2006 Factory Service Manual WT-30
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter no DataNES000KA
MALFUNCTION CODE NO.

Page 5556 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-31
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 January2006 M35/M45

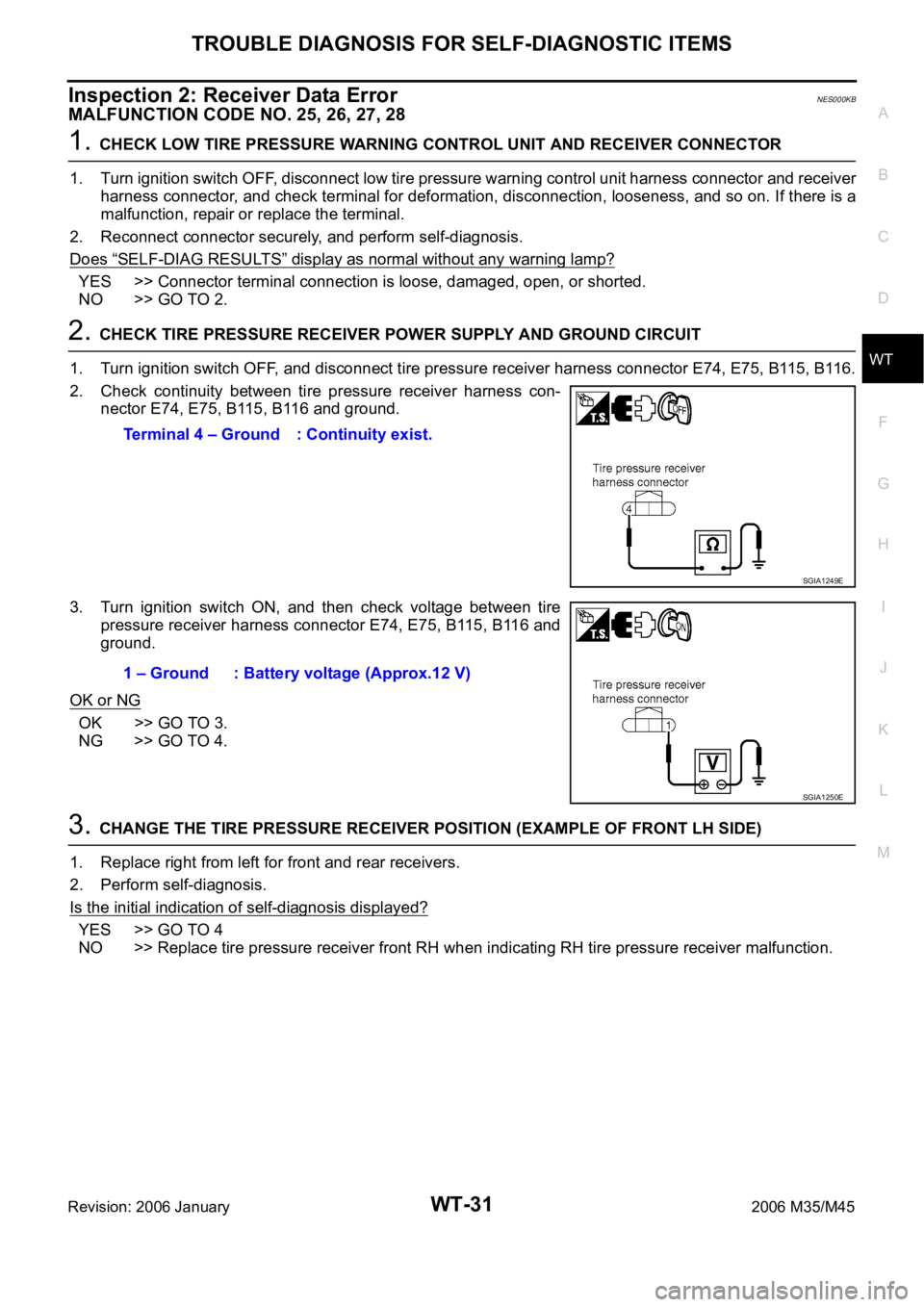

Inspection 2: Receiver Data ErrorNES000KB
MALFUNCTION CODE NO. 25, 26, 27, 28
1. CHECK LO

Page 5557 of 5621

INFINITI M35 2006 Factory Service Manual WT-32
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 January2006 M35/M45
4. CHECK RECEIVER HARNESS (EXAMPLE OF FRONT LH SIDE)
1. Turn ignition switch OFF, disconnect low tire pressure warn

WT-32
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 January2006 M35/M45
4. CHECK RECEIVER HARNESS (EXAMPLE OF FRONT LH SIDE)
1. Turn ignition switch OFF, disconnect low tire pressure warning
control unit harness connector M19 and receiver harness con-
nector E74.
2. Check continuity between low tire pressure warning control unit
harness connector M19 and receiver harness connector E74.
OK or NG
OK >> Replace low tire pressure warning control unit.
NO >> Harness between Low tire warning control unit and
Receiver until open or shorted. Repair or replace harness.
Inspection 3: Transmitter Pressure Data ErrorNES000KC
MALFUNCTION CODE NO. 35, 36, 37, 38
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-41, "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
Are there any tires whose pressure is
“64 psi” or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
>> Replace tire pressure transmitter with new one if “DATA MONITOR” display 64 psi or more. Then
GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all tire pressure transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.
Inspection 4: Transmitter Function Code ErrorNES000KD
MALFUNCTION CODE NO. 41, 42, 43, 44
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2. Terminal 27 – 2 : Continuity exist.
Terminal 11 – 3 : Continuity exist.
SEIA0666E

Page 5558 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-33
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 January2006 M35/M45
2. REPLACE TIRE PRESSURE TRANSMITTER
1. Check low tire pressure warning condition again,

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
WT-33
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 January2006 M35/M45
2. REPLACE TIRE PRESSURE TRANSMITTER
1. Check low tire pressure warning condition again, and replace malfunctioning tire pressure transmitter.
2. Perform ID registration of all transmitter.
Can ID registration of all tire pressure transmitters be completed?
YES >> GO TO 3.
NO >> GO TO the inspection 1. Refer to WT-30, "
Inspection 1: Transmitter no Data" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> Replace malfunctioning transmitter, and perform “Step 3” again.
Inspection 5: Transmitter Battery Voltage LowNES000KE
MALFUNCTION CODE NO. 45, 46, 47, 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2.
2. REPLACE TIRE PRESSURE TRANSMITTER
1. Check low tire pressure warning lamp condition again, and replace malfunctioning tire pressure transmit-
ter.
2. Perform ID registration of all tire pressure transmitter.
Can ID registration of all tire pressure transmitters be completed?
YES >> GO TO 3.
NO >> GO TO the inspection 1. Refer to WT-30, "
Inspection 1: Transmitter no Data" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> Replace malfunctioning transmitter, and perform “Step 3” again.
Inspection 6: Receiver ID No RegistrationNES000KF
MALFUNCTION CODE NO. 51
1. ID REGISTRATION
1. Perform ID registration of all tire pressure transmitters. Refer to WT-19, "
ID Registration Procedure" .
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for
10 minutes.
>> GO TO 2.

Page 5559 of 5621

INFINITI M35 2006 Factory Service Manual WT-34
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 January2006 M35/M45
2. REPLACE TIRE PRESSURE TRANSMITTER
1. Check low tire pressure warning condition again, and replace malfunctioning

WT-34
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 January2006 M35/M45
2. REPLACE TIRE PRESSURE TRANSMITTER
1. Check low tire pressure warning condition again, and replace malfunctioning tire pressure transmitter.
2. Perform ID registration of all transmitter.
Can ID registration of all tire pressure transmitters be completed?
YES >> GO TO 3.
NO >> GO TO the inspection 1. Refer to WT-30, "
Inspection 1: Transmitter no Data" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> Replace malfunctioning transmitter, and perform “Step 3” again.
Inspection 7: Vehicle Speed SignalNES000KG
MALFUNCTION CODE NO. 52
1. CHECK SELF-DIAGNOSIS RESULTS
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)” “AIR PRESSURE MONITOR”.
–If “AIR PRESSURE MONITOR” is not displayed, print the “SELECT SYSTEM” screen. Then refer to LAN-
7, "Precautions When Using CONSULT-II" .
NOTE:
Just after starting engine, or turning ignition switch ON, it may not be displayed even if “START (NISSAN
BASED VHCL)” is touched. In this case, reconnect CONSULT-II and CONSULT-II CONVERTER.
5. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
6. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-7, "Precautions When Using CONSULT-
II" .
NO >> No malfunction. Check combination meter refer to DI-18, "
Trouble Diagnosis" .
Inspection 8: CAN Communication System MalfunctionNES000KS
1. CHECK LOW TIRE PRESSURE WARNING CONTROL UNIT CONNECTOR
1. Turn ignition switch OFF, disconnect low tire pressure warning control unit harness connector, and check
terminal for deformation, disconnection, looseness, etc.
2. Reconnect harness connector securely, and perform CONSULT-II self-diagnosis.
Is above displayed on self-diagnosis display?
YES >> If “CAN COMM CIRCUIT [U1000]” is displayed, print out self-diagnosis. And then, go to LAN-7,
"Precautions When Using CONSULT-II" .
NO >> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-
nal.
Self-diagnostic results
CAN COMM CIRCUIT [U1000]

Page 5560 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-35
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Inspection 1: Warning Lamp Does Not Come On When Ignition Swit
