INFINITI M35 2006 Factory Service Manual EM-194
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
4. Disconnect fuel feed hose on engine side as follows: (Perform
same procedure for the side of centralized unde

Page 3258 of 5621

INFINITI M35 2006 Factory Service Manual FUEL INJECTOR AND FUEL TUBE
EM-195
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
To keep clean the connecting portion and to avoid dam-
age and foreign materials,

Page 3259 of 5621

INFINITI M35 2006 Factory Service Manual EM-196
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
CAUTION:
Handle O-ring with bare hands. Do not wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring wit

EM-196
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
CAUTION:
Handle O-ring with bare hands. Do not wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not
to twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert new O-ring straight into fuel tube. Do not decenter or twist it.
Insert fuel feed damper straight into fuel tube (RH).
Tighten mounting bolts evenly in turn.
After tightening mounting bolts, make sure that there is no gap between flange and fuel tube (RH).
2. Install new O-rings to fuel injector paying attention to the following caution.
CAUTION:
Upper and lower O-ring are different. Be careful not to confuse them.
Handle O-ring with bare hands. Never wear gloves.
Lubricate O-ring with new engine oil.
Do not clean O-ring with solvent.
Make sure that O-ring and its mating part are free of foreign material.
When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.
Insert O-ring straight into fuel injector. Do not decenter or twist it.

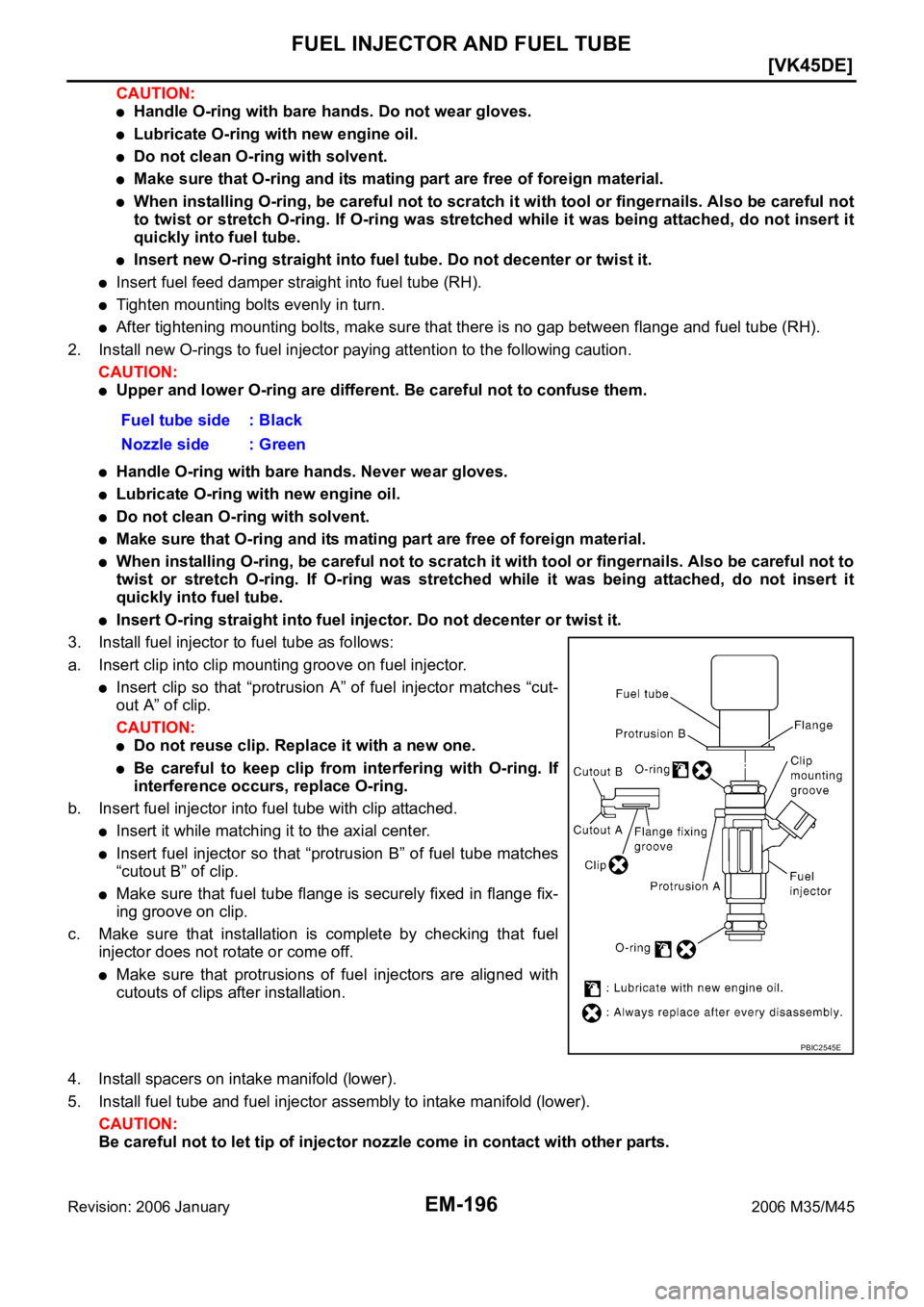

3. Install fuel injector to fuel tube as follows:
a. Insert clip into clip mounting groove on fuel injector.
Insert clip so that “protrusion A” of fuel injector matches “cut-
out A” of clip.
CAUTION:
Do not reuse clip. Replace it with a new one.
Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.
Insert it while matching it to the axial center.
Insert fuel injector so that “protrusion B” of fuel tube matches
“cutout B” of clip.
Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
4. Install spacers on intake manifold (lower).
5. Install fuel tube and fuel injector assembly to intake manifold (lower).
CAUTION:
Be careful not to let tip of injector nozzle come in contact with other parts. Fuel tube side : Black
Nozzle side : Green
PBIC2545E

Page 3260 of 5621

INFINITI M35 2006 Factory Service Manual FUEL INJECTOR AND FUEL TUBE
EM-197
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

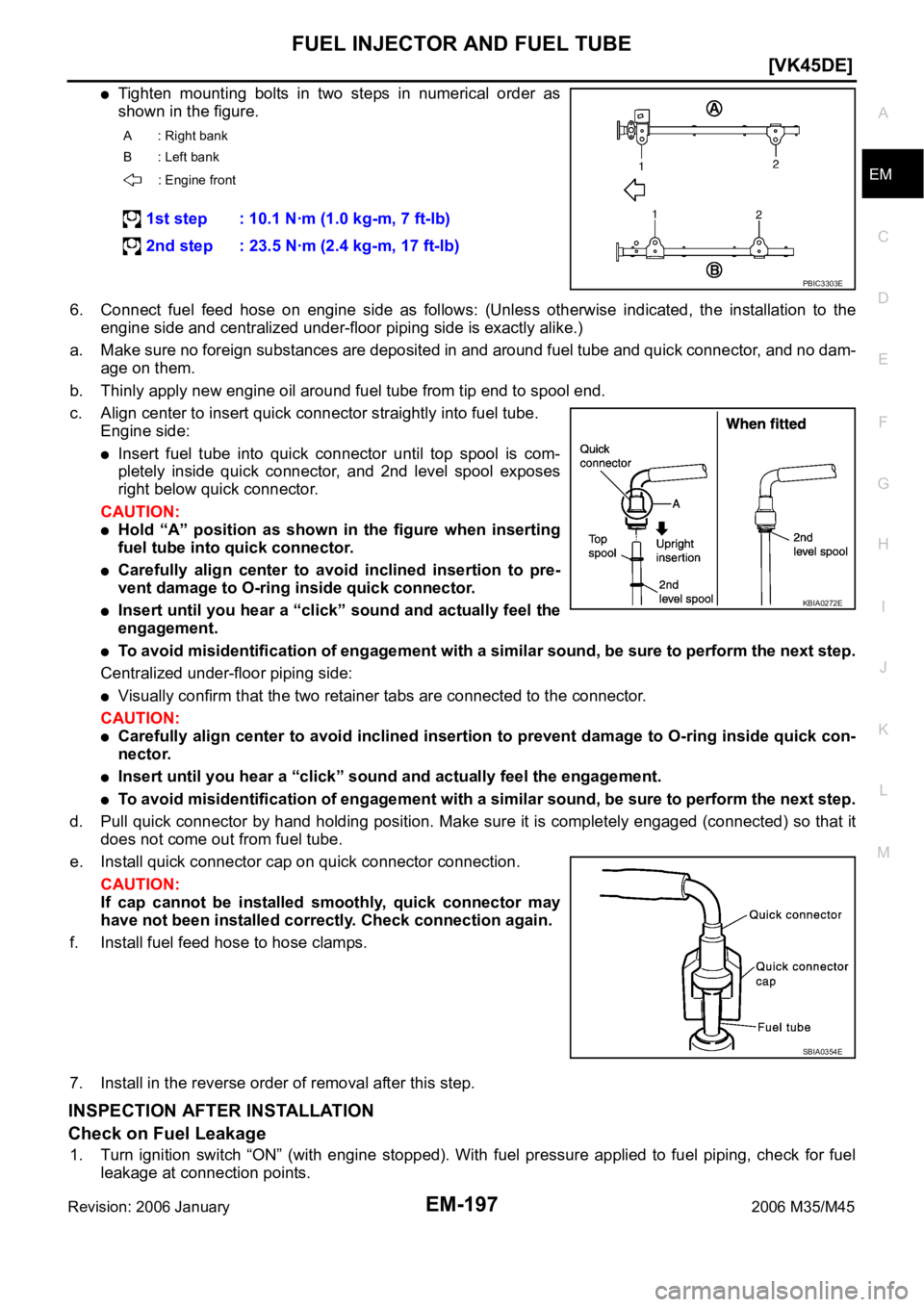

Tighten mounting bolts in two steps in numerical order as
shown in the figure.
6. Conn

FUEL INJECTOR AND FUEL TUBE
EM-197
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Tighten mounting bolts in two steps in numerical order as
shown in the figure.
6. Connect fuel feed hose on engine side as follows: (Unless otherwise indicated, the installation to the
engine side and centralized under-floor piping side is exactly alike.)
a. Make sure no foreign substances are deposited in and around fuel tube and quick connector, and no dam-
age on them.
b. Thinly apply new engine oil around fuel tube from tip end to spool end.
c. Align center to insert quick connector straightly into fuel tube.
Engine side:
Insert fuel tube into quick connector until top spool is com-
pletely inside quick connector, and 2nd level spool exposes
right below quick connector.
CAUTION:
Hold “A” position as shown in the figure when inserting
fuel tube into quick connector.
Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
Insert until you hear a “click” sound and actually feel the
engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
Centralized under-floor piping side:
Visually confirm that the two retainer tabs are connected to the connector.
CAUTION:
Carefully align center to avoid inclined insertion to prevent damage to O-ring inside quick con-
nector.
Insert until you hear a “click” sound and actually feel the engagement.
To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
d. Pull quick connector by hand holding position. Make sure it is completely engaged (connected) so that it
does not come out from fuel tube.
e. Install quick connector cap on quick connector connection.
CAUTION:
If cap cannot be installed smoothly, quick connector may
have not been installed correctly. Check connection again.
f. Install fuel feed hose to hose clamps.
7. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
A : Right bank
B : Left bank
: Engine front
1st step : 10.1 Nꞏm (1.0 kg-m, 7 ft-lb)
2nd step : 23.5 Nꞏm (2.4 kg-m, 17 ft-lb)
PBIC3303E
KBIA0272E
SBIA0354E

Page 3261 of 5621

INFINITI M35 2006 Factory Service Manual EM-198
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 January2006 M35/M45
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start engine. With engine speed increased, check again fo

Page 3262 of 5621

INFINITI M35 2006 Factory Service Manual ROCKER COVER
EM-199
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

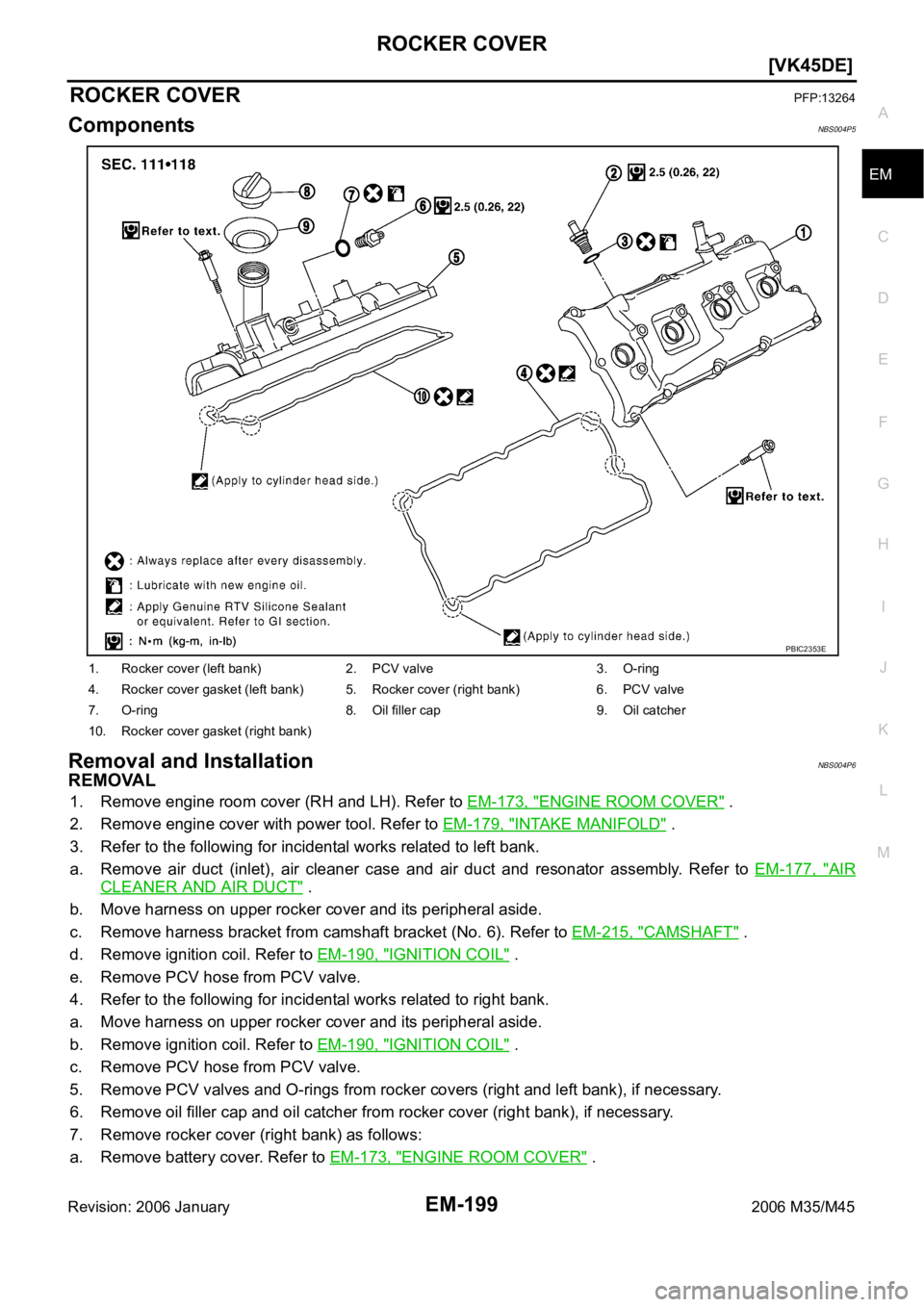

ROCKER COVERPFP:13264
ComponentsNBS004P5
Removal and InstallationNBS004P6
REMOVAL
1. Remove engine room cover

Page 3263 of 5621

INFINITI M35 2006 Factory Service Manual EM-200
[VK45DE]
ROCKER COVER
Revision: 2006 January2006 M35/M45
b. Remove battery and battery tray. Refer to SC-4, "BATTERY" .
c. Remove grommet (2) from cowl top panel hole (RH).
d. Loosen mo

Page 3264 of 5621

INFINITI M35 2006 Factory Service Manual ROCKER COVER
EM-201
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

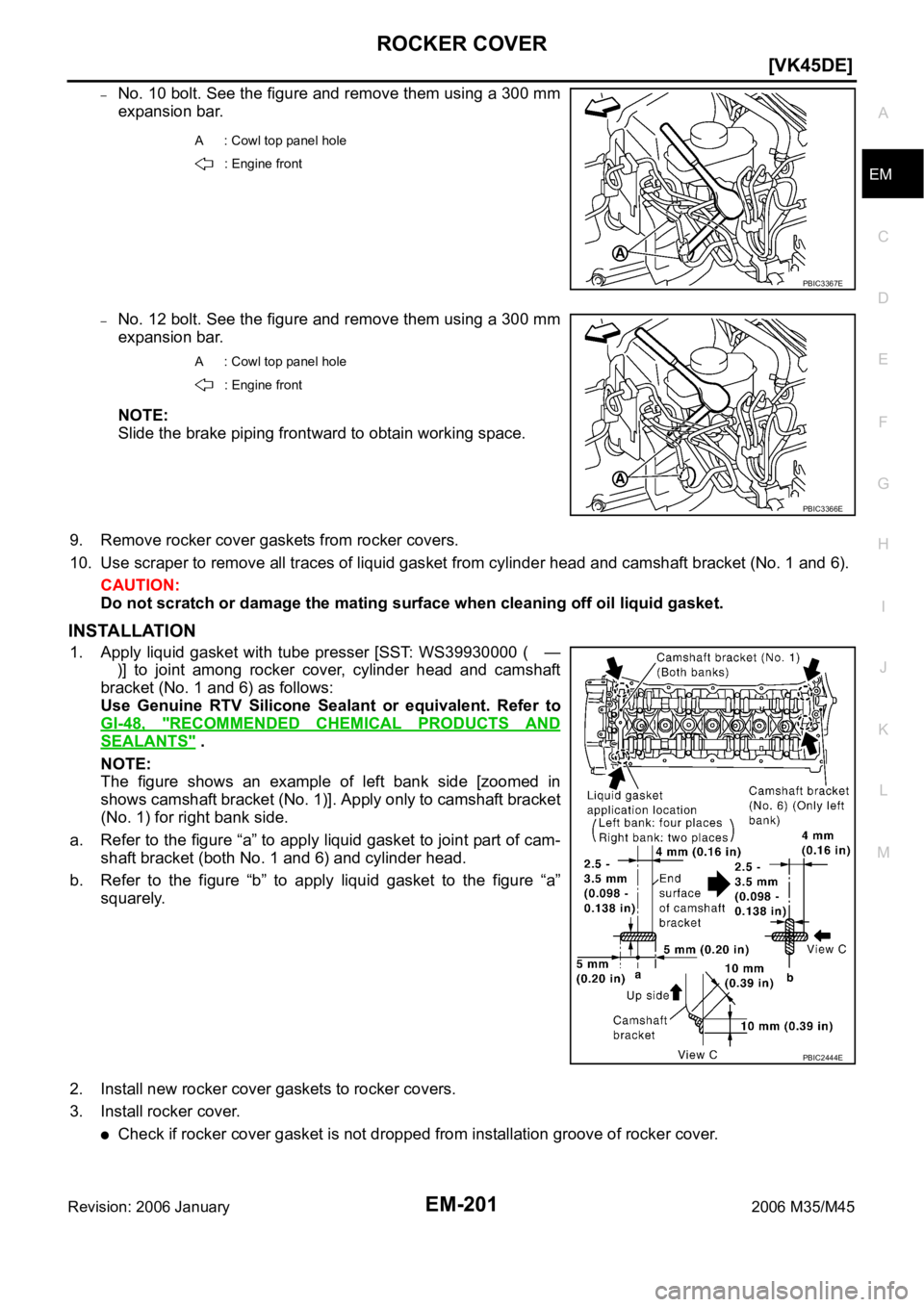

–No. 10 bolt. See the figure and remove them using a 300 mm
expansion bar.
–No. 12 bolt. See the figure an
