Page 4345 of 5621

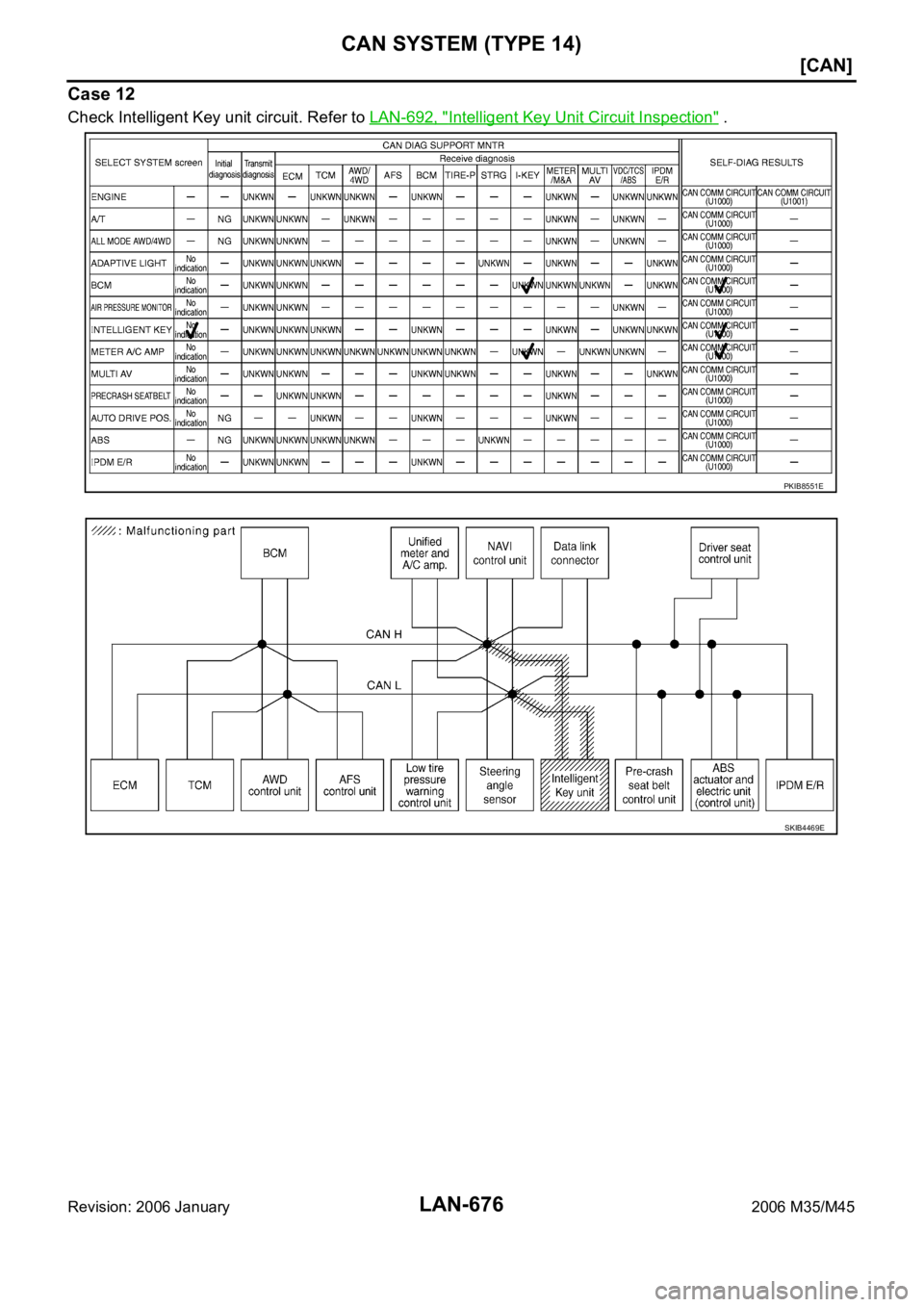

INFINITI M35 2006 Factory Service Manual LAN-676 [CAN] CAN SYSTEM (TYPE 14) Revision: 2006 January2006 M35/M45 Case 12 Check Intelligent Key unit circuit. Refer to LAN-692, "Intelligent Key Unit Circuit Inspection" . PKIB8551E SKIB44

Page 4346 of 5621

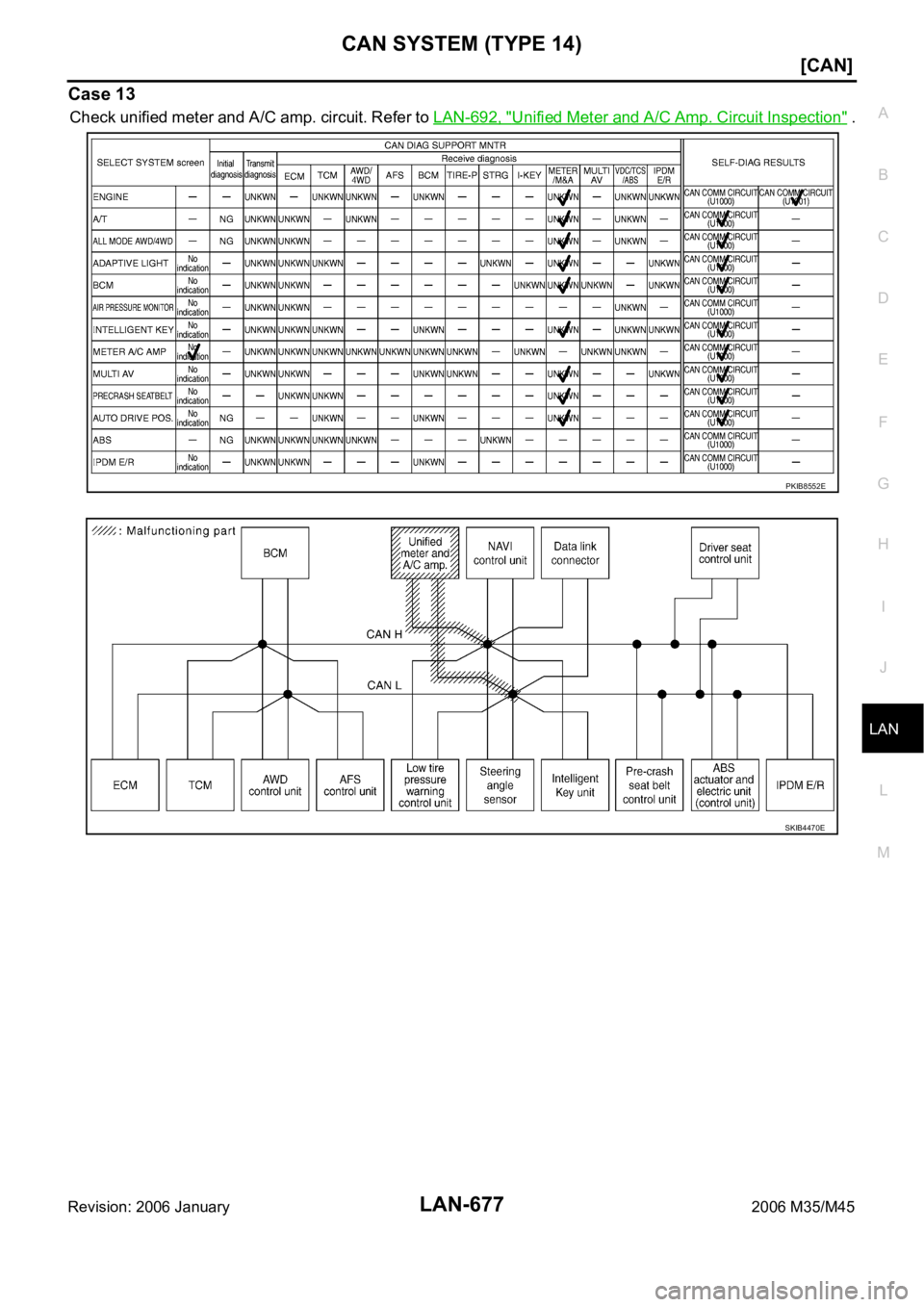

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 14) LAN-677 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 13 Check unified meter and A/C amp. circuit. Refer to LAN-692, "Unified Meter and A/C Amp. Cir

Page 4347 of 5621

INFINITI M35 2006 Factory Service Manual LAN-678 [CAN] CAN SYSTEM (TYPE 14) Revision: 2006 January2006 M35/M45 Case 14 Check NAVI control unit circuit. Refer to LAN-693, "NAVI Control Unit Circuit Inspection" . PKIB8553E SKIB4471E

Page 4348 of 5621

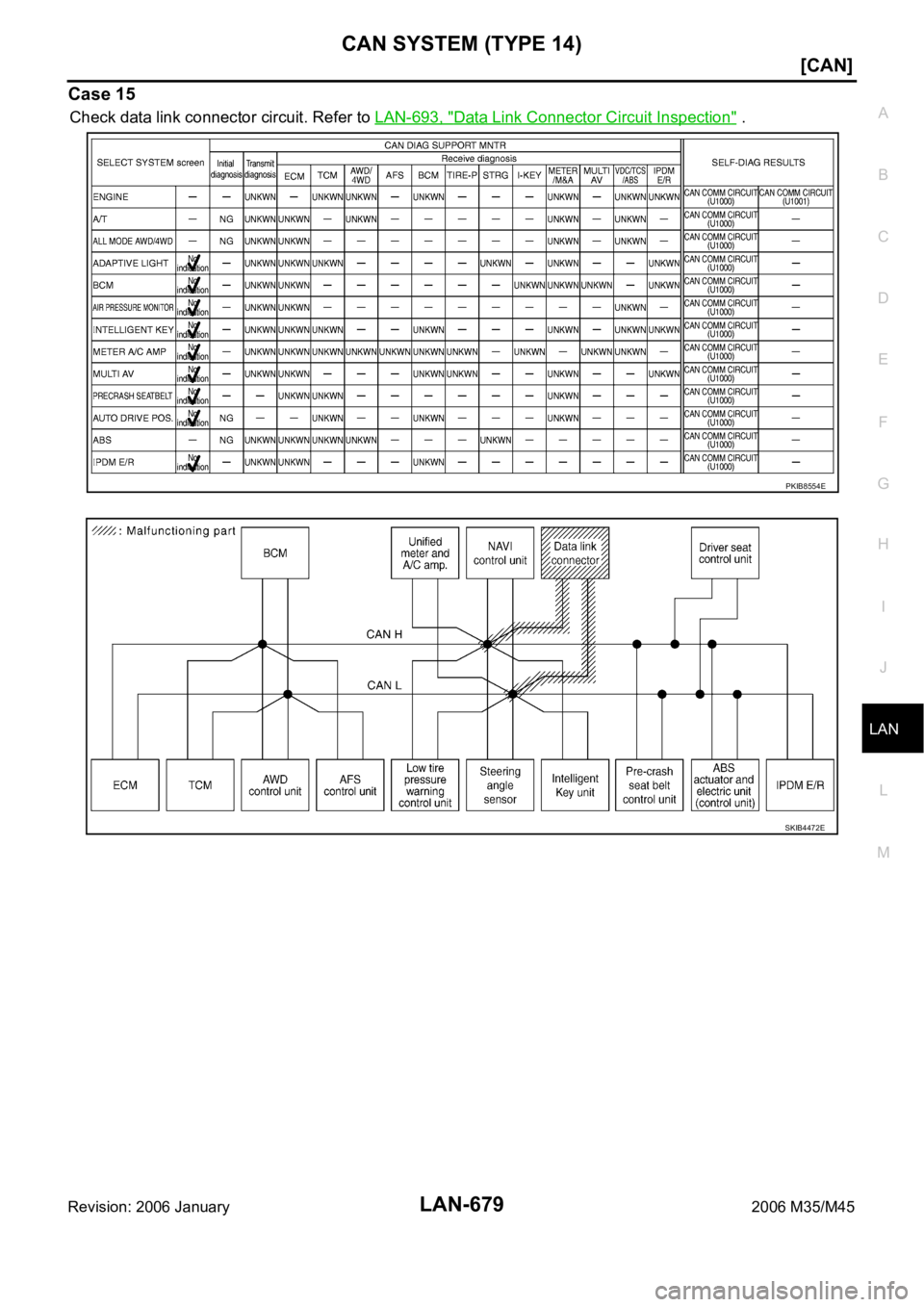

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 14) LAN-679 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 15 Check data link connector circuit. Refer to LAN-693, "Data Link Connector Circuit Inspectio

Page 4349 of 5621

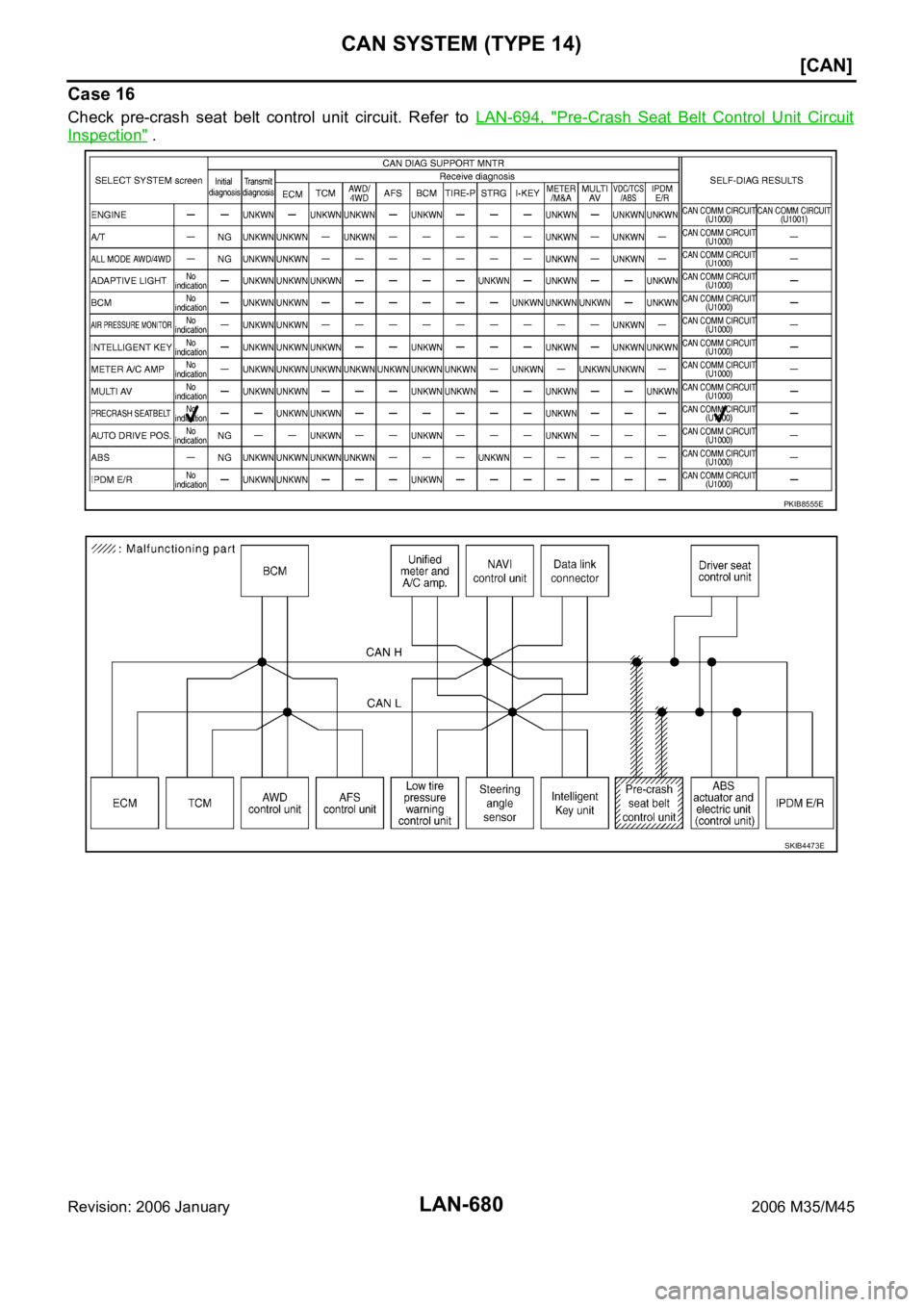

INFINITI M35 2006 Factory Service Manual LAN-680 [CAN] CAN SYSTEM (TYPE 14) Revision: 2006 January2006 M35/M45 Case 16 Check pre-crash seat belt control unit circuit. Refer to LAN-694, "Pre-Crash Seat Belt Control Unit Circ

Page 4350 of 5621

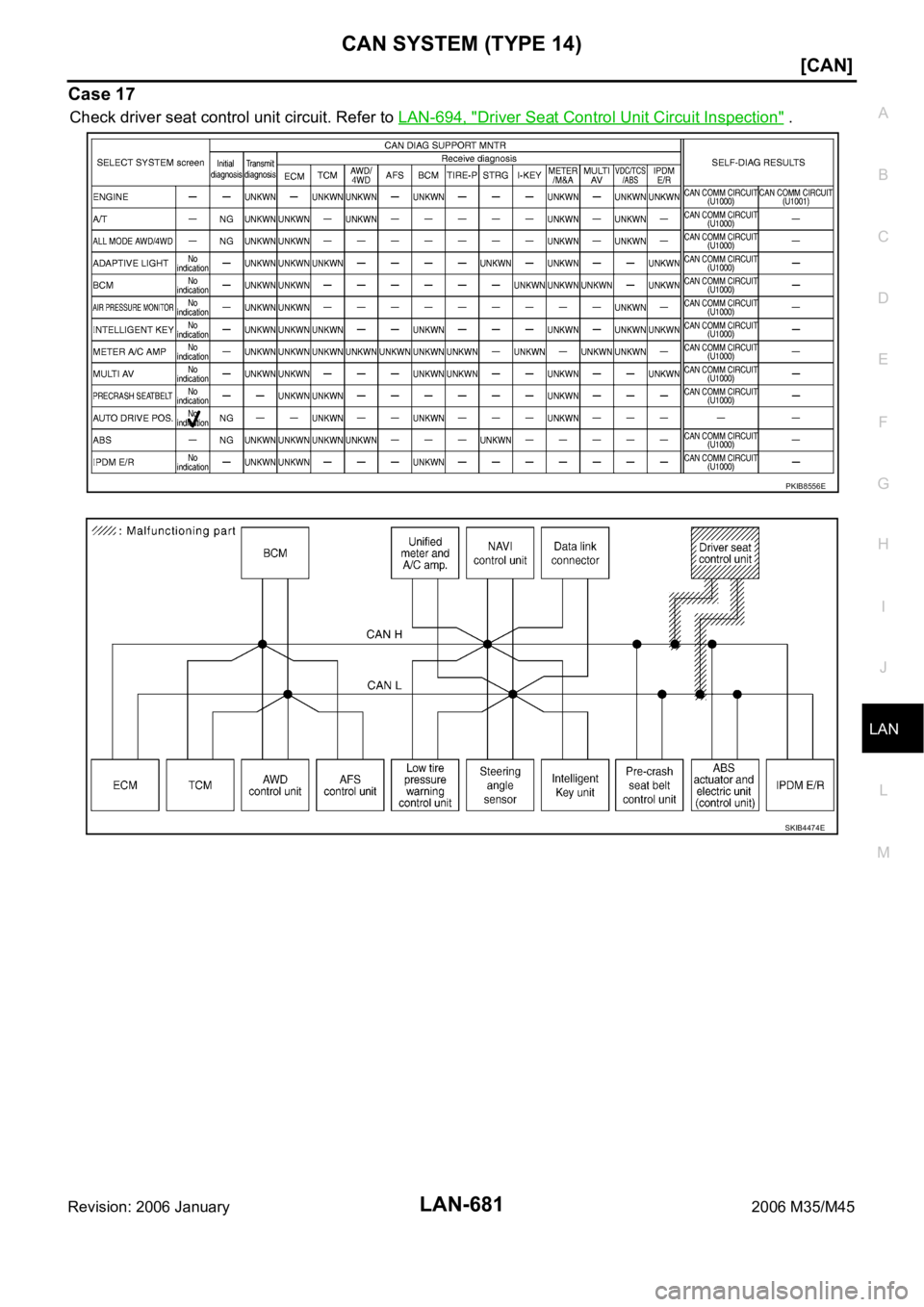

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 14) LAN-681 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 17 Check driver seat control unit circuit. Refer to LAN-694, "Driver Seat Control Unit Circuit

Page 4351 of 5621

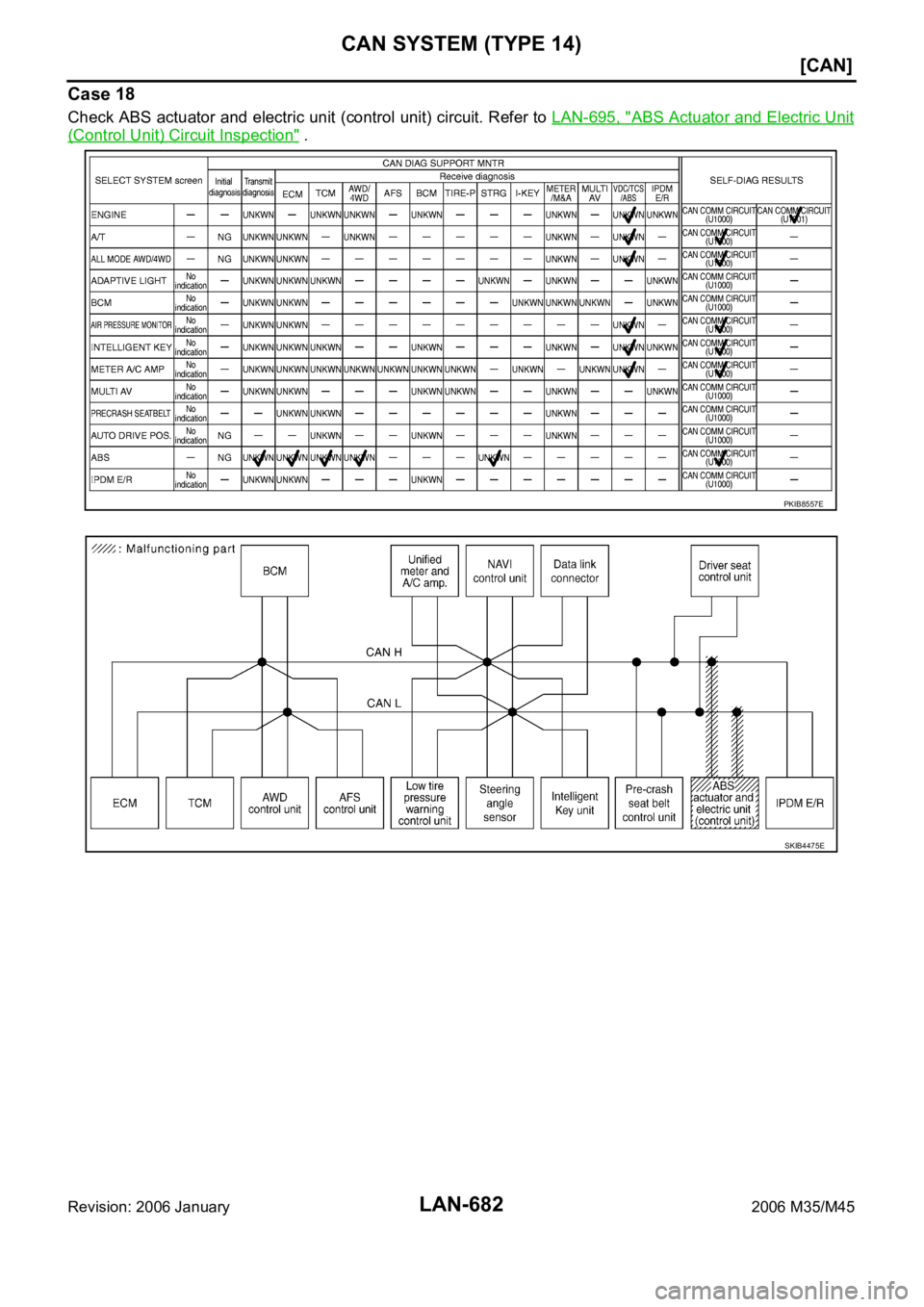

INFINITI M35 2006 Factory Service Manual LAN-682 [CAN] CAN SYSTEM (TYPE 14) Revision: 2006 January2006 M35/M45 Case 18 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-695, "ABS Actuator and Electric Unit (Contr

Page 4352 of 5621

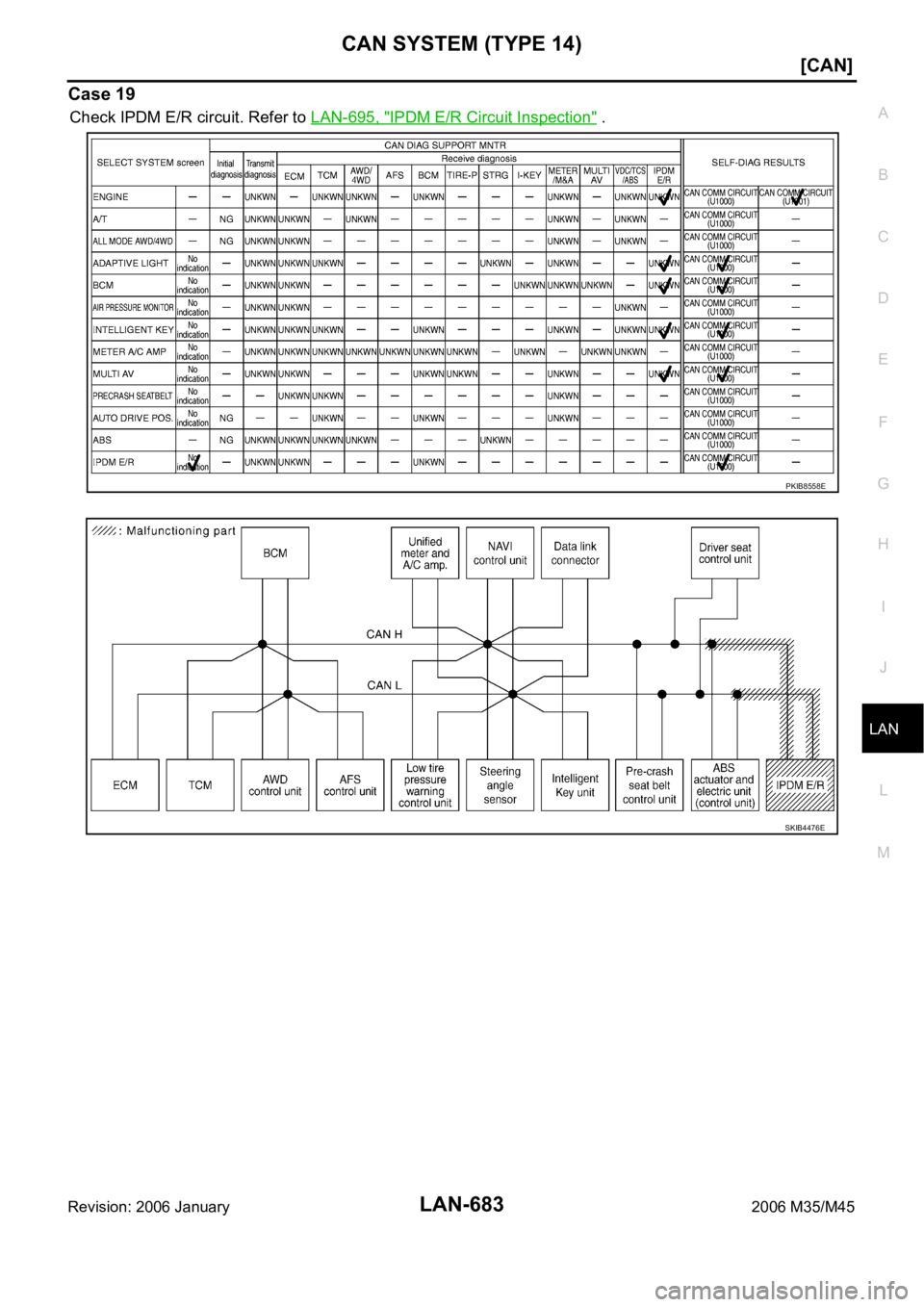

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 14) LAN-683 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 19 Check IPDM E/R circuit. Refer to LAN-695, "IPDM E/R Circuit Inspection" . PKIB8558E SKI
