ACS-16
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45
Aiming AdjustmentNKS004CQ
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown
in the procedure. If the procedure does not complete, the ICC system is inoperable.
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Start engine, wait for at least 10 seconds, and touch “START
(NISSAN BASED VHCL)”.
4. Touch “ICC”.
If “ICC” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “WORK SUPPORT”.
SKIB3794E
BCIA0029E
BCIA0030E
BCIA0031E
Page 26 of 5621
![INFINITI M35 2006 Factory Service Manual LASER BEAM AIMING ADJUSTMENT
ACS-17
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
6. Touch “LASER BEAM ADJUST”.
7. Touch “START”.
CAUTION:
If the adjustment screen does n INFINITI M35 2006 Factory Service Manual LASER BEAM AIMING ADJUSTMENT
ACS-17
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
6. Touch “LASER BEAM ADJUST”.
7. Touch “START”.
CAUTION:
If the adjustment screen does n](/manual-img/42/57023/w960_57023-25.png)
LASER BEAM AIMING ADJUSTMENT
ACS-17
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
6. Touch “LASER BEAM ADJUST”.
7. Touch “START”.
CAUTION:
If the adjustment screen does not appear on the CONSULT-
II screen in 10 seconds. After touching “LASER BEAM
ADJUST” screen, the following causes may be considered:
Target is not set accurately.
There is not enough space beside the target.
The range of laser beam aiming exceeds for improper
installation position.
–Deformation of vehicle body.
–Deformation of unit.
–Deformation of bracket.
The area is not suitable for the adjustment work.
ICC sensor integrated unit is not clean.
8. After the CONSULT-II displays “ADJUST THE VERTICAL OF
LASER BEAM AIMING” turn the up-down direction adjusting
screw until “U/D CORRECT” value is set in the range of
4.
CAUTION:
Turn the screw slowly. The value change on display is
slower than actual movement of the ICC sensor integrated
unit. Wait for 2 seconds every time the screw is turned half
a rotation.
NOTE:
Turning the screw clockwise to laser beam is downward and
counterclockwise to laser beam is upward.
9. When “U/D CORRECT” value indicates
4, confirm that the margin of value remains within 4 at least for
2 seconds with no equipment or hand touching the ICC sensor integrated unit.
SKIA6191E
PKIB8359E
PKIB8360E
PKIB8361E
Page 27 of 5621
ACS-18
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45
When “COMPLETED THE VERTICAL AIMING OF LASER
BEAM” appears on screen, touch “END”.
CAUTION:
Be sure that the margin of “U/D CORRECT” is within
4 with
ICC sensor integrated unit is untouched.
10. Confirm that “ADJUSTING AUTOMATIC HORIZONTAL LASER
BEAM AIMING” is on screen and wait for a while (maximum: 10
seconds).
11. Confirm that “NORMALLY COMPLETED” is displayed on CON-
SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by ICC system running test. Refer to ACS-10, "ICC System Running Test" .
PKIB8362E
PKIB8363E
PKIB8364E
Page 28 of 5621
ELECTRICAL UNITS LOCATION
ACS-19
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45

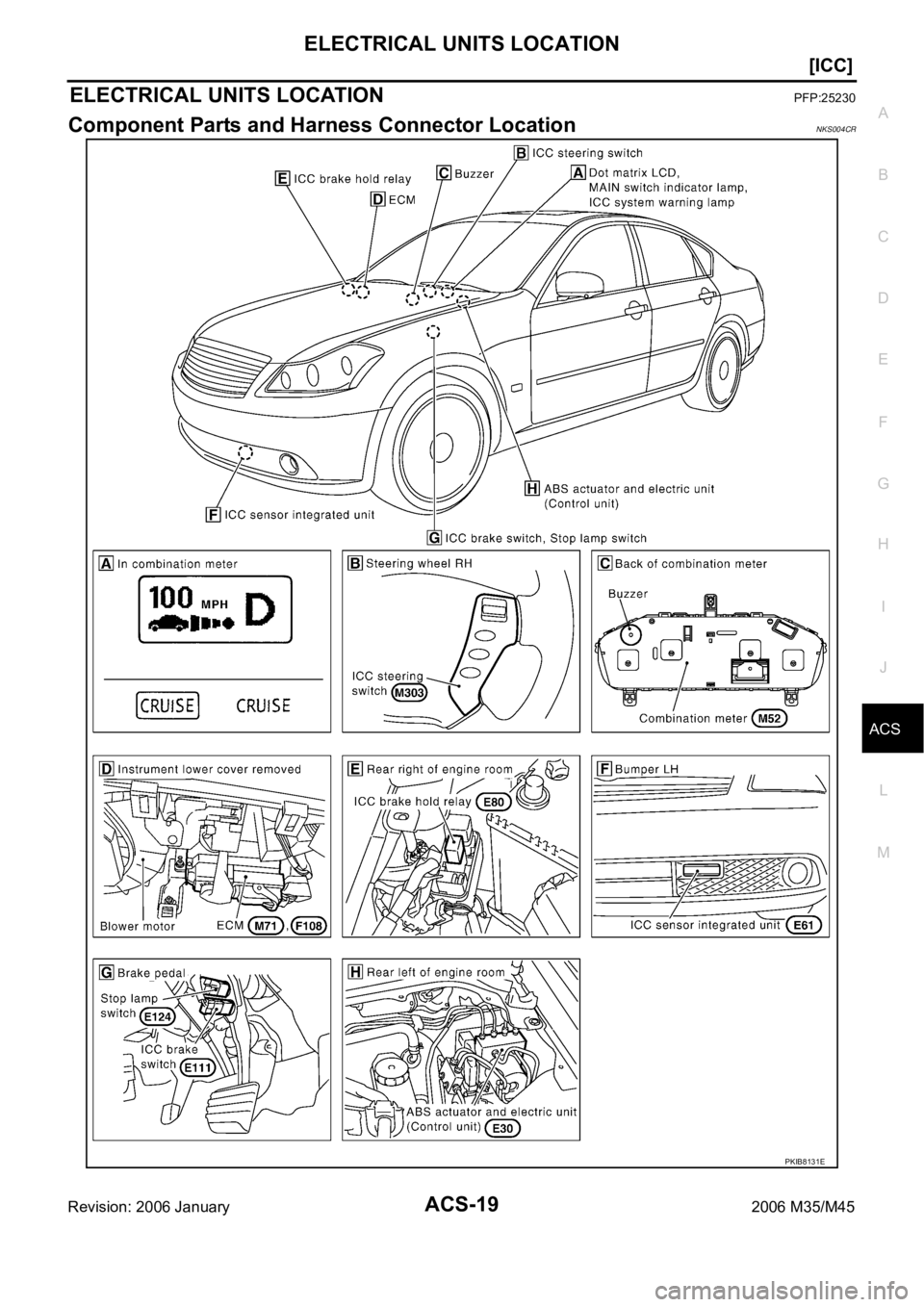

ELECTRICAL UNITS LOCATIONPFP:25230
