Page 1393 of 5621
CO-18
[VQ35DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 January2006 M35/M45
RADIATOR (ALUMINUM TYPE)PFP:21460
ComponentsNBS004QW
Disassembly and AssemblyNBS004QX
PREPARATION
1. Attach spacer to tip of the radiator plate pliers A (SST).
Spacer specification: 18 mm (0.71 in) wide
8.5 mm (0.335 in)
long
1.5 mm (0.059 in) thick.
2. Make sure that when the radiator plate pliers A [SST: KV99103510 ( — )] are closed dimension H
is
approx. 7.6 mm (0.299 in).
3. Adjust dimension H
with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with the radiator plate pliers B
(SST).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler.
NOTE:
Regard lower tank and A/T fluid cooler as an assembly.
1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank (with A/T fluid cooler)
PBIC3390E
SLC655CB
SLC903-A
Page 1394 of 5621
RADIATOR (ALUMINUM TYPE)
CO-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
Grip the crimped edge and bend it upwards so that the radia-
tor plate pliers B slips off.
CAUTION:
Do not bend excessively.
In areas where the radiator plate pliers B cannot be used, use
a screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 1395 of 5621
CO-20
[VQ35DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 January2006 M35/M45
2. Install new sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with the
radiator plate pliers A (SST).
Use pliers in the locations where the radiator plate pliers A
cannot be used.
SLC917A
SLC904-A
PBIC2076E
SLC897
Page 1396 of 5621
RADIATOR (ALUMINUM TYPE)
CO-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-21, "
INSPECTION" .
INSPECTION
1. Apply pressure with the radiator cap tester adapter (SST) and
the radiator cap tester (commercial service tool).
WAR NING :
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)
SLC933-A
SLC934
Page 1397 of 5621
![INFINITI M35 2006 Factory Service Manual CO-22
[VQ35DE]
COOLING FAN
Revision: 2006 January2006 M35/M45
COOLING FANPFP:21140
ComponentsNBS004QY
Removal and Installation NBS004QZ
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, INFINITI M35 2006 Factory Service Manual CO-22
[VQ35DE]
COOLING FAN
Revision: 2006 January2006 M35/M45
COOLING FANPFP:21140
ComponentsNBS004QY
Removal and Installation NBS004QZ
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14,](/manual-img/42/57023/w960_57023-1396.png)
CO-22
[VQ35DE]
COOLING FAN
Revision: 2006 January2006 M35/M45
COOLING FANPFP:21140
ComponentsNBS004QY
Removal and Installation NBS004QZ
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
3. Drain engine coolant from radiator. Refer to CO-11, "
ENGINE COOLANT" .
4. Disconnect harness connector from cooling fan control module, and move harness to aside.
5. Remove radiator hose (upper). Refer to CO-14, "
RADIATOR" .
6. Remove cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Only use genuine parts for radiator shroud and cooling fan mounting bolt and observe the specified
torque (to prevent radiator from being damaged).
INSPECTION AFTER INSTALLATION
Make sure that fan motors operate normally.
1. Sub-harness 2. Cooling fan control module 3. Sub-harness
4. Fan motor (LH) 5. Fan motor (RH) 6. Fan shroud
7. Cooling fan (RH) 8. Cooling fan (LH)
A. Apply on fan motor shaft.
Apply Genuine High Strength Lock-
ing Sealant or equivalent.
KBIA3567J
Page 1398 of 5621
![INFINITI M35 2006 Factory Service Manual COOLING FAN
CO-23
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details, refer to EC-512, "
DTC P1217 E INFINITI M35 2006 Factory Service Manual COOLING FAN
CO-23
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details, refer to EC-512, "
DTC P1217 E](/manual-img/42/57023/w960_57023-1397.png)
COOLING FAN
CO-23
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details, refer to EC-512, "
DTC P1217 ENGINE
OVER TEMPERATURE" .
Disassembly and Assembly NBS004R0
DISASSEMBLY
1. Disconnect sub-harness from fan motor (RH and LH) and cooling fan control module.
2. Remove cooling fan control module from fan shroud.
CAUTION:
Handle carefully to avoid dropping and shocks.
3. Remove cooling fan mounting nuts, and then remove the cooling fan (RH and LH).
4. Remove fan motor (RH and LH).
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
CAUTION:
RH and LH cooling fans are different. Be careful not to misassemble them.
Install each fan in the following position.
Secure the sub-harness tightly to the fan shroud to prevent the fan rotation area from being loose. Right side : 4 fans
Left side : 5 fans
Page 1399 of 5621
![INFINITI M35 2006 Factory Service Manual CO-24
[VQ35DE]
WATER PUMP
Revision: 2006 January2006 M35/M45
WATE R PU M PPFP:21020
ComponentsNBS004R1
Removal and InstallationNBS004R2
CAUTION:
When removing water pump assembly, be careful not to g INFINITI M35 2006 Factory Service Manual CO-24
[VQ35DE]
WATER PUMP
Revision: 2006 January2006 M35/M45
WATE R PU M PPFP:21020
ComponentsNBS004R1
Removal and InstallationNBS004R2
CAUTION:
When removing water pump assembly, be careful not to g](/manual-img/42/57023/w960_57023-1398.png)

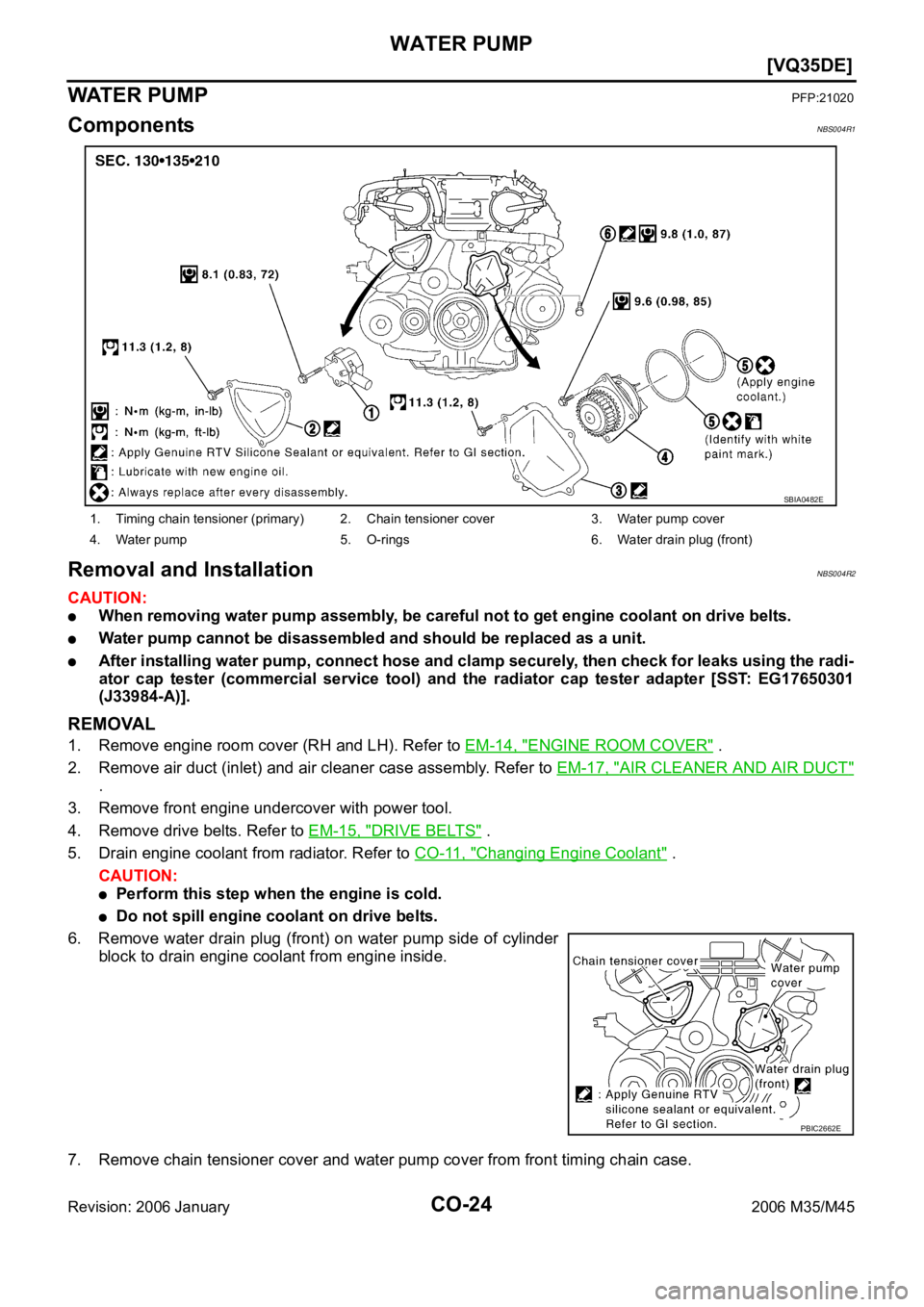

CO-24
[VQ35DE]
WATER PUMP
Revision: 2006 January2006 M35/M45
WATE R PU M PPFP:21020
ComponentsNBS004R1
Removal and InstallationNBS004R2
CAUTION:
When removing water pump assembly, be careful not to get engine coolant on drive belts.
Water pump cannot be disassembled and should be replaced as a unit.
After installing water pump, connect hose and clamp securely, then check for leaks using the radi-
ator cap tester (commercial service tool) and the radiator cap tester adapter [SST: EG17650301
(J33984-A)].
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
3. Remove front engine undercover with power tool.
4. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
5. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
6. Remove water drain plug (front) on water pump side of cylinder
block to drain engine coolant from engine inside.
7. Remove chain tensioner cover and water pump cover from front timing chain case.
1. Timing chain tensioner (primary) 2. Chain tensioner cover 3. Water pump cover
4. Water pump 5. O-rings 6. Water drain plug (front)
SBIA0482E
PBIC2662E
Page 1400 of 5621
![INFINITI M35 2006 Factory Service Manual WATER PUMP
CO-25
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 )] to cut liquid gasket for r INFINITI M35 2006 Factory Service Manual WATER PUMP
CO-25
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 )] to cut liquid gasket for r](/manual-img/42/57023/w960_57023-1399.png)
WATER PUMP
CO-25
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45

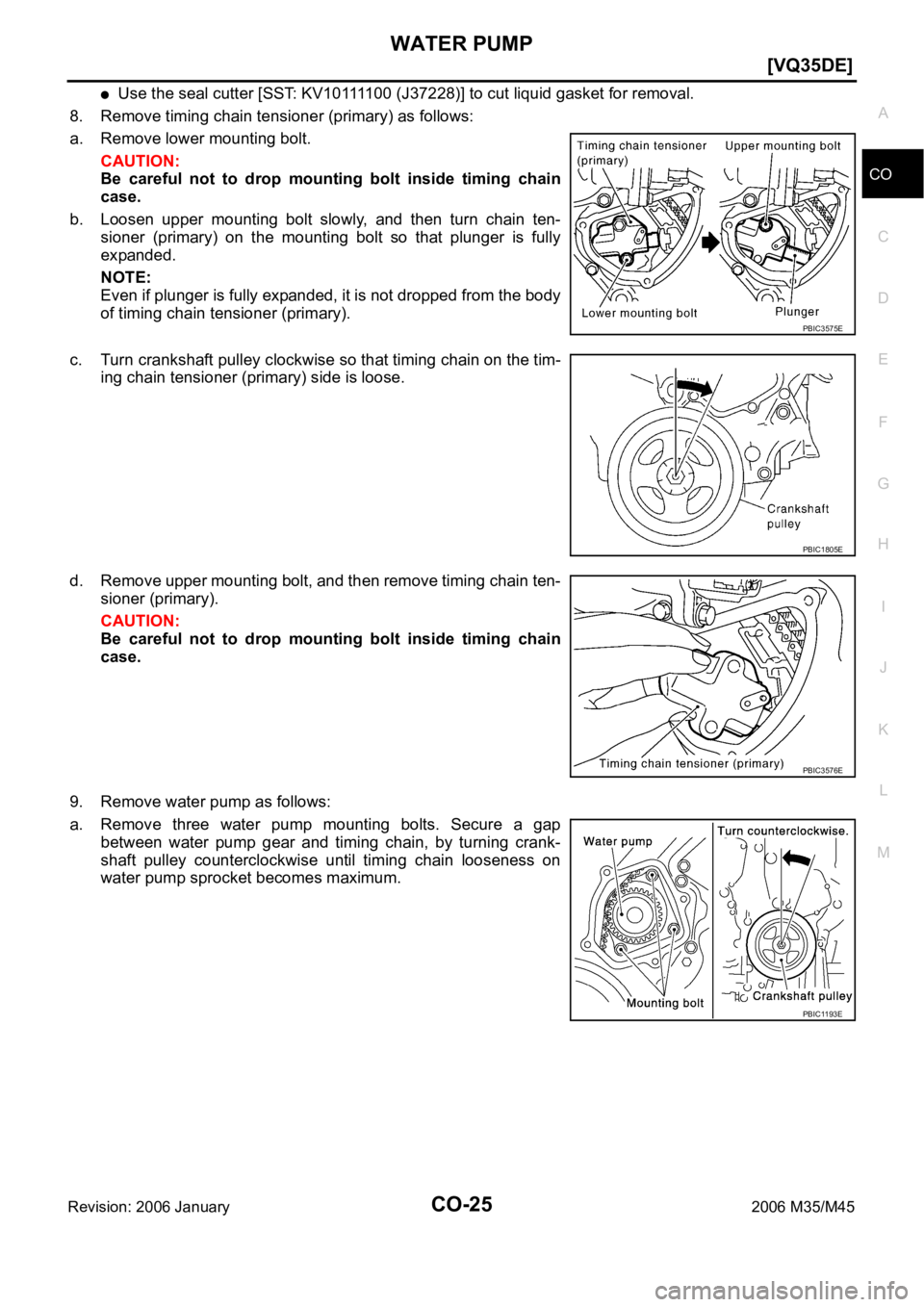

U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 )] to cut liquid gasket for removal.
8. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
b. Loosen upper mounting bolt slowly, and then turn chain ten-
sioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Turn crankshaft pulley clockwise so that timing chain on the tim-
ing chain tensioner (primary) side is loose.
d. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
9. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap
between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.
PBIC3575E
PBIC1805E
PBIC3576E
PBIC1193E
