Page 3809 of 5621

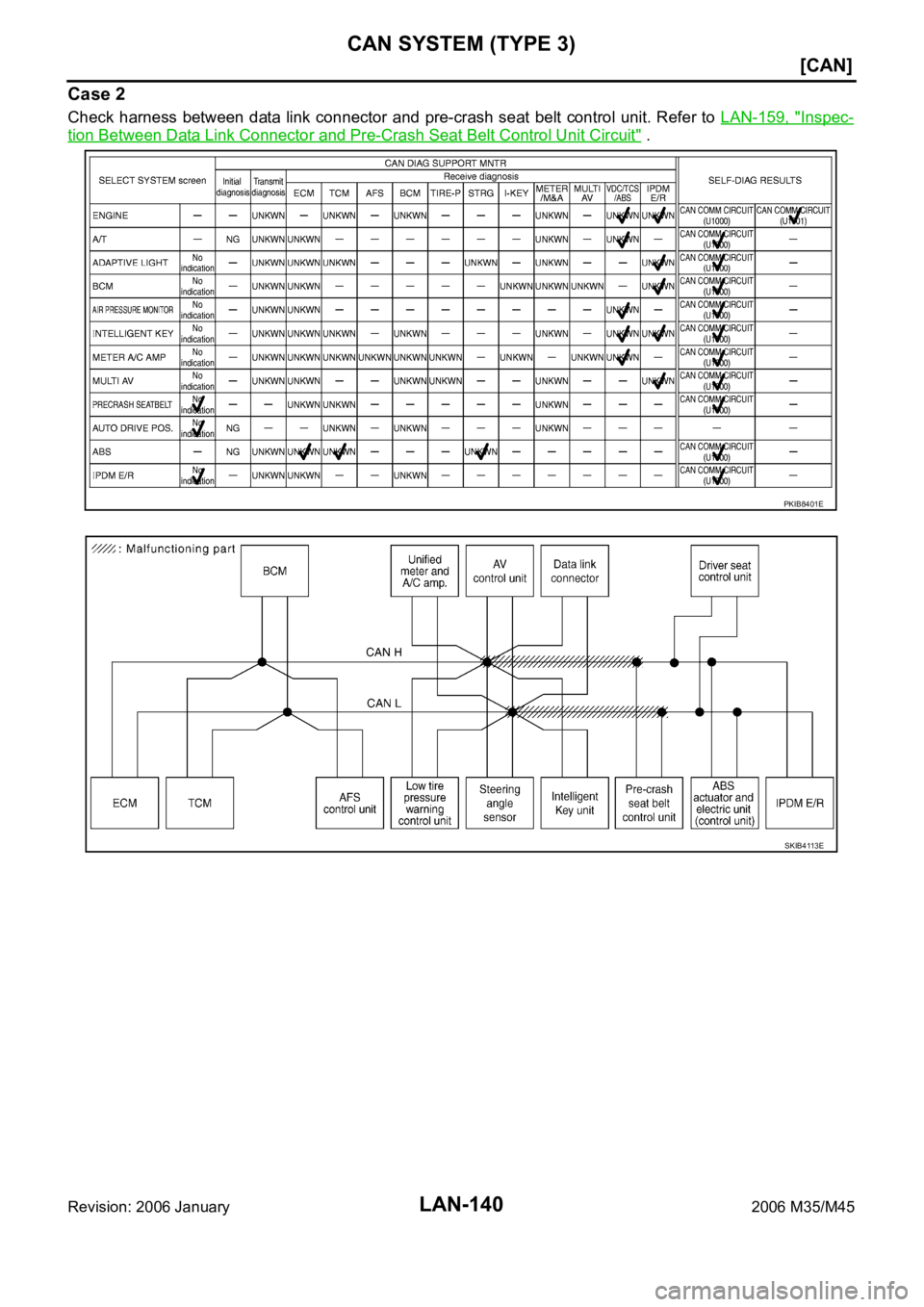

INFINITI M35 2006 Factory Service Manual LAN-140 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and pre-crash seat belt control unit. Refer to LAN-159, "Inspec- tion Betwee

Page 3810 of 5621

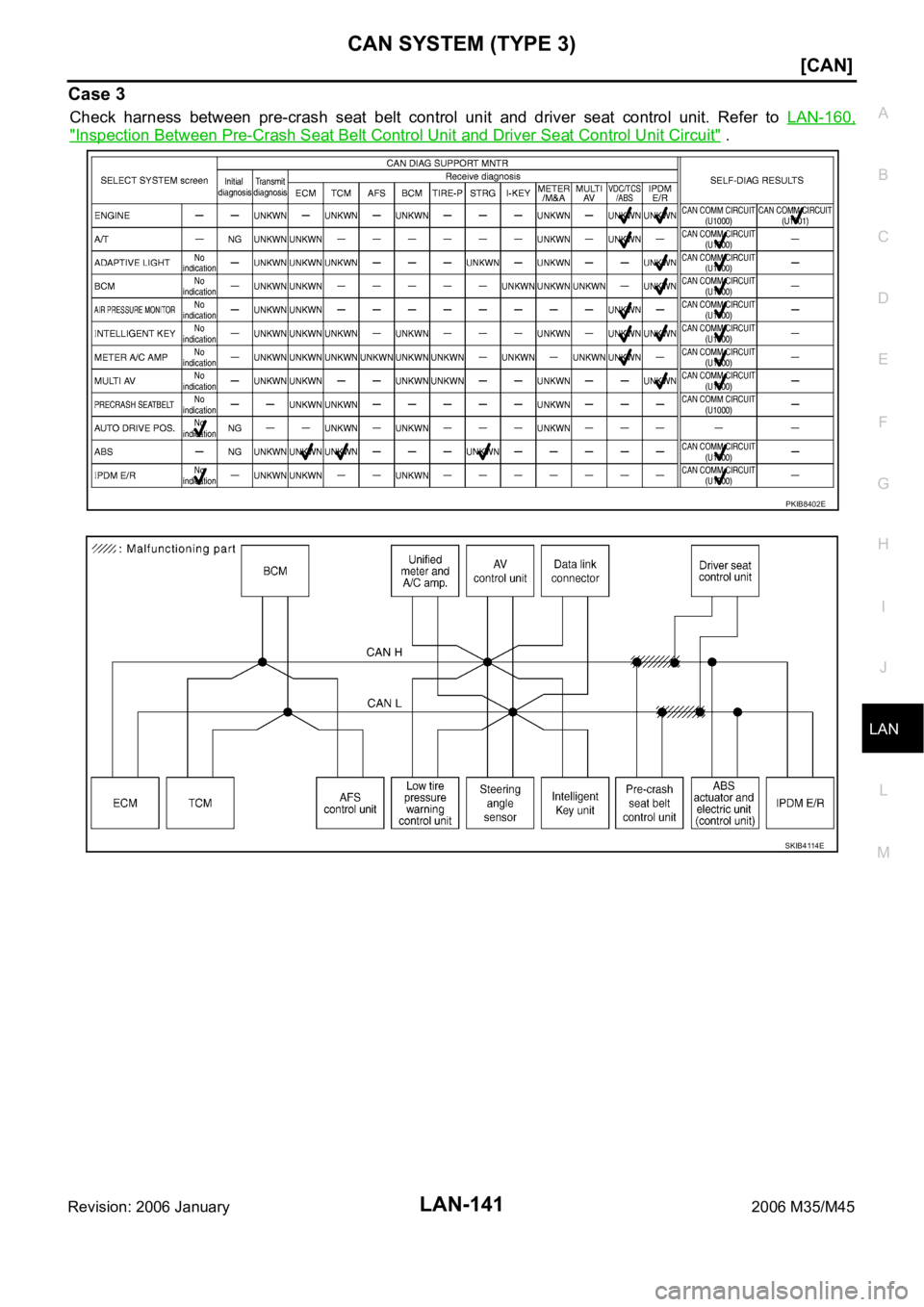

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-141 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 3 Check harness between pre-crash seat belt control unit and driver seat control unit.

Page 3811 of 5621

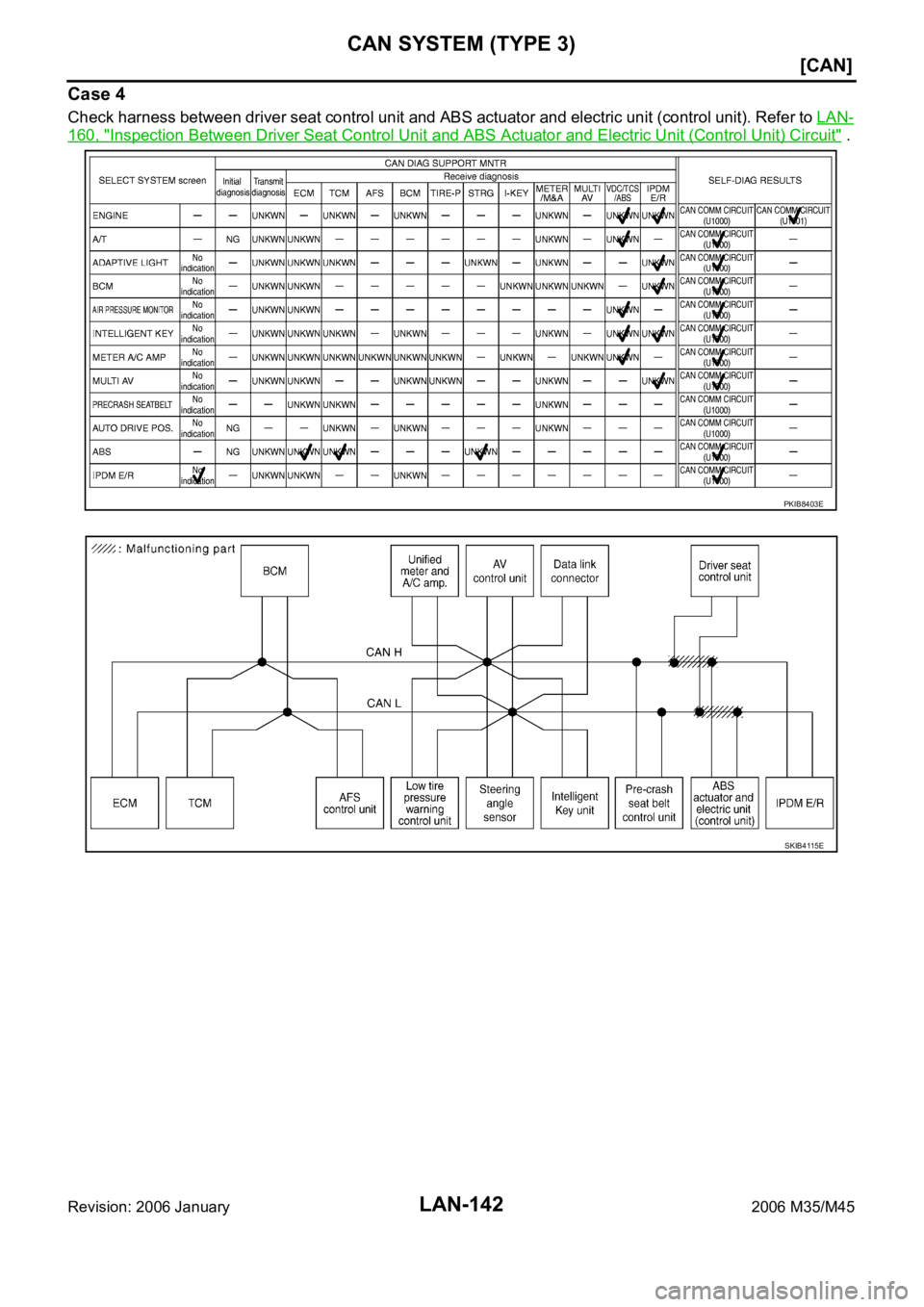

INFINITI M35 2006 Factory Service Manual LAN-142 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Case 4 Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN- 160, "In

Page 3812 of 5621

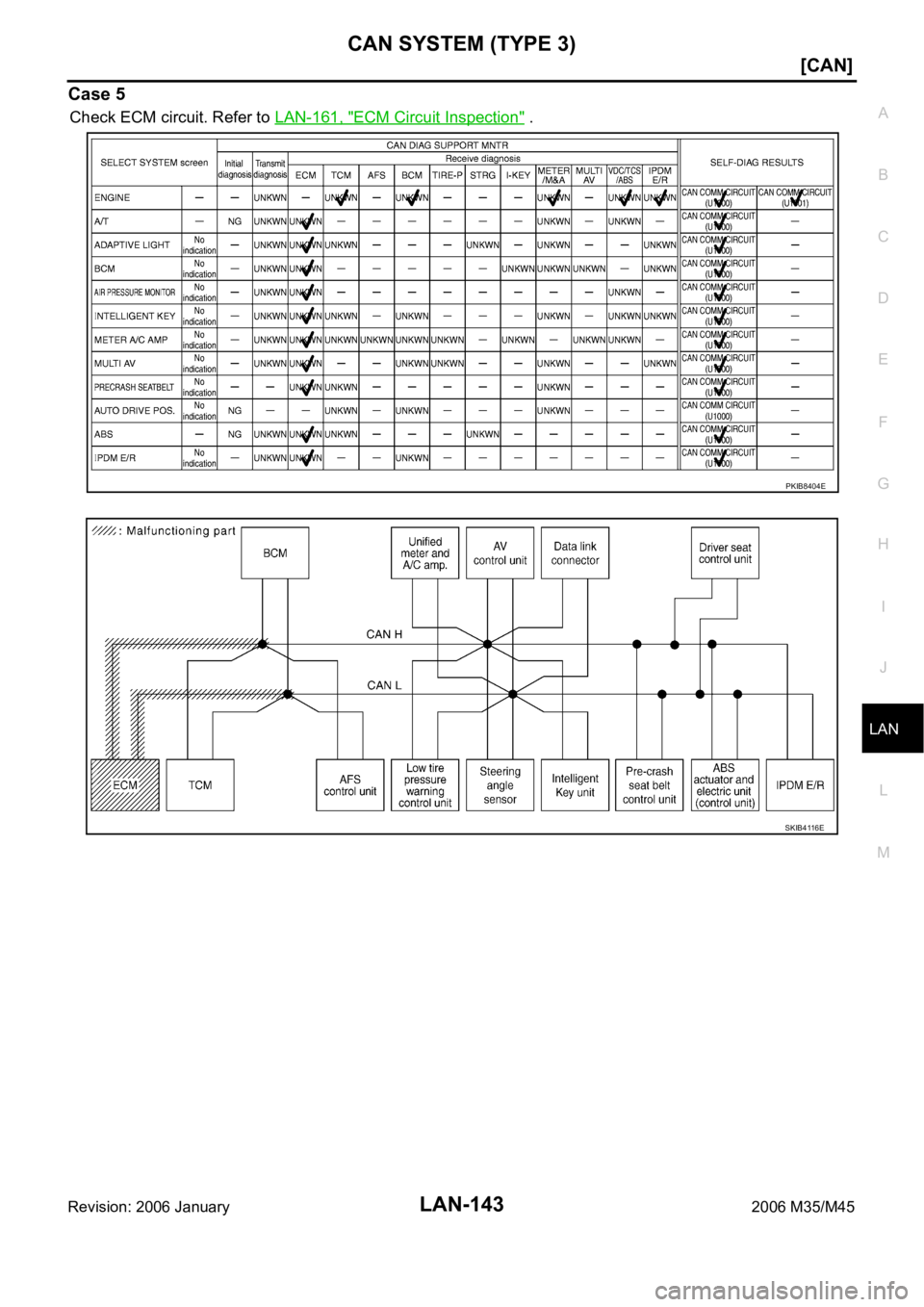

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-143 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 5 Check ECM circuit. Refer to LAN-161, "ECM Circuit Inspection" . PKIB8404E SKIB4116E

Page 3813 of 5621

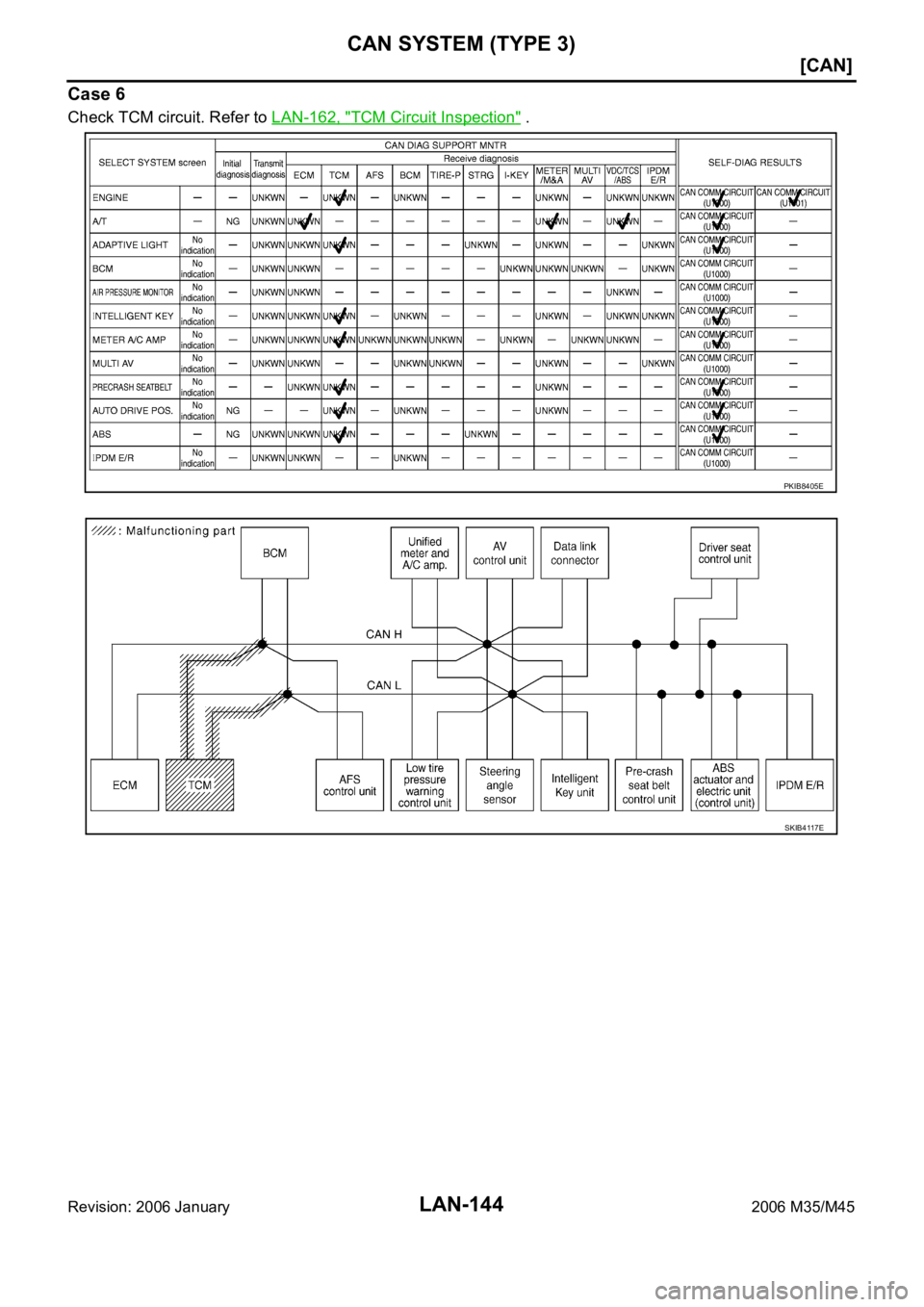

INFINITI M35 2006 Factory Service Manual LAN-144 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Case 6 Check TCM circuit. Refer to LAN-162, "TCM Circuit Inspection" . PKIB8405E SKIB4117E

Page 3814 of 5621

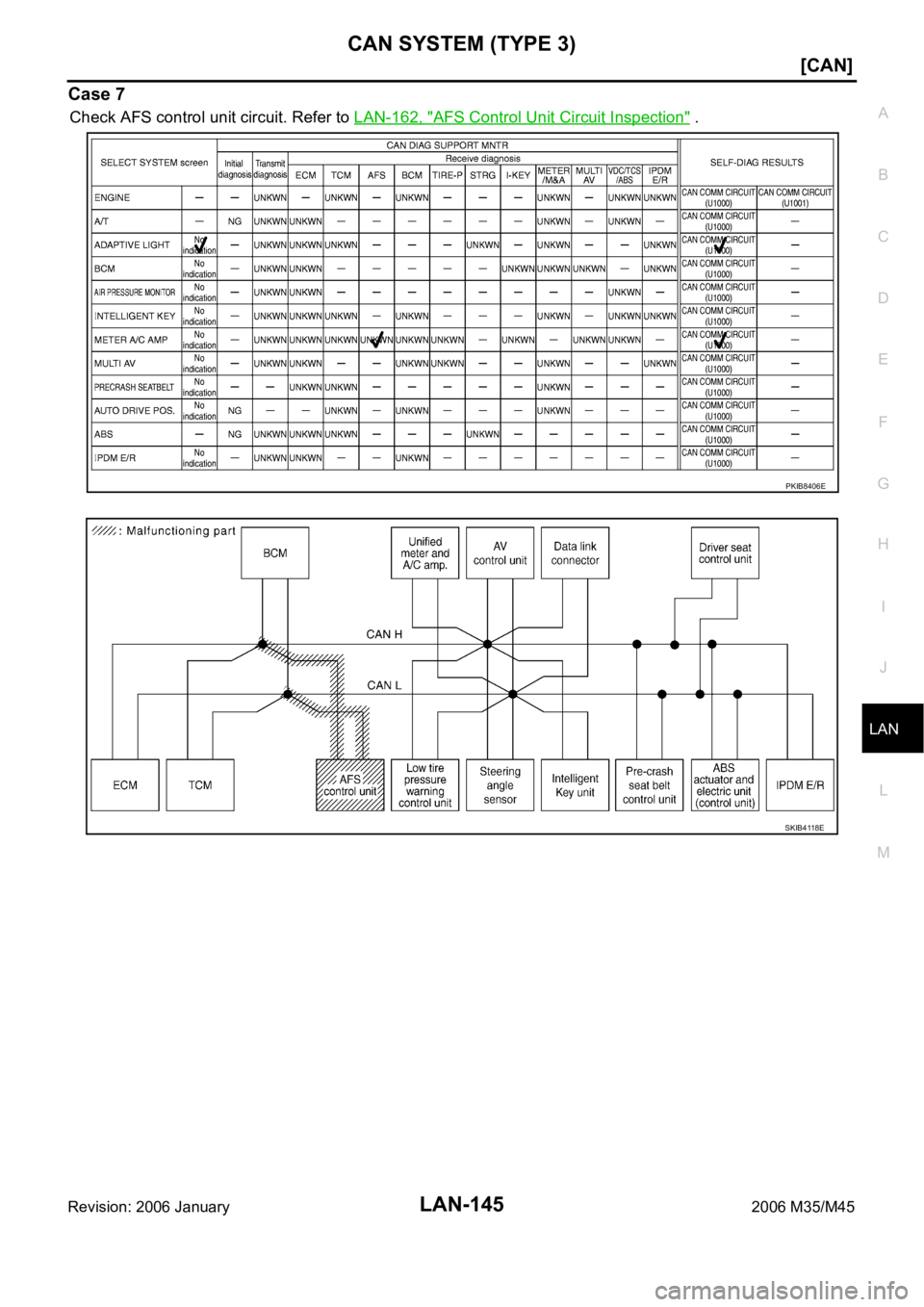

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-145 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 7 Check AFS control unit circuit. Refer to LAN-162, "AFS Control Unit Circuit Inspection" .

Page 3815 of 5621

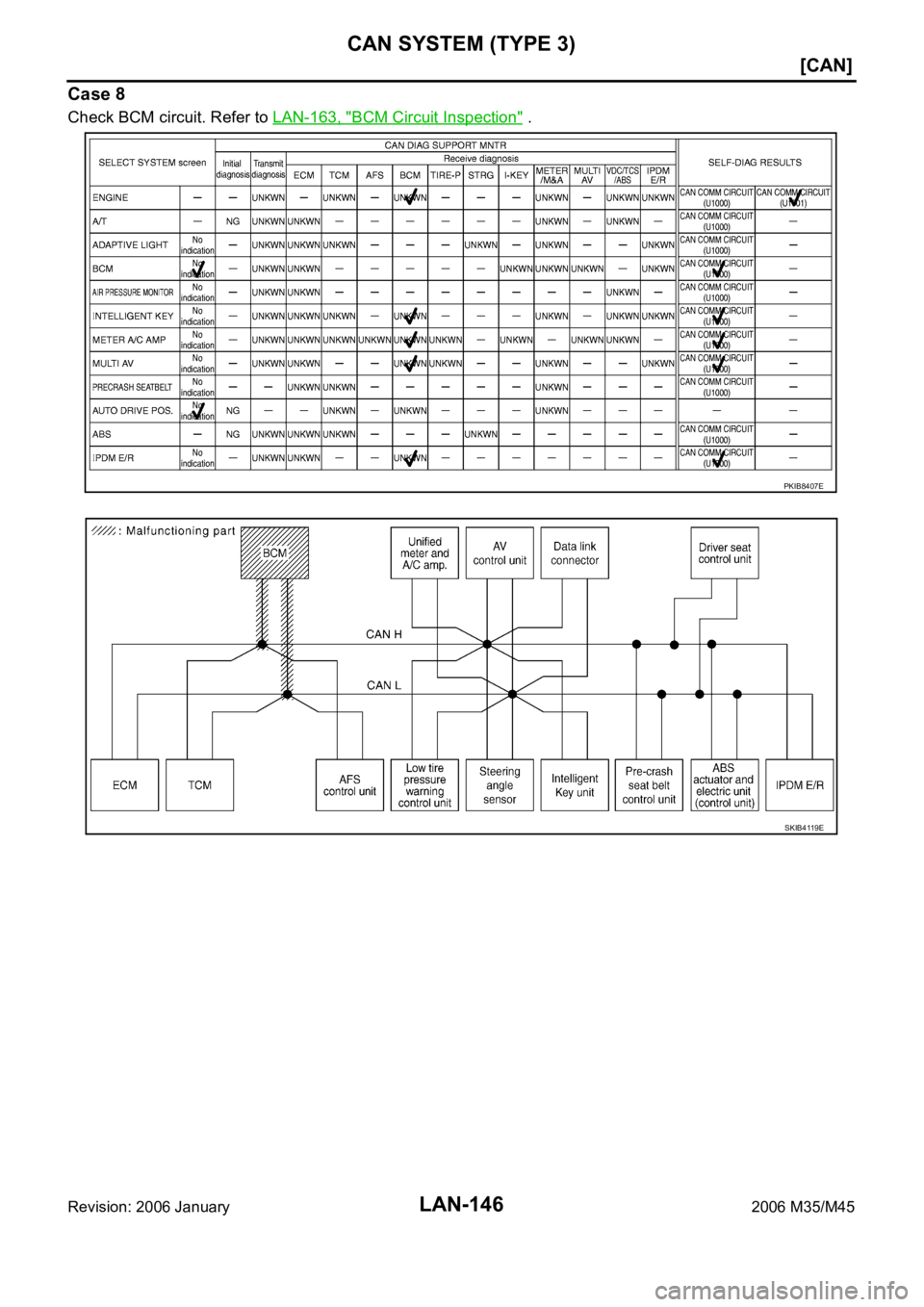

INFINITI M35 2006 Factory Service Manual LAN-146 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Case 8 Check BCM circuit. Refer to LAN-163, "BCM Circuit Inspection" . PKIB8407E SKIB4119E

Page 3816 of 5621

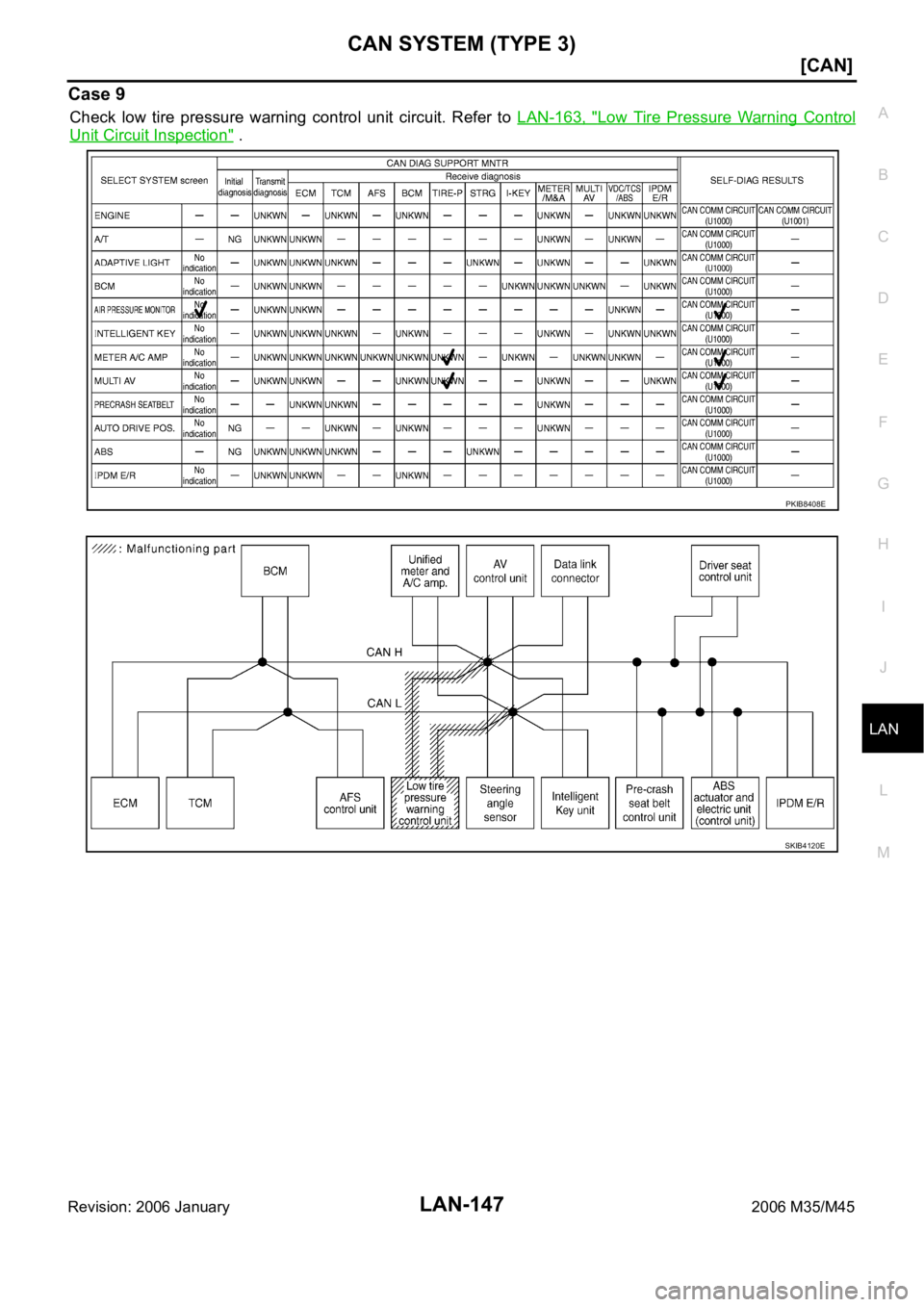

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-147 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 9 Check low tire pressure warning control unit circuit. Refer to LAN-163, "Low Tire
