Page 4041 of 5621

INFINITI M35 2006 Factory Service Manual LAN-372 [CAN] CAN SYSTEM (TYPE 8) Revision: 2006 January2006 M35/M45 TKWT3284E

Page 4042 of 5621

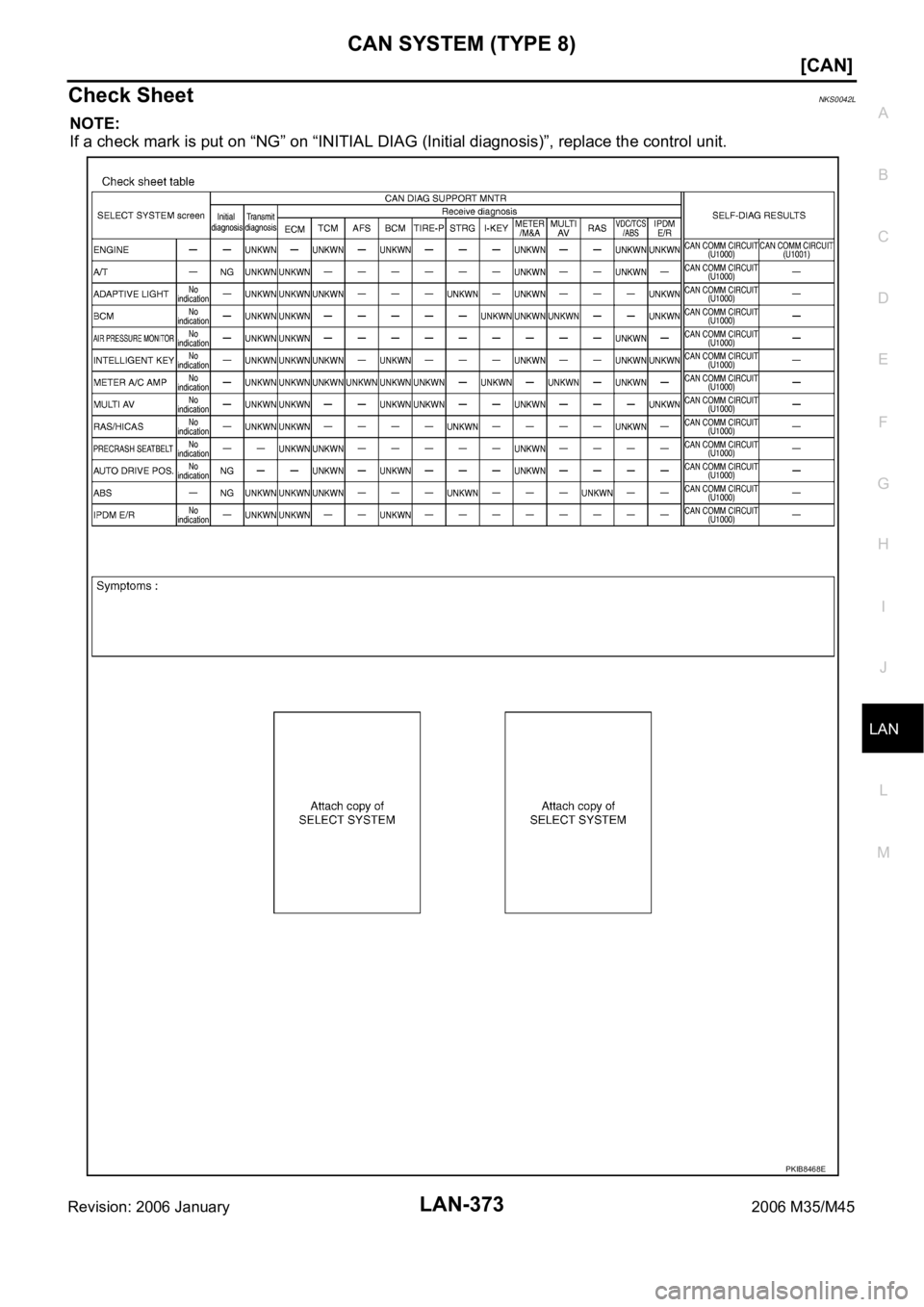

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 8) LAN-373 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Check SheetNKS0042L NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”,

Page 4043 of 5621

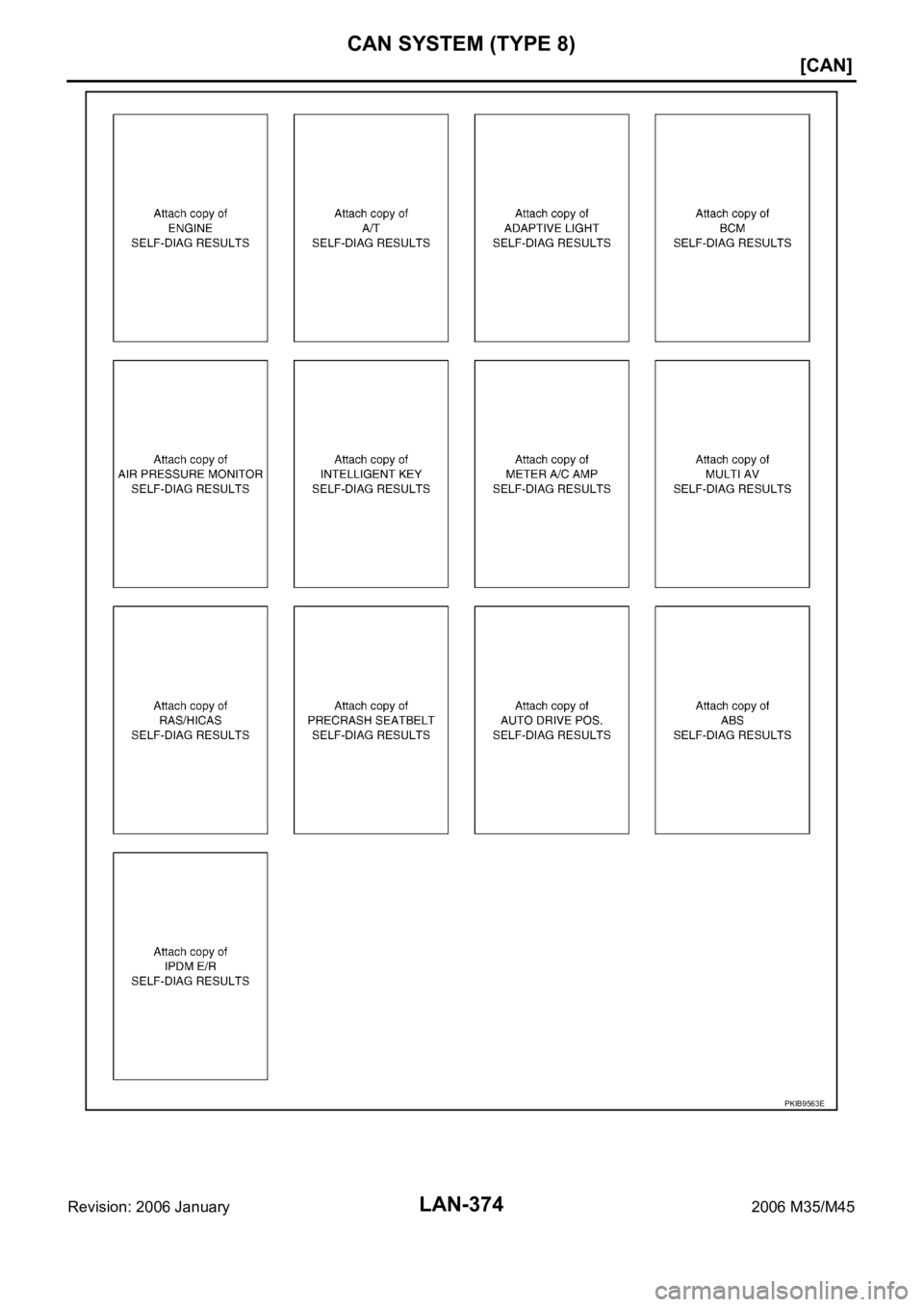

INFINITI M35 2006 Factory Service Manual LAN-374 [CAN] CAN SYSTEM (TYPE 8) Revision: 2006 January2006 M35/M45 PKIB9563E

Page 4044 of 5621

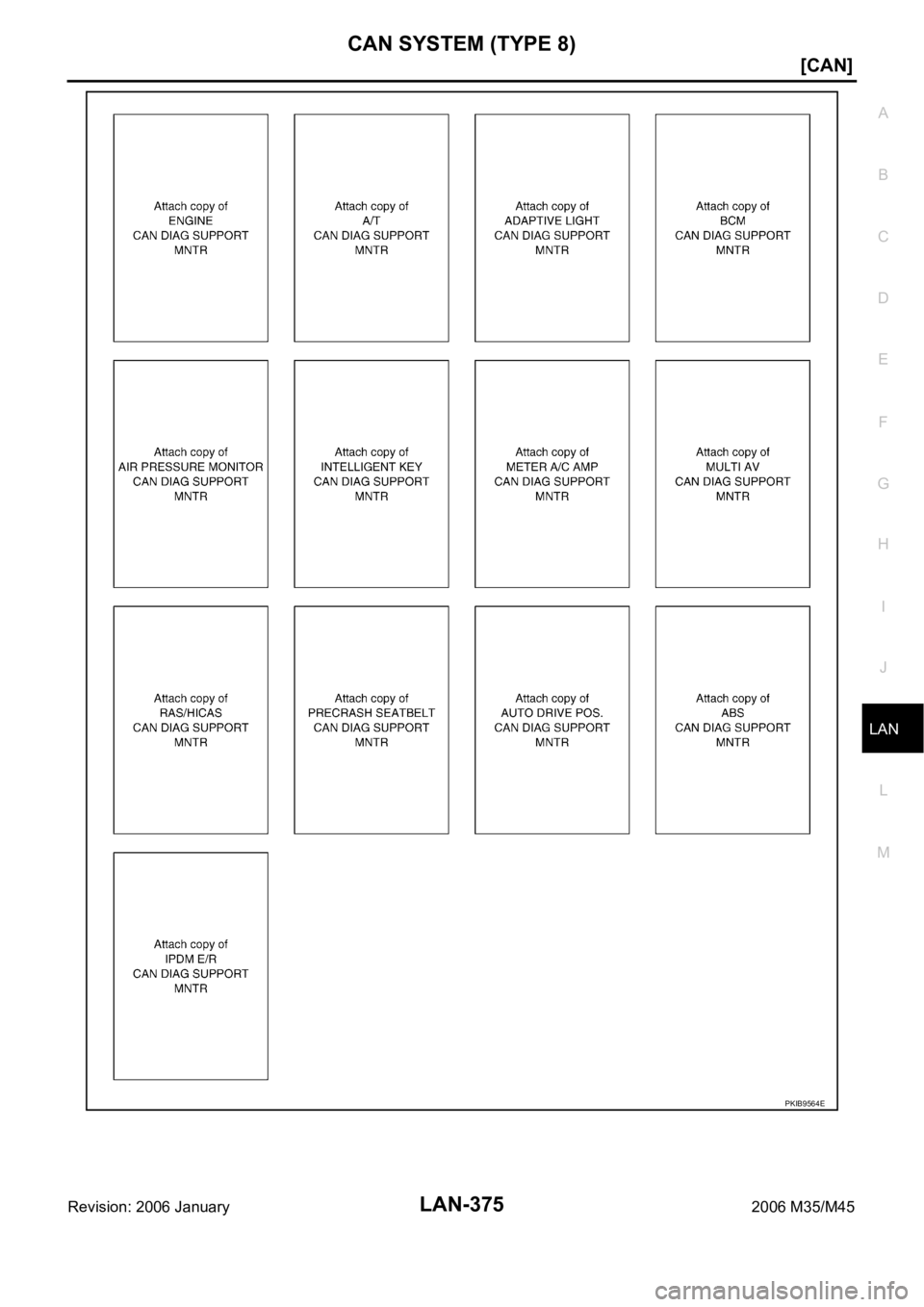

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 8) LAN-375 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9564E

Page 4045 of 5621

INFINITI M35 2006 Factory Service Manual LAN-376 [CAN] CAN SYSTEM (TYPE 8) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the contr

Page 4046 of 5621

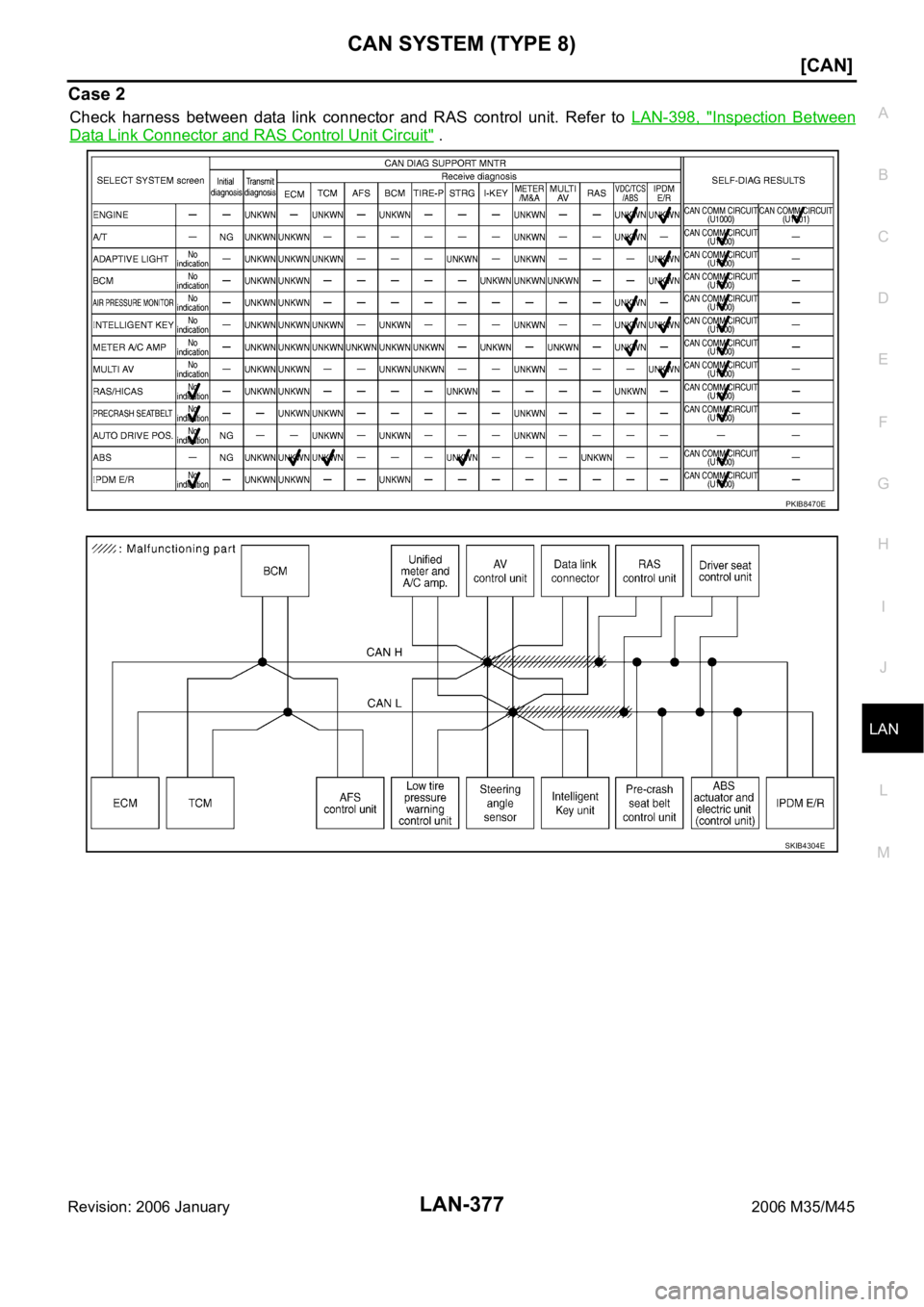

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 8) LAN-377 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and RAS control unit. Refer to LAN-398, "

Page 4047 of 5621

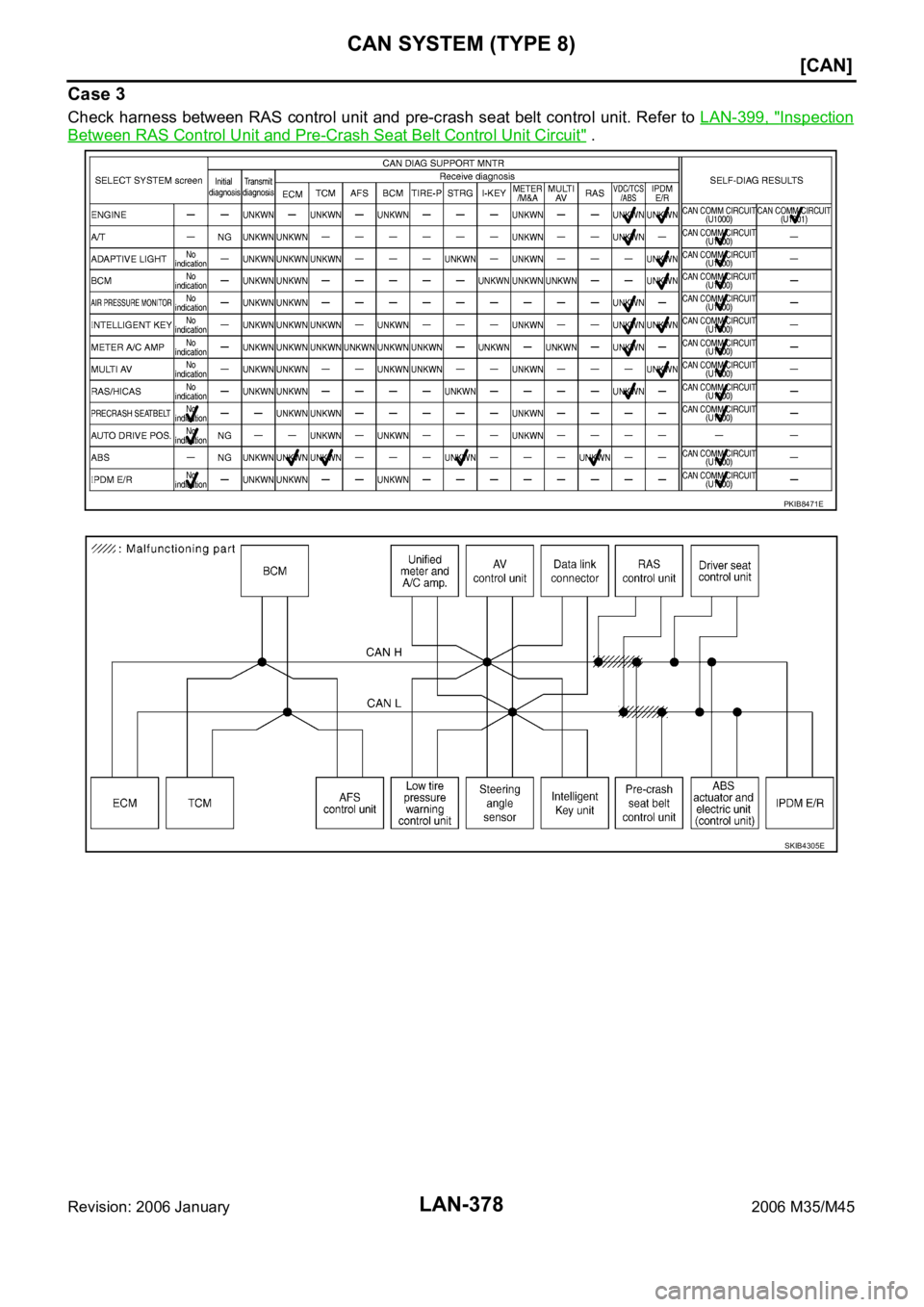

INFINITI M35 2006 Factory Service Manual LAN-378 [CAN] CAN SYSTEM (TYPE 8) Revision: 2006 January2006 M35/M45 Case 3 Check harness between RAS control unit and pre-crash seat belt control unit. Refer to LAN-399, "Inspection Between RAS

Page 4048 of 5621

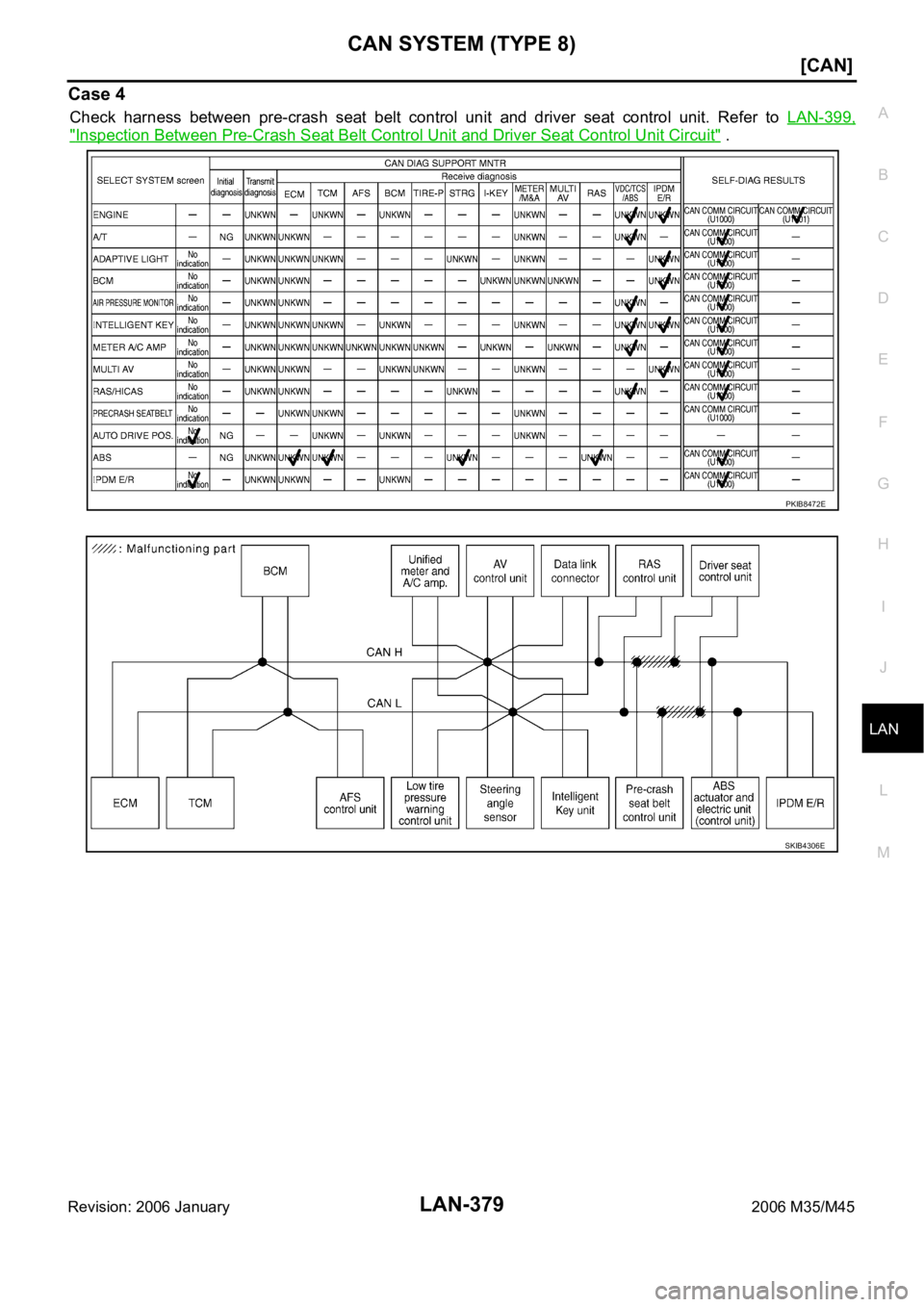

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 8) LAN-379 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between pre-crash seat belt control unit and driver seat control unit.
