Page 4681 of 5621

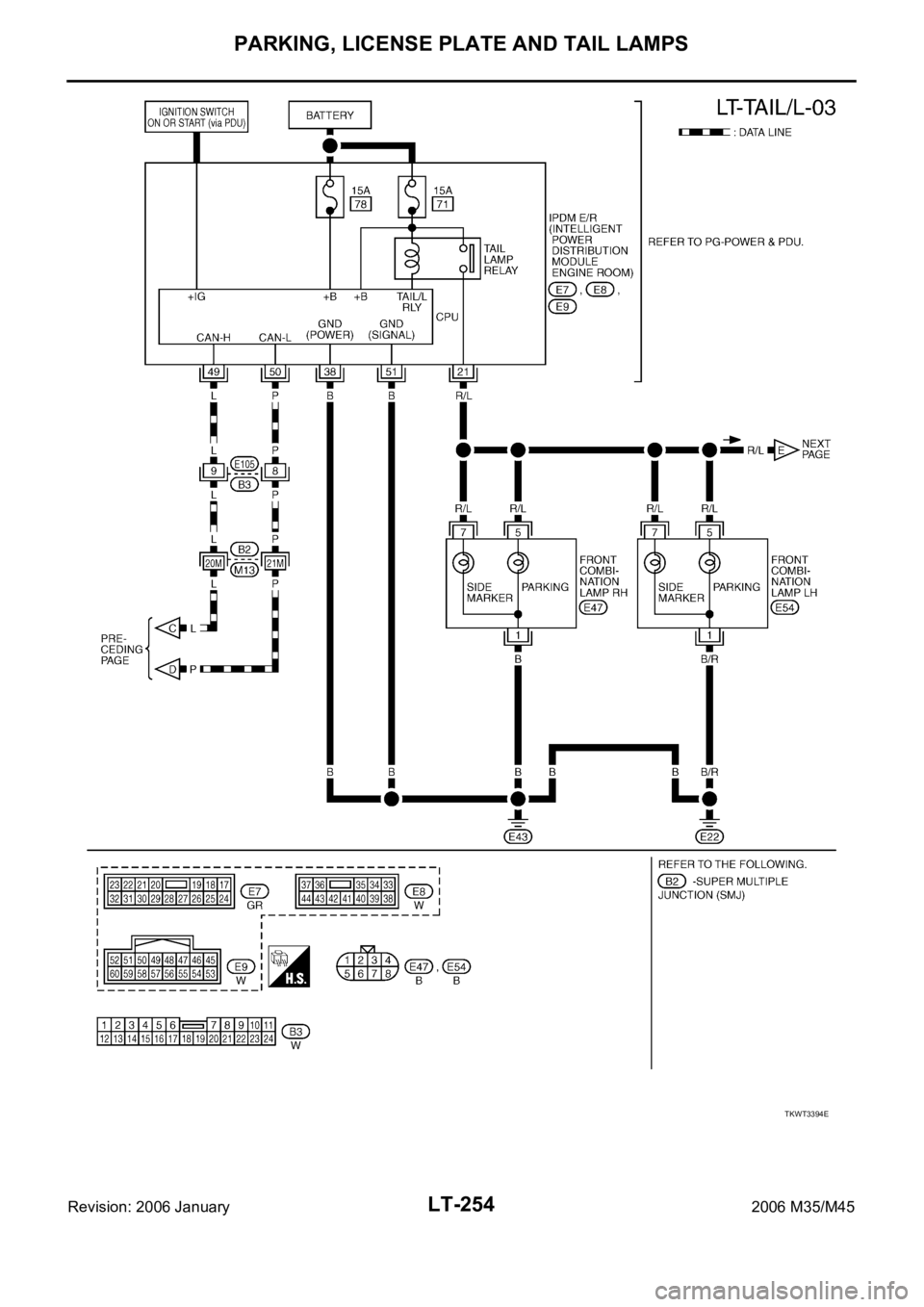

INFINITI M35 2006 Factory Service Manual LT-254 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 January2006 M35/M45 TKWT3394E

Page 4682 of 5621

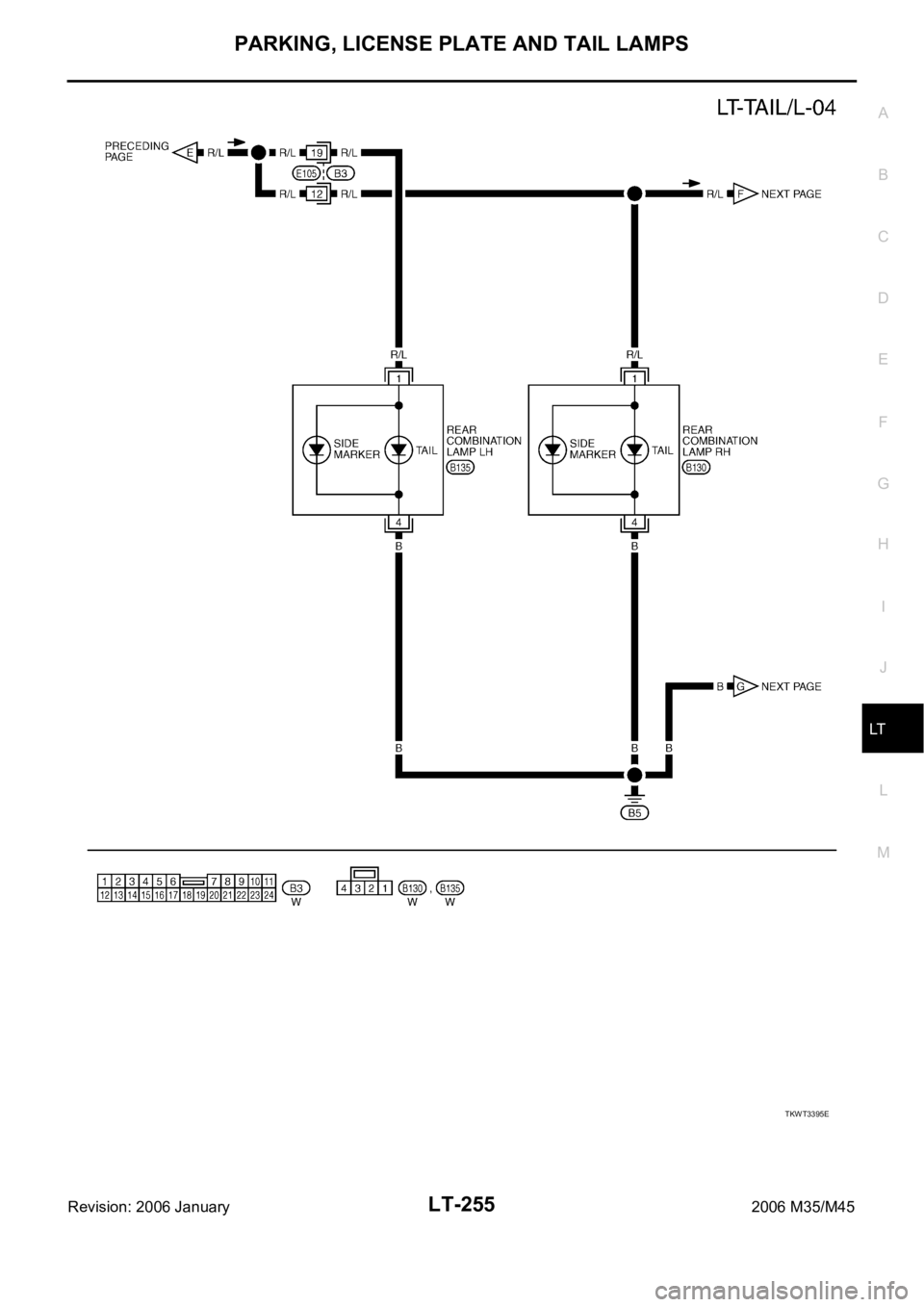

INFINITI M35 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-255 C D E F G H I J L MA B LT Revision: 2006 January2006 M35/M45 TKWT3395E

Page 4683 of 5621

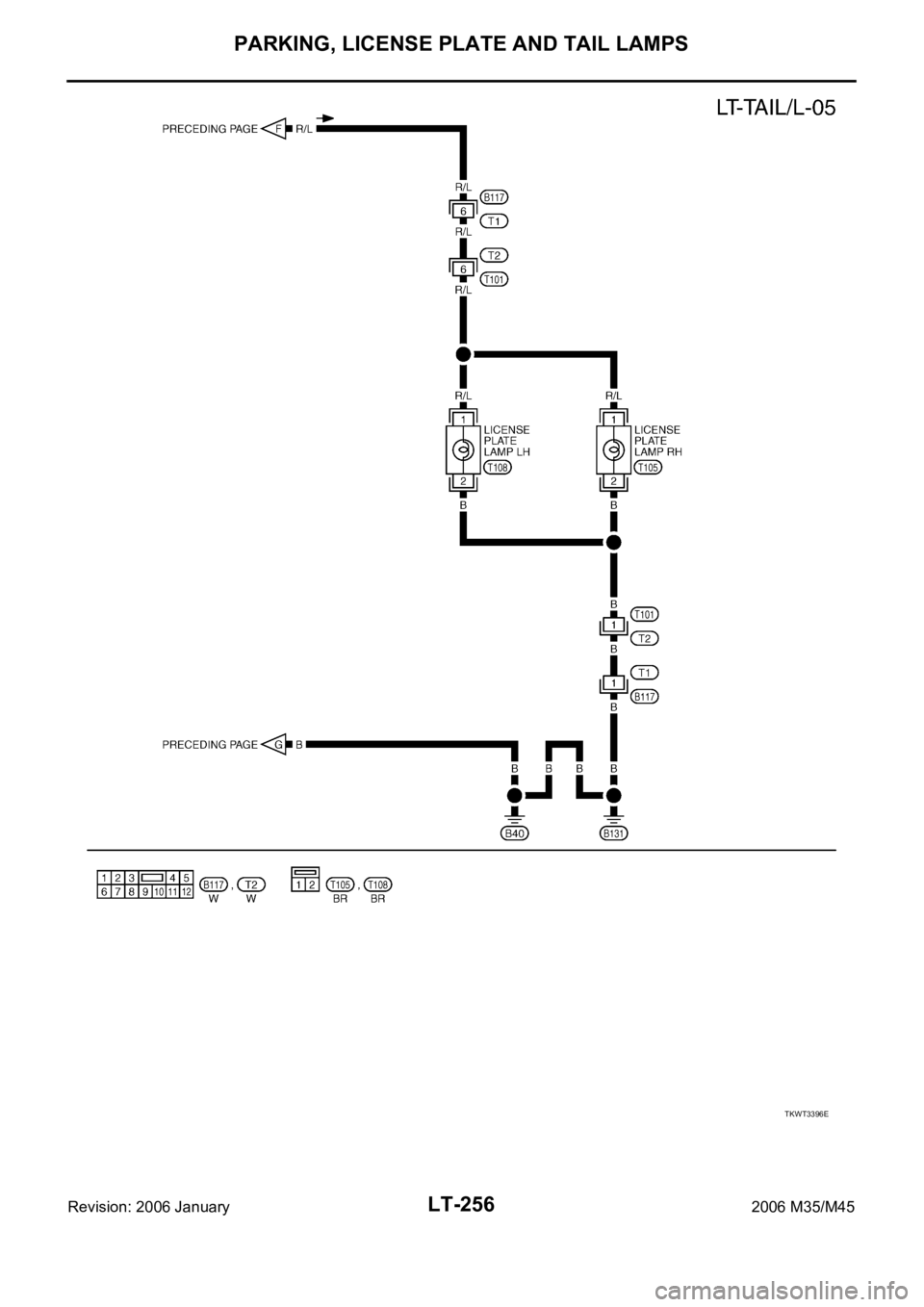

INFINITI M35 2006 Factory Service Manual LT-256 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 January2006 M35/M45 TKWT3396E

Page 4684 of 5621

INFINITI M35 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-257 C D E F G H I J L MA B LT Revision: 2006 January2006 M35/M45 Terminals and Reference Values for BCMNKS003SN CAUTION: Check combination switch system te

Page 4685 of 5621

INFINITI M35 2006 Factory Service Manual LT-258 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 January2006 M35/M45 Terminals and Reference Values for IPDM E/RNKS003SO How to Perform Trouble DiagnosesNKS003SP 1. Confirm the symptom or c

Page 4686 of 5621

INFINITI M35 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-259 C D E F G H I J L MA B LT Revision: 2006 January2006 M35/M45 2. CHECK POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM connector. 3. Ch

Page 4687 of 5621

INFINITI M35 2006 Factory Service Manual LT-260 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 January2006 M35/M45 Parking, License Plate and Tail Lamps Do Not IlluminateNKS003ST 1. CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-I

Page 4688 of 5621

INFINITI M35 2006 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-261 C D E F G H I J L MA B LT Revision: 2006 January2006 M35/M45 4. CHECK INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect front combin
