3. CHECK SEATBACK THERMAL ELECTRIC DEVICE SENSOR
Check resistance between seatback thermal electric device connec-
tor.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace seatback thermal electric device.
Climate Controlled Seat Blower Motor Circuit InspectionNIS0027Y
1. CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat control unit and climate controlled seat blower motor connector.
3. Check continuity between climate controlled seat control unit
connector and climate controlled seat blower motor connector.
4. Check continuity between climate controlled seat control unit connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between climate controlled seat control unit and climate controlled seat
blower motor.
Seatback thermal electric
device connectorTe r m i n a l Resistance
(K)
(Approx.)
B220
(driver side)
B258
(passenger side)12 2
PIIB6086E
AB
Continuity Climate
controlled seat
control unit
connectorTe r m i n a lClimate controlled
seat blower motor
connectorTerminal
B283
(driver side)
B293
(passenger side)7
B282
(driver side)
B292
(passenger side)3
Ye s 14 2
17 4
18 1
A
GroundContinuity
Climate controlled seat
control unit connectorTerminal
B283
(driver side)
B293
(passenger side)7
No 14
17
18
PIIB6089E
Page 5322 of 5621

CLIMATE CONTROLLED SEAT
SE-141
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
2. CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR POWER SUPPLY CIRCUIT
1. Connect climate controlled seat control unit connector and blower motor connector.
2. Turn ignition switch ON.
3. Check voltage between climate controlled seat control unit con-
nector and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace climate controlled seat control unit.
3. CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR SPEED CONTROL SIGNAL CIRCUIT
Check voltage between climate controlled seat control unit connec-
tor and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace climate controlled seat control unit.
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Climate
controlled
seat control unit
connectorTerminal
B283
(driver side)
B293
(passenger
side)14 GroundClimate
controlled
seat switchHEAT or
COOL5.5 -
Battery voltage
Other than above. 0
PIIB6090E
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Climate
controlled
seat control
unit connectorTerminal
B283
(driver side)
B293
(passenger
side)17 GroundClimate
controlled
seat switchHEAT or
COOL4.5 - 8.0
Other than above. 0
PIIB6091E
Page 5323 of 5621
SE-142
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
4. CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR TACHOMETER SIGNAL CIRCUIT
Check voltage between climate controlled seat control unit connec-
tor and ground.
OK or NG
OK >> Climate controlled seat blower motor circuit is OK.
NG >> Replace climate controlled seat blower motor.
Climate Controlled Seat Control Unit InspectionNIS0027Z
1. CHECK THE CLIMATE CONTROLLED SEAT CONTROL UNIT
Does the heater operate normally when the driver side or passenger side climate controlled seat control unit is
exchanged?
YES or NO
YES >> Climate controlled seat control unit is OK.
NO >> Replace climate controlled seat control unit.
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Climate
controlled
seat control
unit connectorTerminal
B283
(driver side)
B293
(passenger
side)18 GroundClimate
controlled
seat switchHEAT or
COOL4.5 - 8.0
Other than above. 0
PIIB6092E
Page 5324 of 5621

HEATED SEAT
SE-143
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
HEATED SEATPFP:87335

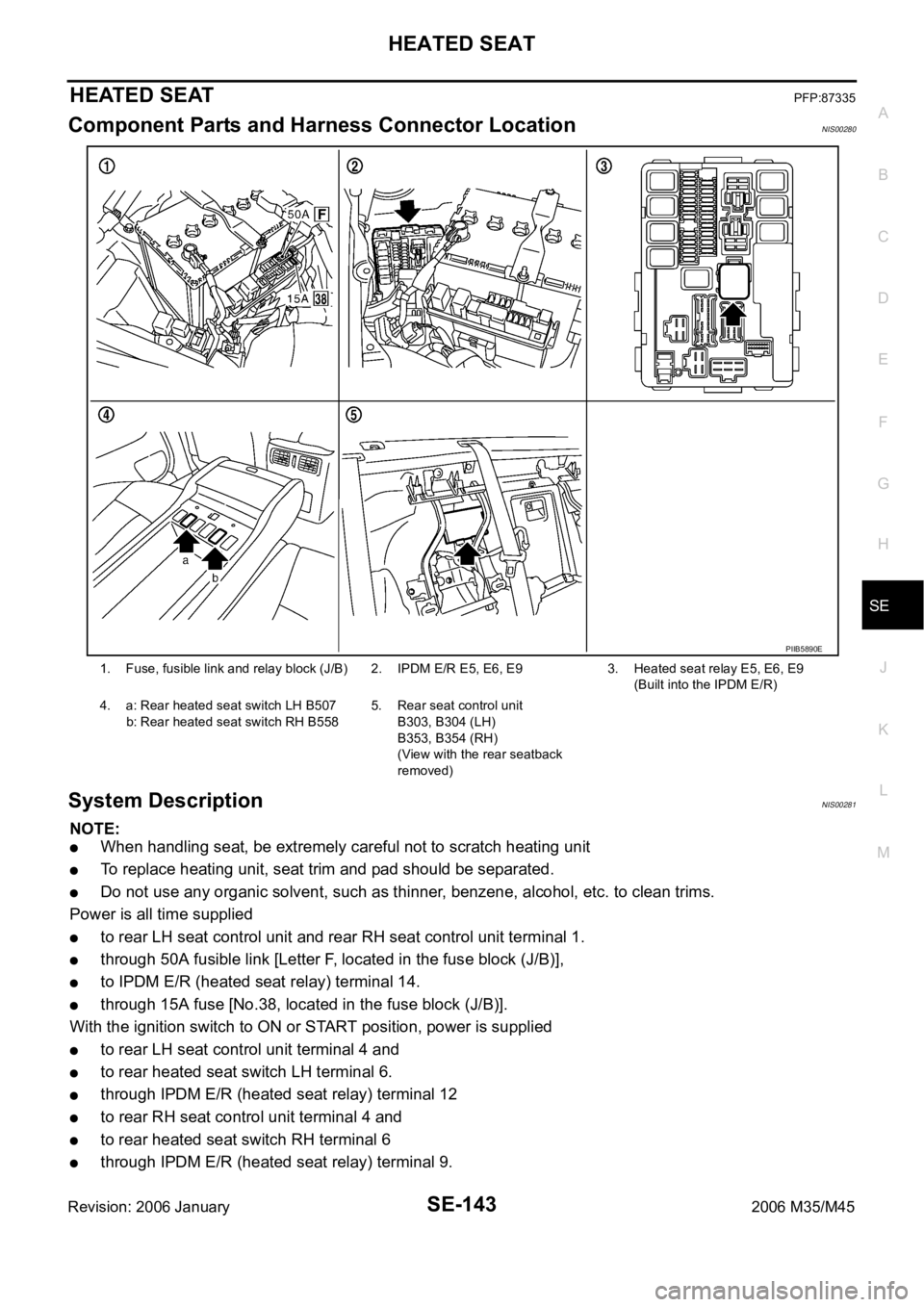

Component Parts and Harness Connector LocationNIS00280
System Description NIS00281
NOTE:
When handling seat, be extremely careful not to scratch heating unit
To replace heating unit, seat trim and pad should be separated.
Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.
Power is all time supplied
to rear LH seat control unit and rear RH seat control unit terminal 1.
through 50A fusible link [Letter F, located in the fuse block (J/B)],
to IPDM E/R (heated seat relay) terminal 14.
through 15A fuse [No.38, located in the fuse block (J/B)].
With the ignition switch to ON or START position, power is supplied
to rear LH seat control unit terminal 4 and
to rear heated seat switch LH terminal 6.
through IPDM E/R (heated seat relay) terminal 12
to rear RH seat control unit terminal 4 and
to rear heated seat switch RH terminal 6
through IPDM E/R (heated seat relay) terminal 9.
1. Fuse, fusible link and relay block (J/B) 2. IPDM E/R E5, E6, E93. Heated seat relay E5, E6, E9
(Built into the IPDM E/R)
4. a: Rear heated seat switch LH B507
b: Rear heated seat switch RH B5585. Rear seat control unit
B303, B304 (LH)
B353, B354 (RH)
(View with the rear seatback
removed)
PIIB5890E
Page 5325 of 5621

SE-144
HEATED SEAT
Revision: 2006 January2006 M35/M45
When rear heated seat switch (LH, RH) is LOW position, ground is suppled
to rear seat control unit terminal 18,
through rear heated seat switch terminal 2,
through rear heated seat switch terminal 3,
through body grounds B5, B40 and B131
Then rear seat control unit recognizes that rear heated seat switch is LOW position.
When rear heated seat switch is LOW position, power is supplied
through rear seat control unit terminal 6,
through rear seat cushion heater terminal 2,
through rear seat cushion heater terminal 3,
to rear seatback heater terminal 1.
Then ground is suppled
to rear seatback heater terminal 2.
through body grounds B5, B40 and B131.
With power and ground supplied, rear heated seat is operated.
When rear heated seat switch is in LOW position, ground is supplied
to rear heated seat switch terminal 5,
through rear seat control unit terminal 14,
through rear seat control unit terminal 13,
through body grounds B5, B40 and B131.
With power and ground supplied, rear heated seat switch LOW position indicator is illuminated
When rear heated seat switch (LH, RH) is in HIGH position, ground is suppled
to rear seat control unit terminal 17,
through rear heated seat switch terminal 1,
through rear heated seat switch terminal 3,
through body grounds B5, B40 and B131
Then rear seat control unit recognizes that rear heated seat switch is in HIGH position.
When rear heated seat switch is in HIGH position, power is supplied
through rear seat control unit terminal 5,
through rear seat cushion heater terminal 1,
through rear seat cushion heater terminal 3,
to rear seatback heater terminal 1.
Then ground is suppled
to rear seatback heater terminal 2.
through body grounds B5, B40 and B131.
to rear seat cushion heater terminal 2,
through rear seat control unit terminal 6,
through rear seat control unit terminal 8,
through body grounds B5, B40 and B131.
With power and ground supplied, rear heated seat generates heat more than the time of LOW position.
When rear heated seat switch is in HIGH position, ground is supplied
to rear heated seat switch terminal 4,
through rear seat control unit terminal 9,
through rear seat control unit terminal 13,
through body grounds B5, B40 and B131.
With power and ground supplied rear heated seat switch HIGH position indicator is illuminated.
Page 5326 of 5621
HEATED SEAT
SE-145
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

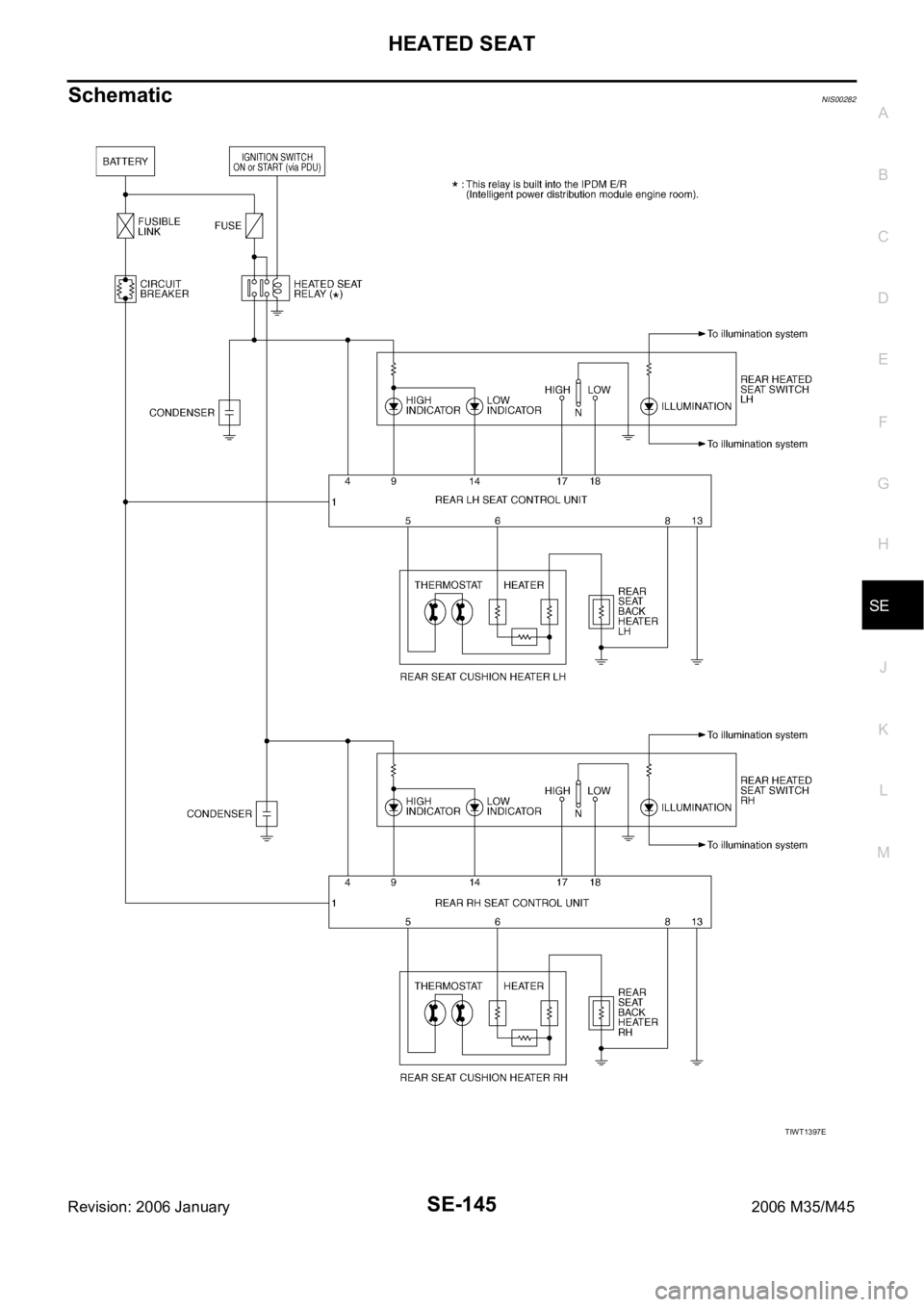

SchematicNIS00282
TIWT1397E
Page 5327 of 5621
SE-146
HEATED SEAT
Revision: 2006 January2006 M35/M45

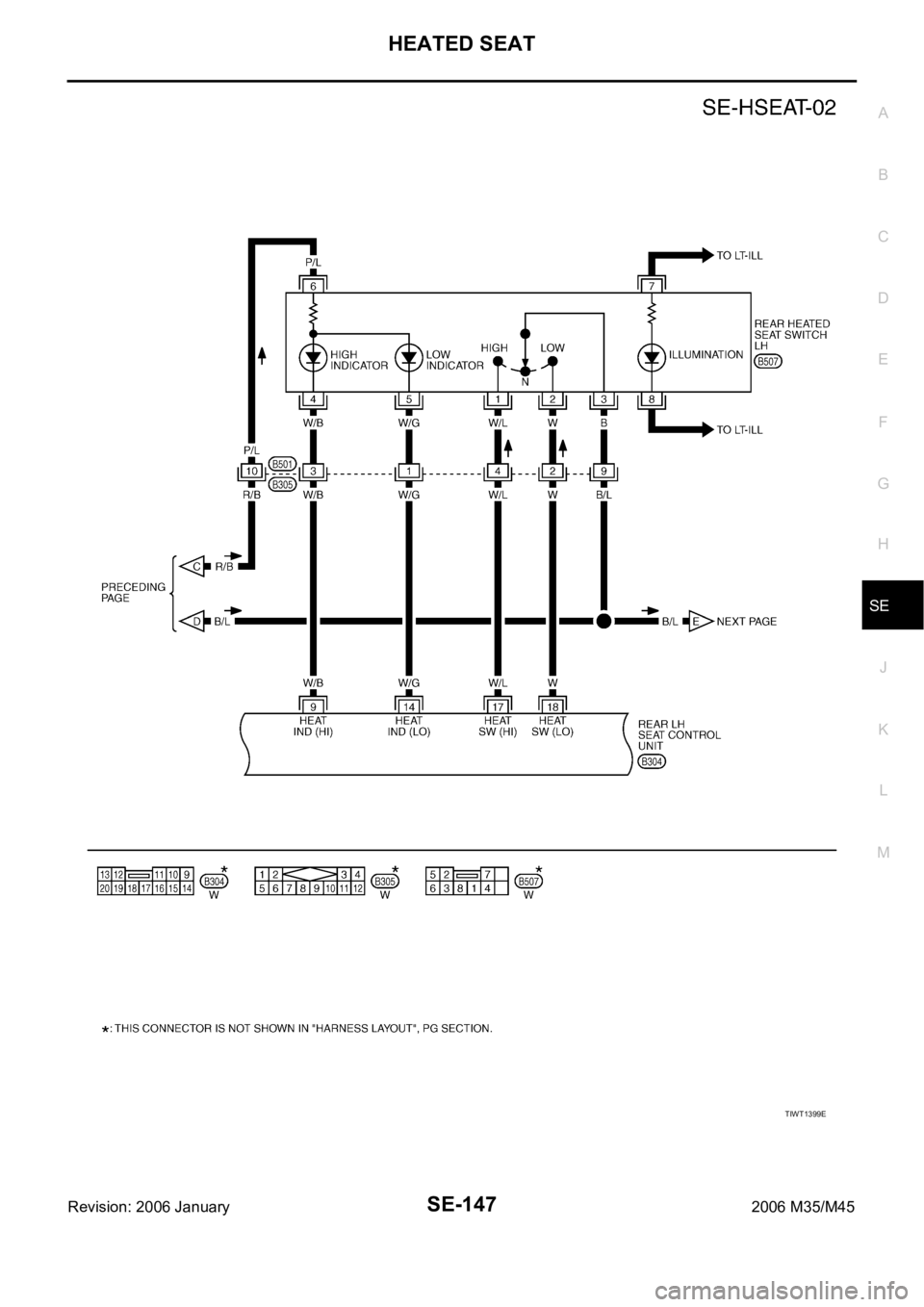

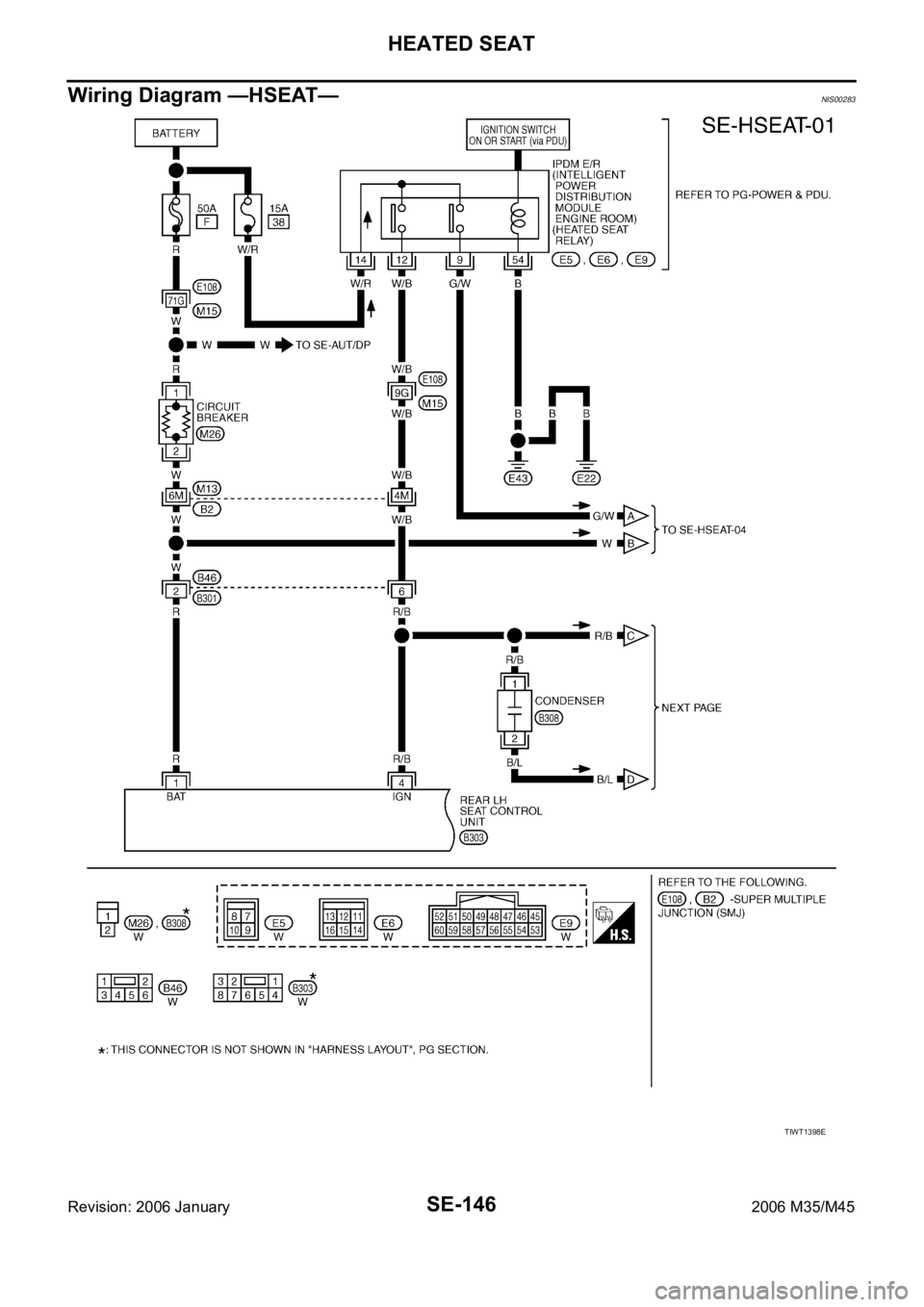

Wiring Diagram —HSEAT—NIS00283
