Page 3801 of 5621

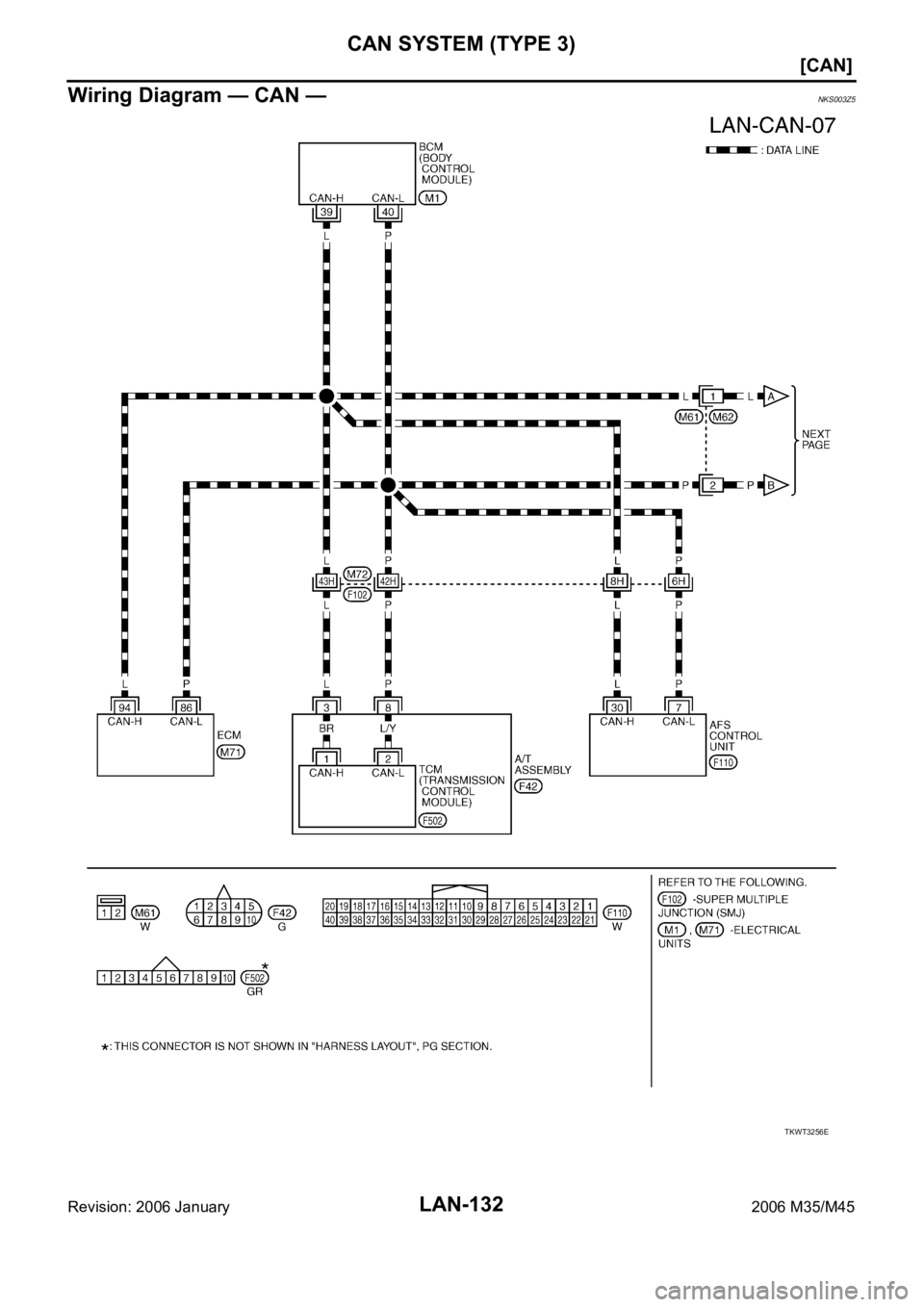

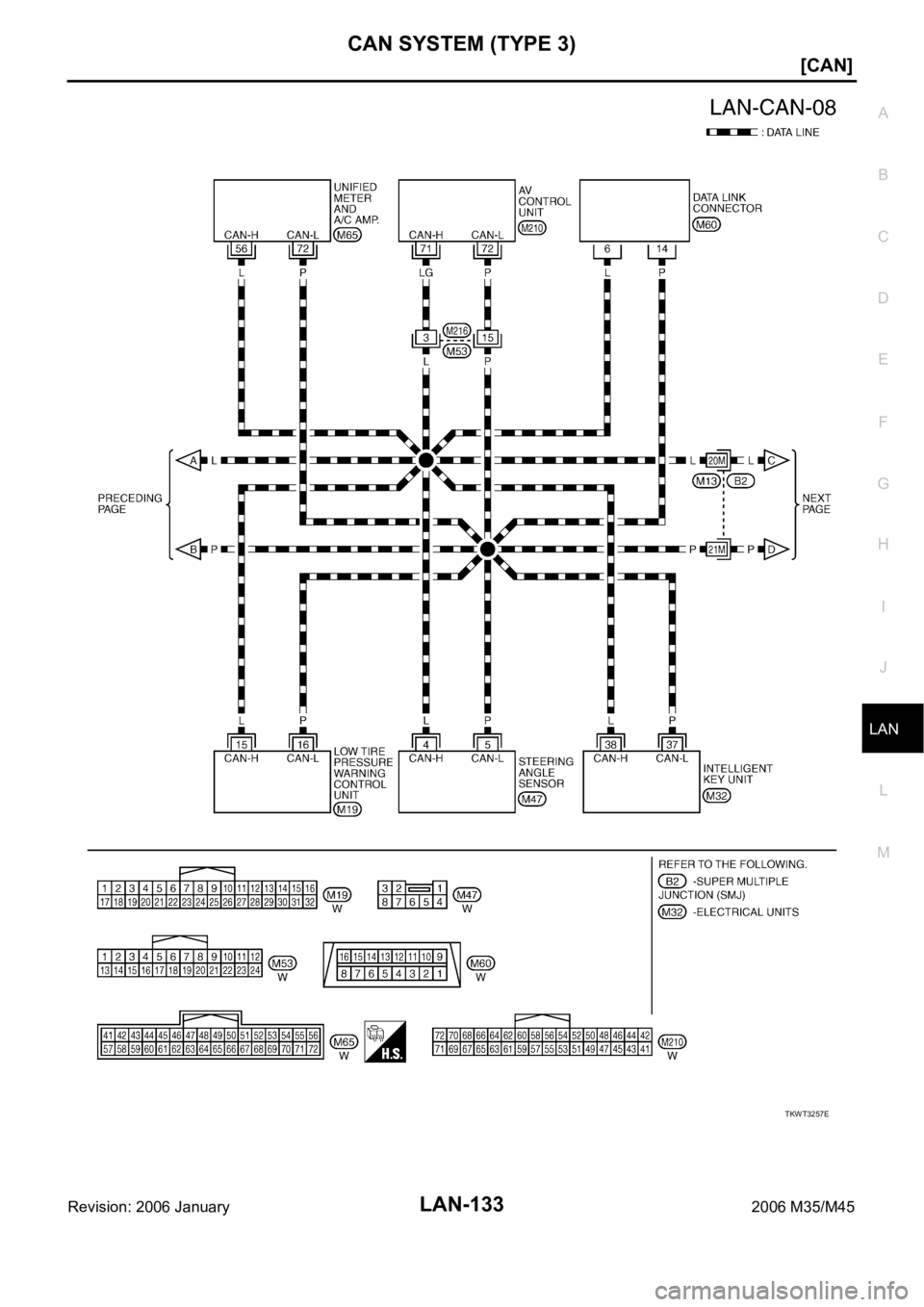

INFINITI M35 2006 Factory Service Manual LAN-132 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS003Z5 TKWT3256E

Page 3802 of 5621

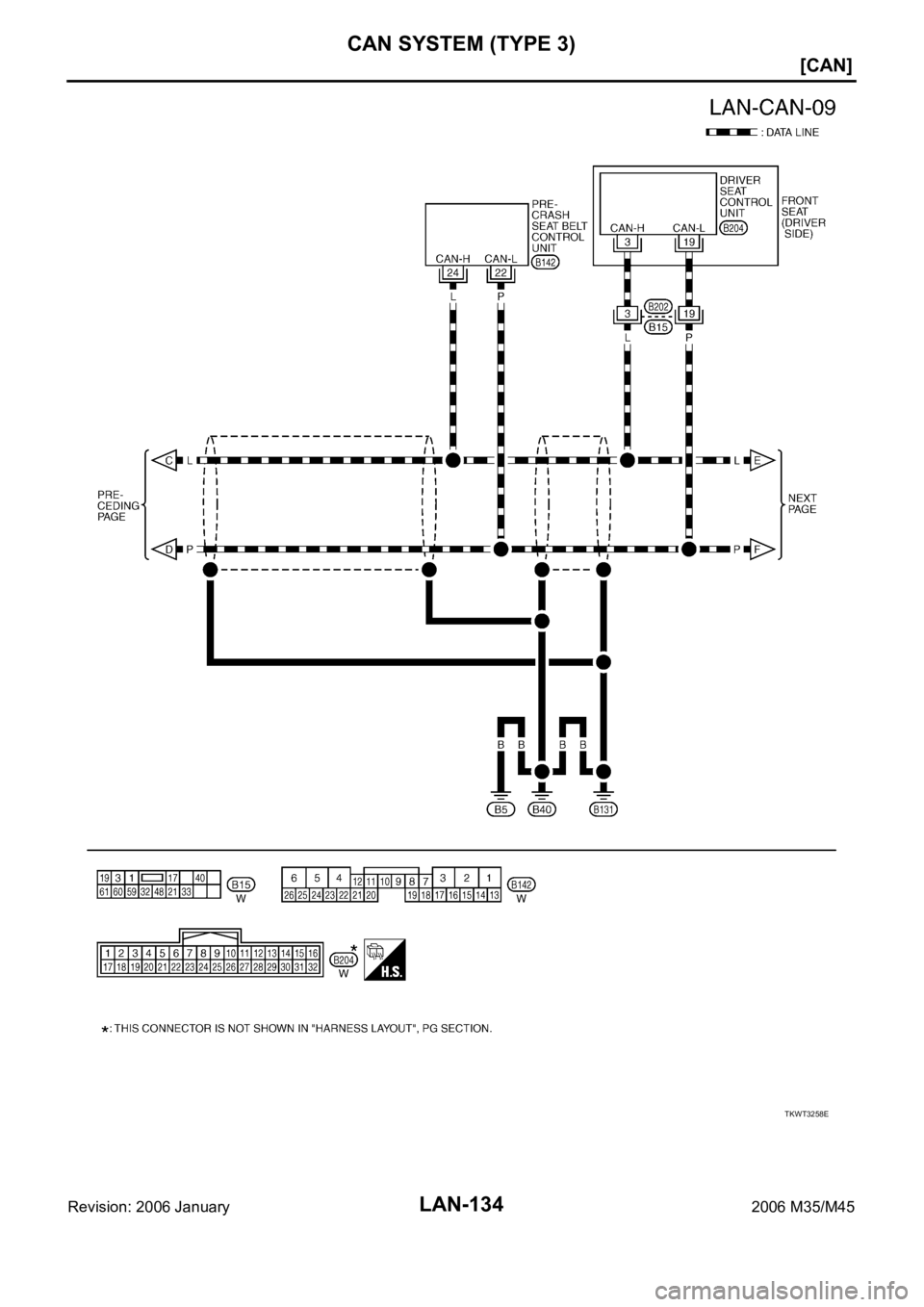

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-133 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 TKWT3257E

Page 3803 of 5621

INFINITI M35 2006 Factory Service Manual LAN-134 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 TKWT3258E

Page 3804 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-135 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 TKWT3259E

Page 3805 of 5621

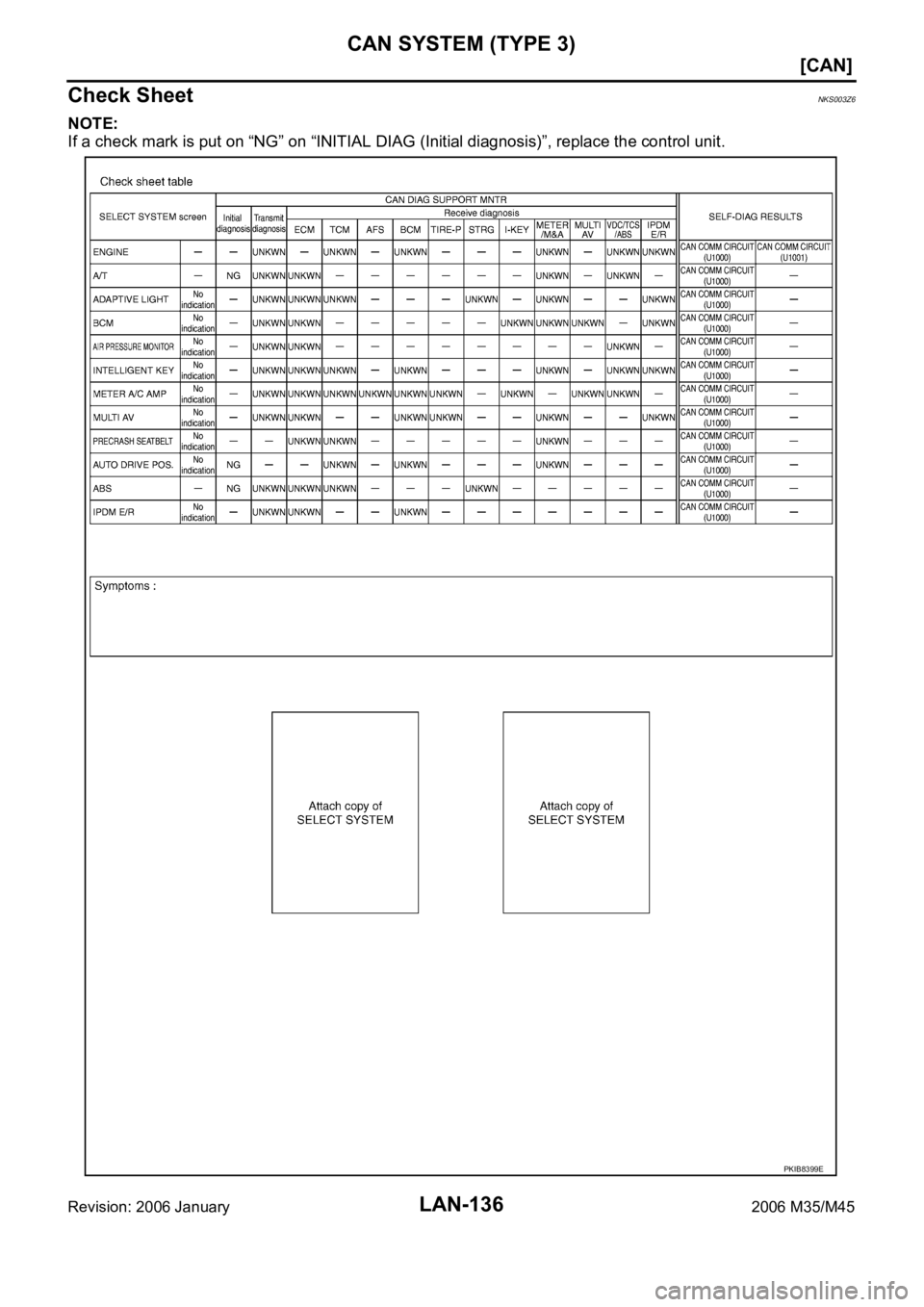

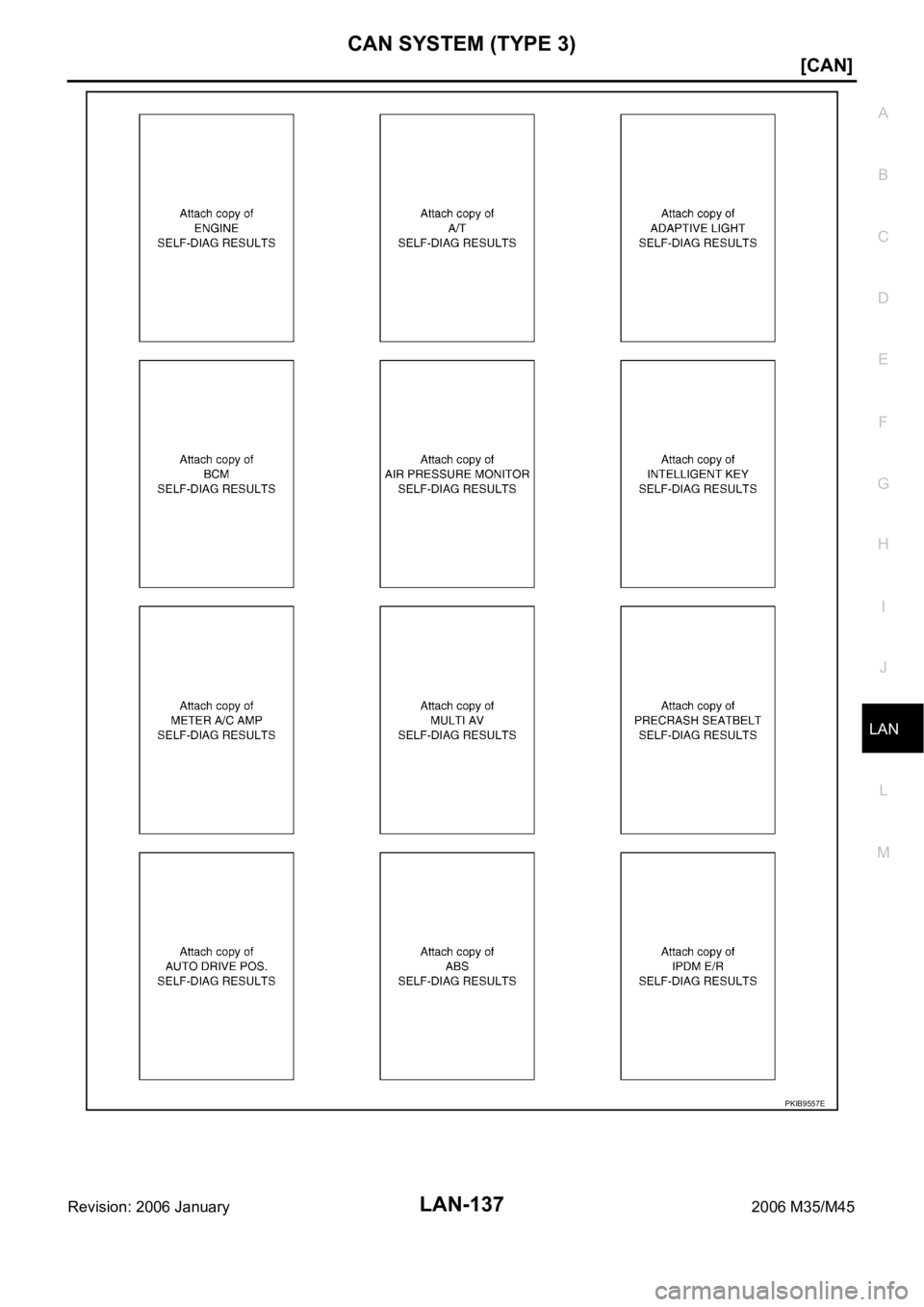

INFINITI M35 2006 Factory Service Manual LAN-136 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 Check SheetNKS003Z6 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. P

Page 3806 of 5621

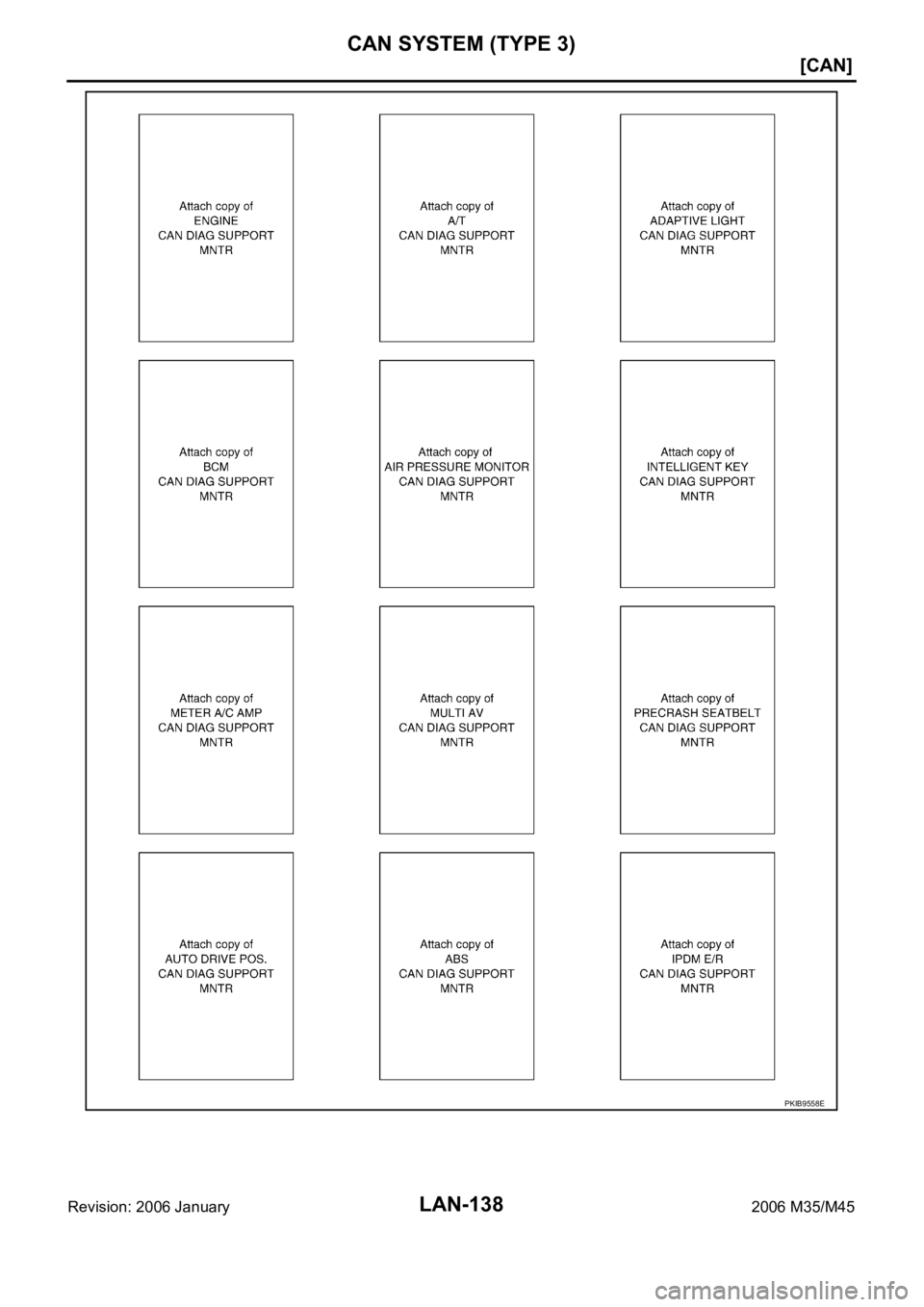

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-137 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9557E

Page 3807 of 5621

INFINITI M35 2006 Factory Service Manual LAN-138 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 PKIB9558E

Page 3808 of 5621

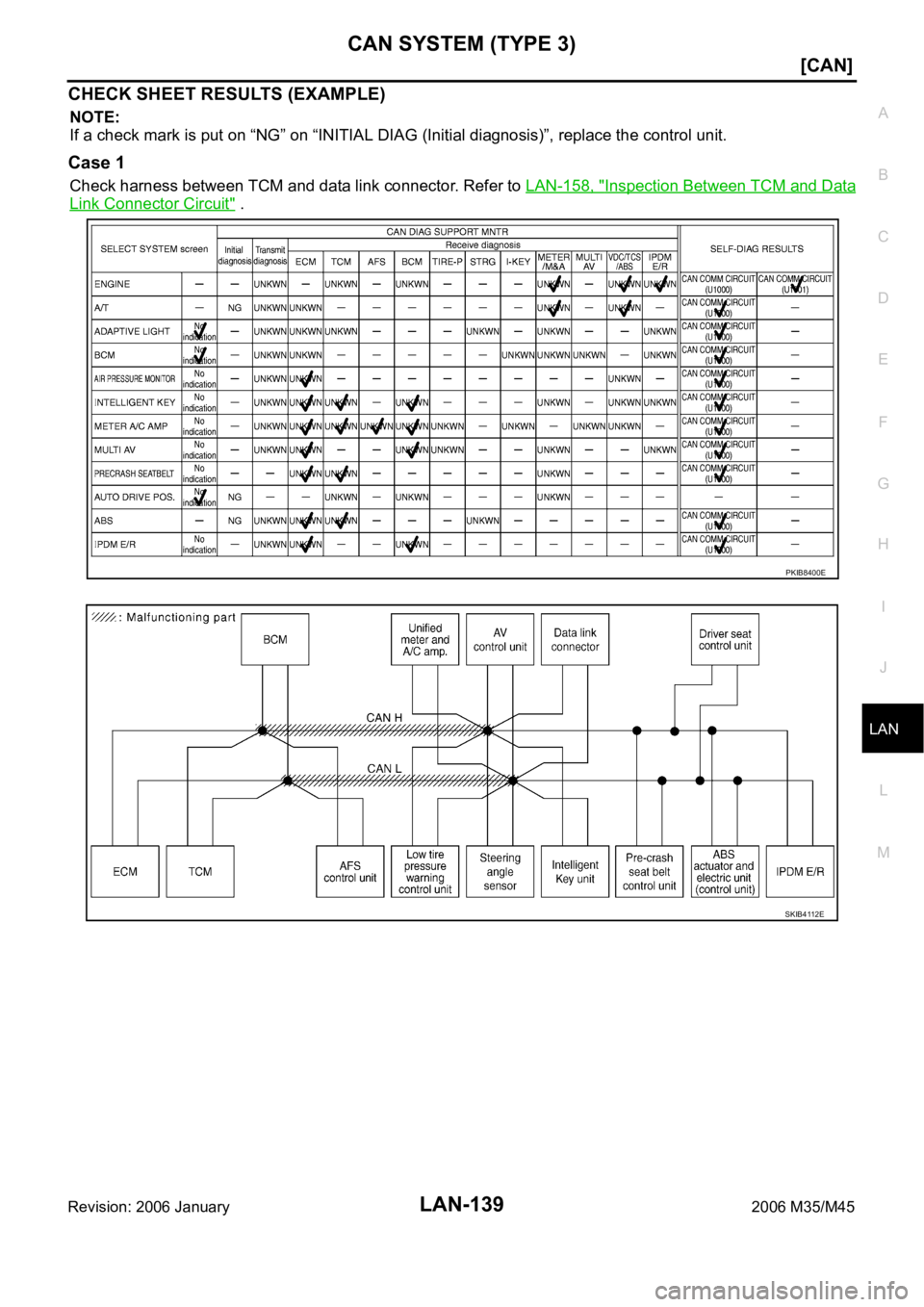

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-139 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagn
