LAN-508
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45

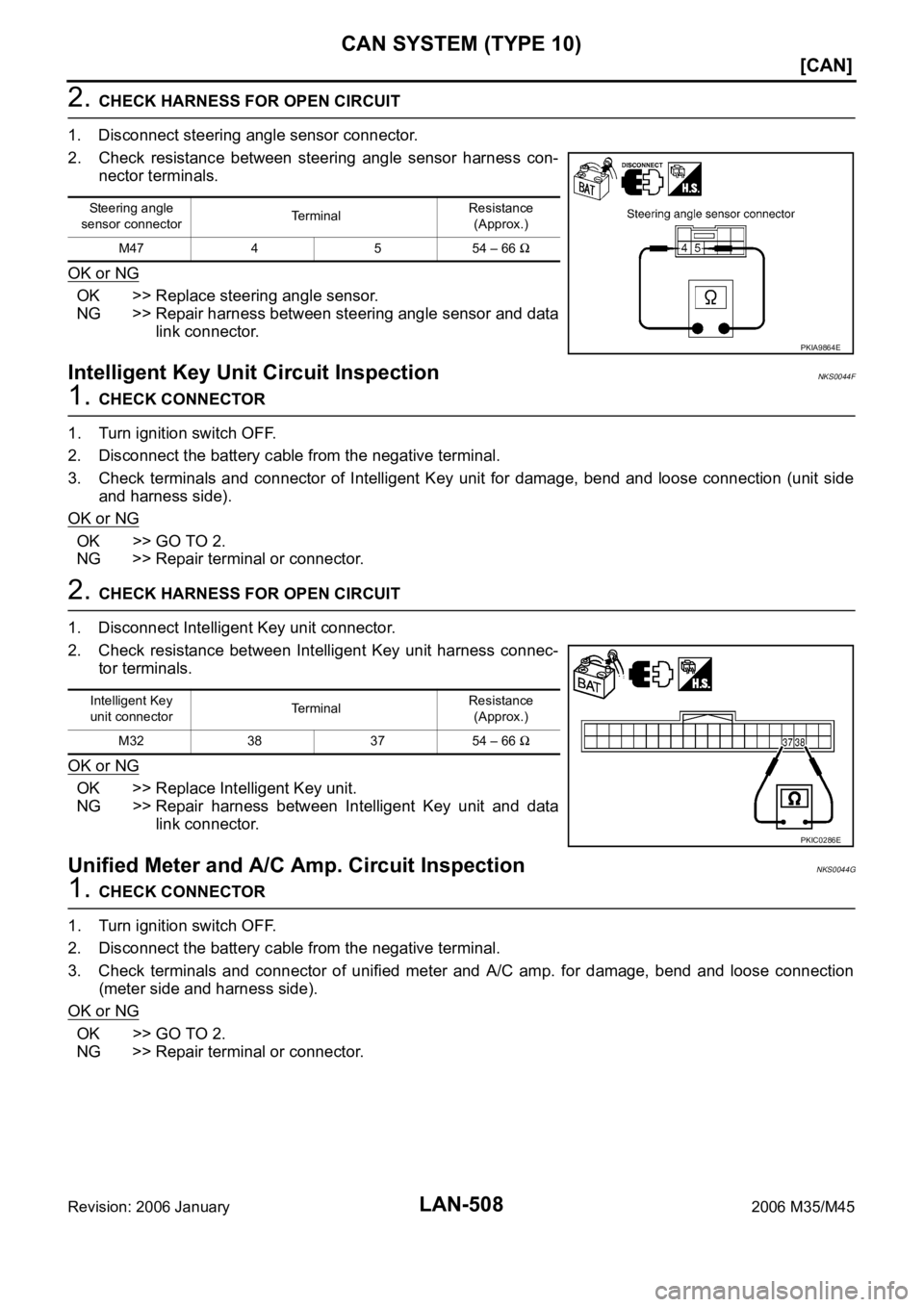

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector terminals.
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Intelligent Key Unit Circuit InspectionNKS0044F
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check resistance between Intelligent Key unit harness connec-
tor terminals.
OK or NG
OK >> Replace Intelligent Key unit.
NG >> Repair harness between Intelligent Key unit and data
link connector.
Unified Meter and A/C Amp. Circuit InspectionNKS0044G
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection
(meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Steering angle
sensor connectorTerminalResistance
(Approx.)
M47 4 5 54 – 66
PKIA9864E
Intelligent Key
unit connectorTerminalResistance
(Approx.)
M32 38 37 54 – 66
PKIC0286E
Page 4178 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-509
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

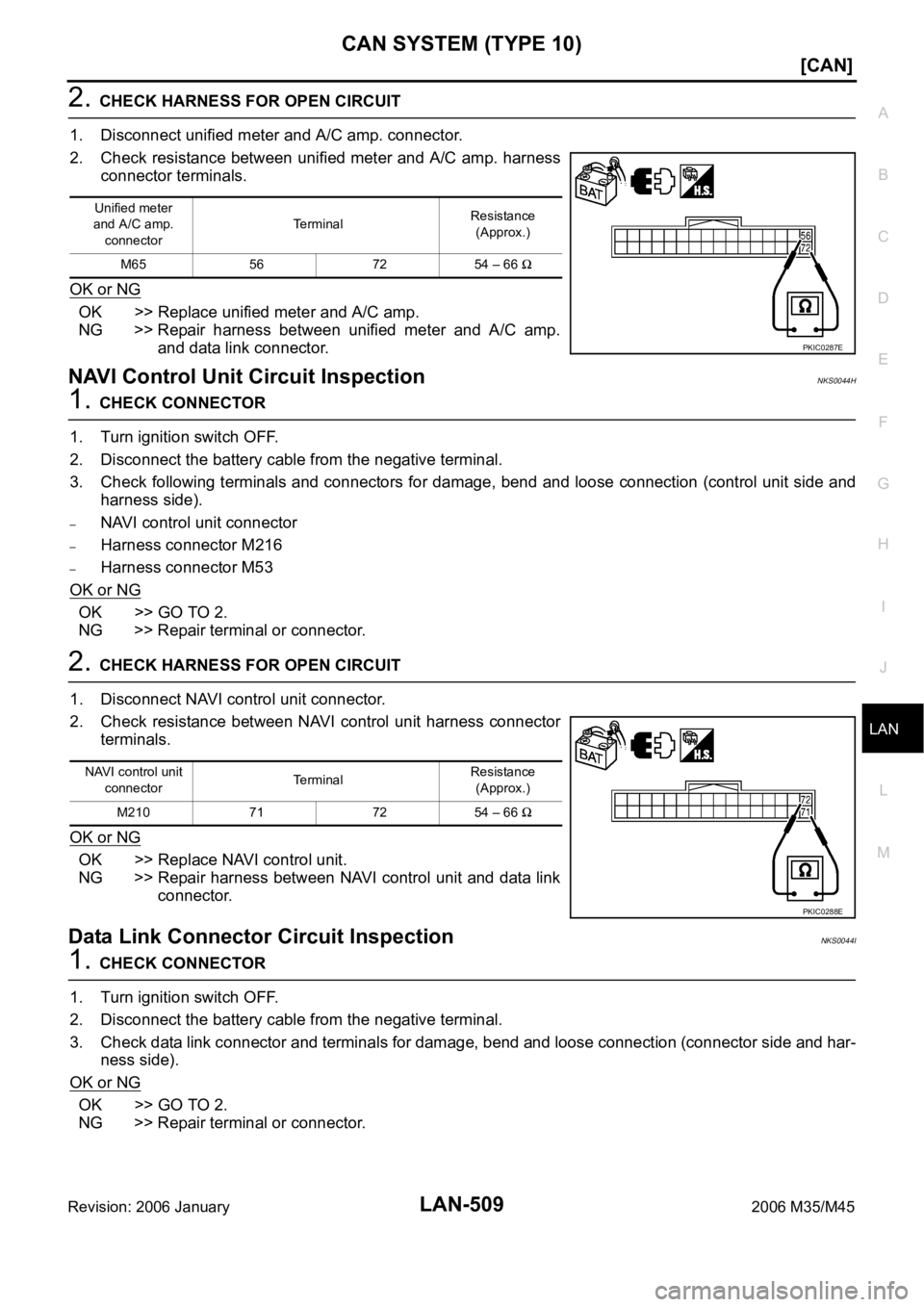

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistan INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-509
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistan](/manual-img/42/57023/w960_57023-4177.png)
CAN SYSTEM (TYPE 10)
LAN-509
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness
connector terminals.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp.
and data link connector.
NAVI Control Unit Circuit InspectionNKS0044H
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–NAVI control unit connector
–Harness connector M216
–Harness connector M53
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect NAVI control unit connector.
2. Check resistance between NAVI control unit harness connector
terminals.
OK or NG
OK >> Replace NAVI control unit.
NG >> Repair harness between NAVI control unit and data link
connector.
Data Link Connector Circuit InspectionNKS0044I
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Unified meter
and A/C amp.
connectorTerminalResistance
(Approx.)
M65 56 72 54 – 66
PKIC0287E
NAVI control unit
connectorTerminalResistance
(Approx.)
M210 71 72 54 – 66
PKIC0288E
Page 4179 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-510
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45

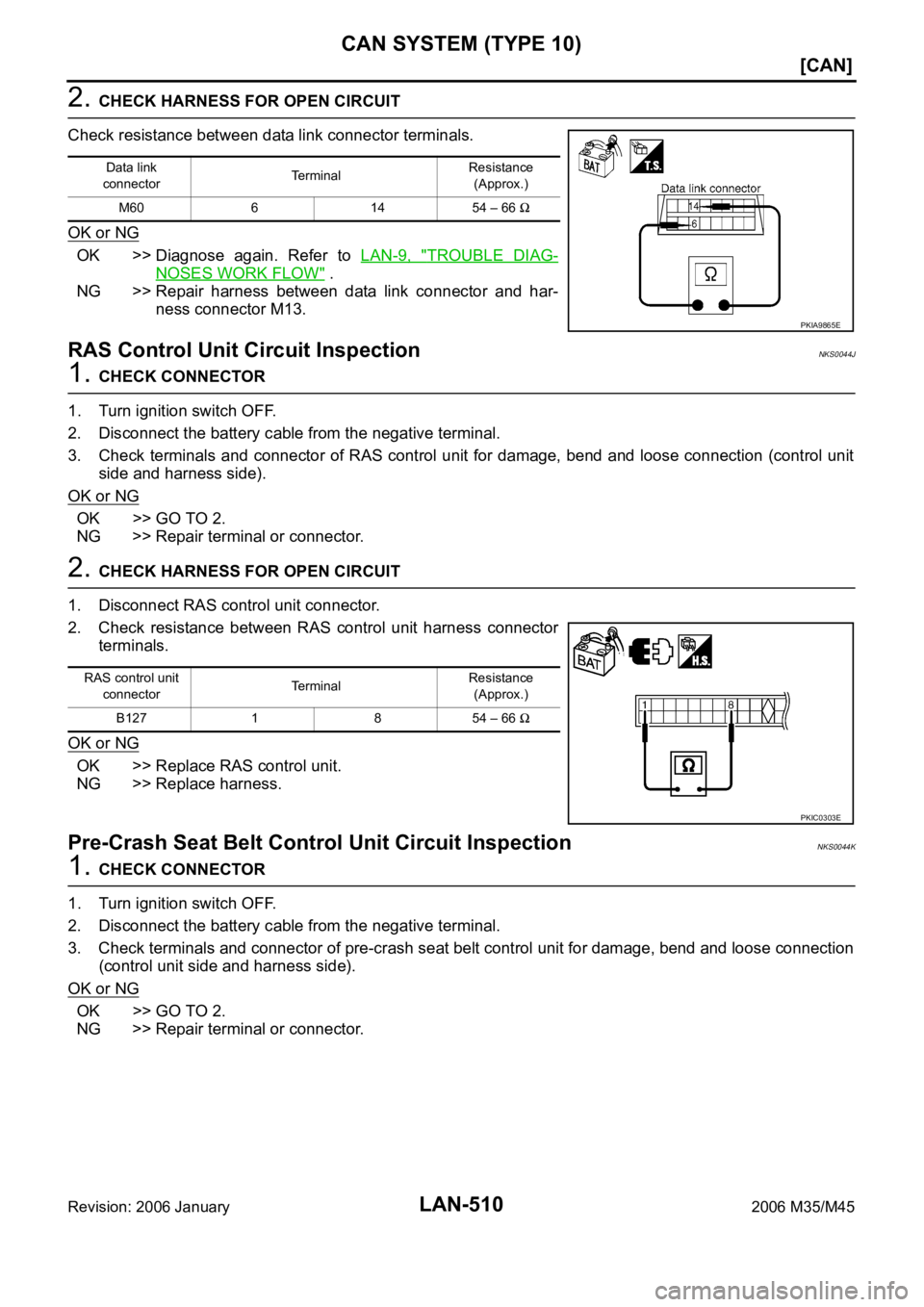

2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector terminals.
OK or NG
OK >> Diagnose again. Refer INFINITI M35 2006 Factory Service Manual LAN-510
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector terminals.
OK or NG
OK >> Diagnose again. Refer](/manual-img/42/57023/w960_57023-4178.png)
LAN-510
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector terminals.
OK or NG
OK >> Diagnose again. Refer to LAN-9, "TROUBLE DIAG-
NOSES WORK FLOW" .
NG >> Repair harness between data link connector and har-
ness connector M13.
RAS Control Unit Circuit InspectionNKS0044J
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of RAS control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect RAS control unit connector.
2. Check resistance between RAS control unit harness connector
terminals.
OK or NG
OK >> Replace RAS control unit.
NG >> Replace harness.
Pre-Crash Seat Belt Control Unit Circuit InspectionNKS0044K
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of pre-crash seat belt control unit for damage, bend and loose connection
(control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Data link
connectorTerminalResistance
(Approx.)
M60 6 14 54 – 66
PKIA9865E
RAS control unit
connectorTerminalResistance
(Approx.)
B127 1 8 54 – 66
PKIC0303E
Page 4180 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-511
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

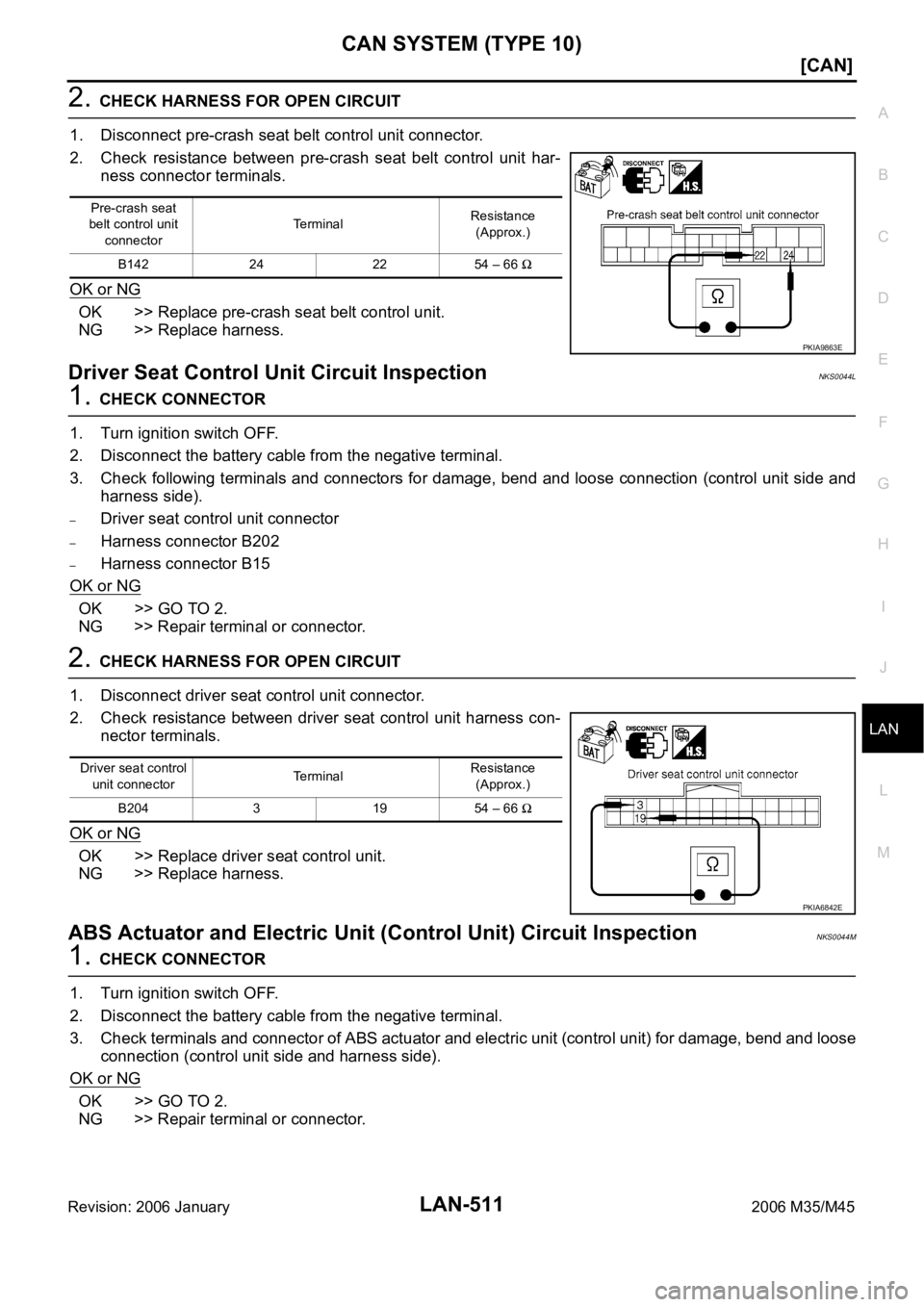

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check r INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-511
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check r](/manual-img/42/57023/w960_57023-4179.png)
CAN SYSTEM (TYPE 10)
LAN-511
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check resistance between pre-crash seat belt control unit har-
ness connector terminals.
OK or NG
OK >> Replace pre-crash seat belt control unit.
NG >> Replace harness.
Driver Seat Control Unit Circuit InspectionNKS0044L
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector B202
–Harness connector B15
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector terminals.
OK or NG
OK >> Replace driver seat control unit.
NG >> Replace harness.
ABS Actuator and Electric Unit (Control Unit) Circuit InspectionNKS0044M
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Pre-crash seat
belt control unit
connectorTerminalResistance
(Approx.)
B142 24 22 54 – 66
PKIA9863E
Driver seat control
unit connectorTerminalResistance
(Approx.)
B204 3 19 54 – 66
PKIA6842E
Page 4181 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-512
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance bet INFINITI M35 2006 Factory Service Manual LAN-512
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance bet](/manual-img/42/57023/w960_57023-4180.png)
LAN-512
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector terminals.
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit
(control unit) and ICC sensor integrated unit.
ICC Sensor Integrated Unit Circuit InspectionNKS0044N
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ICC sensor integrated unit for damage, bend and loose connection (unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor integrated unit connector.
2. Check resistance between ICC sensor integrated unit harness
connector terminals.
OK or NG
OK >> Replace ICC sensor integrated unit.
NG >> Repair harness between ICC sensor integrated unit and
IPDM E/R.
IPDM E/R Circuit InspectionNKS0044O
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
ABS actuator and
electric unit
(control unit)
connectorTerminalResistance
(Approx.)
E30 35 14 54 – 66
PKIC0289E
ICC sensor
integrated unit
connectorTerminalResistance
(Approx.)
E61 3 6 54 – 66
PKIC0300E
Page 4182 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-513
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-513
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM](/manual-img/42/57023/w960_57023-4181.png)
CAN SYSTEM (TYPE 10)
LAN-513
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector termi-
nals.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and ICC sensor inte-
grated unit.
CAN Communication Circuit InspectionNKS0044P
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–AFS control unit
–BCM
–LDW camera unit
–Low tire pressure warning control unit
–Steering angle sensor
–Intelligent Key unit
–Unified meter and A/C amp.
–NAVI control unit
–RAS control unit
–Pre-crash seat belt control unit
–Driver seat control unit
–ABS actuator and electric unit (control unit)
–ICC sensor integrated unit
–IPDM E/R
–Between ECM and A/T assembly
–Between ECM and AFS control unit
–Between ECM and NAVI control unit
–Between ECM and driver seat control unit
–Between ECM and IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
IPDM E/R
connectorTerminalResistance
(Approx.)
E9 49 50 108 – 132
PKIC0290E
Page 4183 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-514
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M72
–BCM connector
INFINITI M35 2006 Factory Service Manual LAN-514
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M72
–BCM connector](/manual-img/42/57023/w960_57023-4182.png)
LAN-514
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M72
–BCM connector
–LDW camera unit connector
–Harness connector M61

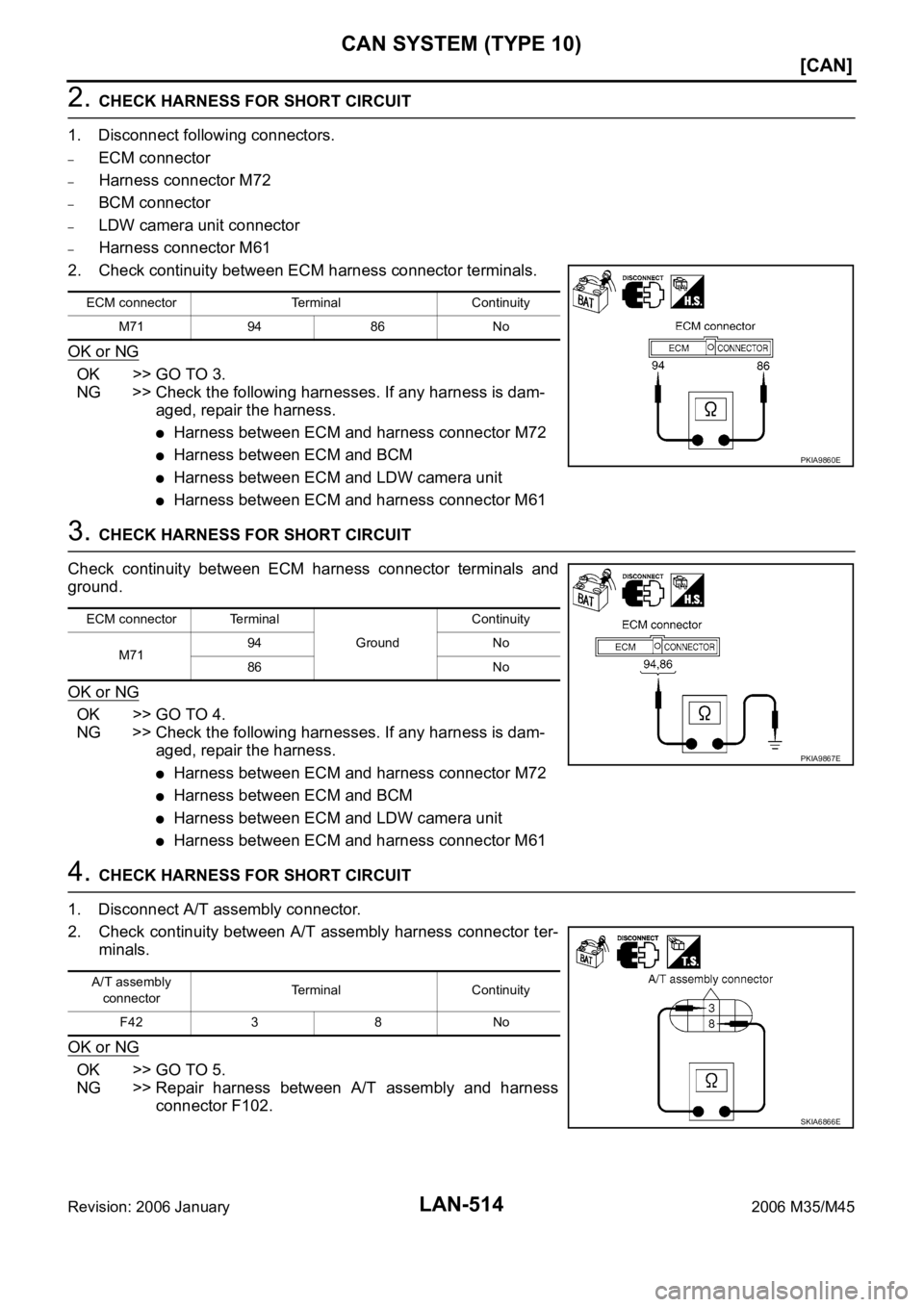

2. Check continuity between ECM harness connector terminals.
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ECM and harness connector M72
Harness between ECM and BCM
Harness between ECM and LDW camera unit
Harness between ECM and harness connector M61
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector terminals and
ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between ECM and harness connector M72
Harness between ECM and BCM
Harness between ECM and LDW camera unit
Harness between ECM and harness connector M61
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector ter-
minals.
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
ECM connector Terminal Continuity
M71 94 86 No
PKIA9860E
ECM connector Terminal
GroundContinuity
M7194 No
86 No
PKIA9867E
A/T assembly
connectorTerminal Continuity
F42 3 8 No
SKIA6866E
Page 4184 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-515
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector termi INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10)
LAN-515
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector termi](/manual-img/42/57023/w960_57023-4183.png)
CAN SYSTEM (TYPE 10)
LAN-515
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
5. CHECK HARNESS FOR SHORT CIRCUIT

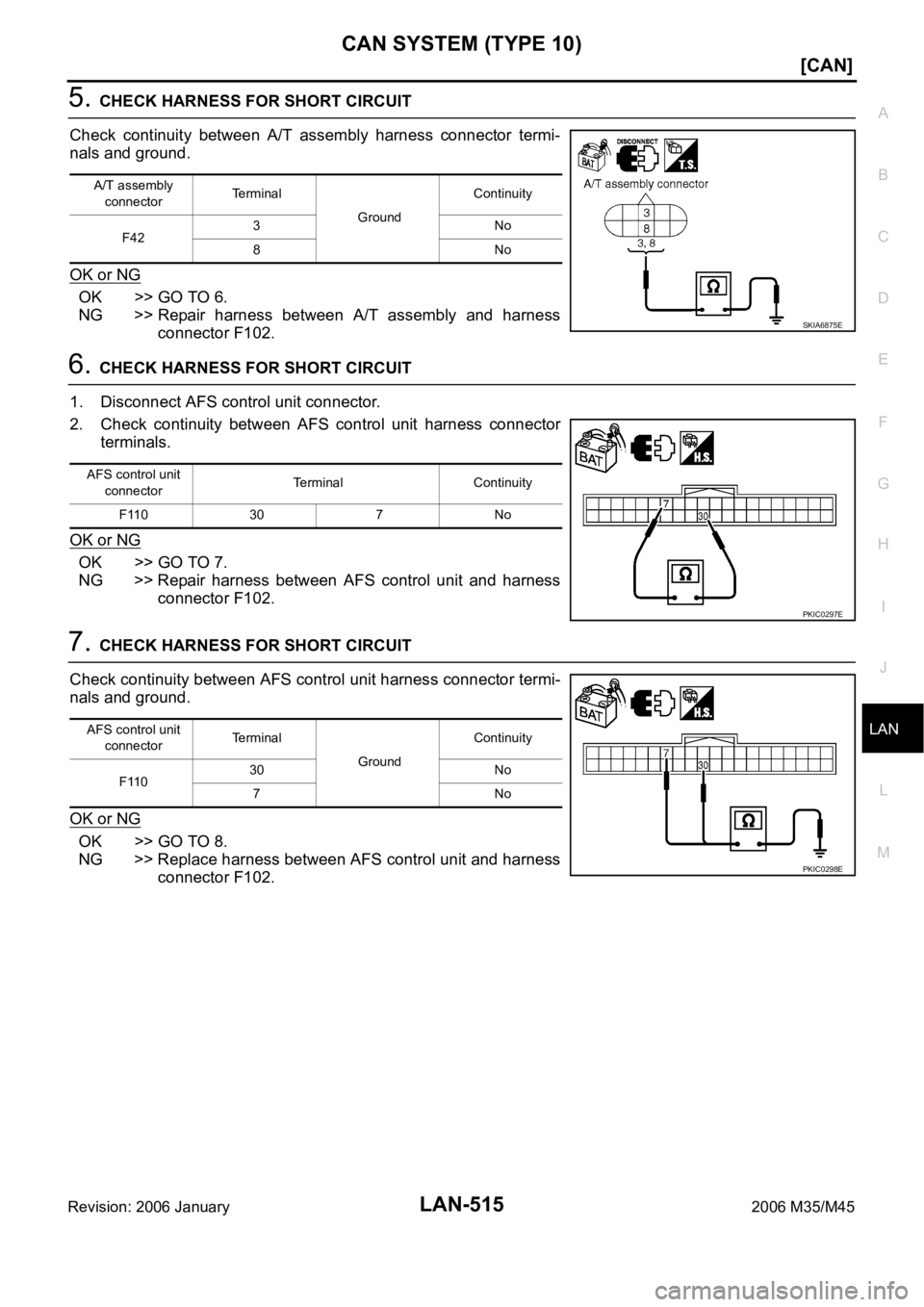

Check continuity between A/T assembly harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect AFS control unit connector.
2. Check continuity between AFS control unit harness connector
terminals.
OK or NG
OK >> GO TO 7.
NG >> Repair harness between AFS control unit and harness
connector F102.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between AFS control unit harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace harness between AFS control unit and harness
connector F102.
A/T assembly
connectorTerminal
GroundContinuity
F423No
8No
SKIA6875E
AFS control unit
connectorTerminal Continuity
F110 30 7 No
PKIC0297E
AFS control unit
connectorTerminal
GroundContinuity
F11030 No
7No
PKIC0298E
