Page 4241 of 5621

INFINITI M35 2006 Factory Service Manual LAN-572 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the cont

Page 4242 of 5621

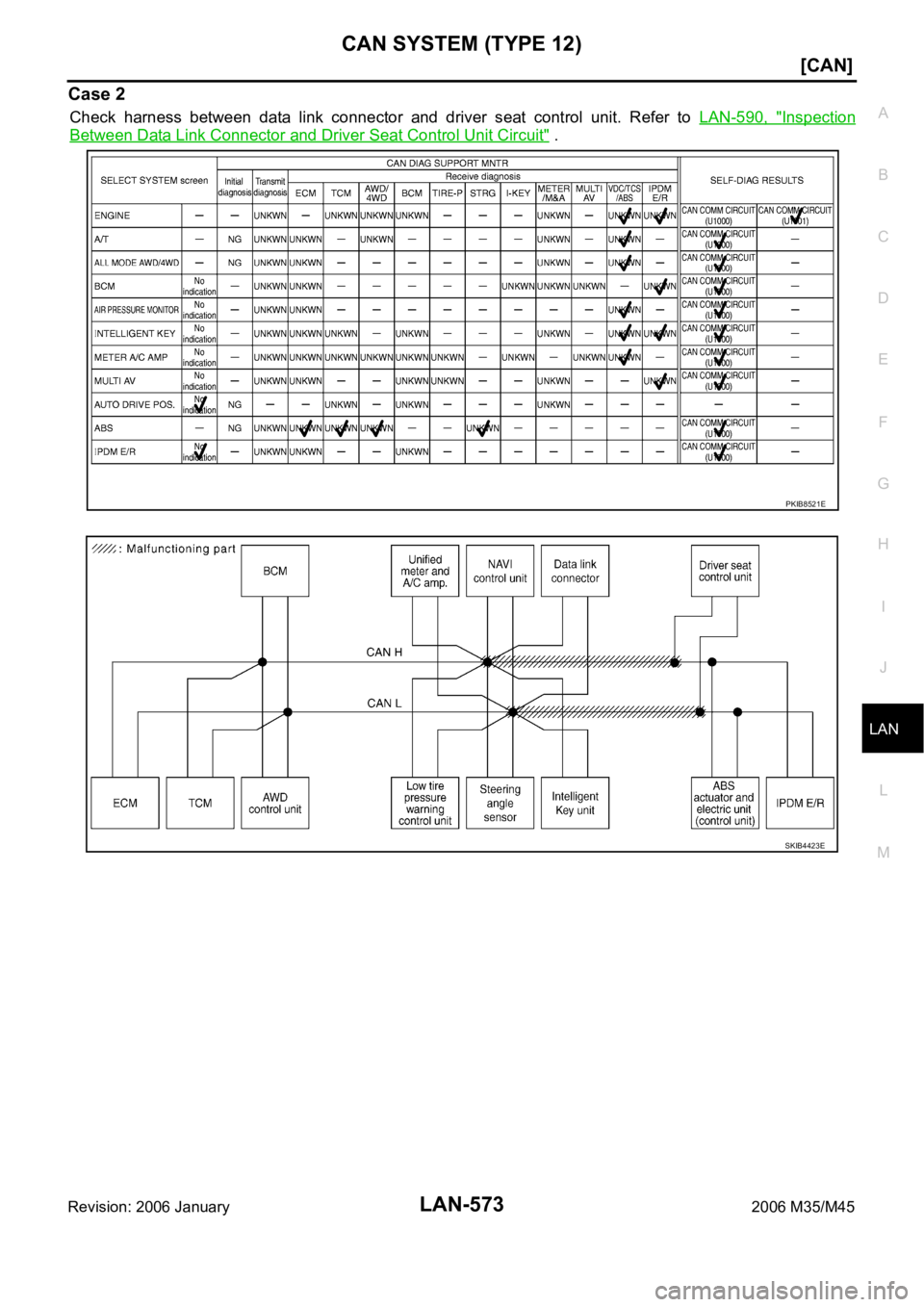

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-573 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and driver seat control unit. Refer to LAN

Page 4243 of 5621

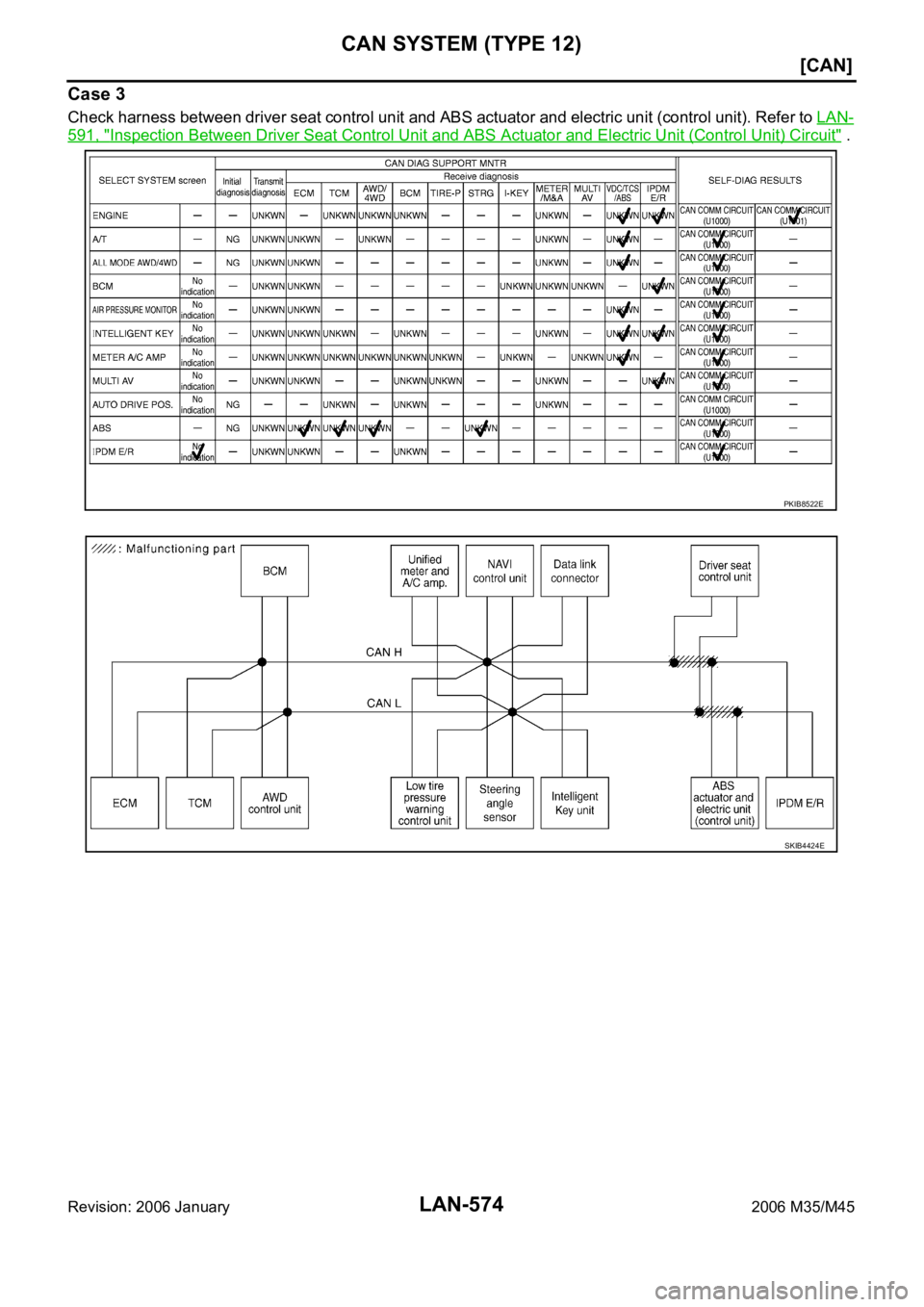

INFINITI M35 2006 Factory Service Manual LAN-574 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 Case 3 Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN- 591, "I

Page 4244 of 5621

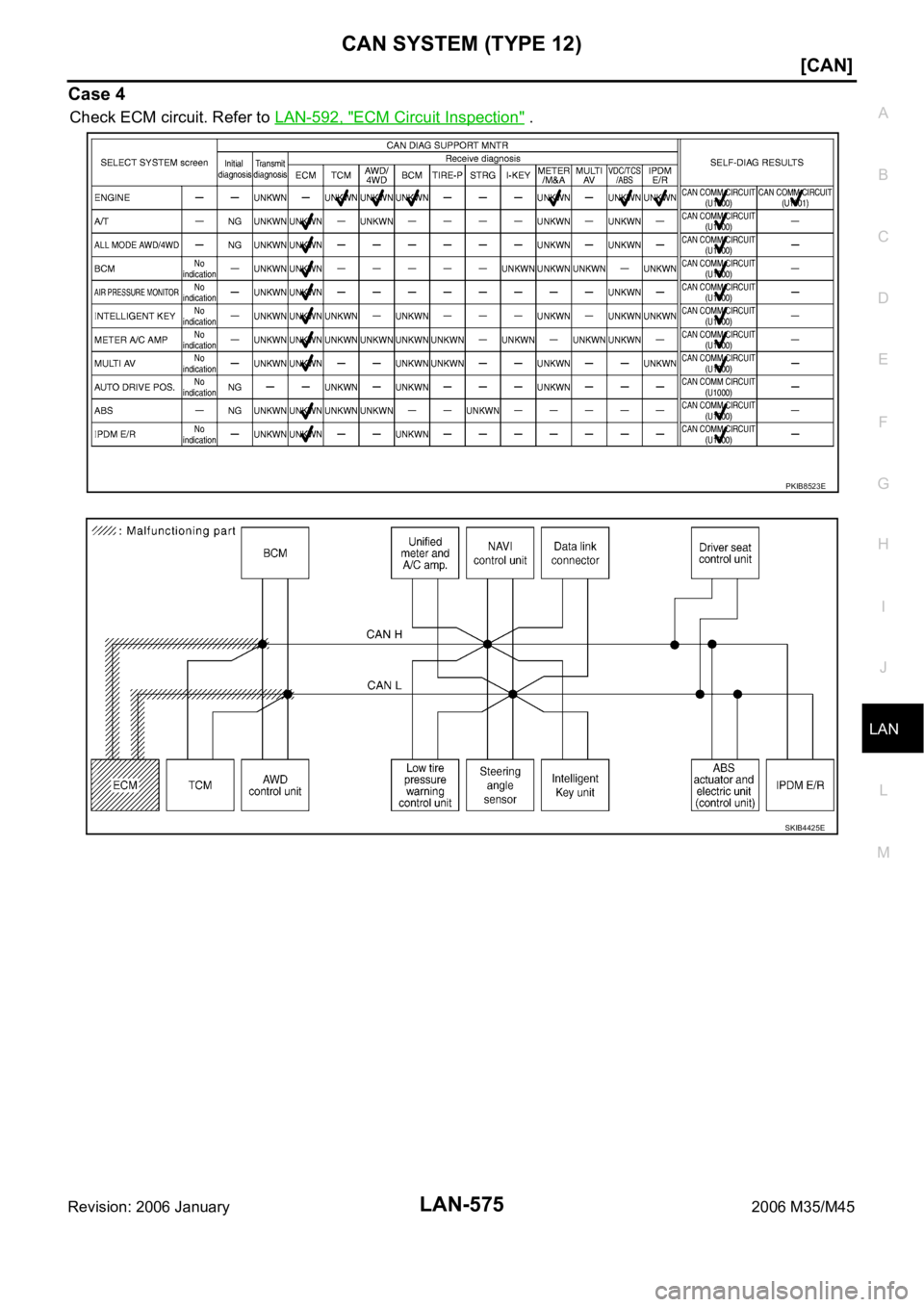

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-575 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check ECM circuit. Refer to LAN-592, "ECM Circuit Inspection" . PKIB8523E SKIB4425E

Page 4245 of 5621

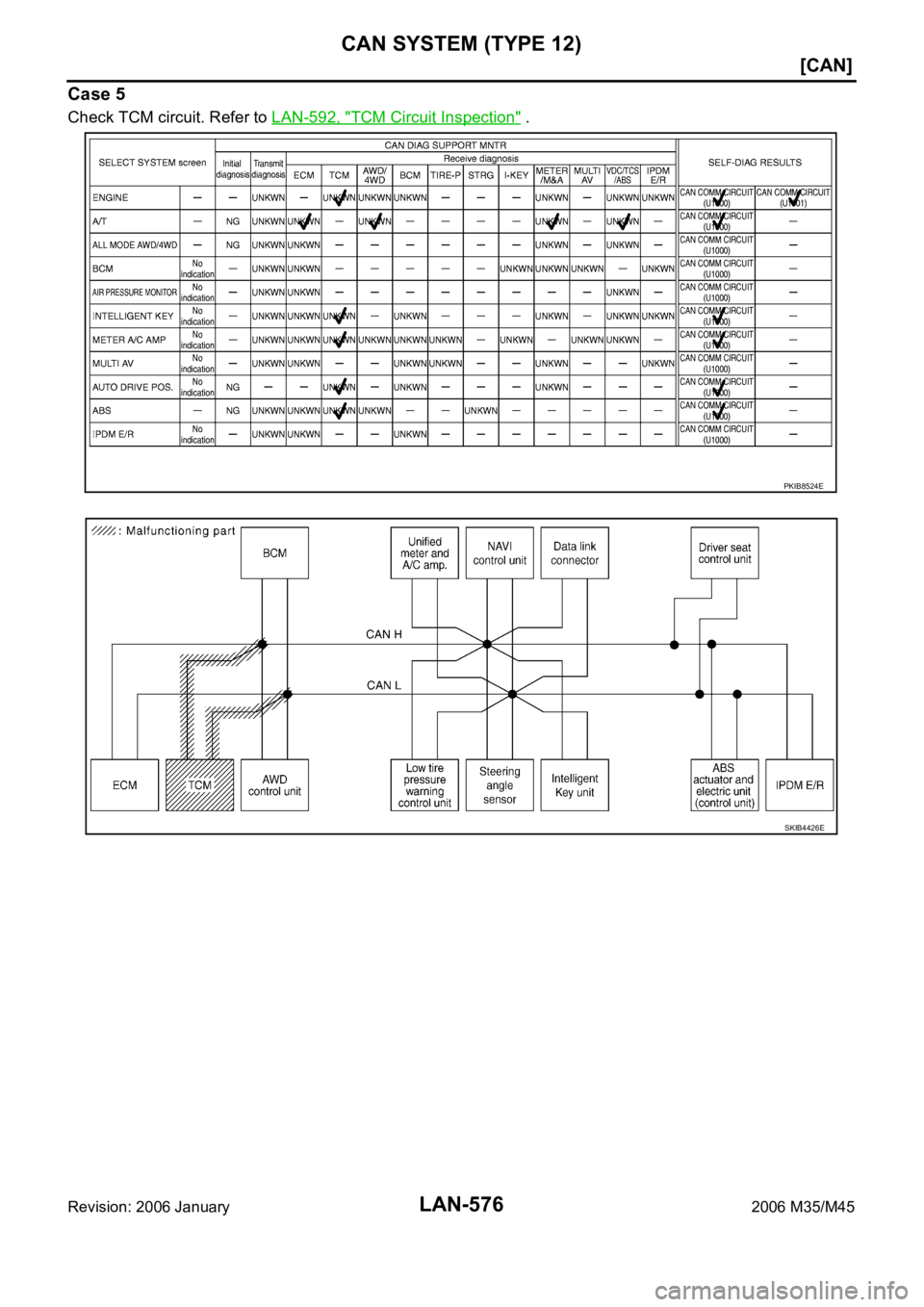

INFINITI M35 2006 Factory Service Manual LAN-576 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 Case 5 Check TCM circuit. Refer to LAN-592, "TCM Circuit Inspection" . PKIB8524E SKIB4426E

Page 4246 of 5621

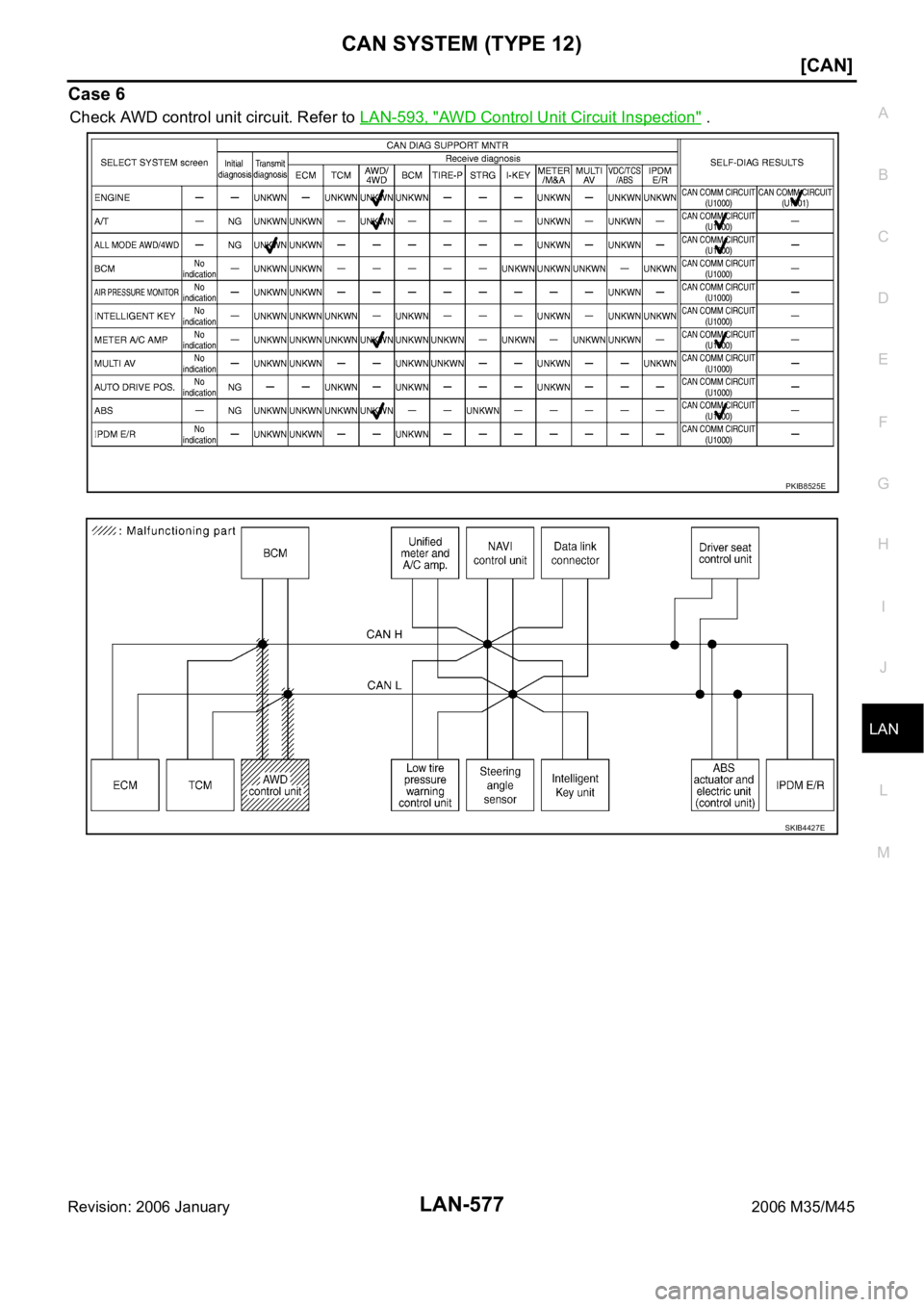

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-577 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check AWD control unit circuit. Refer to LAN-593, "AWD Control Unit Circuit Inspection"

Page 4247 of 5621

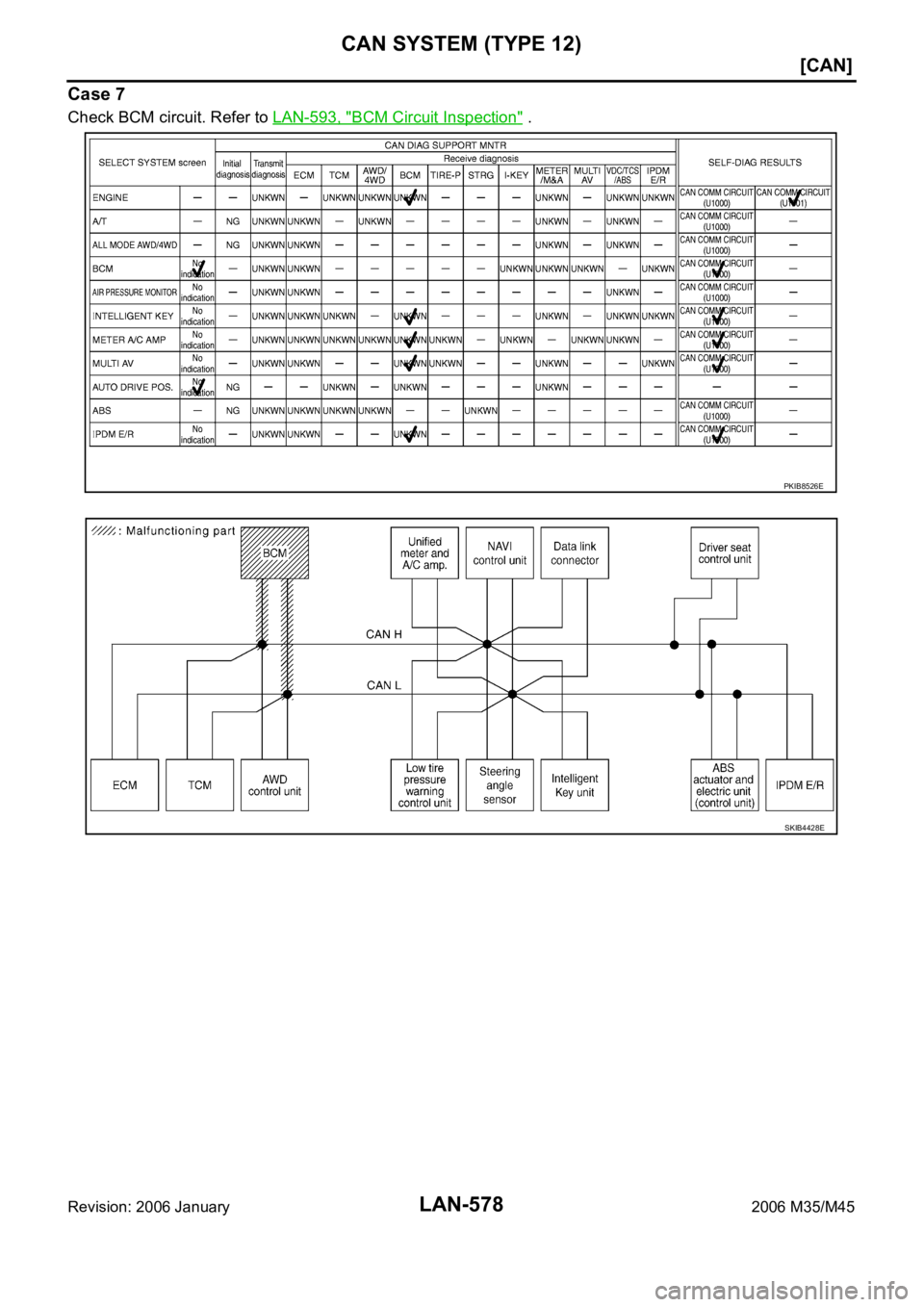

INFINITI M35 2006 Factory Service Manual LAN-578 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 Case 7 Check BCM circuit. Refer to LAN-593, "BCM Circuit Inspection" . PKIB8526E SKIB4428E

Page 4248 of 5621

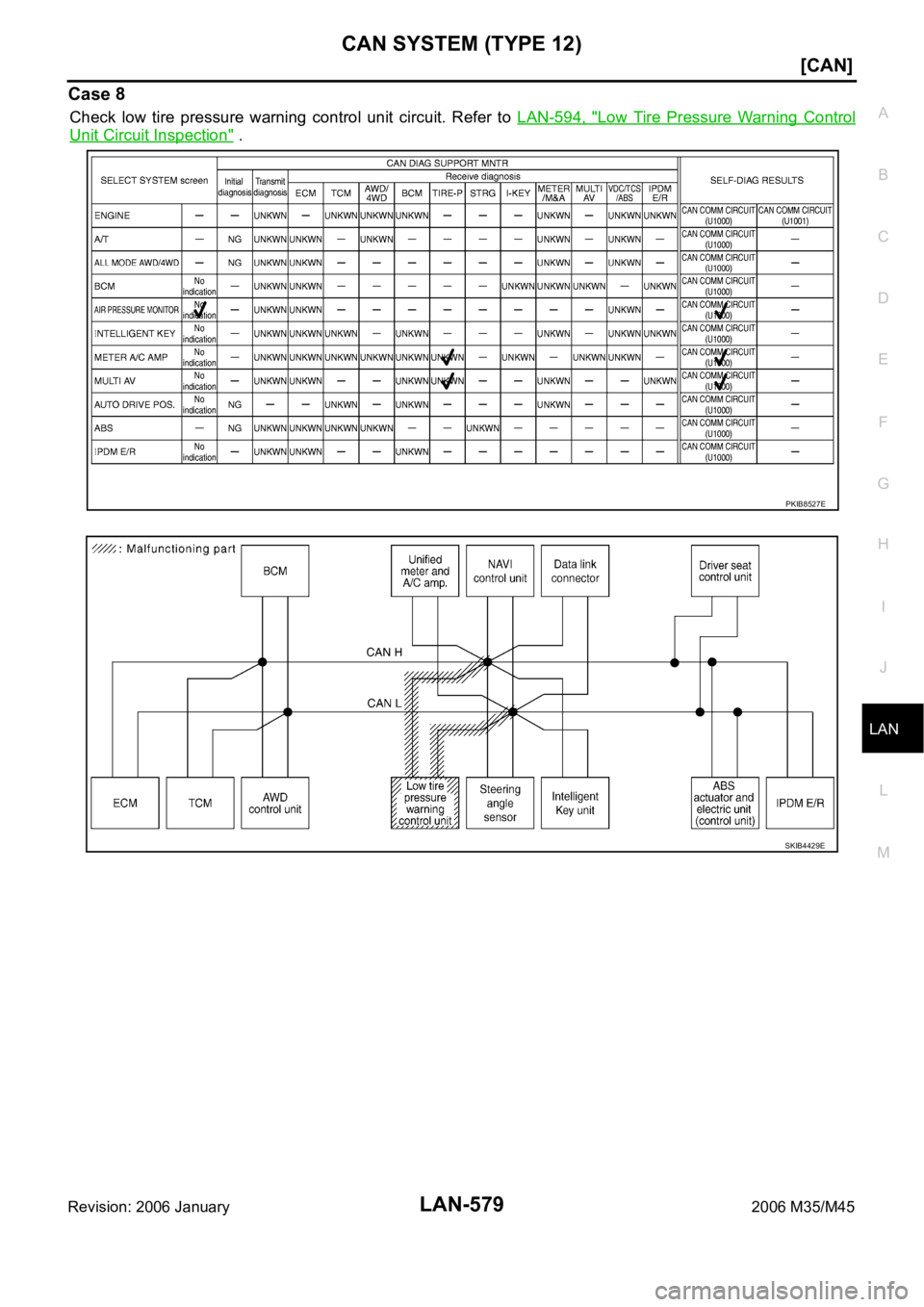

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-579 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check low tire pressure warning control unit circuit. Refer to LAN-594, "Low Tire
