SUNSHADE
Revision: 2006 January2006 M35/M45
SUNSHADEPFP:97580
Component Parts and Harness Connector LocationNIS0024Y

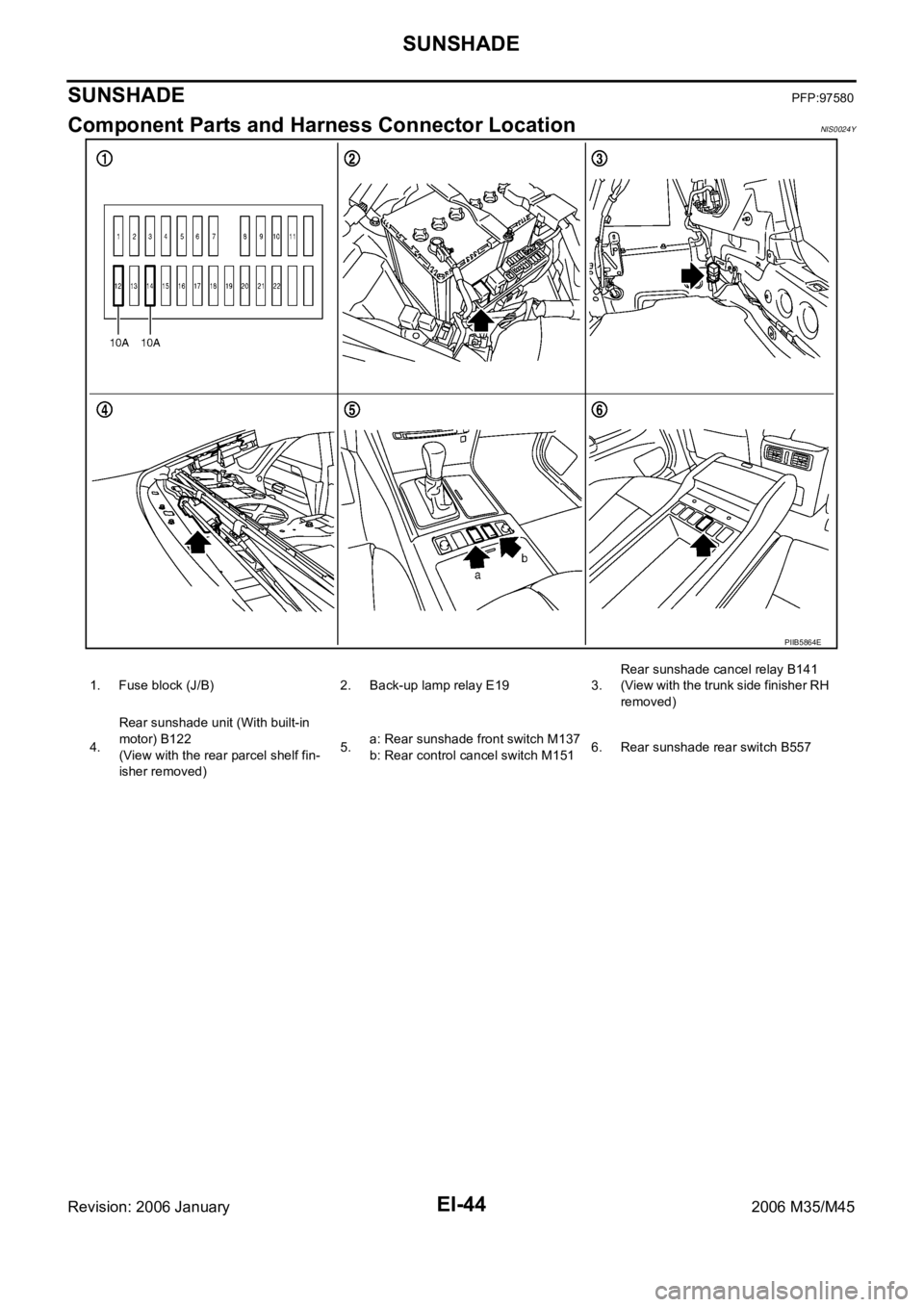

PIIB5864E
1. Fuse block (J/B) 2. Back-up lamp relay E19 3.Rear sunshade cancel relay B141
(View with the trunk side finisher RH
removed)
4.Rear sunshade unit (With built-in
motor) B122
(View with the rear parcel shelf fin-
isher removed)5.a: Rear sunshade front switch M137
b: Rear control cancel switch M1516. Rear sunshade rear switch B557
Page 3050 of 5621
SUNSHADE
EI-45
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45

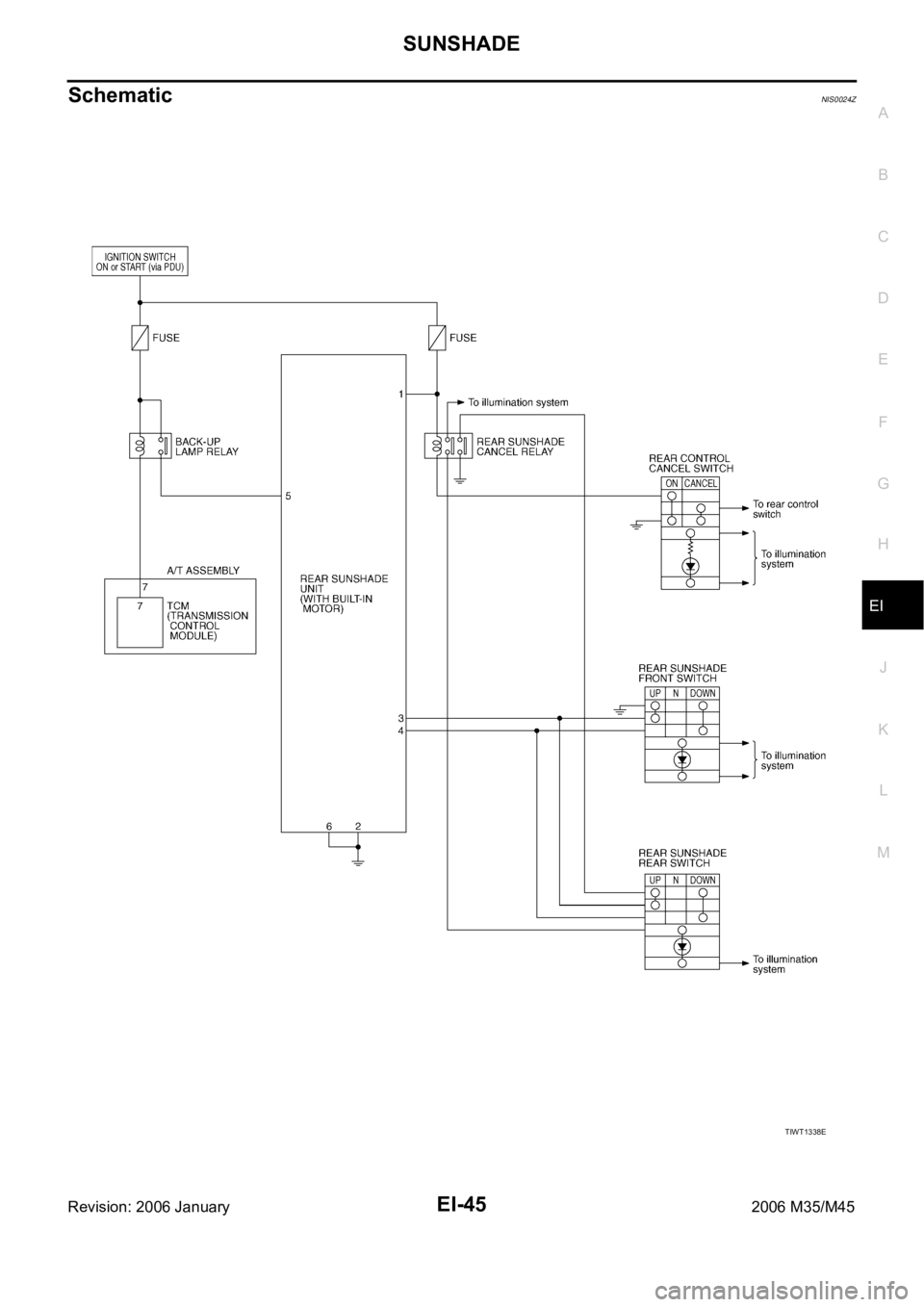

SchematicNIS0024Z
TIWT1338E
Page 3051 of 5621
EI-46
SUNSHADE
Revision: 2006 January2006 M35/M45

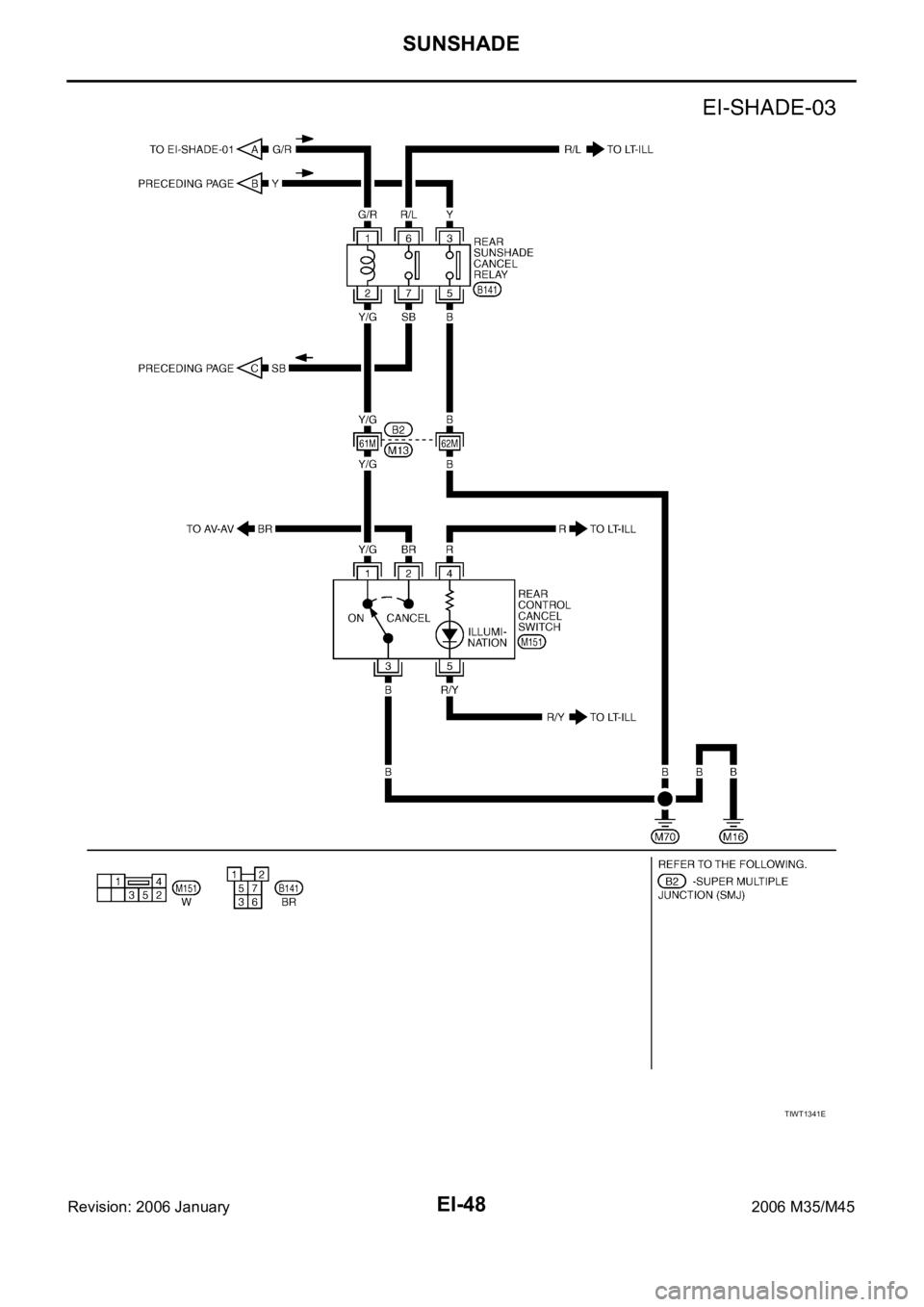

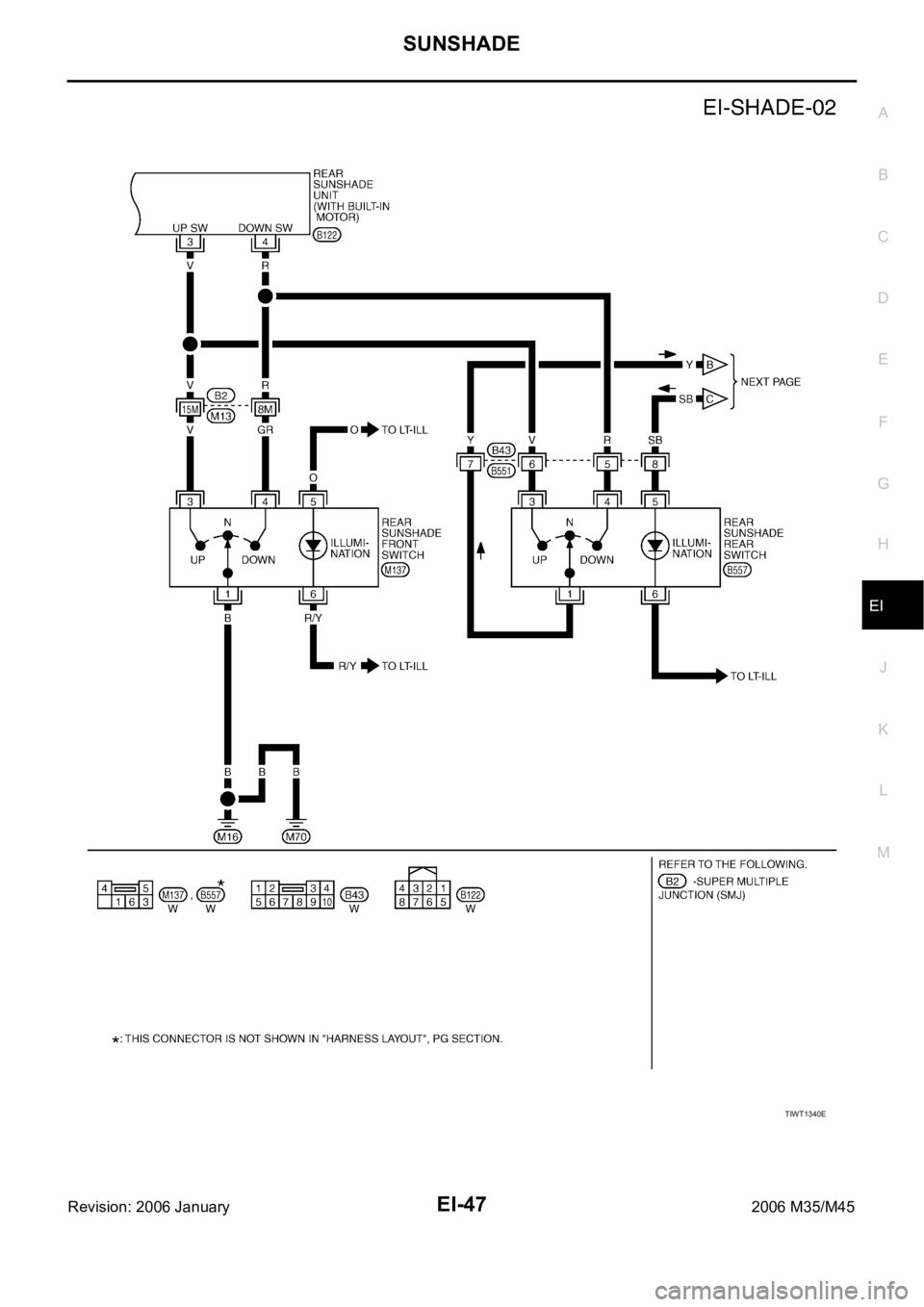

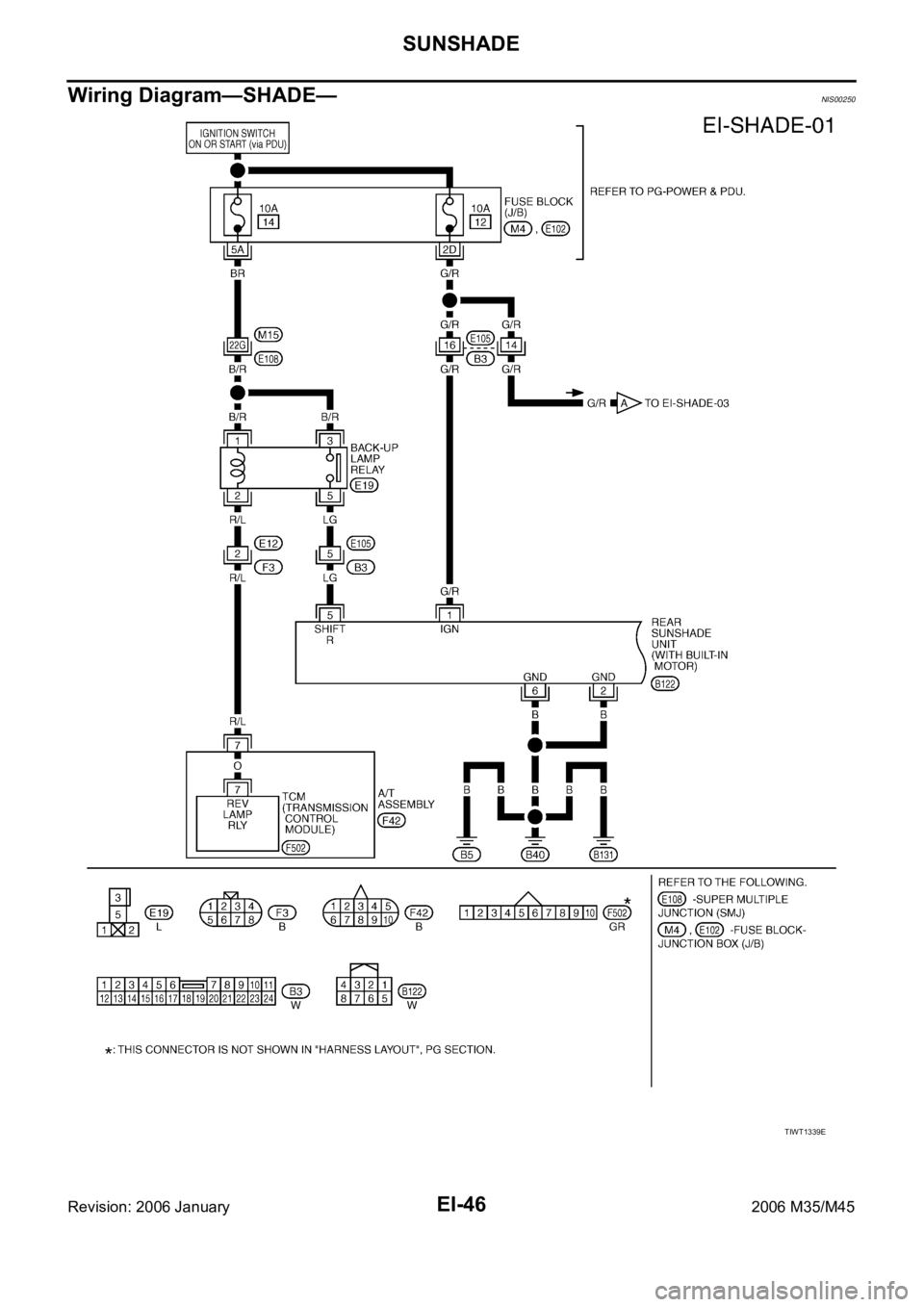

Wiring Diagram—SHADE—NIS00250
TIWT1339E
Page 3052 of 5621
SUNSHADE
EI-47
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
TIWT1340E
Page 3053 of 5621
EI-48
SUNSHADE
Revision: 2006 January2006 M35/M45
TIWT1341E
Page 3054 of 5621
SUNSHADE
EI-49
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
Terminals and Reference Values for Rear Sunshade UnitNIS00251
TerminalWire
colorItem ConditionVoltage (V)
(Approx.)
1 G/R Ignition switch (ON or START) Ignition switch is ON or START position Battery voltage
2 B Ground — 0
3 V Rear sunshade UP signalRear sunshade front or rear switch operates UP
position and rear control cancel switch operates ON
position0
Other than above Battery voltage
4 R Rear sunshade DOWN signalRear sunshade front or rear switch operates DOWN
position and rear control cancel switch operates ON
position0
Other than above Battery voltage
5 LG Shift R position signalWhen A/T shift lever is R position Battery voltage
When A/T shift lever is other than R position 0
6 B Ground — 0
Page 3055 of 5621

EI-50
FLOOR TRIM
Revision: 2006 January2006 M35/M45
FLOOR TRIMPFP:74902
Removal and InstallationNIS00252
REMOVAL
1. Remove front seat (LH/RH) and rear seat cushion. Refer to SE-167, "Removal and Installation" and SE-
176, "Removal and Installation" .
2. Remove accelerator pedal pad. Refer to ACC-3, "
ACCELERATOR CONTROL SYSTEM" .
3. Remove rear floor grille and foot grille. Refer to ATC-144, "
DUCTS AND GRILLES" .
4. Remove front seat belt floor anchor bolt (LH/RH). Refer to SB-30, "
Removal and Installation of Front Seat
Belt" .
5. Remove center console. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
6. Remove instrument driver lower panel and instrument passenger lower cover. Refer to IP-10, "
INSTRU-
MENT PANEL ASSEMBLY" .
7. Remove floor hook.
8. Remove dash side finisher, front kicking plate inner, center pillar lower garnish, and rear kicking plate
inner, front body side welt (LH/RH), rear body side welt (LH/RH), rear wheel house garnish. Refer to EI-
37, "BODY SIDE TRIM" .

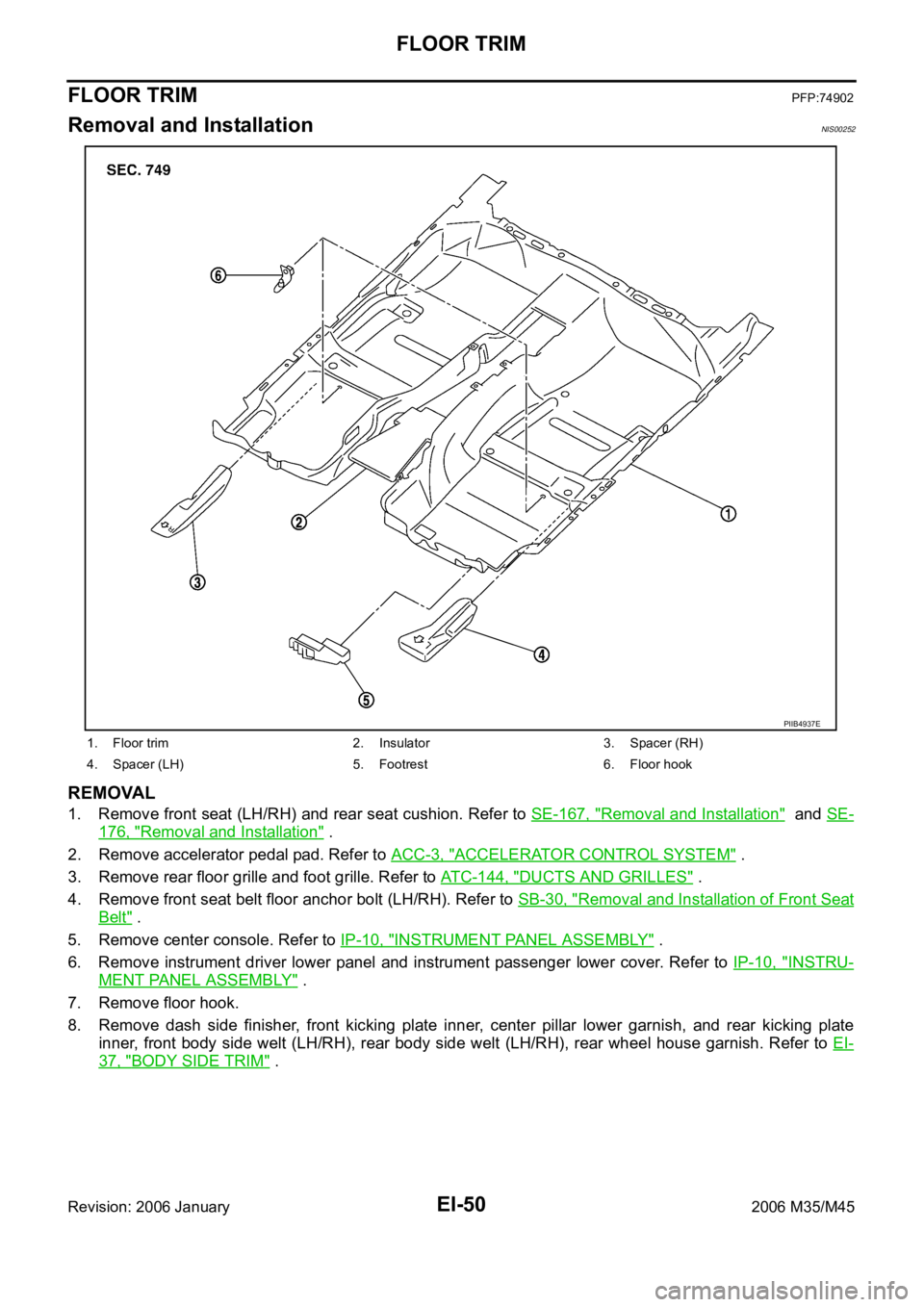

1. Floor trim 2. Insulator 3. Spacer (RH)
4. Spacer (LH) 5. Footrest 6. Floor hook
PIIB4937E
Page 3056 of 5621
FLOOR TRIM
EI-51
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
9. Remove floor carpet from carpet clips and remove floor carpet.
INSTALLATION
Install in the reverse order of removal.
PIIA7125E
