Page 1129 of 5621

INFINITI M35 2006 Factory Service Manual BL-190 DOOR Revision: 2006 January2006 M35/M45 DOORPFP:80100 Fitting AdjustmentNIS001Z9 FRONT DOOR Longitudinal Clearance and Surface Height Adjustment At Front End Loosen the hinge mounting bolts. Ra

Page 1130 of 5621

INFINITI M35 2006 Factory Service Manual DOOR BL-191 C D E F G H J K L MA B BL Revision: 2006 January2006 M35/M45 2. Accessing from inside the vehicle, loosen the mounting nuts. Open the rear door, and raise the rear door at rear end to adju

Page 1131 of 5621

INFINITI M35 2006 Factory Service Manual BL-192 DOOR Revision: 2006 January2006 M35/M45 3. Remove the door-side hinge mounting nuts, then remove the door assembly. INSTALLATION Install in the reverse order of removal. Removal and Ins

Page 1132 of 5621

INFINITI M35 2006 Factory Service Manual DOOR BL-193 C D E F G H J K L MA B BL Revision: 2006 January2006 M35/M45 3. Remove the door-side hinge mounting nuts, and remove the door assembly. INSTALLATION Install in the reverse order of

Page 1133 of 5621

INFINITI M35 2006 Factory Service Manual BL-194 DOOR Revision: 2006 January2006 M35/M45 Door WeatherstripNIS001ZC FRONT DOOR REMOVAL 1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-191, "Removal and Installatio

Page 1134 of 5621

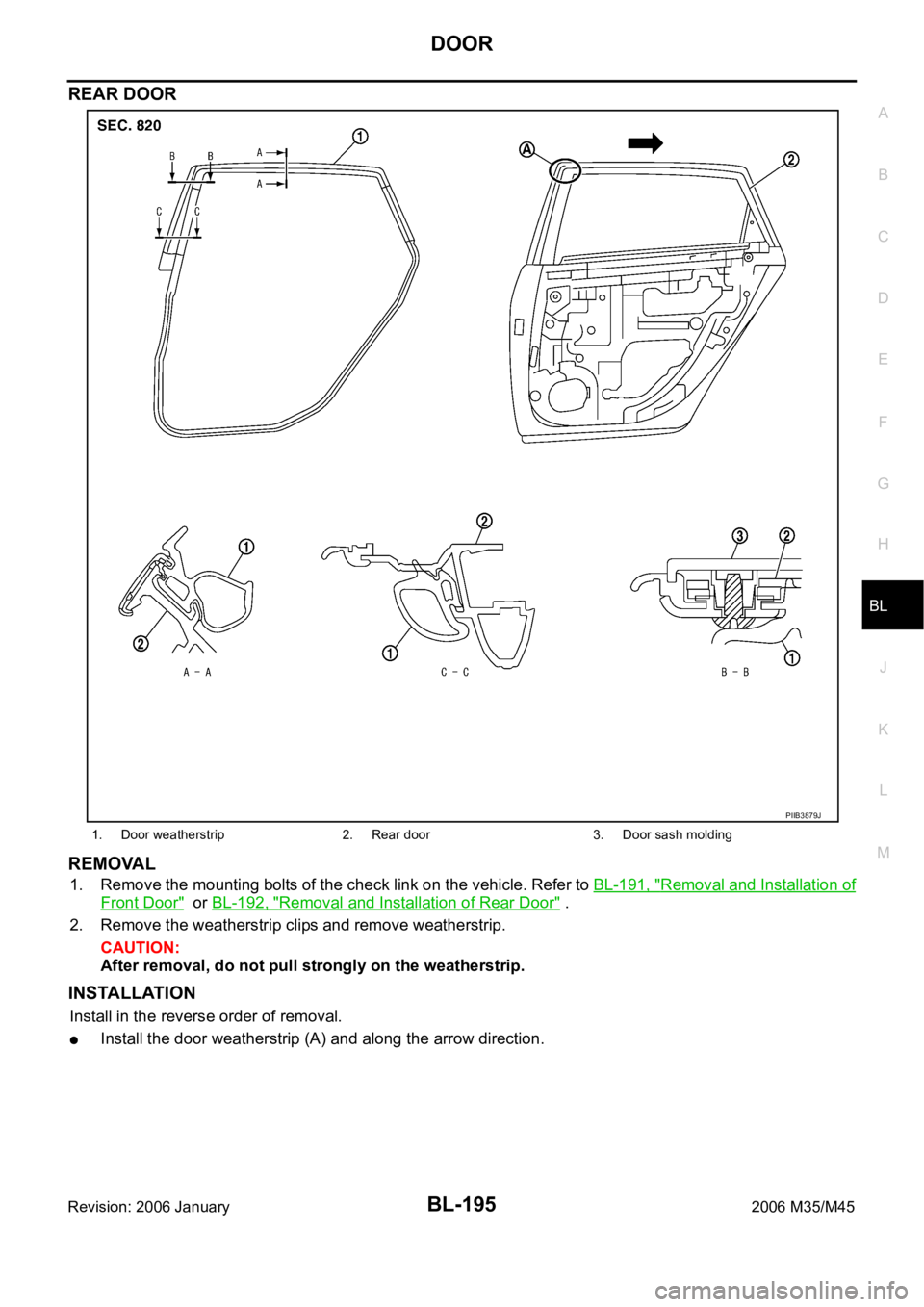

INFINITI M35 2006 Factory Service Manual DOOR BL-195 C D E F G H J K L MA B BL Revision: 2006 January2006 M35/M45 REAR DOOR REMOVAL 1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-191, "Removal and Installation

Page 1135 of 5621

INFINITI M35 2006 Factory Service Manual BL-196 FRONT DOOR LOCK Revision: 2006 January2006 M35/M45 FRONT DOOR LOCKPFP:80502 Component StructureNIS001ZD Removal and InstallationNIS001ZE REMOVAL 1. Remove the front door finisher. Refer toEI-34

Page 1136 of 5621

INFINITI M35 2006 Factory Service Manual FRONT DOOR LOCK BL-197 C D E F G H J K L MA B BL Revision: 2006 January2006 M35/M45 CAUTION: Do not forcibly remove the TORX bolts (T30). 5. Disconnect door antenna and door request switch conn
